700 Ton, Ajax, mechanical forging press, 8" stroke, 27-3/8" Shut Height, 45 SPM

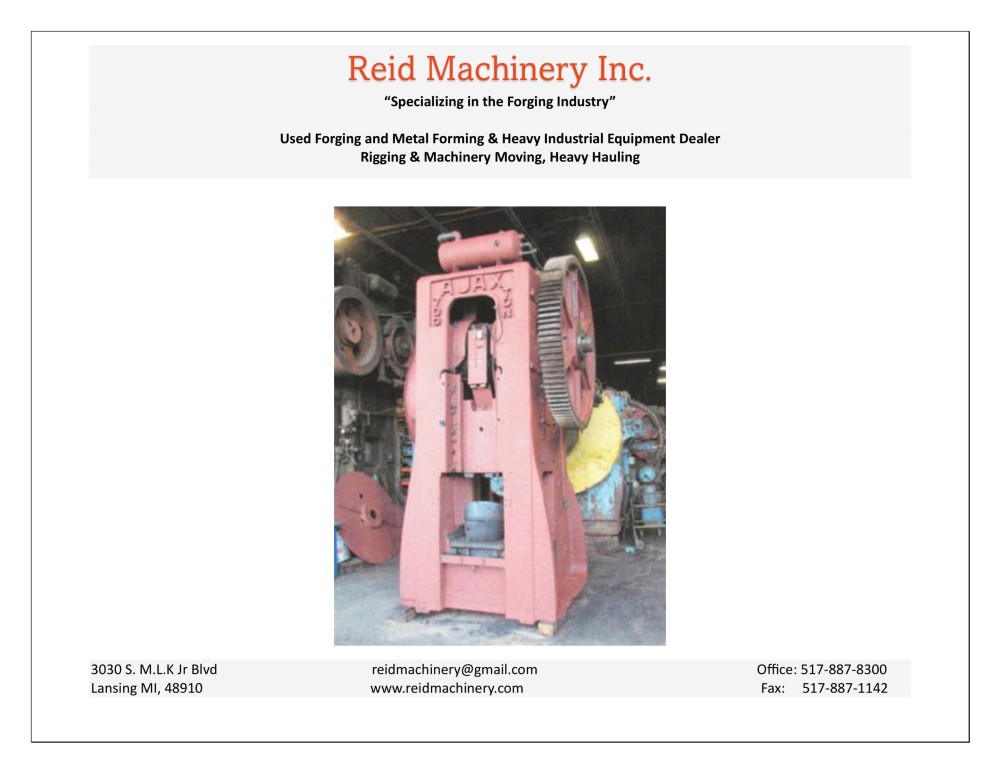

700 Ton Ajax Mechanical Forging Press ASSET: L064

Capacity: 700 Ton

Serial Number: 4870 (1963)

Stroke: 8" 203.2mm

SPM: 45

Shut Height: 27 3/8" 698.33mm

Die Area: F-B 25" x 37" 635mm x 939.8mm

Slide Area: 24" x 24" 609.6mm x 609.6mm

Floor Space L-R & F-B: 6' x 6' 1.828m x 1.828m

Approximate Height Above Floor: 13' 8" 4,165.6mm

Approximate Weight: 134,000 lbs. 60,782kg

Specifications are correct to the best of our knowledge but are subject to correction upon inspection. All sales are subject to our “Standard Terms and Conditions of Sales" with the exception made only by Reid Machinery Inc and all parties involved in the transaction. Specifications of machine: (Subject to buyer verification)
