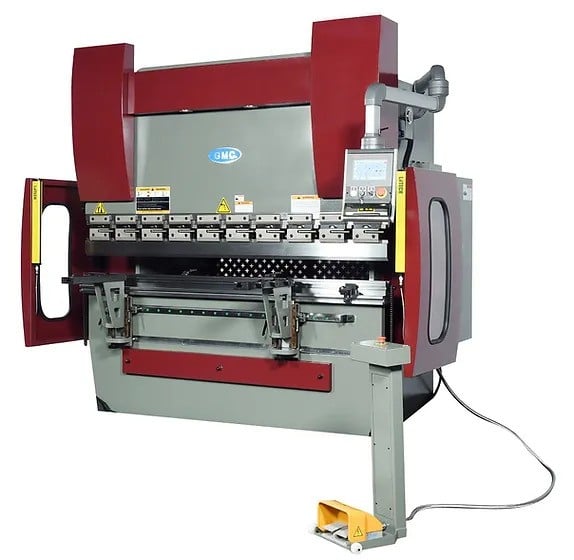

70 Ton, GMC #HPB-7006CNC, CNC Press Brake, 6' overall, Model 625, 2 Axis CNC Control

Estimated monthly payment valid upon approved credit.

Request Formal Quote

New GMC 70-Ton 6 CNC Press Brake with 2-Axis ESA S625 CNC Controller HPB-7006CNC
Our 70 ton press brake are equipped with a two axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
ISO 9001 certified
Meet OSHA and CE safety standard
ESA (Italy) Model 625, 2 Axis CNC Controller
Die library, offline programming, stores thousands of programs
Programmable Angle/ Angle Correct
Germany Rexroth hydraulic system
Yaskawa Servo motor and Drives
Schneider electrical components
Hydraulic crowning
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts
ESA (Italy) Model 625, 2 Axis CNC Controller
(2) 24 front support arms, Quick Release for easy positioning
Quick release segmented (American Style Tooling) punch holder

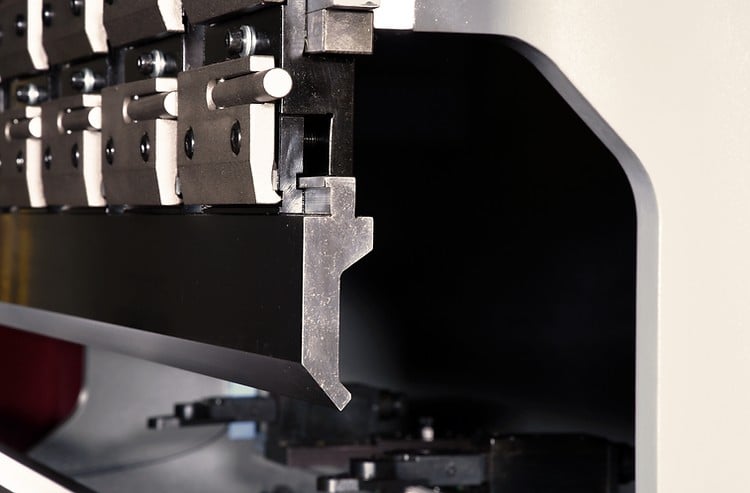

Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062 radius punch) Additional Tooling may be required for thicker materials and purchasers specific products/parts - Ask your dealer for custom tooling quotes)

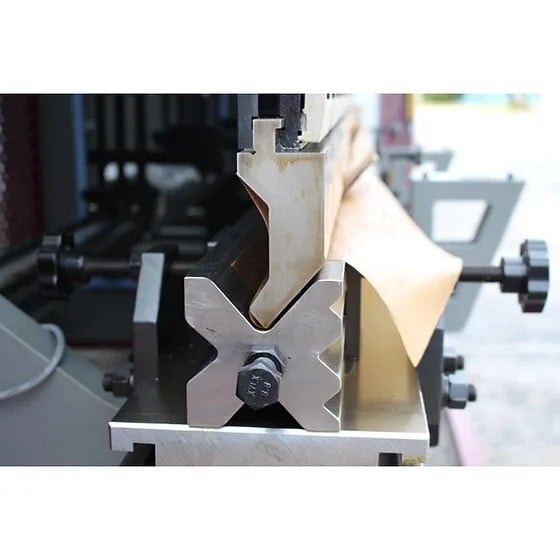

Full Length Vee Die with 6 assorted sizes HRC 50
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with Estop meet OSHA safety standard
For tooling: Need single V die holder -call for pricing
4 of punch and 2.5 single V Die , Flame hardened with safety tang-call for pricing
On-site training, one day.. -call for pricing
Maximum Pressure 70 Tons
Bending Lenght Capacity 80" (6'8")
Distance Between Uprights (housing) 63"
Ram Stroke Travel
Cylinder Travel Adjustment (max)
6"
3 1/8"
Table Width 6"
Distance Between Table and Ram
Max Stacked Tooling Height
15 1/4"
8-1/2"
Throat Depth 10"
Back Gauge Distance 24"
Back Gauge Repeatability .0039"
Y-Axis Repeatability .0039"
Approach speed, inch / second
Working speed, inch / second
Return speed, inch / second
3.14
0.35
2.36
Main motor:
Servo motor for back gauge:
Servo motor for bending angle
setting
7-1/2 HP, 3 Phase 30 AMP
Prewired: 220VAC (+/- 10%)
1 HP, 3 Phase
220VAC (+/- 10%)
1/2HP, 3 Phase
220VAC (+/- 10%)
Hydraulic oil tank capacity:
Recommended Oil:
52 Gal.
Hydraulic Oil Shell #68HD
Machine weight:
Machine size, L x W x H:
Shipping Dimensions:
8,650 LBS
103" x 63" x 87
109"x66"x98"
