Ton: 70.0
Stroke: 12.00
Stock # 325
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Tom,Pete,Bob
616-22...> Show Seller's Phone Number 616-229-2957 Let the seller know you found their listing on Surplus Record!
Description

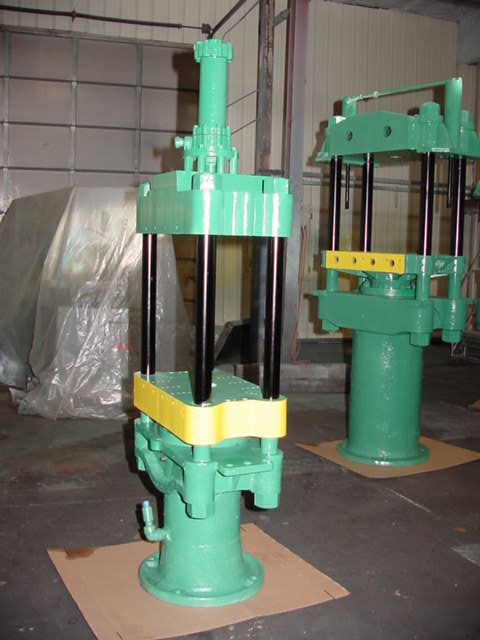

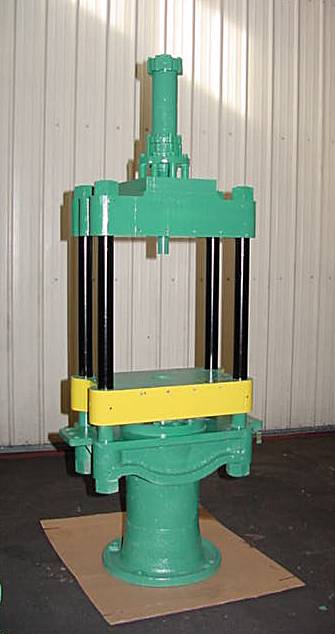

OVERALL PLATEN SIZE: 26 \u00bd" L to R X 17" F to B. DISTANCE BETWEEN POSTS: 23" L to R X 9" F to B. POST DIAMETER 2 \u00be". MAIN RAM: 10" PISTON, 8" ROD, DOUBLE ACTING, RATED AT 2000 PSI, 1 \u00bd" NPT BOTTOM PORTS, \u00be" NPT ROD PORTS. APPROX STROKE 12". DAYLIGHT 26". FULLY GUIDED SLIDE WITH 6" BUSHINGS. TRANSFER CYLINDER: DOUBLE ACTING, 3 \u00bd" BORE, 2" ROD, APPROX 8" STROKE, \u00bd" NPT PORTS, 10 TONS AT 2000 PSI. OPERATOR HEIGHT: 36 \u00bd". OVERALL DIMENSIONS: 42" L to R X 30" F to B X 98" TALL. APPROX WEIGHT: 8,500 LBS. R2 (ITEM #325)
Get Your Price from Icon Industries, Inc!
Buyers Who Viewed This Listing Also Viewed …
70 Ton, 23" x17", 25" DL, 13" str--main clamp, 8" str--trnsfr, push-back cyls, 99" tall, #320
Category: Molding Compression Transfer Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
OVERALL PLATEN SIZE: 30" L to R X 17" F to B. DISTANCE BETWEEN POSTS: 23" L to R X 9" F to B. POST DIAMETER 2 \u00be". MAIN RAM: 10" DIAMETER, SINGLE ACTING, RATED AT 2000 PSI, 1" NPT PORTS. STROKE APPROX 13". DAYLIGHT 25". FULLY GUIDED SLIDE WITH 8 \u00bd" BUSHINGS. TWO SINGLE ACTING, PUSH BACK CYLINDERS WITH 2 ...more
75 Ton, Hull #359G, 24" x24", 34" max daylight, 10" str--main clamp, 10.5" str-internal cyl, #95
Category: Molding Compression Transfer Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hull
Model: 359G
MODEL 359-G, SERIAL #2019. BOTTOM BOLSTER HAS A 23 3/4\.

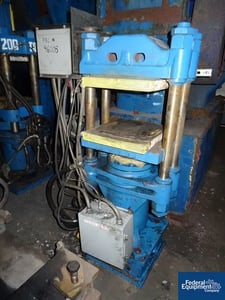

62.8 Ton, F H Malony, 4-post mold.press, 200 ton rerated to 62.8 ton capacity, 16" x 16" elec.htd.platens, 10" stroke, on base, #46008
