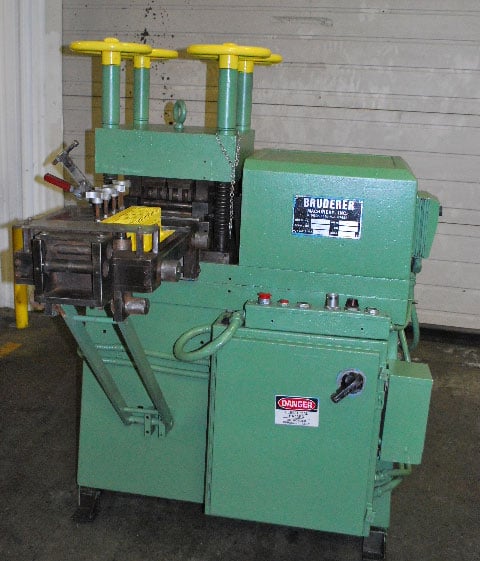

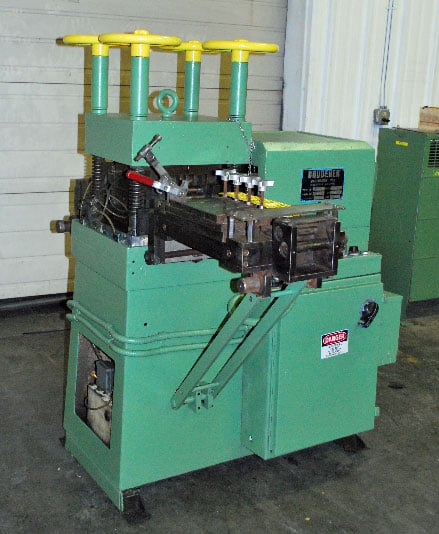

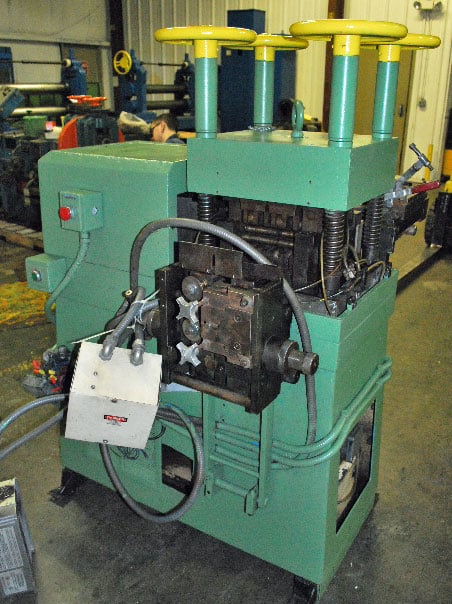

7" x 7/8" Bruderer #24180B, 19 Roll Back up Leveler, 8 over 9 roll config., 7" roll face, 1982

SPECIFICATIONS:
MANUFACTURER: BRUDERER A.S. (SWITZERLAND)
TYPE: 19 ROLL BACKED UP LEVELER
MODEL No.: 24180B
SERIAL No.: 55033
YEAR OF MANUFACTURE: 1982
TYPICAL THICKNESS RANGE: 0.0157" - 0.098" (0.4mm - 2.5mm)
MAX STRIP WIDTH: 7" (180mm)
No. OF ROLLS: 19
No. OF DRIVEN ROLLS: 19
ROLL CONFIGURATION: 8 OVER 9
ROLL DIAMETER: 0.94" (24 mm)
ROLL FACE: 7" (178 mm)
ROLL BEARING LUBRICATION: FORCED HYDRAULIC SYSTEM
W/INTERNAL TANK AND PUMP
ENTRY GUIDES: COMBINATION VERTICAL SIDE GUIDE ROLLS
OR HORIZONTAL PRE-FLATTENING ROLLS
VERTICAL ROLLS: NON-DRIVEN
DIAMETER: 2 1/4" (57 mm)
ROLL FACE: 1 1/4" (32 mm)
PRE-FLATTENING ROLLS: NON-DRIVEN
QUANTITY: 4 SETS OF 2
ROLL DIAMETER: 1" (25 mm)
FELT PRESSURE BOARD: MANUALLY ADJUSTABLE
EXIT GUIDES:
SAME AS ON ENTRY SIDE EXCEPT THERE ARE TWO SETS OF 2 1/4" (57mm)
VERTICAL ROLLS INSTEAD OF FOUR.
ELECTRICS:
TYPE: A.C. INVERTER VARIABLE SPEED
MANUFACTURER: BALDOR ELECTRIC
CATALOG No.: ID15H405-E
SERIAL No.: 3494PX363
INPUT: 460 VOLTS, A.C., 3 PH., 50/60 HZ
OUTPUT: 460 VOLTS, A.C., 3 PH., 0-400 HZ
STANDARD QUIET ZONE
2.5 KHZ PWM 8.0 KHZ PWM
CONSTANT VARIABLE CONSTANT VARIABLE
TORQUE TORQUE TORQUE TORQUE
FLA INPUT 7.8 -- 4.9 7.8
HP OUT 5 -- 3 5
KW OUT 3.7 -- 2.2 3.7
FLA OUT 7.6 -- 4.8 7.6
PKA OUT 15.2 -- 9.6 15.7
ACME GENERAL PURPOSE TRANSFORMER
PASS-LINE HEIGHT: 41 1/2" (1054 mm)
DIMENSIONS: 68" L x 48" W x 62" H
(1727 mm L x 1220 mm W x 1574 mm H)
