Description

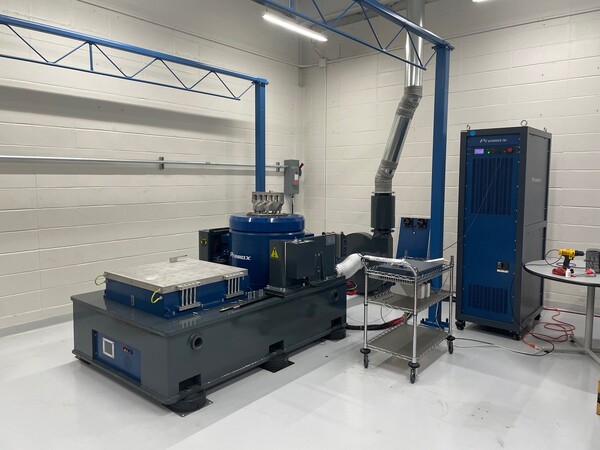

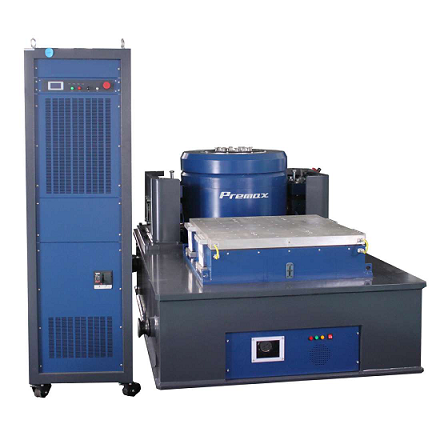

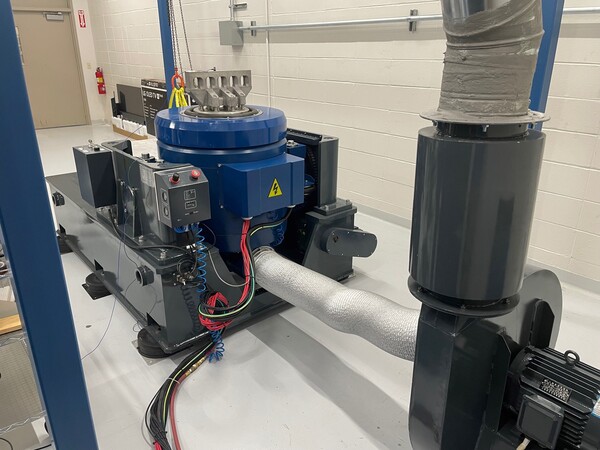

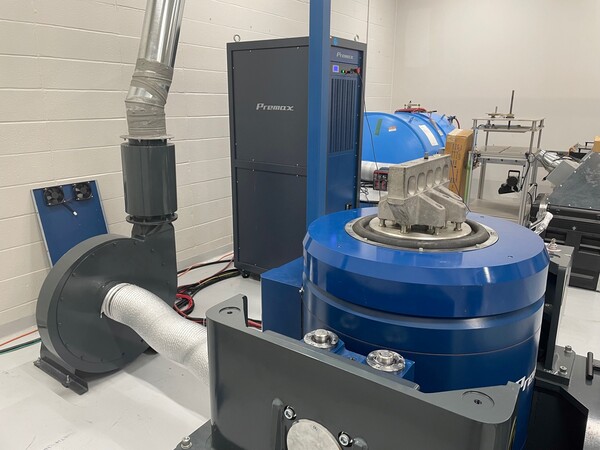

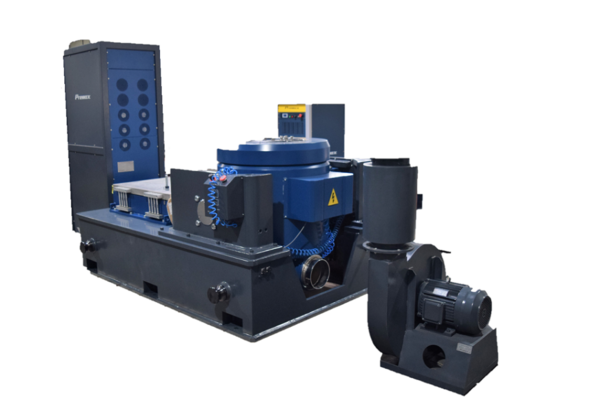

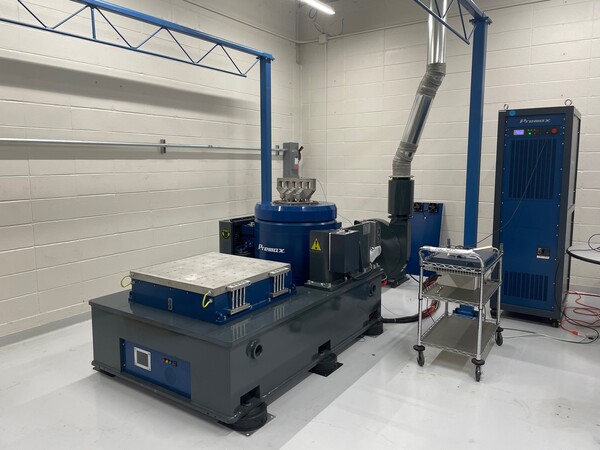

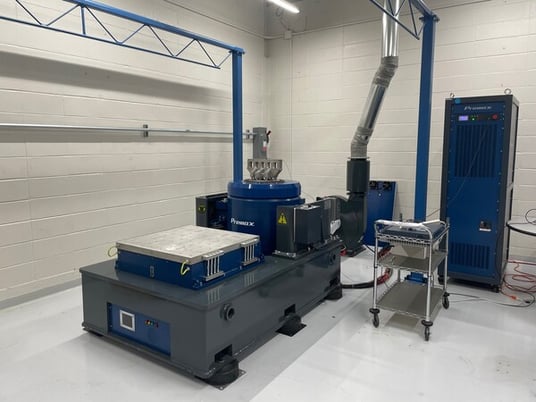

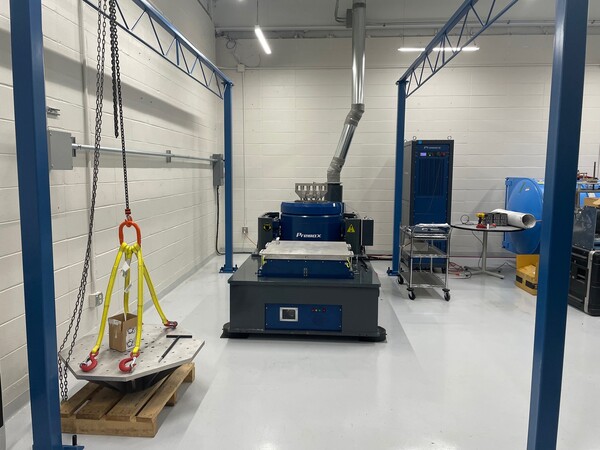

New 7KIP ITS-3200-ST Electro-Dynamic Vibration Test System with Slip Table
New Frank Bacon, Model ITS-3200-ST, 7,000 lbf Electro-Dynamic Vibration Test System with Power Amplifier, Slip Table, Head Expander and Blower
Frank Bacon ITS-3200-ST
SPECIFICATIONS:
(Sine) Force Rating: 7,000 lbf
(Random) Force Rating: 7,000 lbf
(Shock Peak) Force Rating: 14,000 lbf
Peak to Peak Displacement: 51 mm (2.00”)
Frequency Range (Hz): 2 – 2,000 Max
Armature Diameter: 9.8”
Armature Mass (lbs.): 70.5 lbs.
Sine Peak Acceleration (Bare Table): 981 m/s^2 (100 g)
Max Payload: 1,1000 lbs.
Voltage Requirements(V, Hz, Ph): 480, 60, 3
Utility Requirements: 87 PSI Compressed Air
Overall Dimensions: 102.4” L x 53.1”W x 53.1” H
Total Weight: 12,350 lbs.
EQUIPPED WITH:

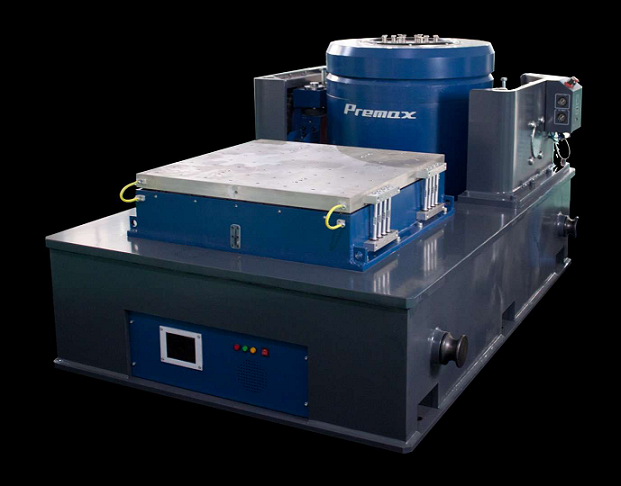

- 800mm x 800mm Magnesium Slip Table for Testing in Horizontal Configuration (Weight: 159 lbs)
- 800mm x 800mm Magnesium Head Expander (Weight: 114 lbs)
- ITS-H323A 32 kVA Air Cooled Power Amplifier
- ITS-W30 15 kW Blower
- Signal Input for Closed-Loop Control (Vibration Controller Required)
FOB Warren, MI
1 Year Parts and Labor Warranty
| ITS-3200-ST
DOWNLOAD SPEC SHEET
