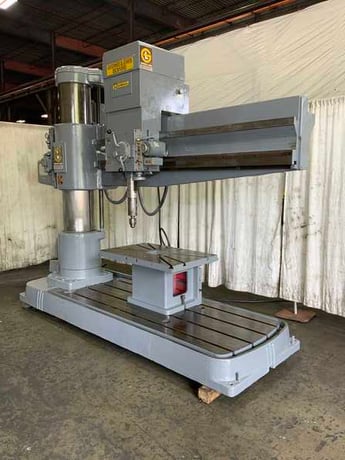

7' -15" Giddings & Lewis #Chipmaster, radial arm drill, 45-1/2" x 92" T-slotted base, power elevation/clamping, 10 HP, 1972

SERIAL ................................ 962-00045-72

MODEL ................................. CHIPMASTER

YEAR NEW ................................... 1972

ARM LENGTH X COLUMN DIAMETER .......... 7' X 15"

AREA OF BASE (T-SLOTTED) .............. 45-1/2" X 92"

SPINDLE SPEEDS ........................ (12) 40 TO 1600 RPM

SPINDLE FEEDS ......................... (9) .002 TO .040 IPR

SPINDLE TRAVEL ........................ 14"

SPINDLE DIAMETER ...................... 3-15/16"

SPINDLE TAPER ......................... #5 MT

THREAD ................................ 8,11-1/2, 14, 18, 20 & 27 TPI

SPINDLE RADIUS (MIN. / MAX.) .......... 25" / 83"

SPINDLE TO BASE (MIN. / MAX.) ......... 17-1/8" / 67"

HEIGHT OF BASE ........................ 9"

POWER ELEVATION, COLUMN CLAMPING ...... YES

POWER HEAD TRAVEL ..................... YES

MOTOR ................................. 10 HORSEPOWER
