For Sale by Southern Fabricating Mchy Sales
Surplus Record Dealer Since 2015
Location: Lithia, FL
Contact Dan McCurdy
Phone Number: 813...> Show Phone Number 813-444-4555
Let the seller know you found their listing on Surplus Record!
Description

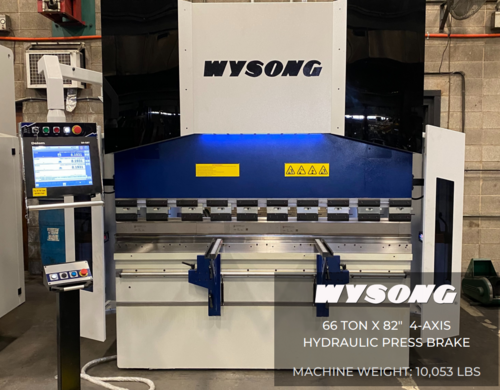

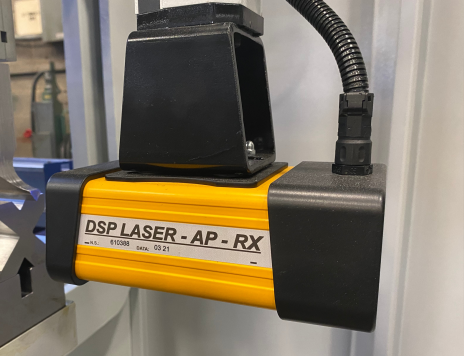

66 Ton X 6' 10" Hydraulic Press Brake with Delem 58T Control, 4-Axis, Adjustable Front Supports, Illuminated Work Area, DSP Laser Safety, Rear Light Curtain, Rigid Rack & Pinion Back Gauge and Full Length Segmented Tooling and Quick Release Punch Clamps.
GENERAL SPECIFICATIONS:
GENERAL SPECIFICATIONS:
- Tonnage: 66
- Bed Length: 82”
- Machine Weight: 10,053 Lbs
- Distance Between Frames: 63”
- Daylight /Stroke /Throat: 18” /10” /16”
- Approach /Bend Speed: 378 /24 IPM

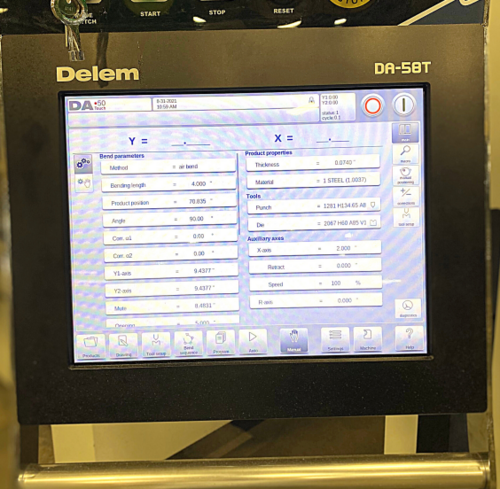

- Control: Delem 58T

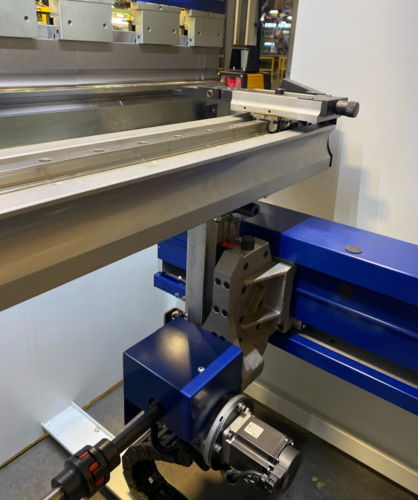

- 2-Axis Servo Driven Back Gauge: (x=30” , R=10”
- Back Gauge Fingers: 2 Pieces
- B /G Speed (x-axis): 7.87 IPS
- Power: 460V - 3 - 60 hz
- Main Motor: 7 HP
- Machine Dimensions: 144” X 86” X 114” H
- Machine Weight: 10,053 LBS
INCLUDES: Delem 58T Control, 4-Axis, Adjustable Front Supports, Illuminated Work Area, DSP Laser Safety, Rear Light Curtain, Rigid Rack & Pinion Back Gauge and Full Length Segmented Tooling and Quick Release Punch Clamps.
***We strongly encourage personal inspection of all pieces of used equipment** ***All Price, Location and Specifications Subject to Change without Notice***
