Description

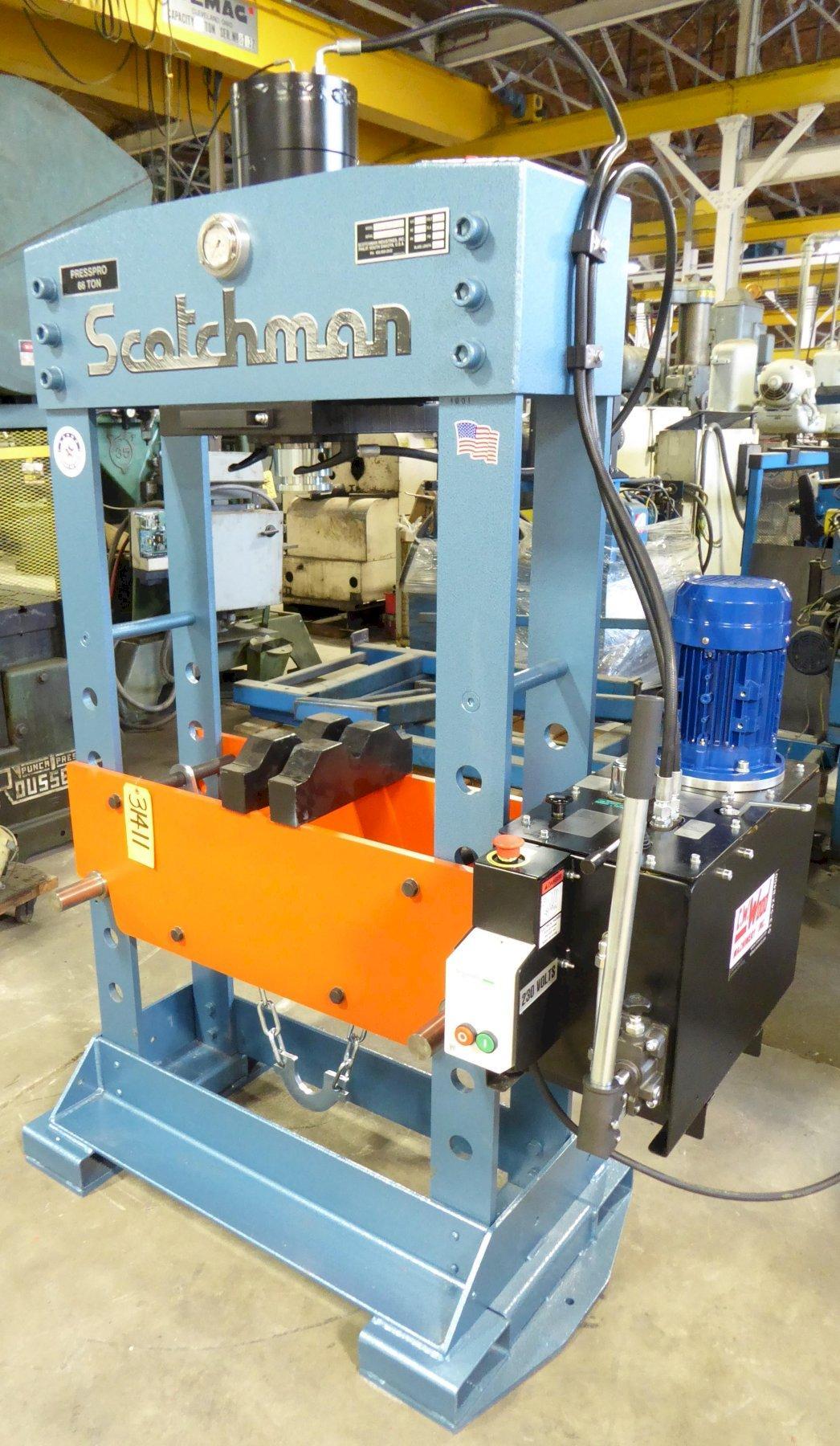

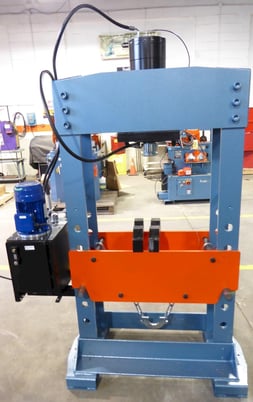

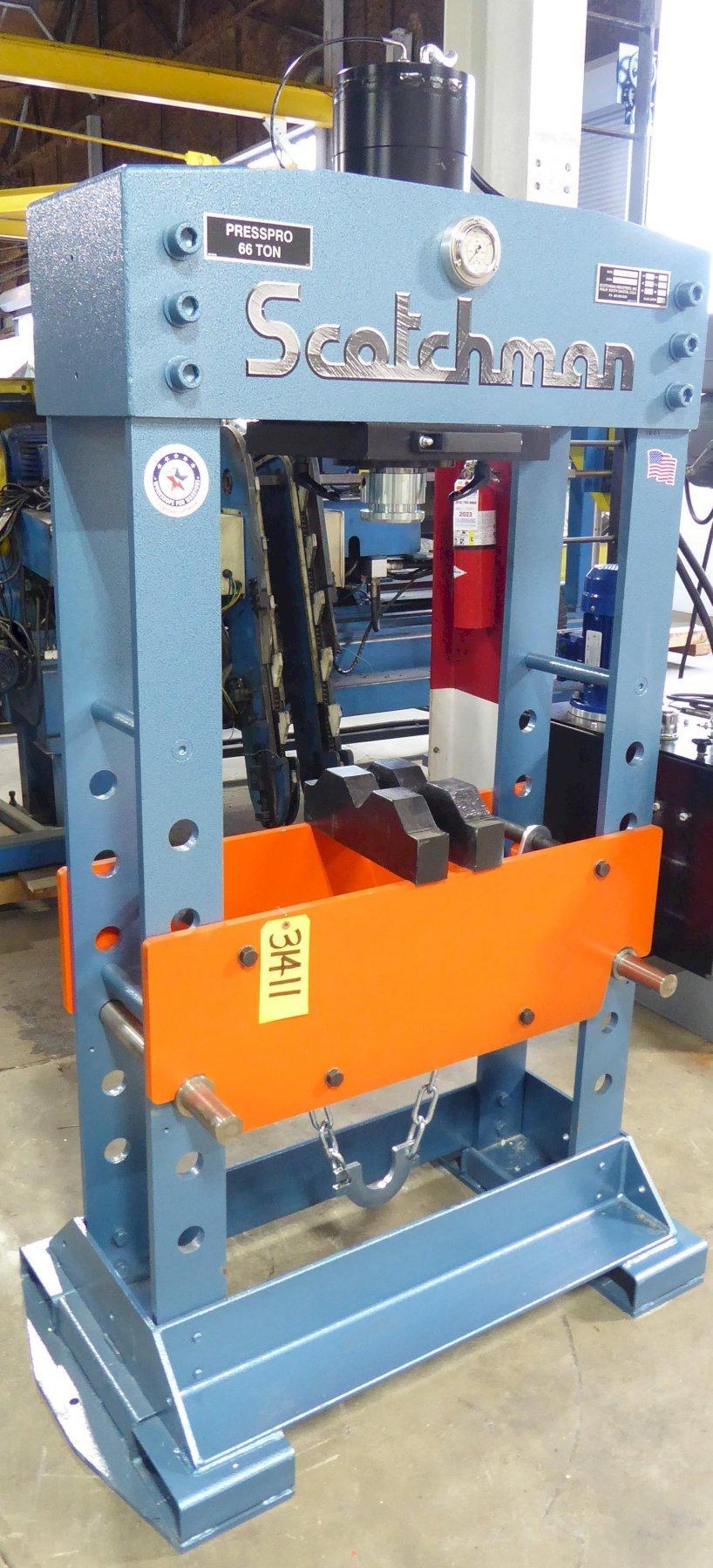

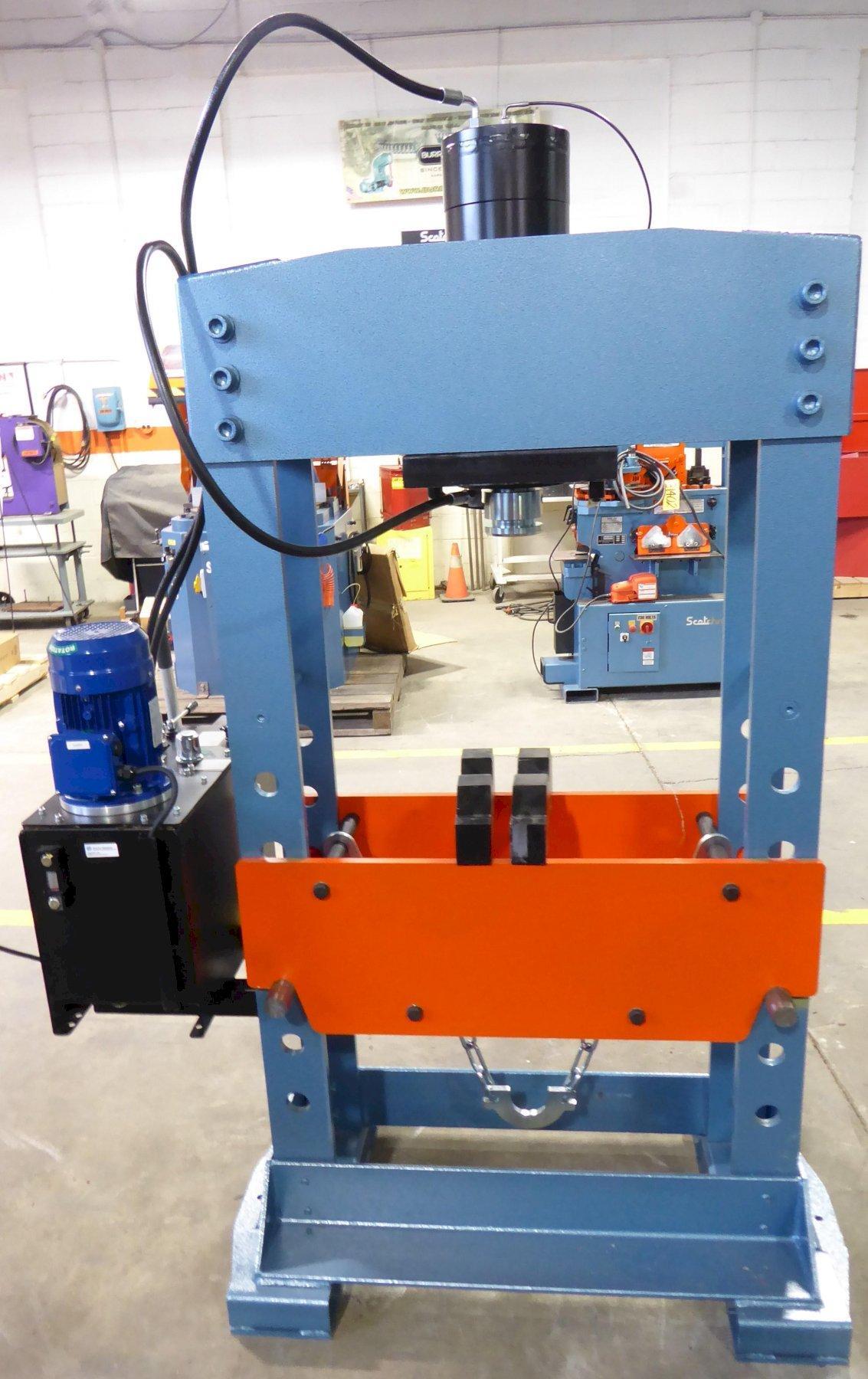

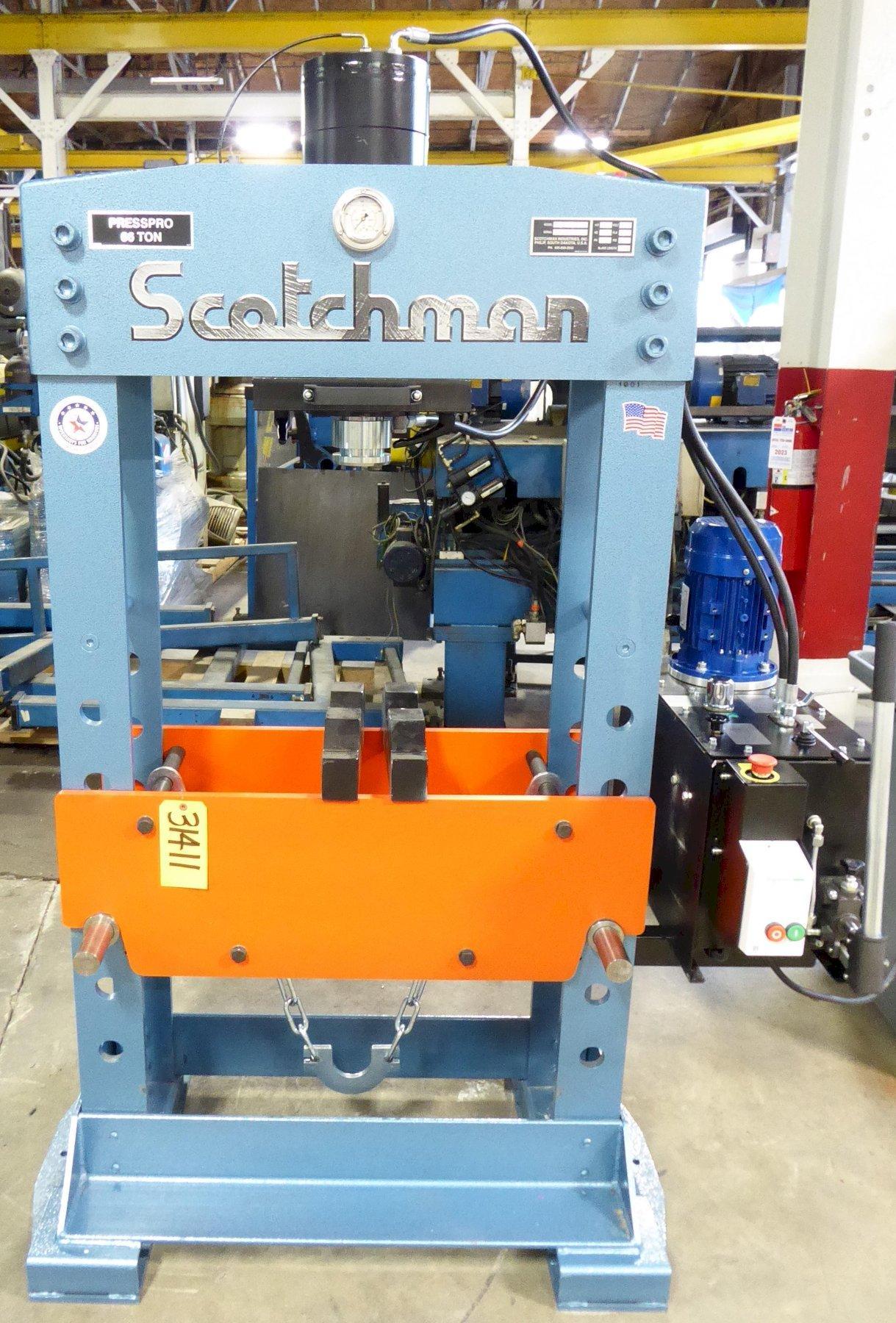

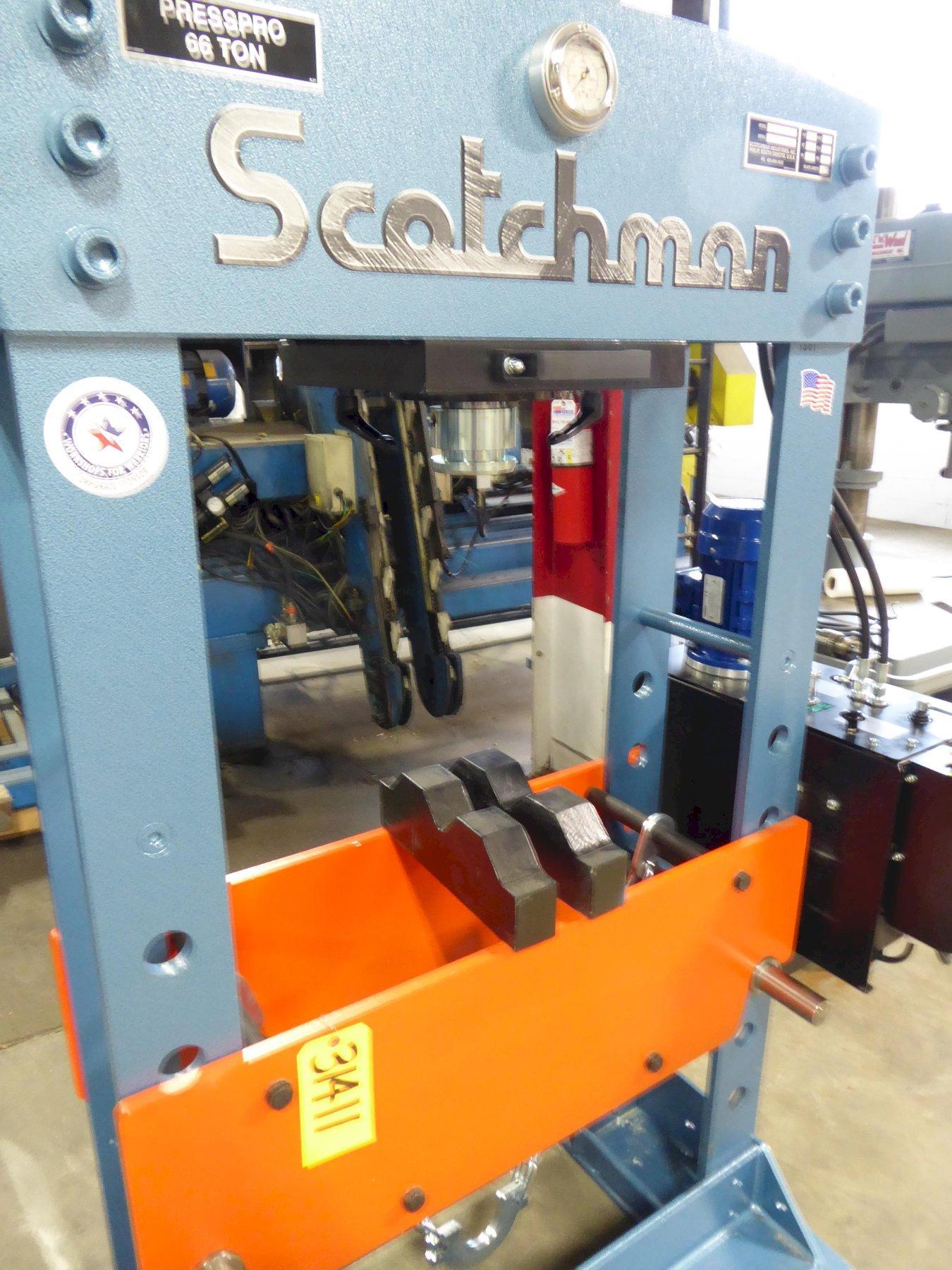

(NEW) SCOTCHMAN H-FRAME HYDRAULIC PRESS
MODEL: PressPro 66
*Heavy Duty All-Steel Construction
*Industrial Grade Hydraulic System
*Ram Moves Laterally For Added Versatility
*Three Ram Speeds
FACTORY SPECIFICATIONS
Press Force: 66 Tons
Stroke: 15"
Open Height, Minimum: 7-3/4"
Open Height, Maximum: 37-1/4"
Width Between Uprights: 29-1/2"
Width Between Table Channels: 10-1/4"
Ram Speed, Approach: 21 IPM
Ram Speed, Press: 5 IPM
Ram Speed, Return: 25 IPM
EQUIPPED WITH

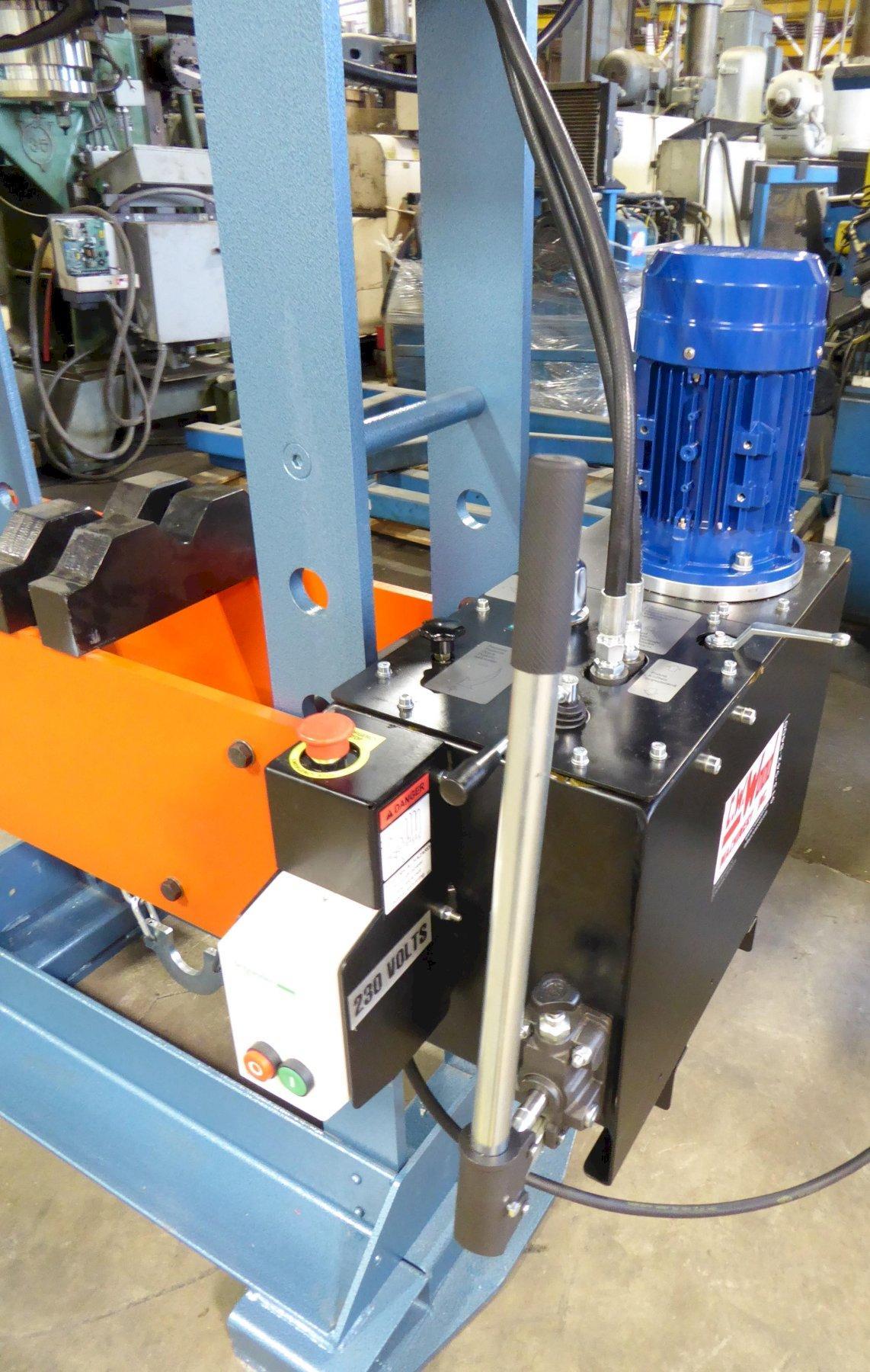

2.5 HP Motor 230/60/3
Set Of V-Blocks
Pressure Gauge
Adjustable Table Height w/Hydraulic Assist
Joystick Operation /Manual Jog

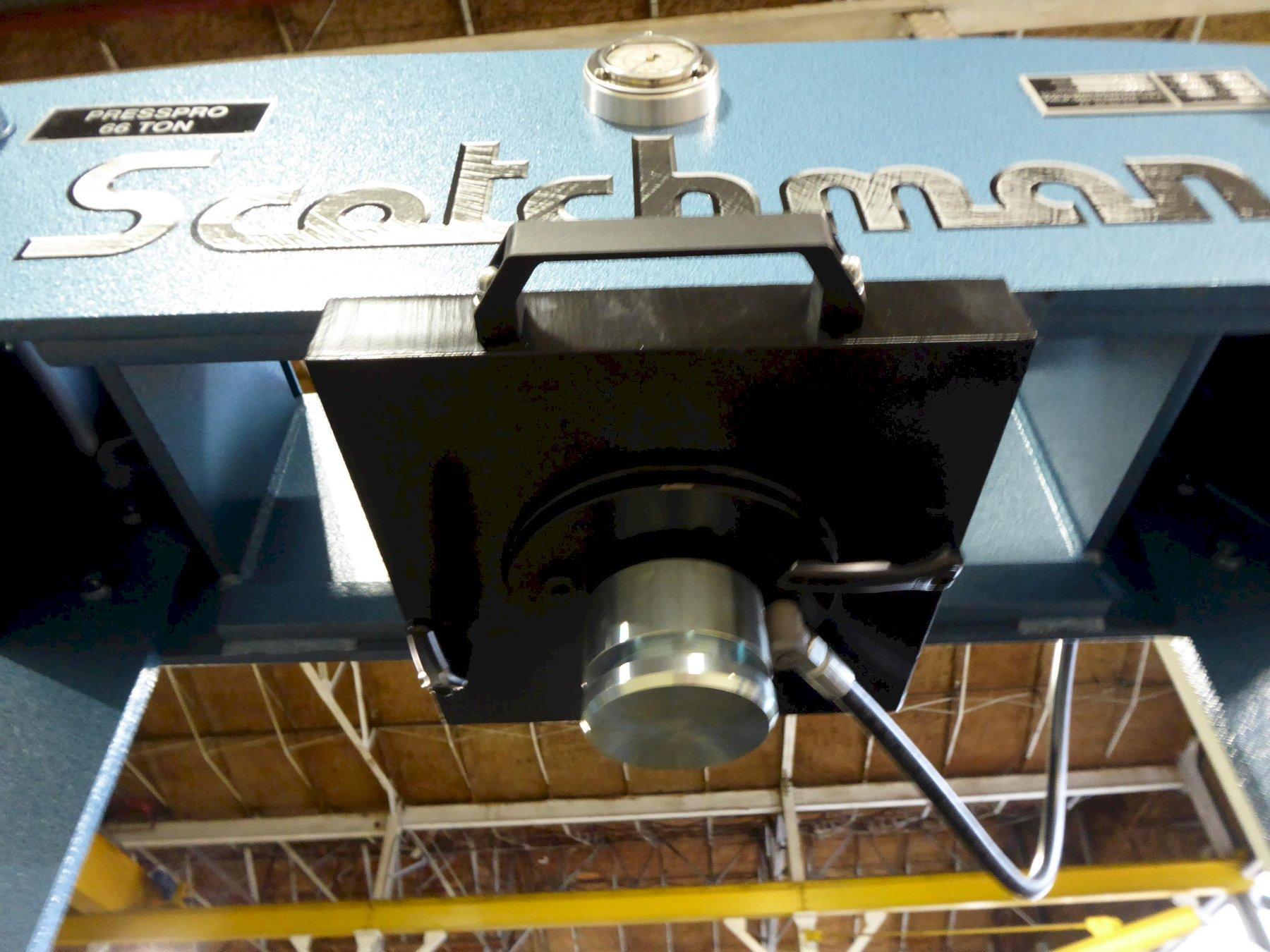

Removable Ram Cap To Accept A Wide Variety Of Tooling
Three-Year Warranty
F.O.B. Philip, South Dakota
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
