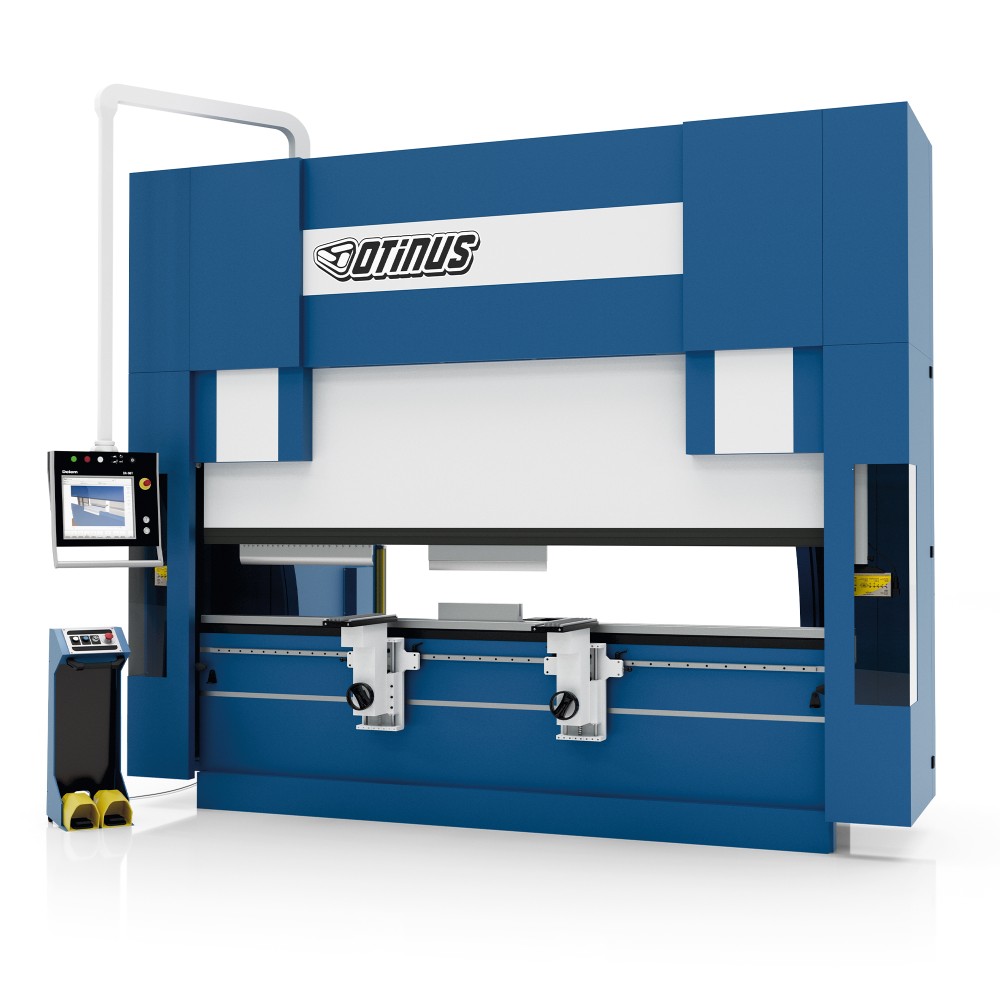

66 Ton, Otinus, Hydraulic Press Brake Machine, 6.1' overall

OTINUS SPECIAL OFFER: 0% LEASING! Don't wait for a better moment – it's now. Otinus machines with financing at no extra cost. A straightforward offer: you only pay the cost of the machine. Optimize your taxes in 2026 and choose reliable equipment. Contact us to find out more!

Specifications

• Nominal bending force: 66 T
• Motor power output: 5.5 kW
• Approach speed: 5.91 in/s
• Bending speed: 0.394 in/s
• Return speed: 5.12 in/s
• Weight: 11,905 lb
• Oil tank: 36.98 gal
• Maximum bending length: 6 ft 11 in
• Distance between side frames: 5 ft 3 in
• Ram width: 5 ft 2 in
• Table height: 2 ft 11 in
• Daylight: 1 ft 7 in
• Maximum stroke: 8 1/4 in
• Table width: 2 3/8 in
• Throat depth: 1 ft 4 in

Tools

• Servo-driven automatic backgauge on linear guides. 2 pcs.
• Front supports: 2 pcs.
• Backgauge drive (travel along the X-axis): servo motor
• Ram control (Y axis): Y1/Y2 independently controlled with servo drives.
• Punch quick change tooling system form AMADA

DA-66T control

• Capable of programming in 2D and 3D
• 3D visualization for preview and operation
• 17-inch color TFT screen of high resolution
• Full Windows operating software
• Compatibility with Modusys Delem system (modular scaling and adaptability)
• External USB port
• Detailed user support in a multitasking environment
• Sensor bending with parameter correction menu
• Profile-T3D software that works offline

Top quality components

• Rexroth hydraulic valve
• Schneider electrical components
• Omron and Schneider safety circuit parts.

Ergonomics
The operator can work freely throughout the machine's working area thanks to the mobile foot switch and the controller on the swivel arm. Additional LED lighting ensures a comfortable view of the workpieces in any situation.

Safety
We attach great importance to the safety of our Clients and their employees; therefore our press brakes are equipped with visible safety labels, side guards, rear safety doors, easily accessible safety switches and light curtains that protect the operator against inserting their hands between the upper and lower dies.
The machines comes with carefully prepared instructions manual.
The machine has a CE marking and EU declaration of conformity.

Assistance by a specialist
We strive to maintain constant communication with our Customers. To support this, every machine purchase includes a specialist support package with hours of expert guidance.

Within the service, our technicians may:

• Specify the bending steps for intricate parts.
• Advise on material and gas selection
• Assist in the selection of operating parameters for different materials

Technical Consultation
Our specialists help select the right machine and accessories based on technical drawings of the parts you plan to produce.
