Description

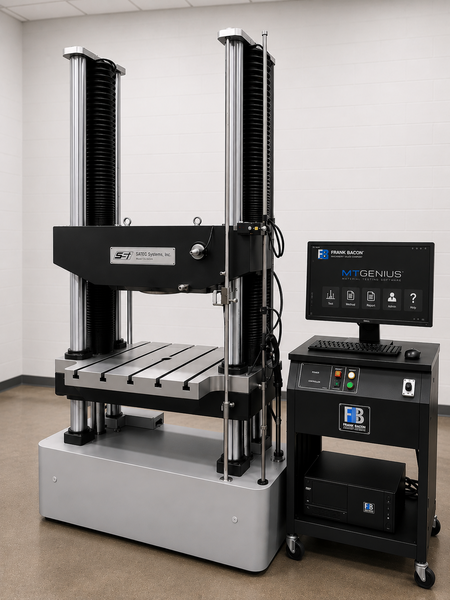

60K (300kN) Satec CB 60 Tensile & Compression Testing System with T-Slotted Table
Reconditioned 300kN Satec Model CB 60 Tensile & Compression Testing System
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 60"
Compression Testing Opening (Less Tooling): 60"
Distance Between Columns/Screws: 33"
Testing Stroke: 60"
Table Size (W x D): 30" x 30" (T-Slotted)
Testing Speed (IPM): .0002 – 5
Crosshead Adjusting Speed (IPM): 5
Approximate Overall Dimensions:
New Electronic Console (W x D x H): 27" x 27" x 36"
Load Frame (W x D x H): 52" x 32" x 113"
Approximate Weight (lbs.): 6,500
Electrical Requirements (V,Hz,PH): 230/460, 60, 3
EQUIPPED WITH:
- New Computer System with Flat Screen Monitor, Keyboard and Mouse
- Microsoft Windows 11, Workstation.
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & Two Strain Channels), Analysis and Computer Controlled Testing.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
- New Yaskawa AC Servo Motor and Drive for Precision Control of Testing Rates (Load, Position & Strain).
- 60K (300kN) Precision Load Cell Indicating System
- 30" x 30" T-Slotted Table for Easy Fixturing
FOB Warren, MI
Reconditioned/ Retrofitted & Certified
*Representative Image
| #Satec CB 60
DOWNLOAD SPEC SHEET
