For Sale by Alma Machinery Co-Ann Arbor MI
Surplus Record Dealer Since 1960
Location: Ann Arbor, MI
Contact Jim Walters
Phone Number: 734...> Show Phone Number 734-971-8860
Let the seller know you found their listing on Surplus Record!
Description
max. capacity 650 ton @ 3000 psi - pressing | 74 ton @ 3000 psi - stripping
max. stroke 26"
Max. daylight to bed 52"

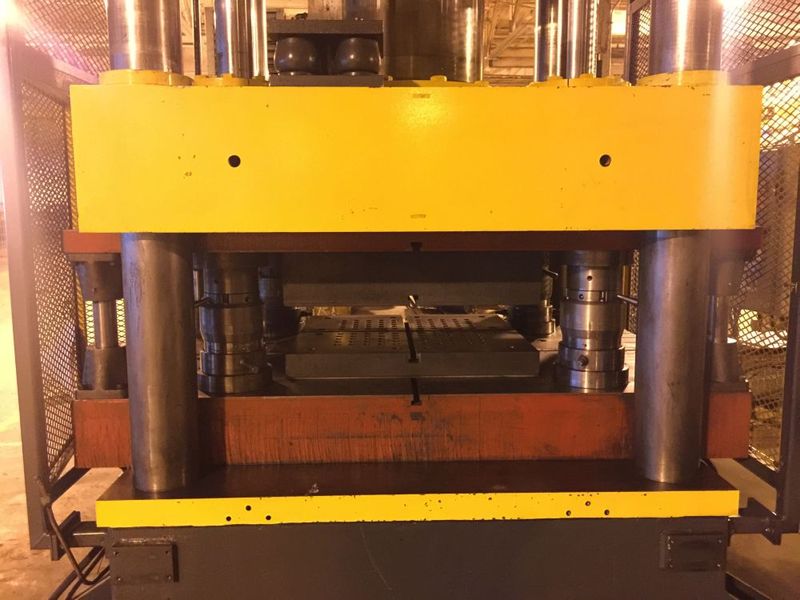

overall bed & ram area 66" x 66" (RL X FB)
distance between post 48" x 48" (RL X FB)
usable bed area 48" x 66" (RL X FB)
speed TBD
bolster size 80" X 48" (RL X FB) X 8" THICK
cylinder sizes 21-1/2" dia.bore - main cylinder
(2) 8" dia. bore - return cylinders
post size 7" dia.
FLOOR TO BED HEIGHT 42"
ELECTRICAL 50 hp 230/460-3-60 motor

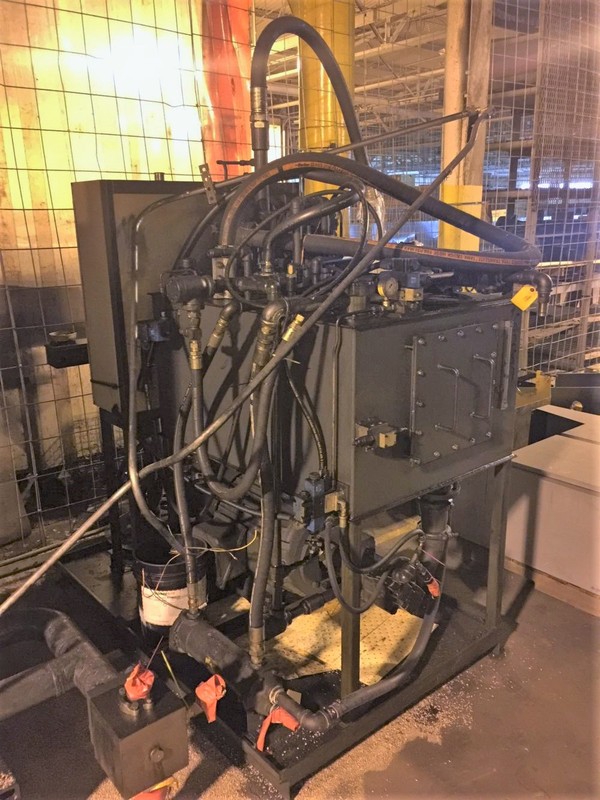

hydrauics - floor mounted vickers double vane pump #3520v25a5-11-ab-20-282, 25/5 gpm, 430 gal. crown mounted tank

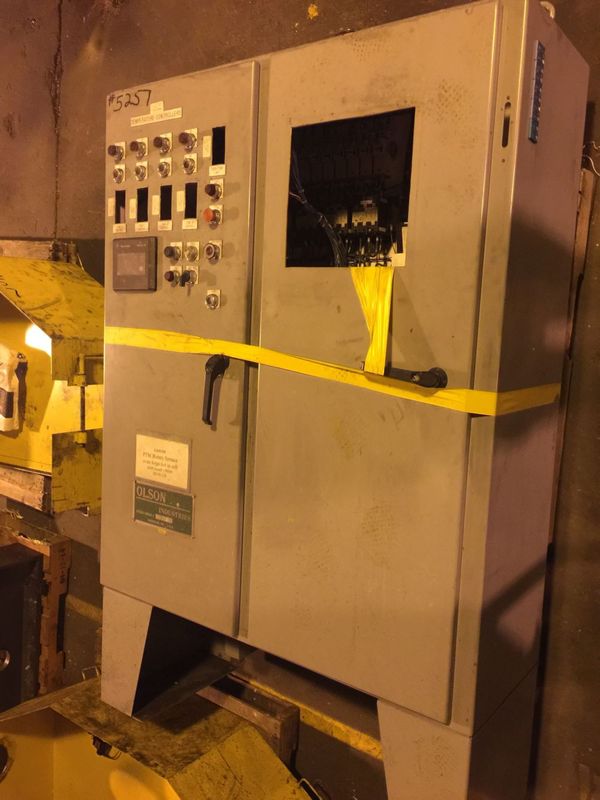

CONTROLS koyo "direct 205" plc CONTROLLER, touchscreen control
overall dimensions 96" X 66" (RL X FB) X 192" HIGH
approx. weight *62,400 lbs.
with floor standing base
ejector cylinders in base
with safety latches on ram
__
max. stroke 26"
Max. daylight to bed 52"
overall bed & ram area 66" x 66" (RL X FB)
distance between post 48" x 48" (RL X FB)
usable bed area 48" x 66" (RL X FB)
speed TBD
bolster size 80" X 48" (RL X FB) X 8" THICK
cylinder sizes 21-1/2" dia.bore - main cylinder
(2) 8" dia. bore - return cylinders
post size 7" dia.
FLOOR TO BED HEIGHT 42"
ELECTRICAL 50 hp 230/460-3-60 motor
hydrauics - floor mounted vickers double vane pump #3520v25a5-11-ab-20-282, 25/5 gpm, 430 gal. crown mounted tank
CONTROLS koyo "direct 205" plc CONTROLLER, touchscreen control
overall dimensions 96" X 66" (RL X FB) X 192" HIGH
approx. weight *62,400 lbs.
with floor standing base
ejector cylinders in base
with safety latches on ram
__
Get Your Price from Alma Machinery Co-Ann Arbor MI!
