For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

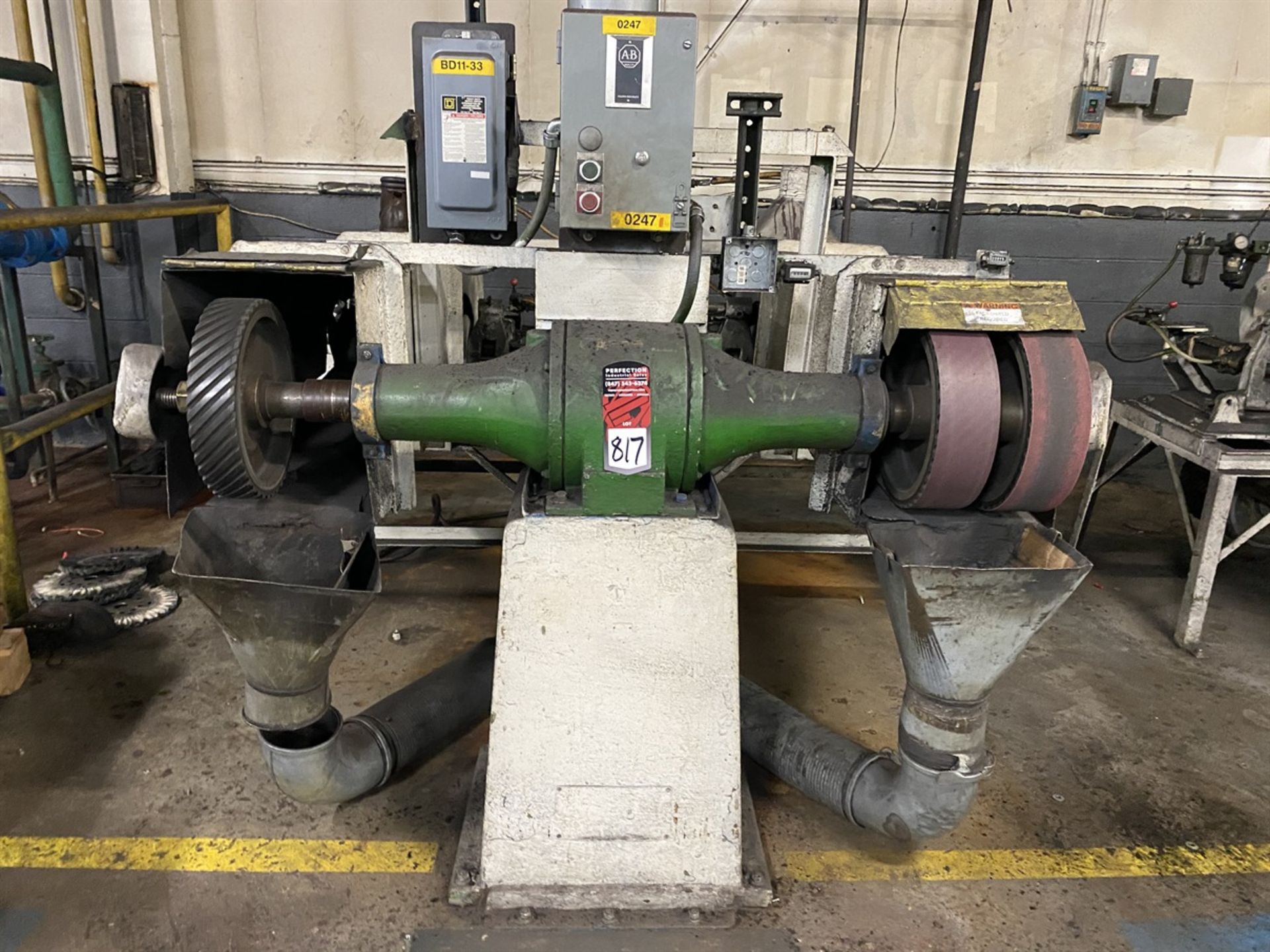

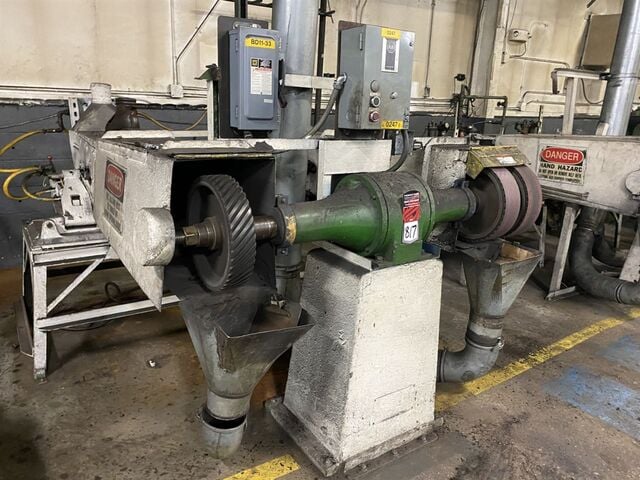

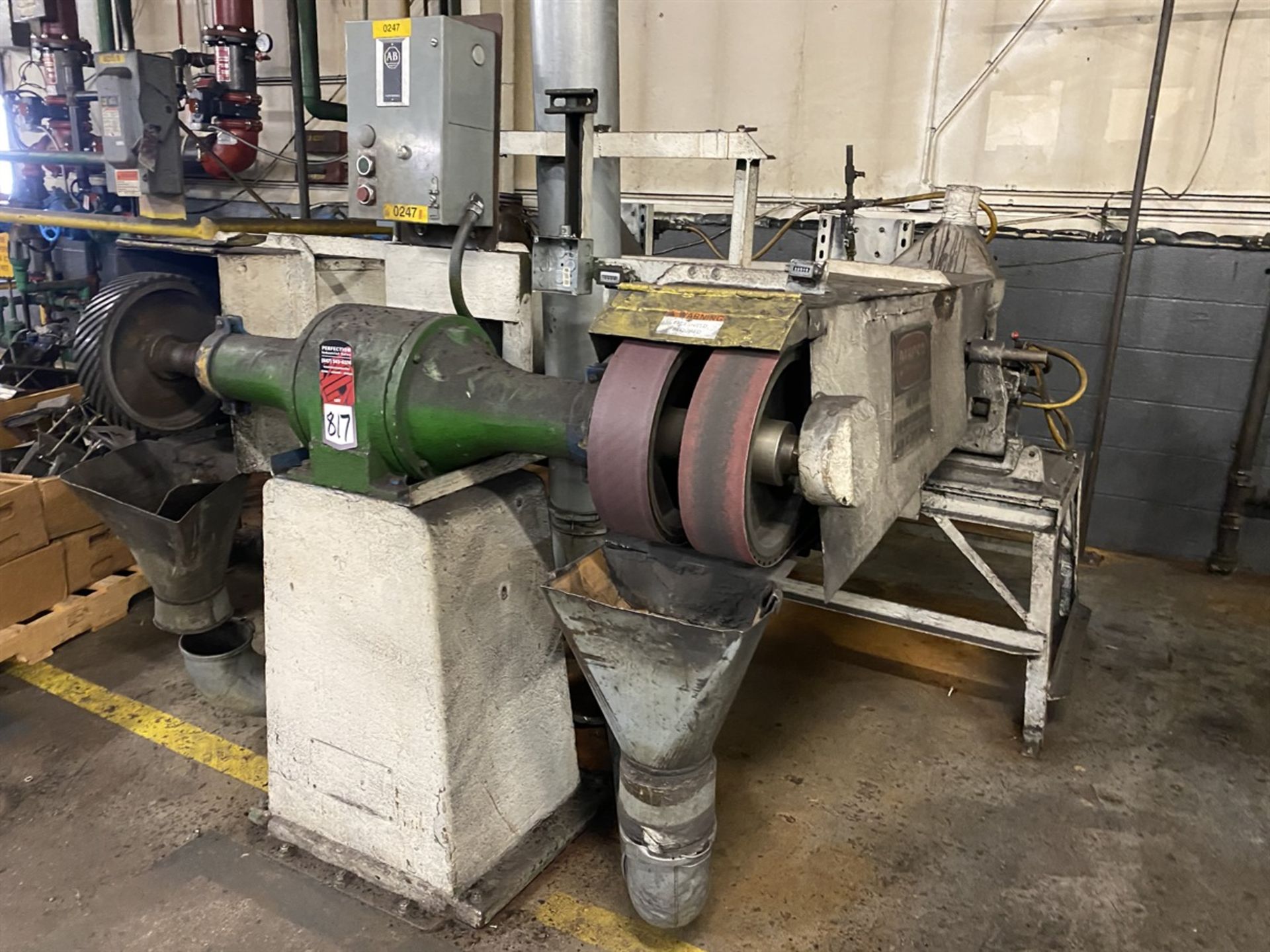

SETCO MODEL SPL TWO SPINDLE SINGLE SPEED
POLISHING LATHE WITH GUARDING… BACK STANDS,
SET-UP TO BE USED WITH (2) GRINDING BELTS PER SIDE
MACHINE SERIAL NUMBER 77087
OVERALL SPINDLE LENGTH, END TO END ........ 65"
DISTANCE BETWEEN WHEELS PRESENT SET-UP .... 45"
ARBOR DIA. x WIDTH BETWEEN FLANGES ........ 1- 1/2" x 12" LONG
APPROX. MACHINE DIMENSIONS .............. 96""L-R x 96"D x 68"H
APPROX. MACHINE WEIGHT .................. 1,100 LBS.
EQUIPPED WITH:
WHEEL COVERS FOR LEFT… RIGHT SPINDLES
BACK STANDS MADE FOR A TOTAL OF (4) BELTS, (2) ON EACH SIDE.
SEPARATE AIR-TENSIONING UNITS FOR EACH BELT.

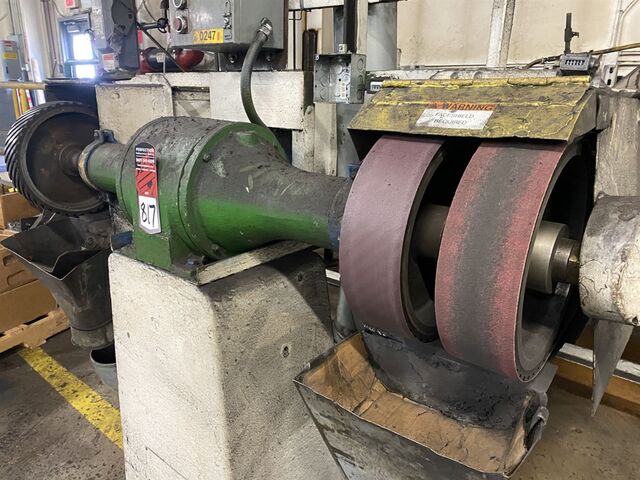

RIGHT-HAND SIDE HAS (2) BELT SET-UPS, WITH (2) CONTACT WHEELS THAT
ARE 14" DIAMETER x 4" WIDE, AND (2) IDLER WHEELS THAT ARE 8" x 4.5" WIDE.
THE TWO R.H. WHEELS ARE 2.5" APART.
LEFT-HAND SIDE HAS TWO BELT SET-UPS, WITH (1) CONTACT WHEELS THAT
IS 14" DIAMETER x″" WIDE, AND (2) IDLER WHEELS THAT ARE 8" x 4.5" WIDE.
SET UP TO ACCEPT DUST COLLECTION
7.5 H.P.″/60/230-460 VOLT MOTOR AND ELECTRICAL CONTROLS
SPINDLE SPEED IS SINGLE SPEED, NOT VARIABLE
PUSH BUTTON STARTER/OFF
MACHINE IS WIRED FOR 460 VOLT OPERATION, 10 AMPS SERVICE REQUIRED
** EXCELLENT CONDITION AS TAKEN FROM SERVICE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
