Description

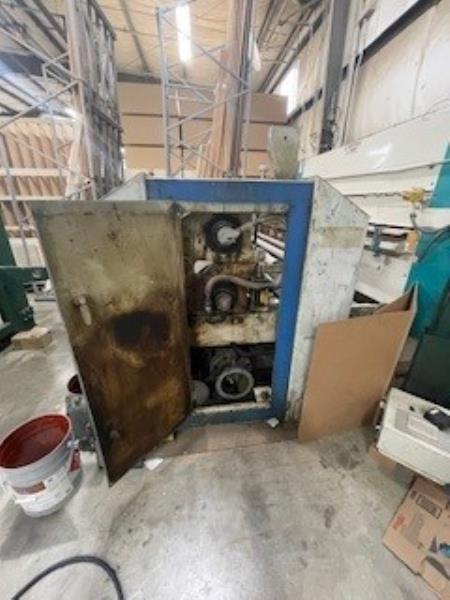

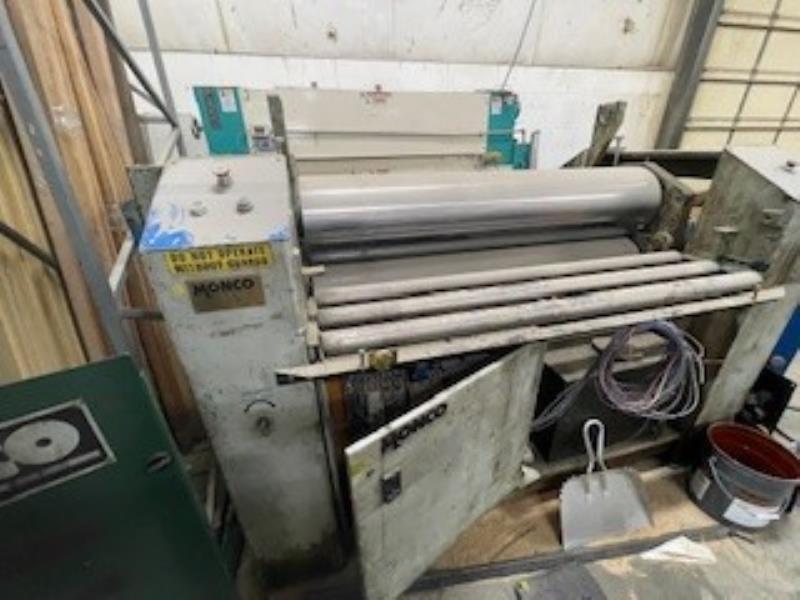

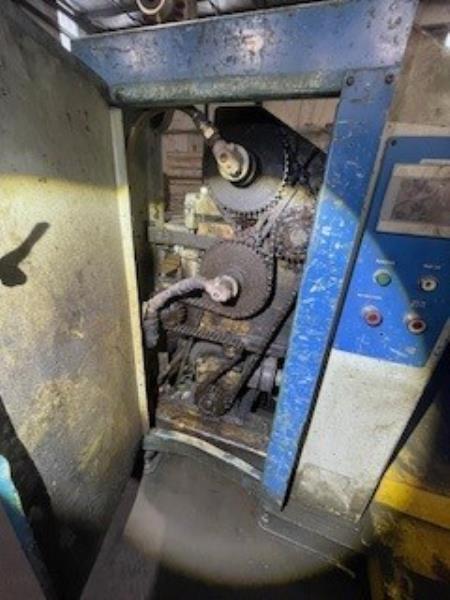

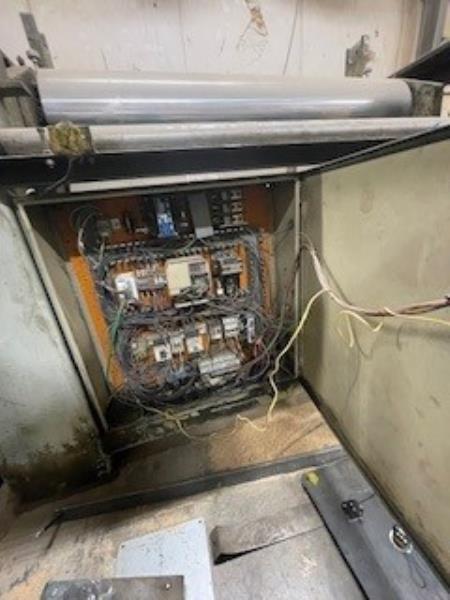

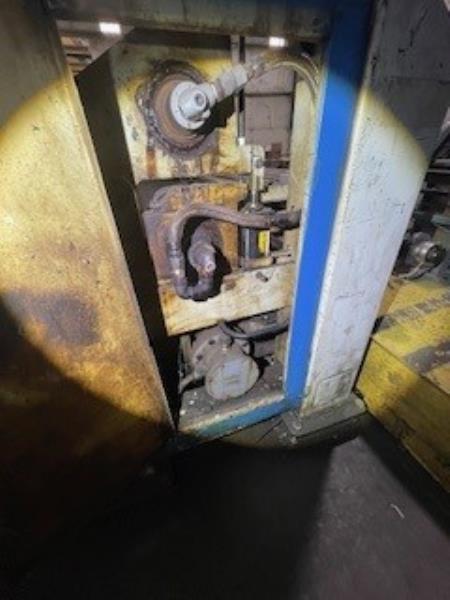

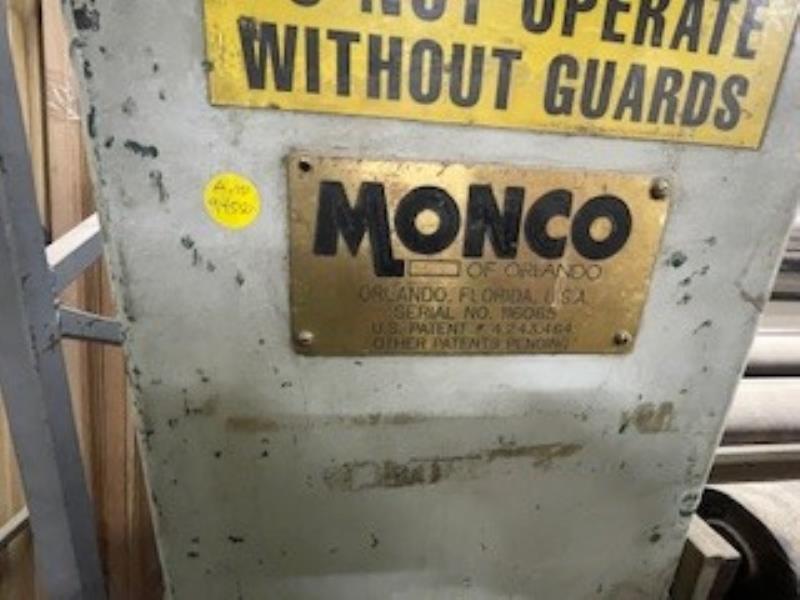

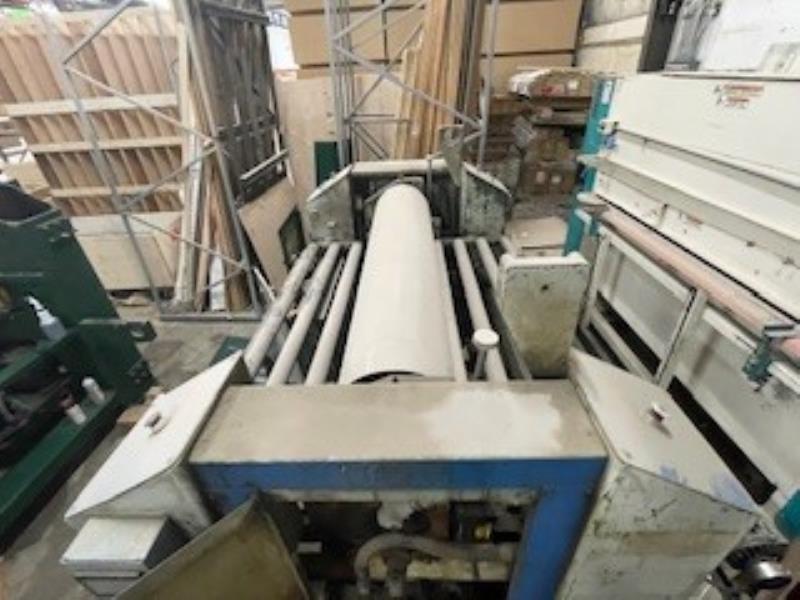

MONCO TB-60 Hot Top & Bottom Laminator Oil Heated Chrome Plated Rollers Laminator with BLACK BROTHERS Top and Bottom Panel CleanerSpecifications: -- 62" Cap., 1-1/2" max. part thickness, top & bottom laminator with oil-heated steel rollers, 14" diam. rollers with 1-1/2" wall thickness; dual rewind rolls with 0.75 HP DC drive motor. -- Variable feed speed from 25 - 106 FPM, 5 HP feed motor. -- Heating & Pressure: 48 kW Heating system for the rollers up to 400F, including over-temperature cutoff safety device. Oil circulating pump 1.5 HP and also a 1.5 HP hydraulic system for up to 900 PSI line pressure. -- Safety Features: Manual emergency stop system on all (4) columns to stop the drive & raise the rolls; optical emergency stop at the machine infeed, outfeed conveyor, and infeed fence.***NOTE: Top roll has a small dent 12 inches in from the end, and with this, the maximum clear usable width is 50."
1" Min. - 62" max. width cap.; uses a EVA based Hot Melt glue web for laminating roll or sheet overlay; -- System consists of, Infeed section, Laminate rack, Heater assembly, Compression roller, Electric scissor to cut the glue sheet and control cabinet. -- System uses proven hot melt technologies, ready to run in ...more
, Manufacturer: Custom Built, Line Direction: Left To Right, Material: Steel And Aluminum, Thickness:.032” (Steel),.040” (Aluminum), Max Coil Width: 68”, Max Coil Weight: 45,000 lb, Coil OD: 72” Max (Estimated, Entry & Exit), Coil ID Entry: 20” Or 24” (Estimated), Coil ID Exit: ...more
