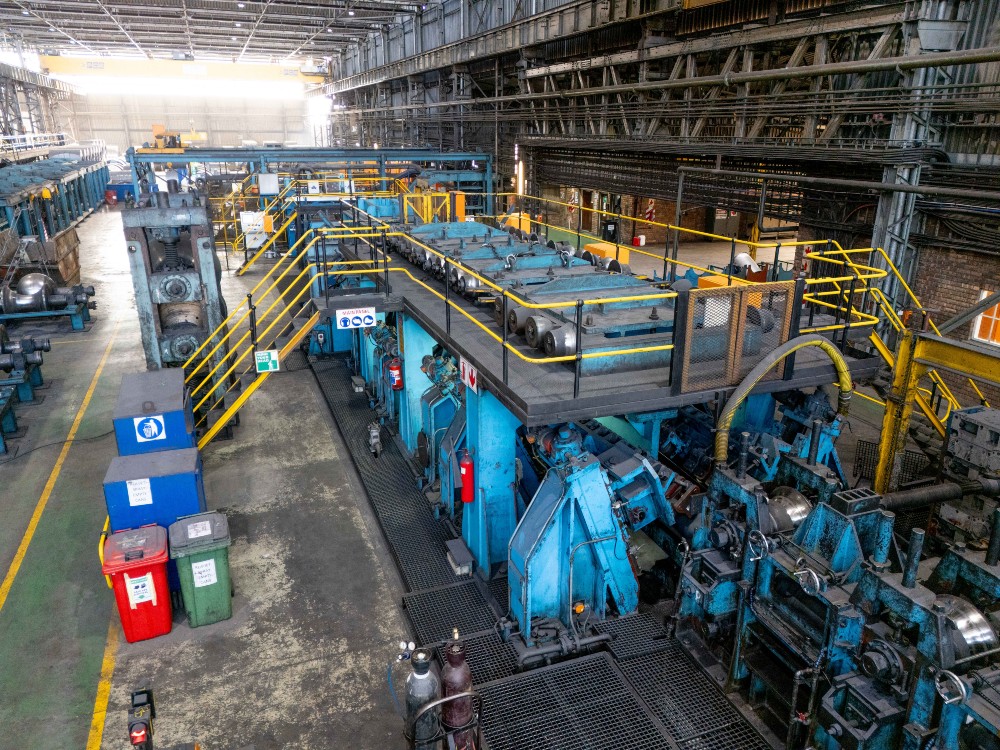

610mm 24" ) x 14" mm Yoder/Mill Tech Rafted API Pipe Mill Line

Yoder/Mill Tech API Pipe Mill Line
Rafted Stands with Spare Set of Rafts
Upgraded By Mill Tech in 2008

Pipe Diameter: 219mm - 610mm (8" - 24")
Wall Thickness: 4.5mm - 14mm
Grades: API X70, API 5L X42 to PSL, API 5L X65 to PSL
Maximum Line Speed: 20 Meters/Min
Pipe Length: 6 - 18 Meter

Complete Line with:

40 Ton Coil Loading Scale (New in 2021)
30 Ton Coil Storage Ramps, 3 Stations
30 Ton Coil Car
30 Ton Mill Tech Double Uncoiler (New in 2004)
Hold Down Roll, Peeler Table, Coil Breaker
Yoder 5 Roll Flattener with Entry Pinch Rolls
2 over 3 Driven Rolls. (Motor & Gear Box Upgrade in 1995)
180 KW DC Drive

Coil Front Plate Trimmer
Acetylene Station Cutting Torch
Mill Tech Edge Trimmer (New in 2008)
40 Sets of Spare Blades
Mill Tech Choppers (New in 2008)
117 KW Drive

Linsinger Edge Milling Machine (New in 2004)
Model: BFMK 160/1100
Strip Width: 685mm - 1925mm
Chip Conveyor, Donaldson Dust Extractor, Siemens Controls, Cutting Blades
491 KW Drive

Krautkramer In Line Coil Ultrasonic Testing Unit (New in 2023)
36 Channel / 32 Probes
Spray Marking System

Yoder Transfer Conveyor with Edge Guides
TSF Entry Pinch Roll Stand
Top & Bottom Roll Driven
74 KW Drive
Upgraded Motor & Gear Box

Yoder / Mill Tech Cage Forming Breakdown Stands (New in 2008)
8" - 24" Adjustable
Rafted Top Rolls with Spare Rafts
Quick Change Tooling Sizes
Pre-Form Cage / Pre Bending
TSF Break Down Stand with 37 KW Motor & Gear Box
6 Cluster Stands with Quick Size Changeover
3 Finn Pass Stands with 90 KW Drives on Each Stand
Upgraded Motor and Gear Boxes
2 Side Roll Stands
Welding Section

3 TSF Finn Pass Stands
Rafted Stands with Spare Set of Rafts (508mm - 610mm)
(3) 45 KW DC Drives
Rebuilt Motor & Gear Boxes (Mill Tech 2008)

1000 KW EFD Solid State Welder (New in 2008)
Mill Tech ID Scarfing (New in 2020)
Mill Tech Weld Box & Squeeze Rolls (New in 2022)
Weld Box Load Cells, Electric Control, Recording Monitoring
OD Scarfing Stands
Mill Tech Pull Out Stand (New in 2008)
Upgraded Motor & Gear Box, 37 KW Motor
Krautkramer In Line Ultrasonic Tester (New in 1992)
Scan Master Model AS200 Multi Channel Pipe Weld Inspection
USIP 40 Two Channel with Fault Identification Marker
Spray Paint

4 Seam Annealers
(2) Thermatool 350 KW (Year 1995)
(1) EFD 500 KW (Year 2000)
(1) EFD 800 KW (Year 2008)
Mill Tech Pull Out Stand with 37 KW Drive (New 2008)
Cooling Trough

4 Sizing Stands
Rafted Stands with Spare Set of Rafts (508mm - 610mm)
(4) 37 KW DC Drives (Rebuilt by Mill Tech 2008)

Mill Tech Rotary Cut-Off (New in 2008)
270 KW DC Drive
New Main Rotational Bearing in 2022
6 Blade Rotary Design

Mill Tech Double Head End Facing Machines (New in 2008)
Pipe Diameter: 219mm 610mm
Wall Thickness: 3mm - 14mm
Pipe Length: 6M to 18M
Cuttng Speed: Approximately 6 pieces/minute
2 Heads Off Ser Design
Walking Beam Conveyor
Siemens PLC Controls
Hydraulic Clamping
Servo Drives

Mill Tech Hydrostatic Tester (New in 2008)
Pipe Range: 8" - 24"
Test Pressure Range: Up to 3770 PSI (26 MPa)
Adjustable Cycle Time
Movable Head Stock with Interchangeable Test Heads
High Pressure Hydraulic Intensifier
Computerized Control Settings for Test Pressure, Hold Time & Recording Test Cycles.
Pipe Alignment & Internal Flushing
Individual Pressure Control
Automatic Test Cycle Control
Computer Interface & Test Results Recorded

Testing Methods
(#1) Conventional Rohloff Ultrasonic Testing (UT) (New 2008)
(#2) Olympus Phased Array Ultrasonic Testing (PAUT) )New 2024)
Grades: X52 - X70
Full Body including Ends
Sensitivity: API 5L and other relevant standards
Test Capacity: up to 160 Pieces/Hour
Multi Channel Array Probes
Defect Detection: Internal, External, Longitudinal, Traverse defects in the Weld
Lamination Defects in Heat Affected Zone (HAZ)
Midwall Weld Defects
PLC Control System

Tooling: 219.1mm , 244mm , 273mm , 323.9mm , 355.6mm , 399mm , 406.4mm , 457mm , 508mm , 610mm
Siemens Controls
S7-300 PLC

All Conveyors for moving the pipe throughout the factory.
Length & Weigh Scale
