60000 lbf. (300kN) Tinius Olsen #Super-L, Extra Tall Adjustable Top Crosshead

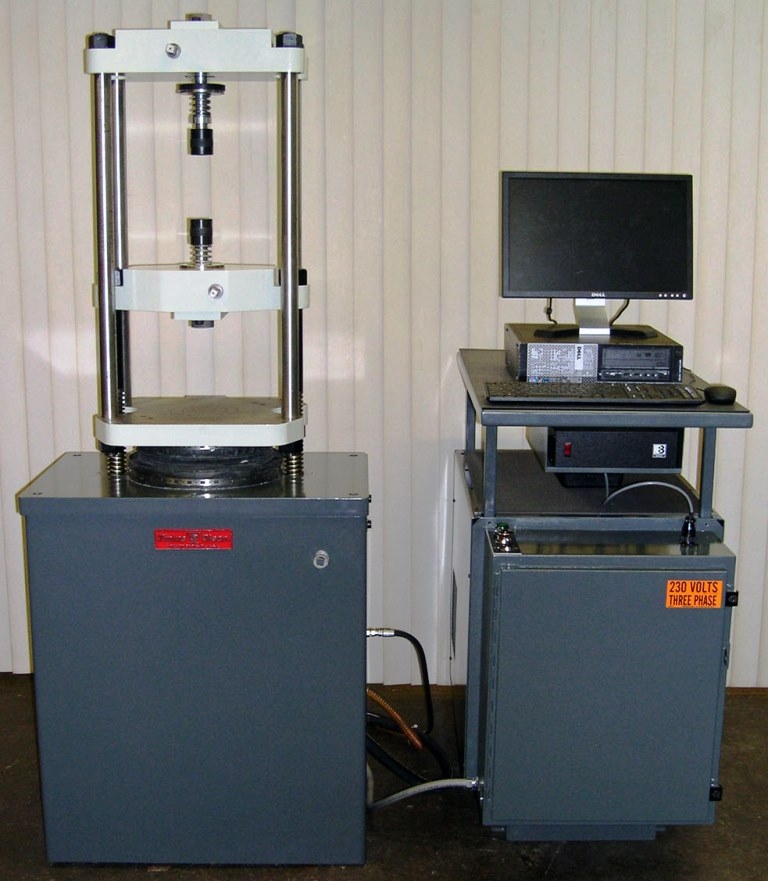

Reconditioned 60,000 lbf (300 kN) Capacity Tinius Olsen Model Super L, Hydraulic Tension and
Compression Testing Machine with Adjustable Top Crosshead.
Tinius Olsen Super L Extra Tall

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 34"
Compression Testing Opening (Less Tooling): 24"
Distance Between Columns/Screws: 12"
Testing Stroke: 6"
Table Size (W x D): 12" x 15"
Testing Speed (IPM): 0 – 3
Crosshead Adjusting Speed (IPM):12
Approximate Overall Dimensions:
Servo Hydraulic Console (W x D x H): 50" x 24" x 32"
Load Frame (W x D x H): 34"x 24" x 85"
Weight (lbs.): 2,300
Electrical Requirements (V,Hz,PH): 220, 60, 3

EQUIPPED WITH:
• Computer System with Key Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor or Better & Manual
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
• Celesco, High Resolution TTL compatible incremental quadrature Encoder for position and
testing speed values with signal cable and mounting hardware.
• Precision Pressure Transducer for load values with signal cable and mounting hardware.
• Reconditioned Tinius Olsen Servo Hydraulic Pumping System

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty

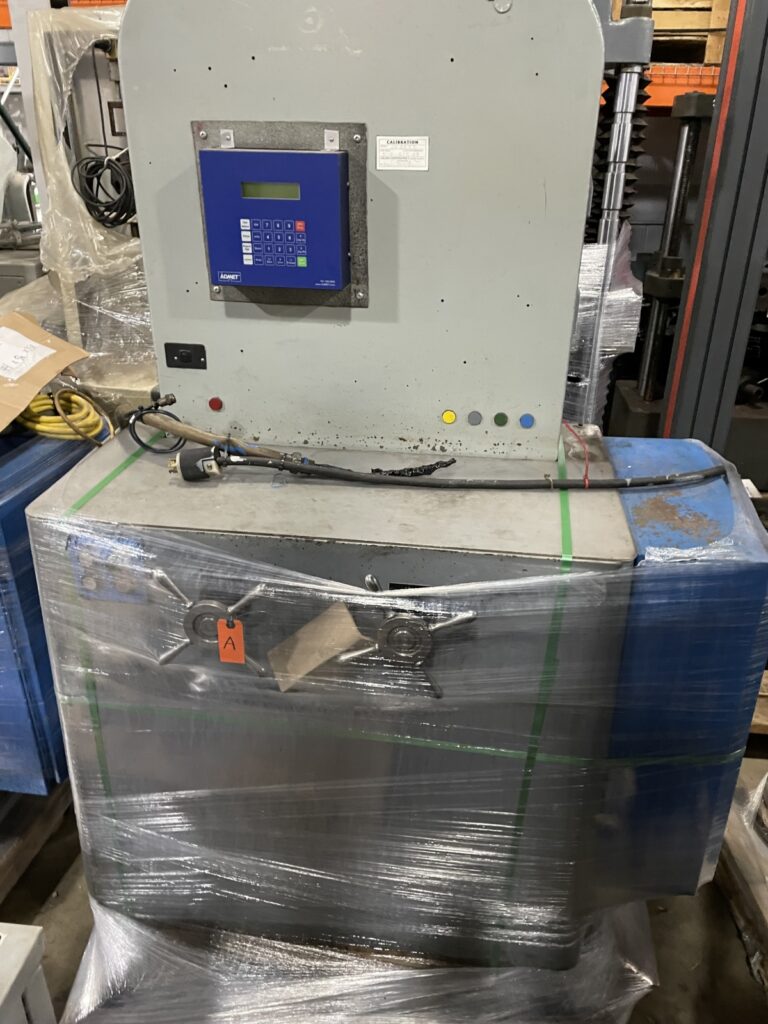

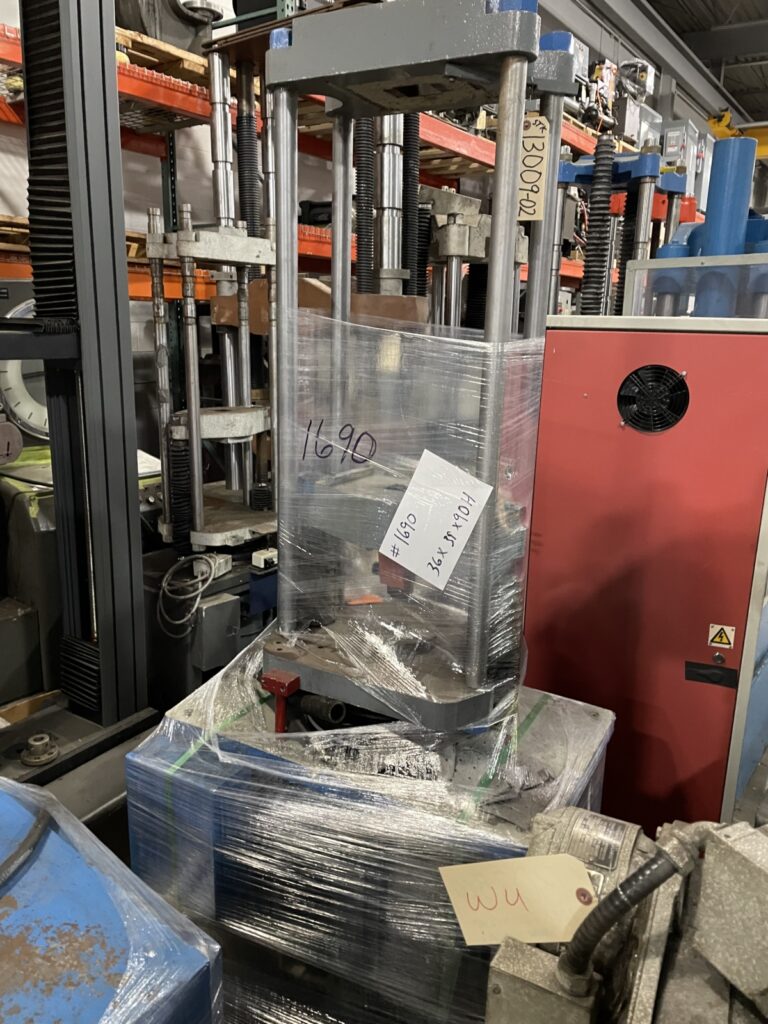

*Representative Images Prior to Reconditioning
