60000 lbf. (300kN) Satec #HVL, servo hydraulic tension & compression testing machine, 30" tension opening, 15" between columns, reconditioned

Reconditioned 60,000 lbf (300 kN) Capacity Satec, Model HVL, Hydraulic Tension and Compression
Testing Machine with Servo Controlled Testing.
Satec Model HVL
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 30"
Compression Testing Opening (Less Tooling): 21"
Distance Between Columns/Screws: 15"
Testing Stroke: 6"
Table Size (W x D): 15" x 14"
Testing Speed (IPM): 0 – 3
Crosshead Adjusting Speed (IPM): 10
Approximate Overall Dimensions:
Servo Console (W x D x H): 25" x 37" x 39"
Load Frame (W x D x H): 29" x 27" x 87"
Approximate Weight (lbs): 2,600
Electrical Requirements (V,Hz,PH): 230, 60, 3

EQUIPPED WITH:
• Computer With Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 10 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux),
Analysis and Computer Controlled Testing with Manual.
• MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB
Cable.
• Celesco, High Resolution TTL compatible incremental quadrature Encoder for position and
testing speed values with signal cable and mounting hardware.
• Reconditioned Satec Servo Hydraulic Power Supply for Closed Loop, Computer Controlled
Testing.
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty

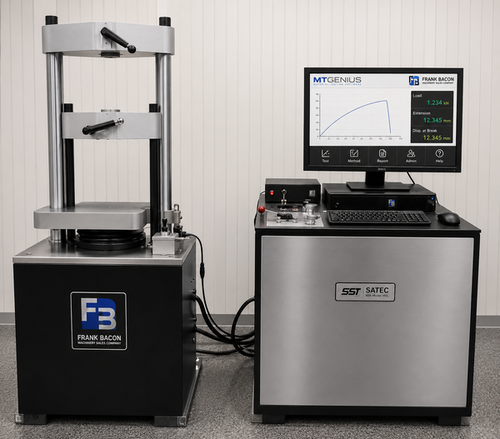

*Representative Image After Reconditioning
