Description
New 60K (300kN) FB-300H Hydraulic Tensile & Compression Testing Machine

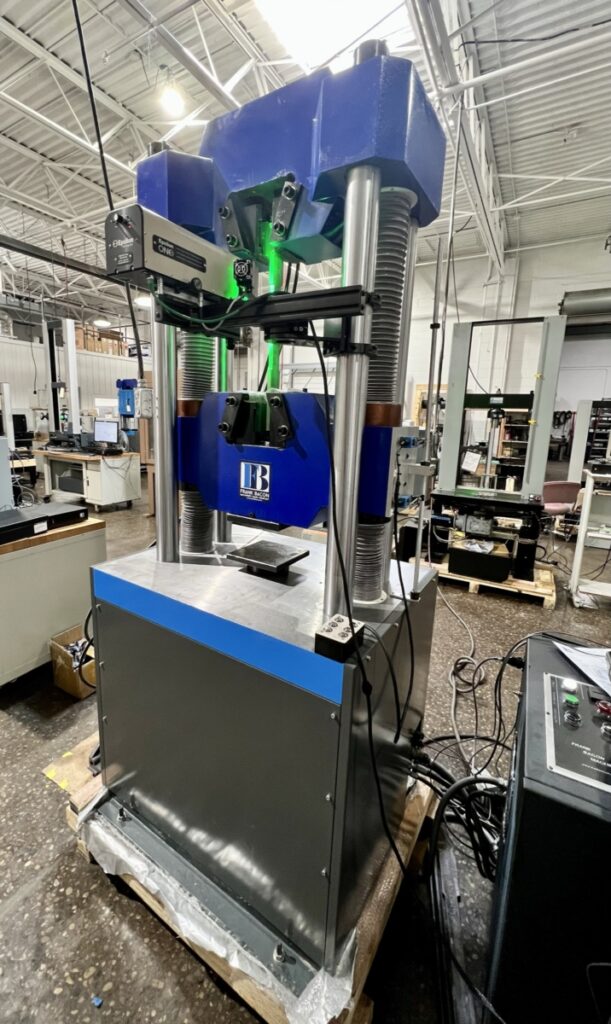

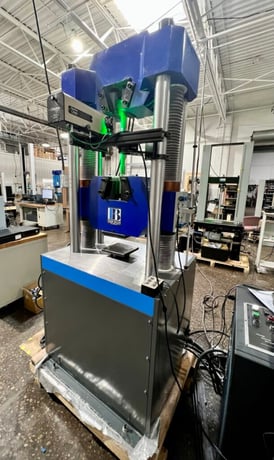

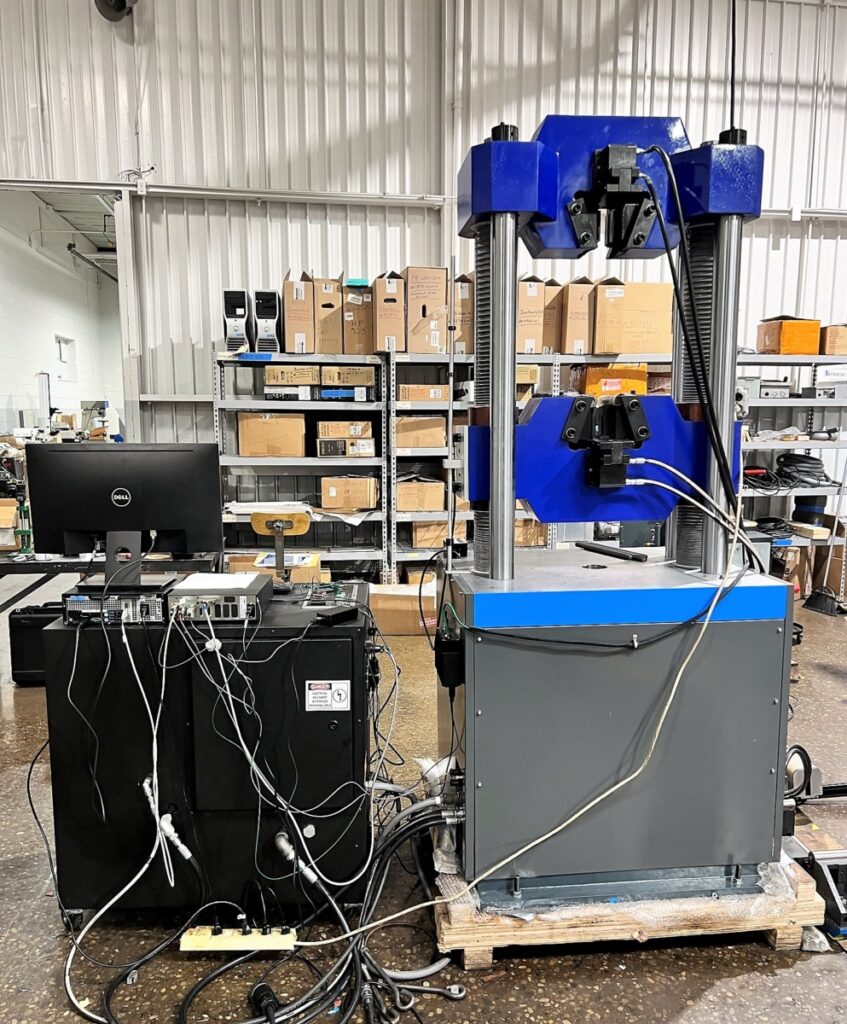

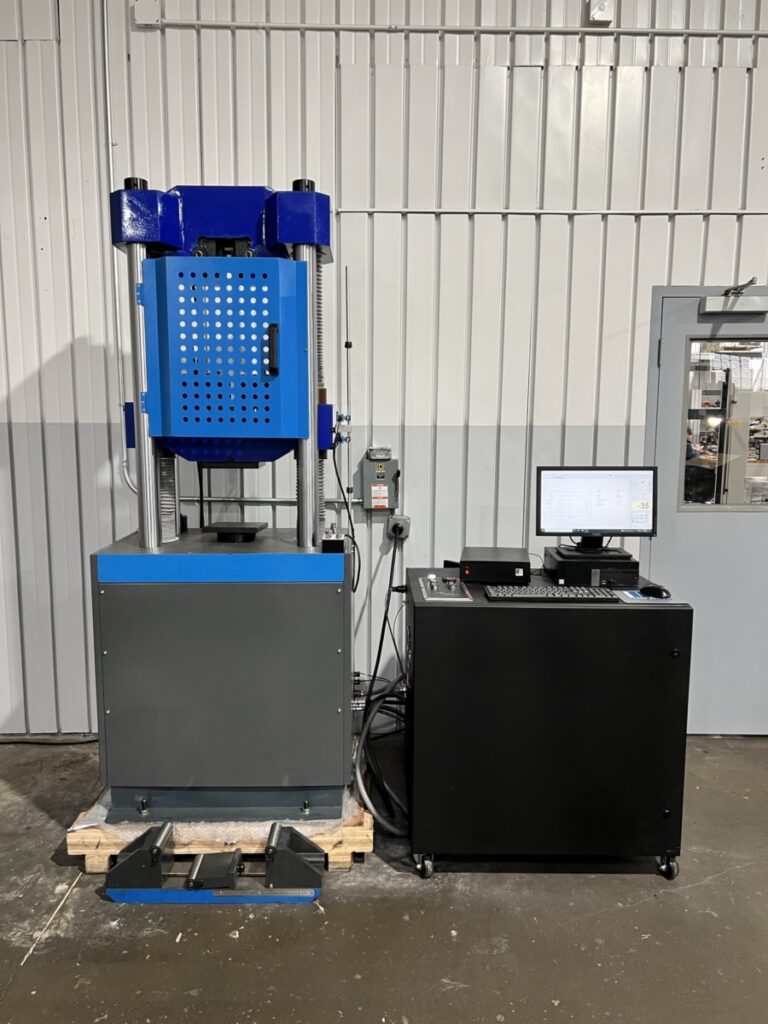

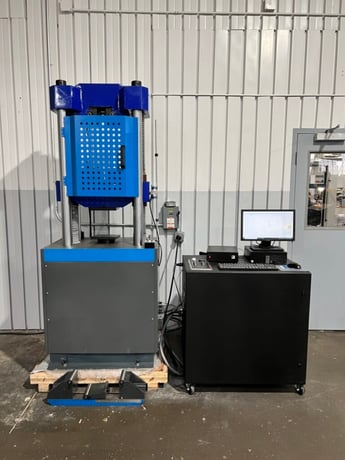

(1) New 67,500 lbf (300 kN) Frank Bacon, FB-300H, Hydraulic Tension and Compression Testing Machine with Hydraulic Gripping System.
Frank Bacon FB-300H
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 24"
Compression Testing Opening (Less Tooling): 22"
Distance Between Columns/Screws: 19"
Testing Stroke: 6"
Table Size (W x D): 19" x 24"
Testing Speed (IPM): 0 – 3
Approximate Overall Dimensions:
Console (W x D x H): 36" x 27" x 38"
Load Frame (W x D x H): 36" x 25" x 87"
Approximate Weight (lbs.): 5,700 lbs.
Electrical Requirements (V,Hz, PH): 220/440, 60, 3
Accuracy Grade: Grade 1
Measurable Load Range: 1-100% FS
Measured Load Accuracy: +-1%FS
Measured Load Resolution: 1/300000 FS
Displacement Measurement Resolution mm:
Load Measurement Repeatability: 1%
Load Measurement Hysteresis: 1.5%
Load Measurement Error at Zero: +-.1%
EQUIPPED WITH:
- Computer System with Keyboard & Mouse
- 24" LED-Backlit LCD Color Monitor
- Microsoft Windows 10 Professional, Workstation
- Frank Bacon MTGenius, Material Testing Software for Data Acquisition (Load, Position, 2 Strain & AUX), Analysis and Computer Controlled Testing with Manual.
- Frank Bacon MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.

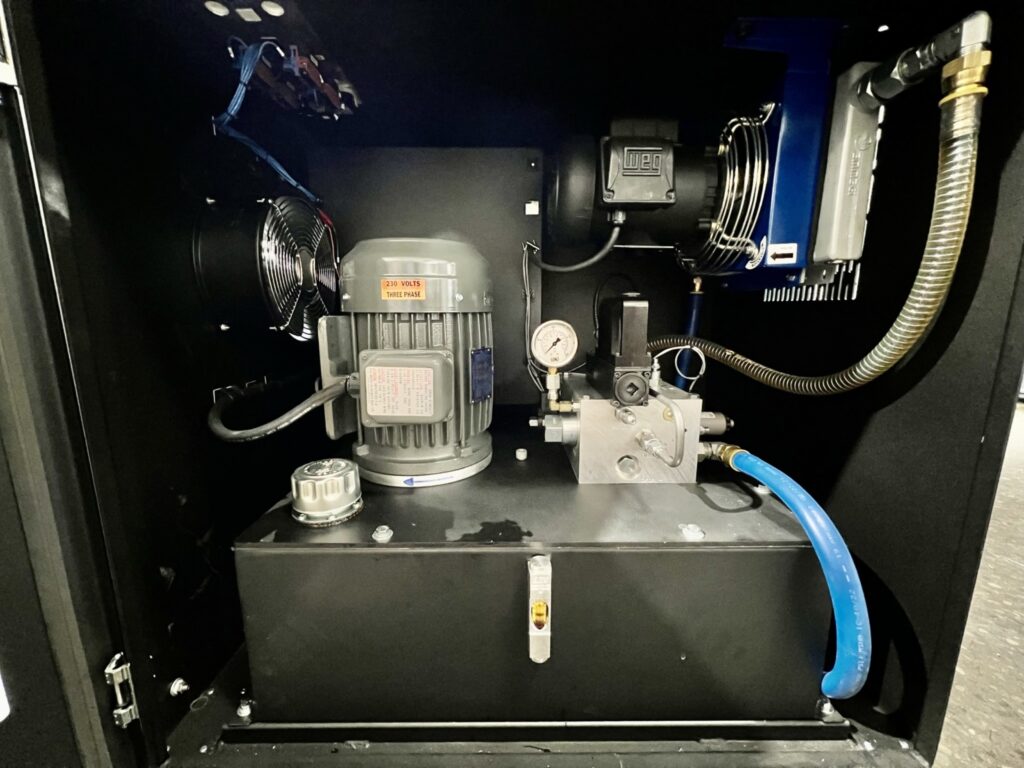

- Closed Loop Hydraulic Pumping System in custom "Silent" Console with: 23 gal. Hydraulic Reservoir, Submerged Bosch Pump, Vickers P. Valve, Sun Hydraulics Custom Aluminum Hydraulic Circuit Manifold, Motor, Thermal Transfer Heat Exchanger, PC Controls & More.
- 300kN Precision Load Cell Indicating System
- Two 204 mm x 204 mm Square Compression Platens

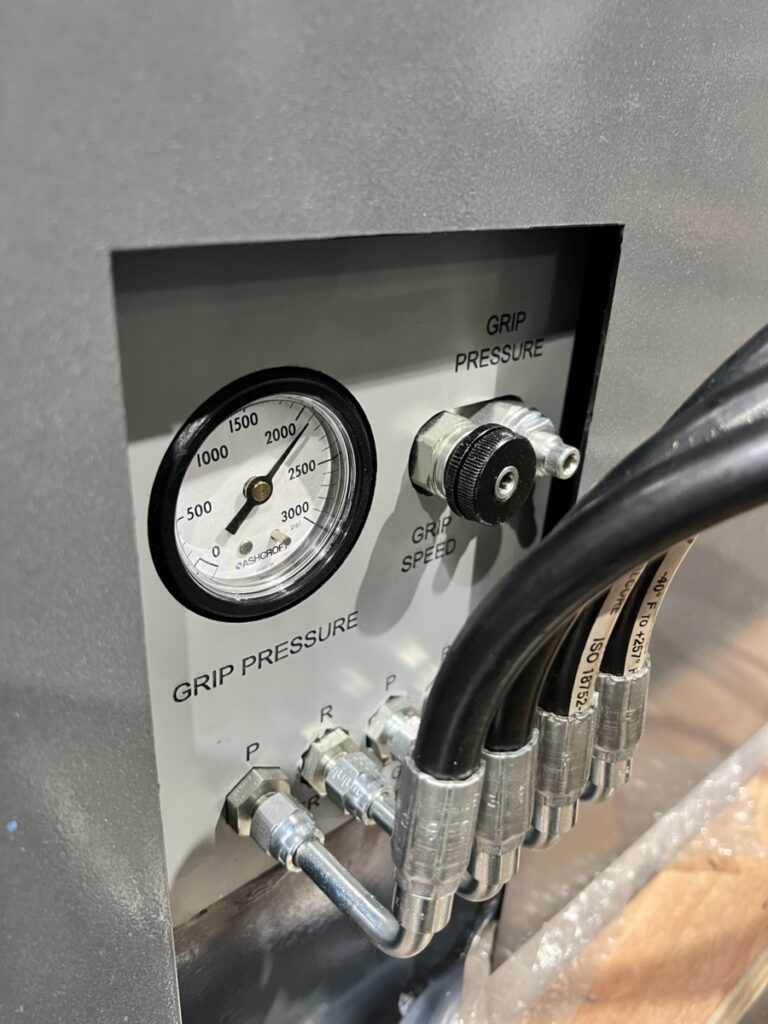

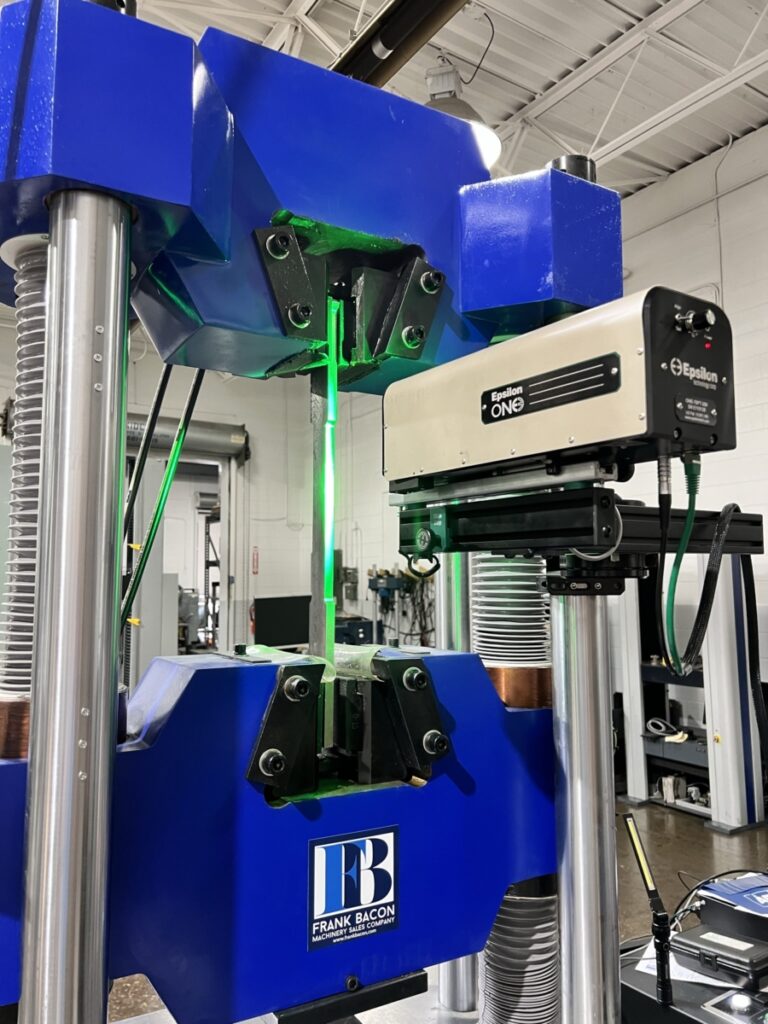

- Hydraulic Gripping System with Faces:
- 0-15mm & 15-30mm Flat Grip Faces
- 6-13mm, 13-26mm & 26-40mm Vee Grip Faces
FOB Warren, MI
2 Year Parts and Labor Warranty
30 Day Satisfaction Guarantee Return Privilege
| FB-300H
DOWNLOAD SPEC SHEET
