Description

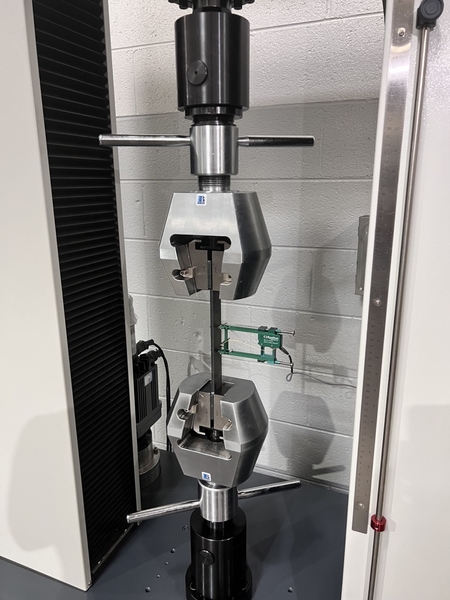

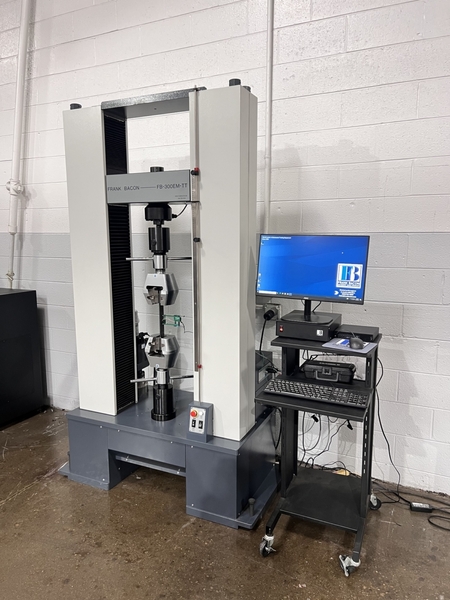

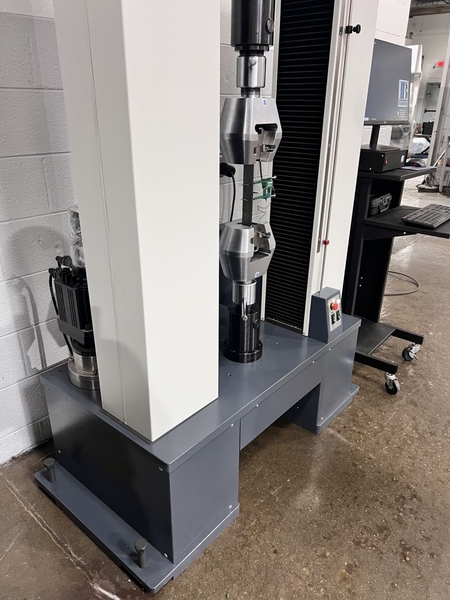

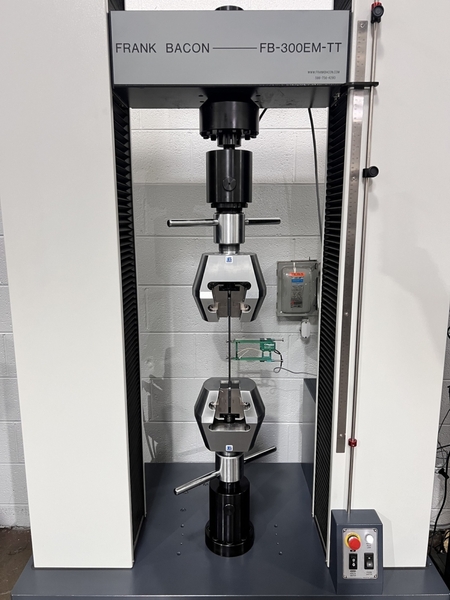

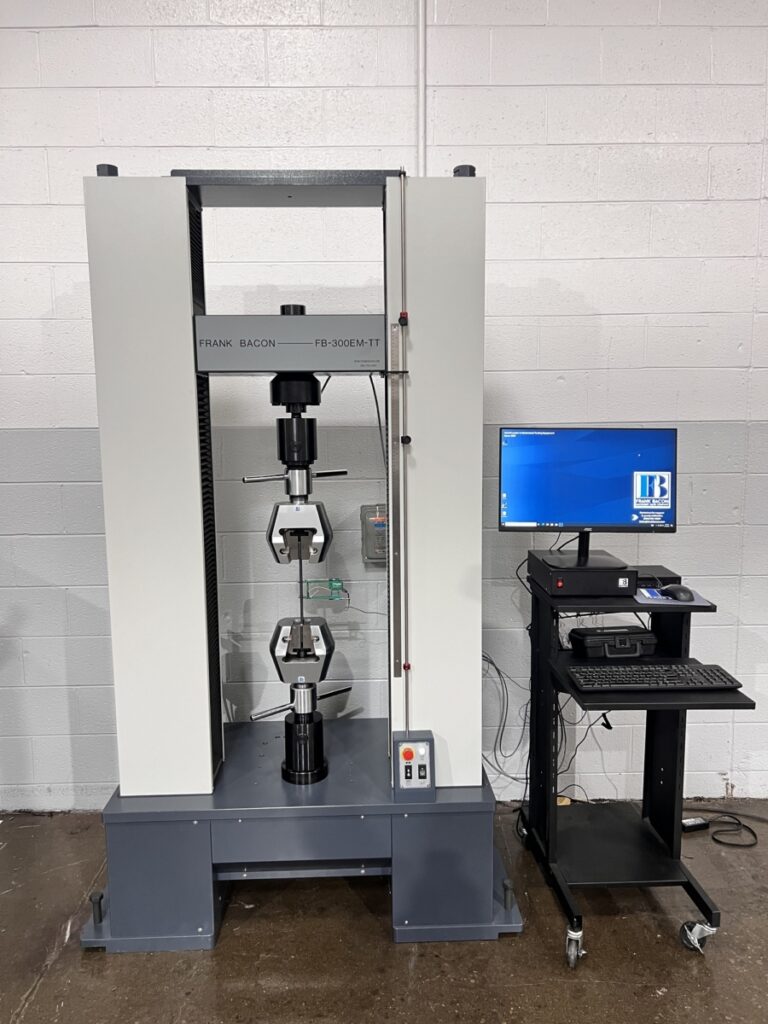

New 60K (300kN) Frank Bacon Model FB-300EM-TT
Frank Bacon Model FB-300EM-TT
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48"
Distance Between Columns/Screws: 21"
Testing Stroke: 48"
Testing Speed (IPM): .00002 – 13
Crosshead Adjusting Speed (IPM): 13
Measurable Load Range: .4-100%FS
Measured Load Accuracy: ±.5%
Strain Measuring Accuracy: ±.5%
Displacement Measurement Resolution (mm): .001
Displacement Measurement Accuracy: Greater of ±.02mm and ±1%
Strain Rate Control Accuracy: ±.5%
Force Loading Control Accuracy: ±1%
Displacement Rate Control Accuracy: ±1%
Overall Dimensions:
Load Frame (W x D x H): 50 x 28 x 90
Load Frame Weight (lbs.): 2,900
Electrical Requirements (V,Hz,PH): 230, 60, 3
EQUIPPED WITH:
- Computer System with Keyboard & Mouse
- 24" LED-Backlit LCD Color Monitor
- Microsoft Windows 10 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Electronic Material Testing Control System PC Controls and Crosshead Jog Controller.
- AC Servo Motor with High Precision Incremental Encoder and AC Drive Controller for Precision Control of Rate (Load, Position or Strain Rate Control)
- 300kN Tension & Compression Load Cell
- Upper and Lower Quick Release Adaptors for Quick Tooling Changes
FOB Warren, MI
Industry Leading 2 Year Parts and Labor Warranty
30 Day Satisfaction Guarantee Return Privilege
ISO 17025 Accredited Certification
Hundreds of Grips, Fixtures, and Accessories Available
| #FB-300EM-TT
DOWNLOAD SPEC SHEET
