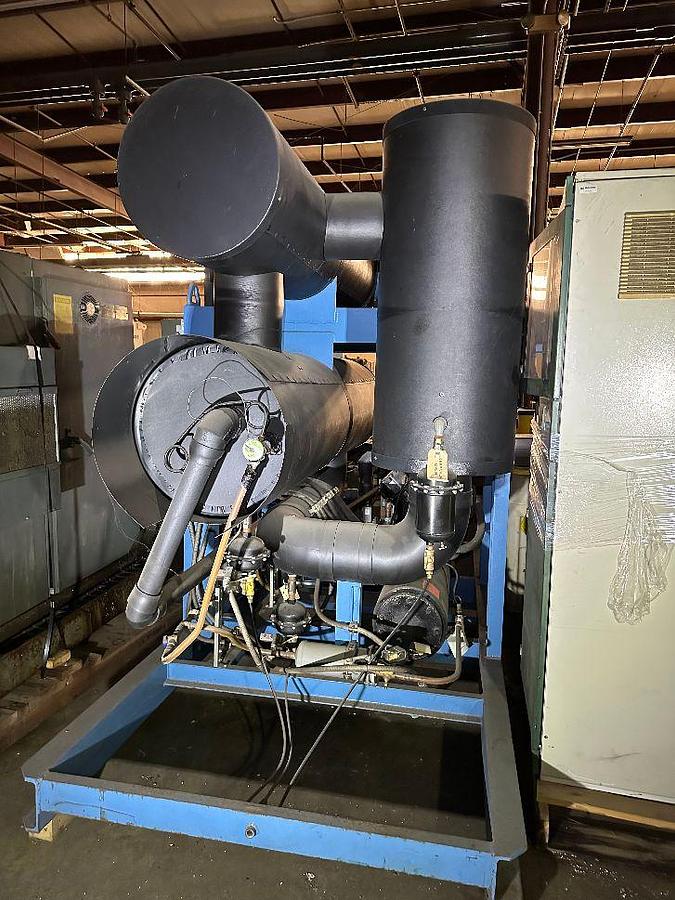

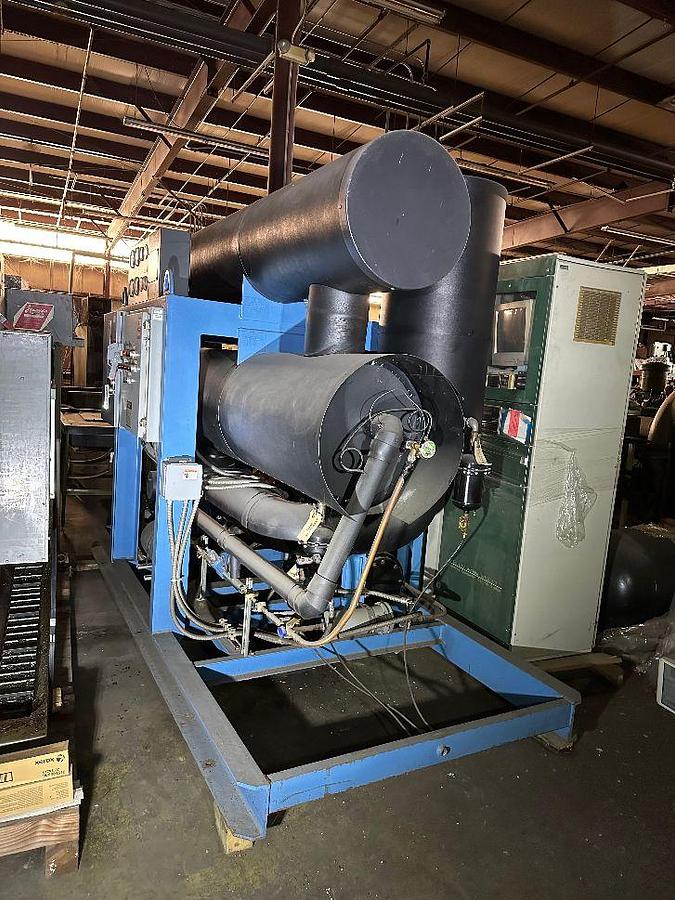

6,000 SCFM, 175 PSIG, Hankison #H-66, Refrigerated Air Dryer, 30 HP, 5,970 LBS

Estimated monthly payment valid upon approved credit.

Request Formal Quote

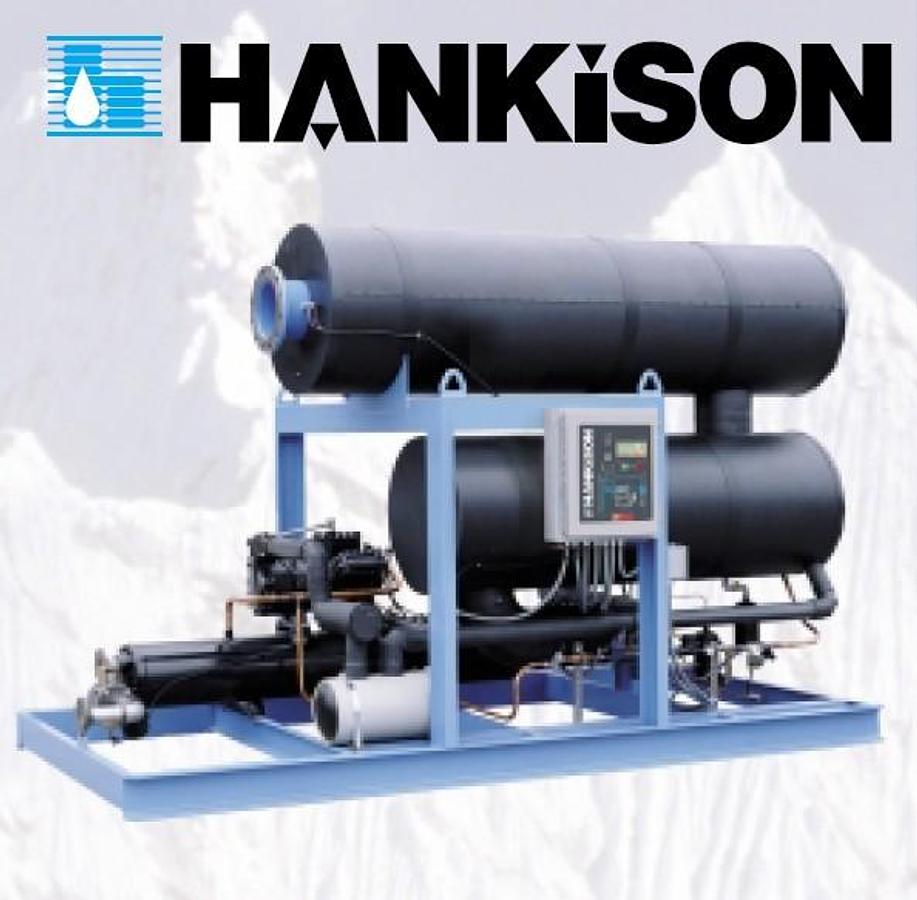

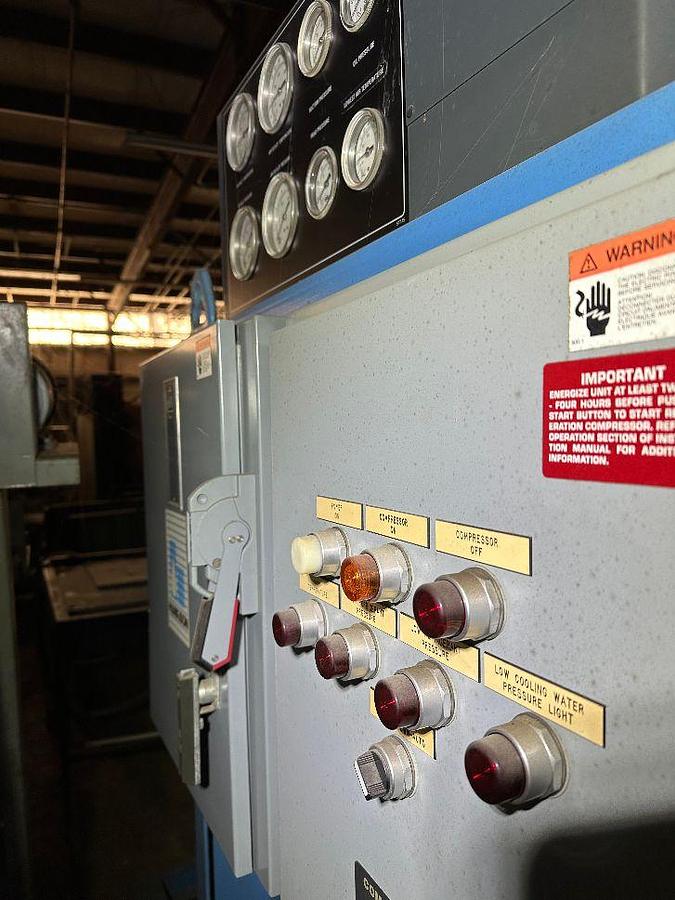

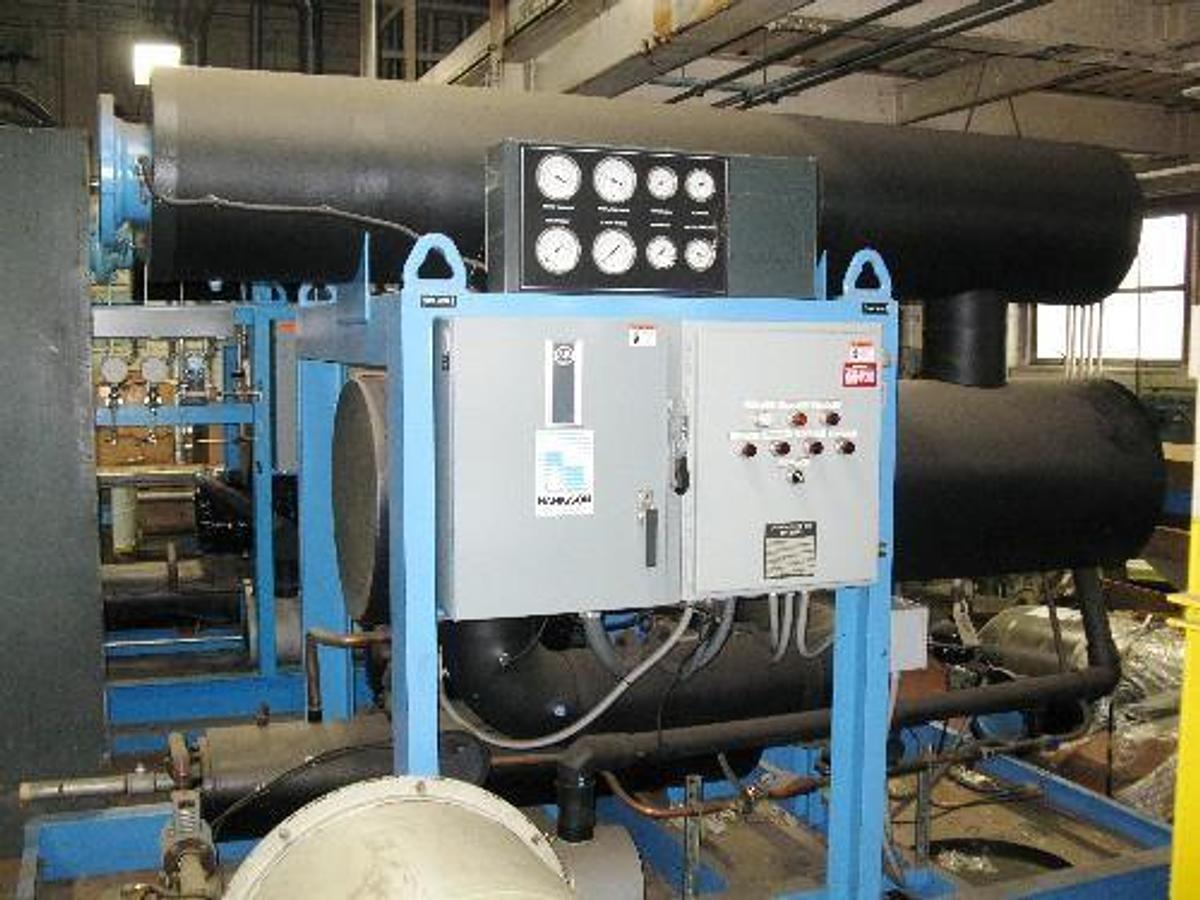

THE HANKISON H-66 IS A HIGH-CAPACITY REFRIGERATED AIR DRYER DESIGNED TO TREAT COMPRESSED AIR WITH A FLOW CAPACITY OF 6,000 SCFM. THIS UNIT IS ENGINEERED TO MAINTAIN STABLE PRESSURE DEW POINTS, OFFERING SPECIFICATIONS FOR BOTH WATER-COOLED AND AIR-COOLED CONFIGURATIONS. FOR WATER-COOLED MODELS, THE REFRIGERATION COMPRESSOR REQUIRES 30 HP TO ACHIEVE A 38 DEGREES F PRESSURE DEW POINT AND 20 HP FOR A 50 DEGREES F PRESSURE DEW POINT. AIR-COOLED MODELS REQUIRE 35 HP FOR A 38 DEGREES F PRESSURE DEW POINT AND 25 HP FOR A 50 DEGREES F PRESSURE DEW POINT. THE SYSTEM IS RATED FOR A MAXIMUM WORKING PRESSURE OF 175 PSIG. THE PHYSICAL DIMENSIONS OF THE UNIT ARE 128 INCHES IN WIDTH, 60 INCHES IN DEPTH, AND 94 INCHES IN HEIGHT, WITH A TOTAL WEIGHT OF APPROXIMATELY 5,970 LBS. IT FEATURES AN INTEGRATED OPERATORS PANEL AND A FREE-STANDING JIC CONTROLS PANEL FOR SYSTEM MANAGEMENT. THE H-SERIES UTILIZES COMPACT PLATE HEAT EXCHANGER TECHNOLOGY AND ENERGY-SAVING REFRIGERATION COMPRESSOR DESIGNS TO ENSURE EFFICIENT OPERATION. NO YEAR OF MANUFACTURE WAS PROVIDED.
