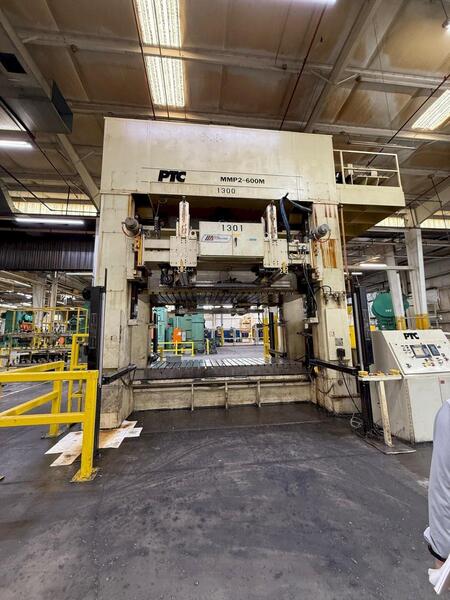

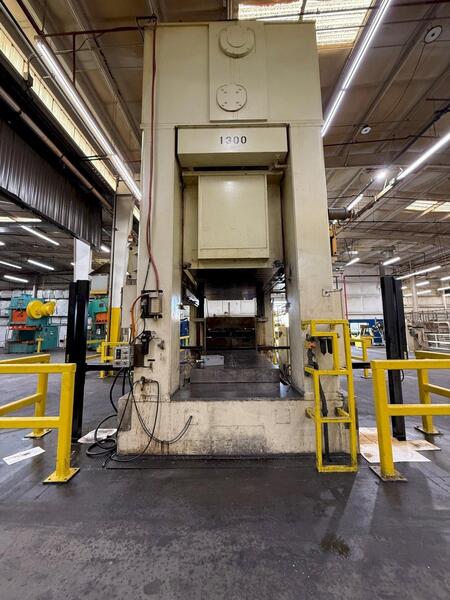

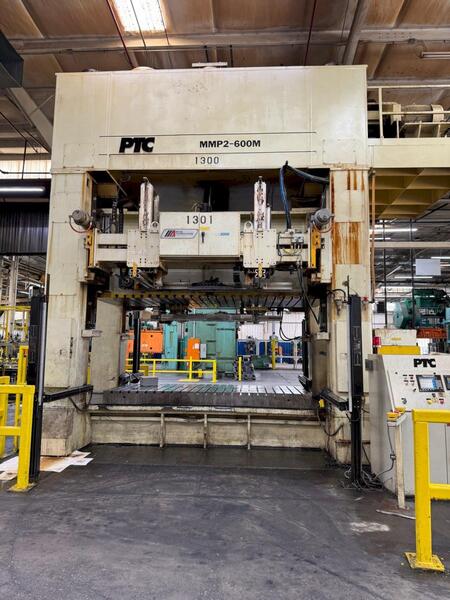

600 Ton, PTC #MMP2-600M, Transfer/Progressive Die Press/Straight Side Mechanical Press, 144" x 60" Bed & Ram Size, 22" Stroke, 54" Shut height, 15-35 VSPM, 2003, 2003

600

22 inches

54 inches

12 inches

144" LR x 60" FB

144" LR x 60 FB

15-35

Preliminary Specifications
600 - Metric Ton Metal Stamping Press
660 - US Ton Capacity
PTC Press Model MMP2-600M
Transfer Press and Progressive Stamping Press
22" Stroke
54" Shut Height
45" Shut Height over Bolster
12" Motorized Adjustment
144" LR x 60" FB Bed Area
144" LR x 60" FB Slide Area
15-35 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Allen Bradley Variable Speed Drive
70" Wide Windows
Heavy Duty Construction
9" Thick Bolster Plate

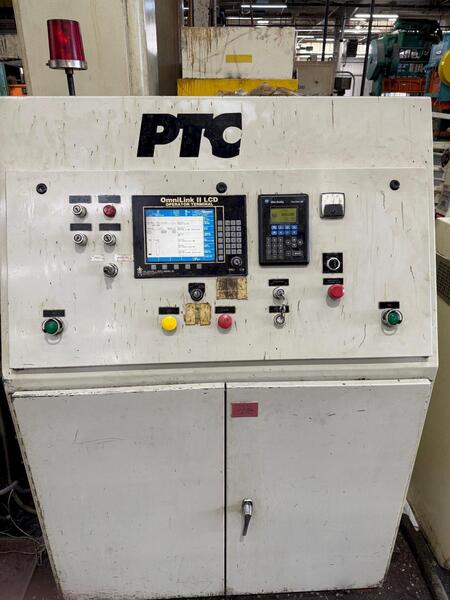

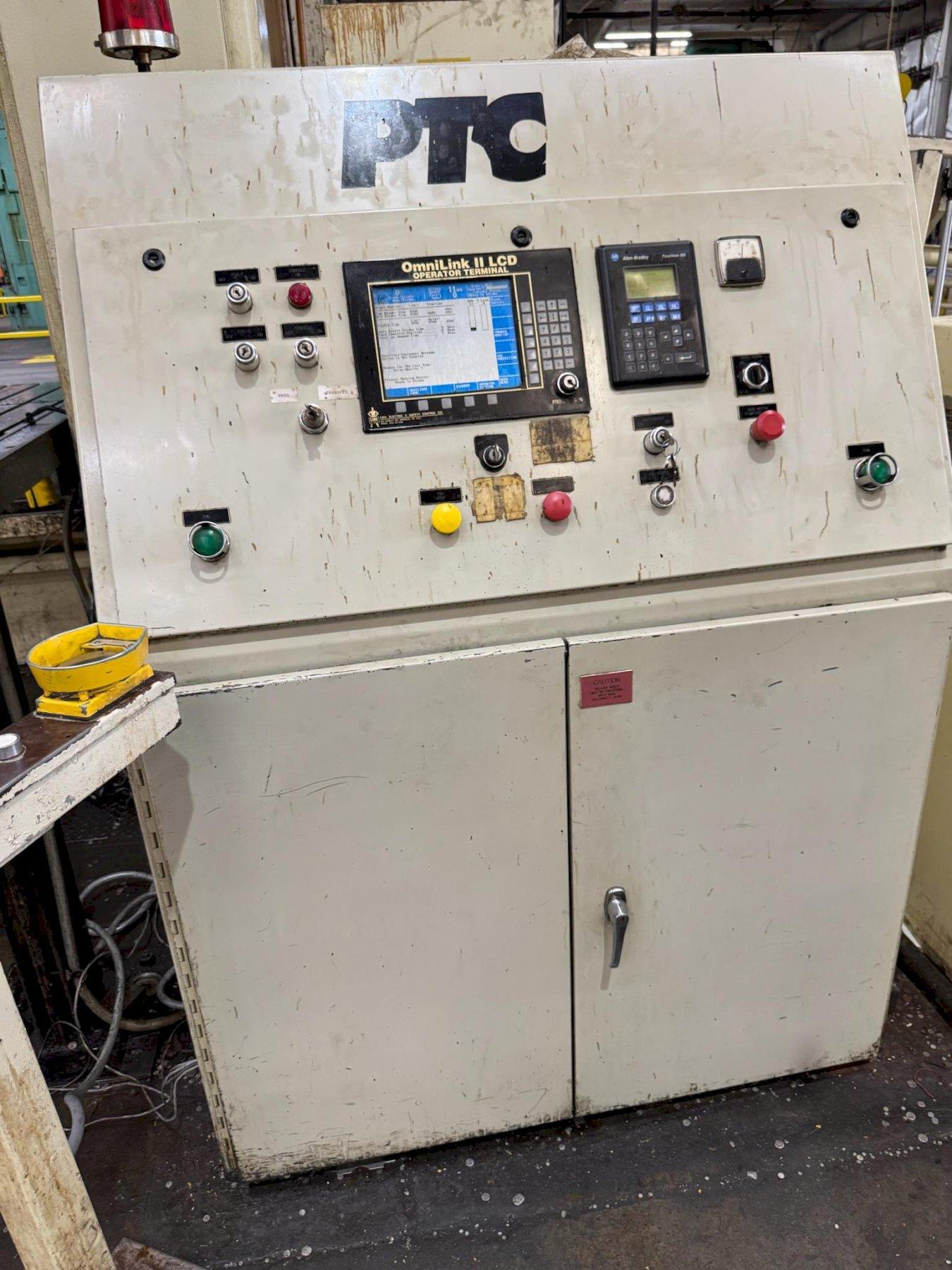

Omni Link II LCD Press Controls

Atlas Technologies Servo Transfer - With Allen Bradley Controls

Overall Height 21' 3" Floor to Top of Motor

Can be seen under power upon request in the plant!

A PTC 660-ton mechanical transfer press, such as the Model MMP2-600M, is an industrial machine used for high-volume metal stamping and forming. These presses are known for their speed and precision, using a series of dies to perform multiple operations on a single part in one continuous cycle. With a 660-ton capacity, they are capable of handling heavy-duty applications. The "transfer" feature automates the movement of the workpiece between stations, increasing efficiency and reducing labor costs. In addition to being efficient, the transfer feature ensures part consistency by minimizing manual handling and potential errors. This type of press is commonly used in the automotive and appliance industries to produce complex parts like vehicle body panels or washing machine tubs. The advanced control systems on modern presses allow for precise management of speed, force, and timing.
