600 Ton, Pacific #K600-16, hydraulic press brake, 16' overall, 170" between housing, 12" stroke, 14" throat, 22" open, Zakron Comp-U-Bend 61000 Axis Back Gauge

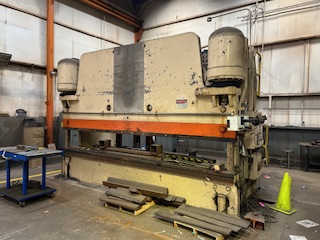

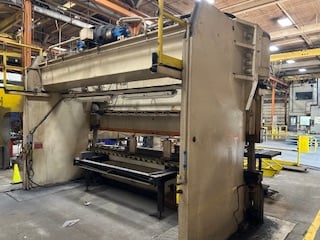

Pre Owned Pacific Model K600-16 Hydraulic Press Brake

GENERAL SPECIFICATIONS
Capacity 600 TONS
Overall Length of Bed & Ram 16’
Distance Between Housings 14’ 2”
Stroke 12”
Open Height 22”
Closed Height 10”
Throat Clearance 14”
Width At Top Of Bed 24”
Main Motor Horsepower 50
Speeds
Rapid Advance 93 IPM
Fast Press @ 330 Tons 44 IPM
Normal Press 17 IPM
Fast Return 89 IPM
Normal Return 37 IPM

EQUIPPED WITH
Zakron Comp-U-Bend 61000 Axis Back Gauge (X , Man R)
Variable Speed
Variable Tonnage Control
Tilt Adjustment
Electric Foot Switch / Palm Button Station
Electrics 230460/3/60 77A

Approximate Overall Dimensions 156” W X 69” D X 130” + 43” Tall
Approximate Overall Weight 83200 Lbs
