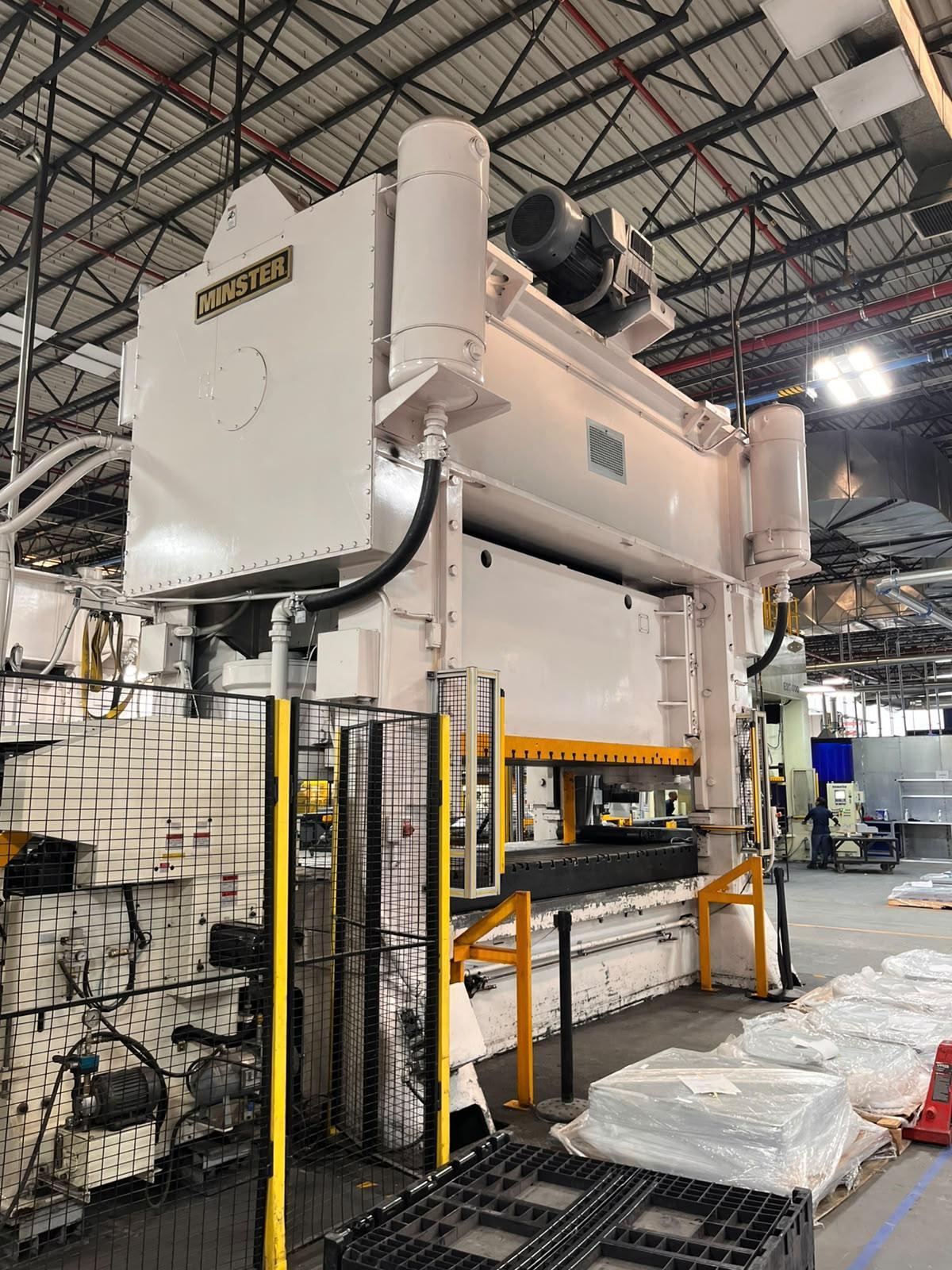

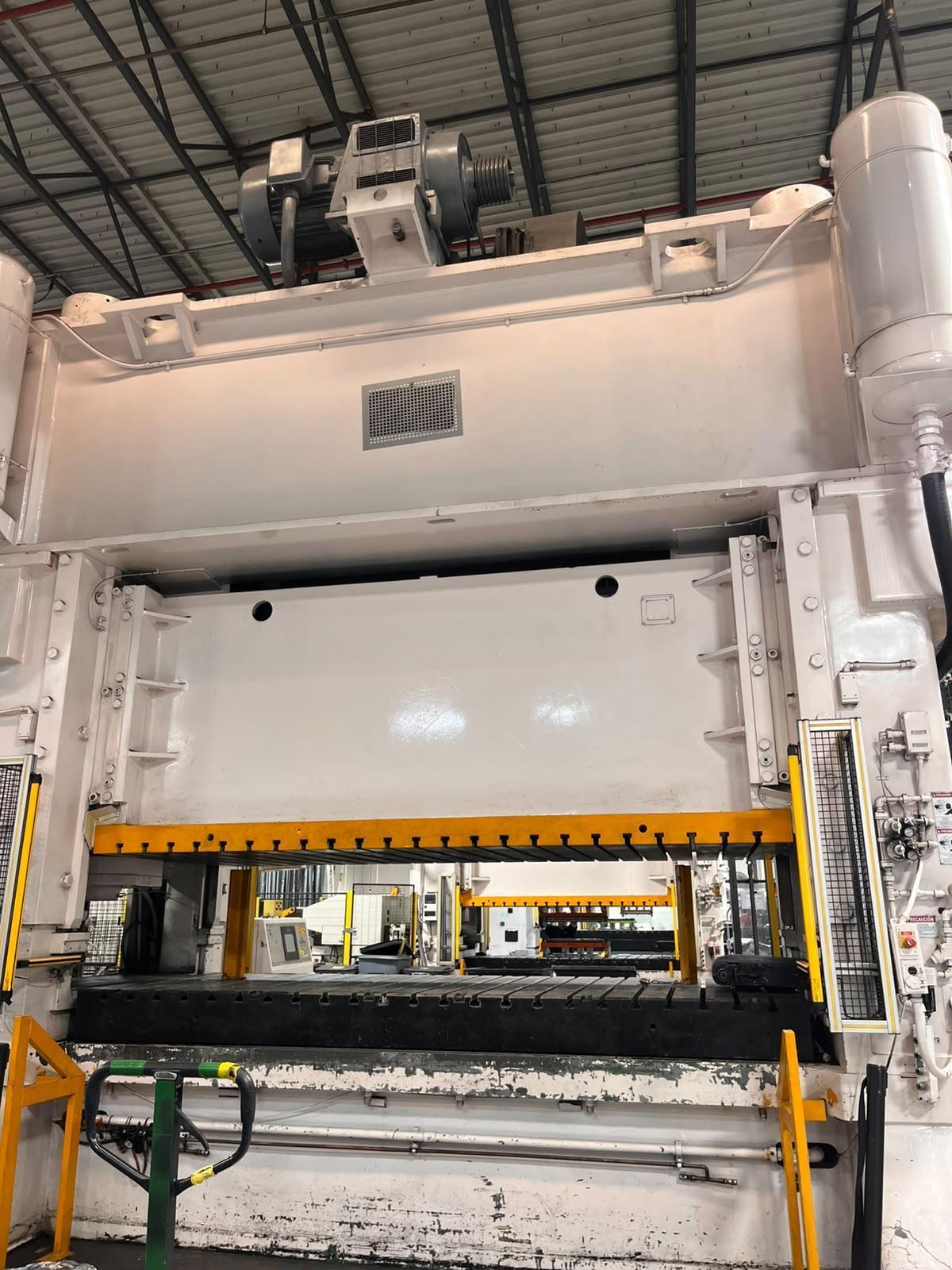

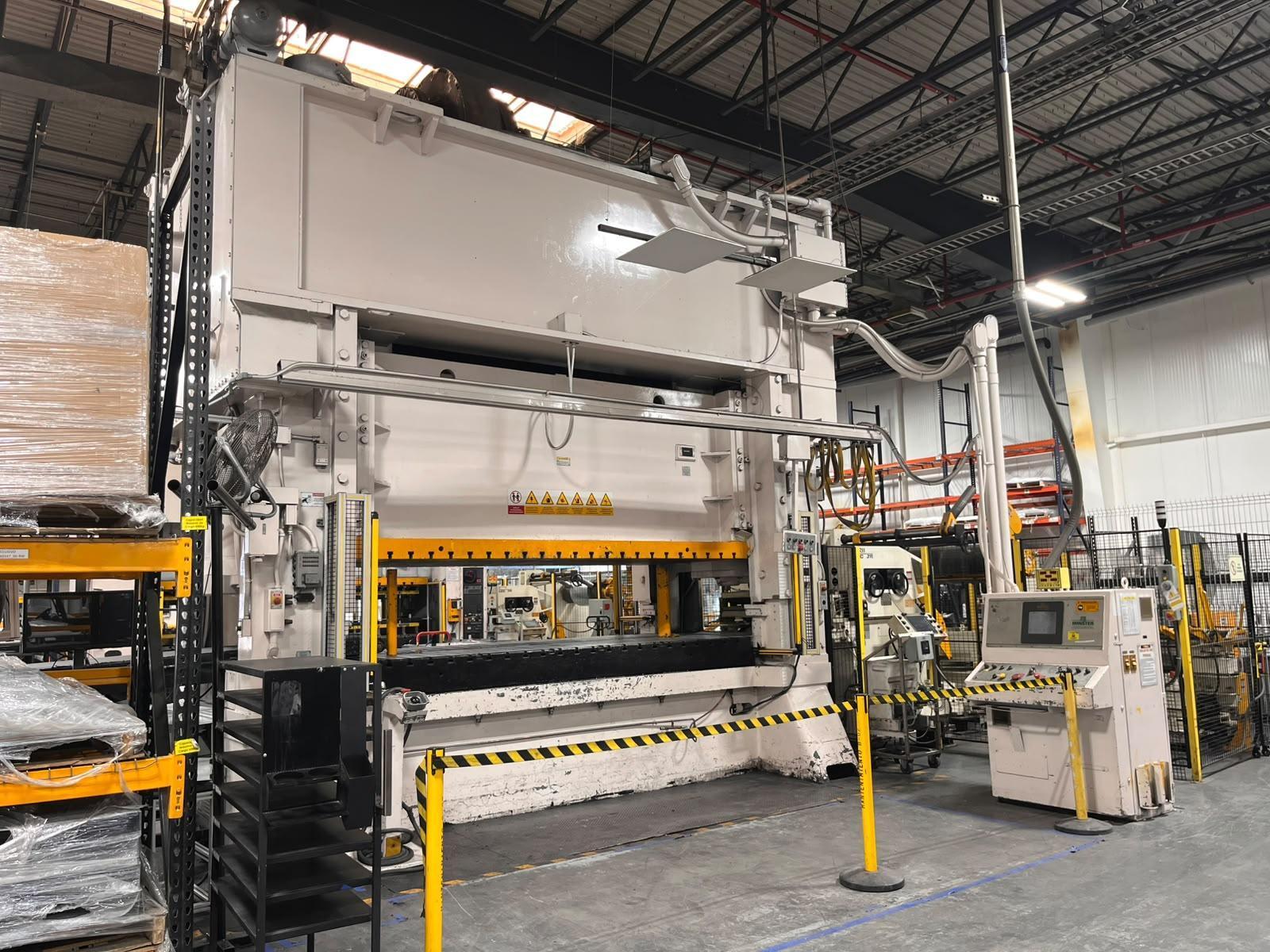

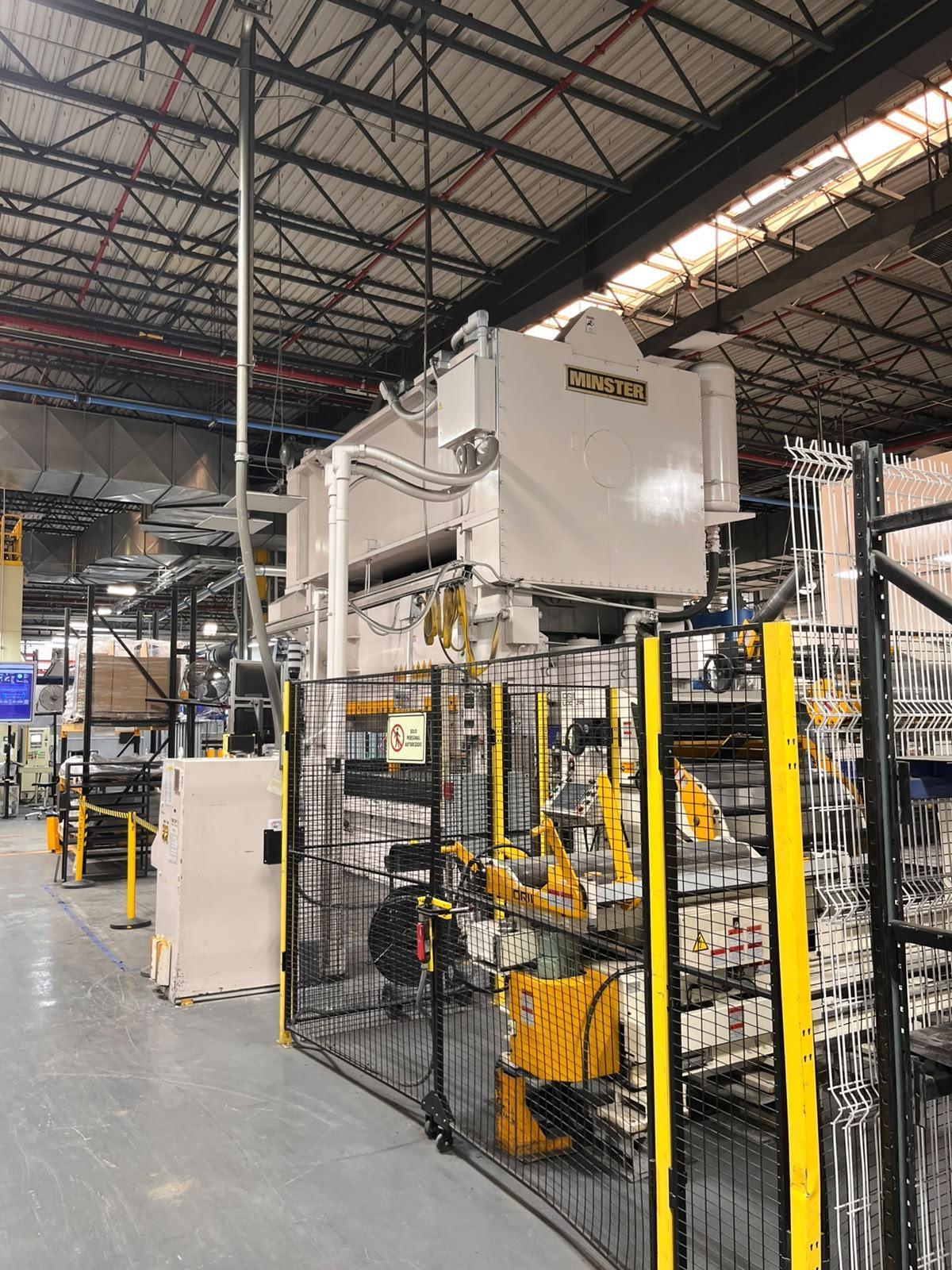

600 Ton, Minster #E2-600-144-60, straight side double crank press, 8" stroke, 22" Shut Height, 50 SPM, 60" x144" bed, 53" passline, 1998

Tonnage 600 tons

Stroke 8.00 inches

Shut Height 22.00 inches

SPM 50

Vari Speed (Yes/No) yes

Bed W 60 inches

Bed L 144 inches

Crank (Single/Double) double

Air Clutch (Yes/No) yes

CNC Control yes

Type of CNC Control Minster PMC

Dimensions 251T x 213W x 120D

Weight 238000 pounds

E2-600-144-60-29537
Press Specifications

Capacity off Bottom..................................................................... 600 Tons

Drive Arrangement ...................................................................... Single Geared, Twin Drive

Lube Unit Location ...................................................................... Left Hand Side

Approximate Press Weight .......................................................... 238,000 Lbs.

Press Slide Specifications

Stroke Length............................................................................... 8.00 in

Speed Range................................................................................. 0 - 50 SPM

Adjustment of Shutheight ............................................................ 10.00 in

Area of Slide, R-L x F-B.............................................................. 144 x 60 in

Slide Face Machining .................................................................. T Slots

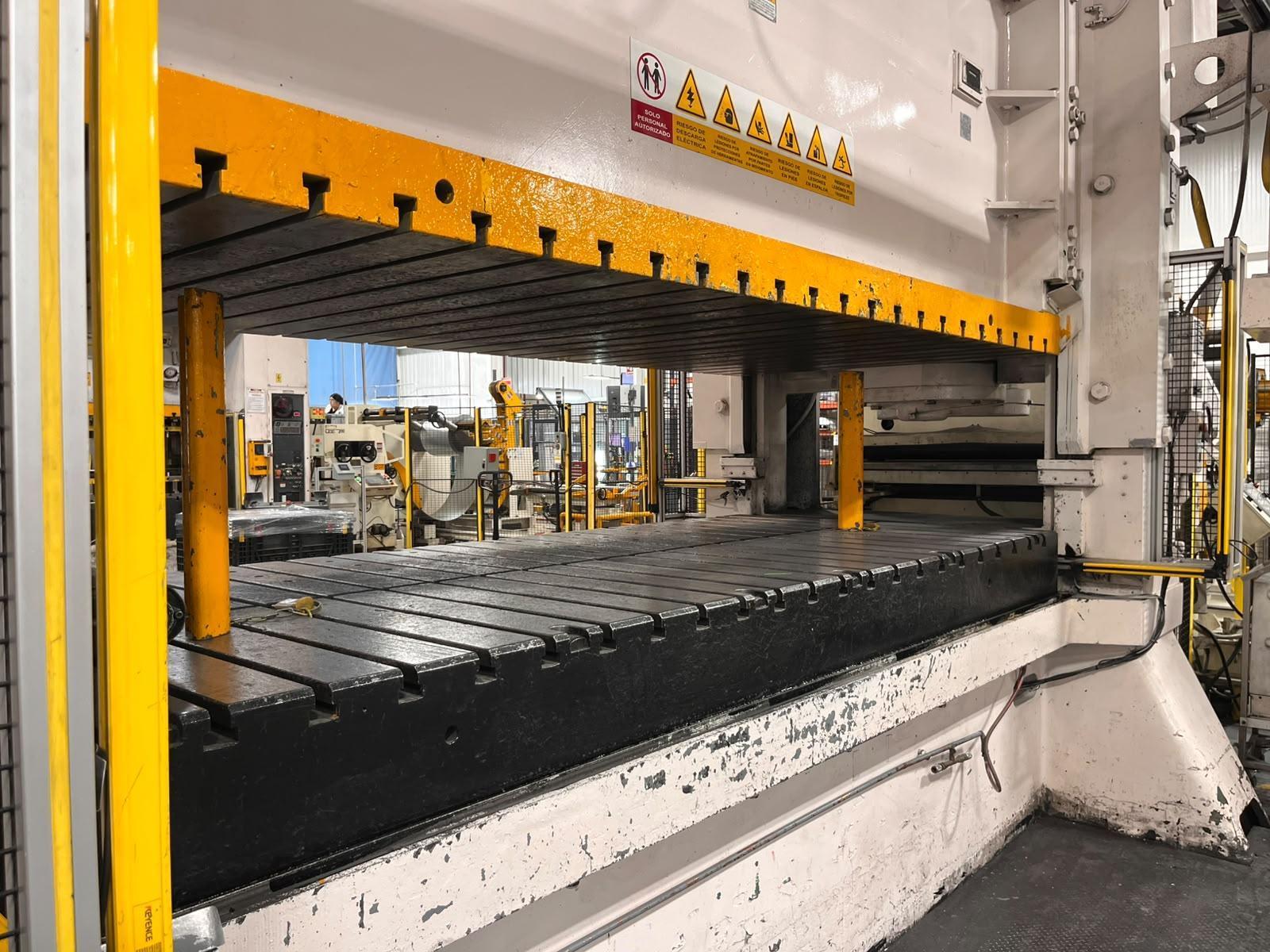

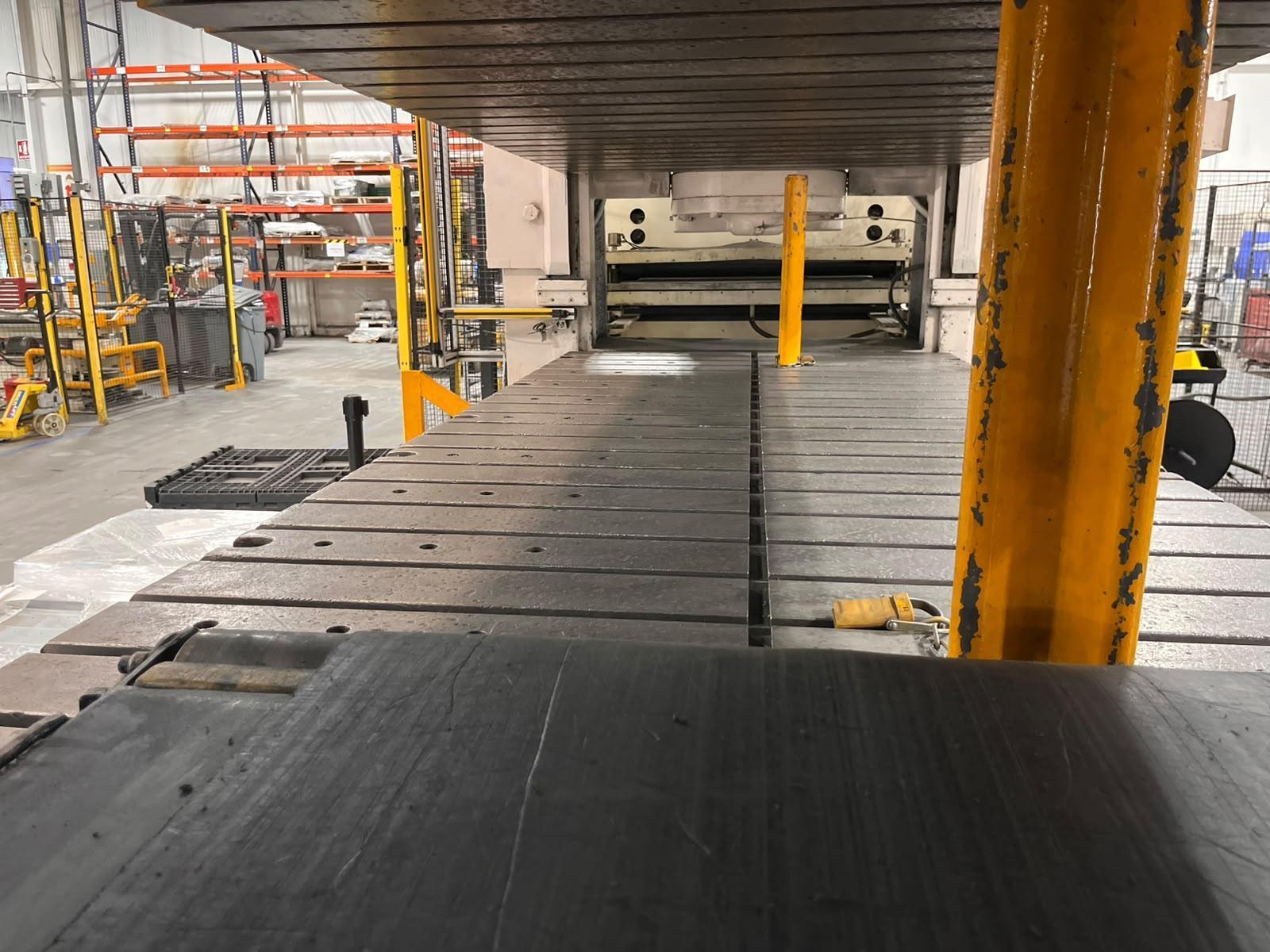

Press Bolster Specifications

Bolster Plate Material .................................................................. Steel

Bolster Plate Thickness................................................................ 10.00 in

Area of Bolster, R-L x F-B .......................................................... 144 x 60 in

Bolster Plate Machining............................................................... T Slots

Press Frame Specifications

Passline Opening, F-B.................................................................. 53 in.

Area of Bed, R-L x F-B ............................................................... 144 x 60 in

Opening in Bed, R-L x F-B.......................................................... None

tie Rod Nuts.........................................................……………… Hydraulic

Shutheight, SDAU........................................................................ 22.00 in, on Bolster

Shutheight, SDAU........................................................................ 32.00 in, on Bed

Drive Motor Power, ……............................................................. 100 HP

Features

Single geared Twin driving gears on main shaft. Includes shaft extension on left end.

High tensile iron main drive gears and steel pinions, totally enclosed.

Two Point Eccentric Crankshaft forged of alloy steel reduces the stamping load deflection and thus, reduces the vibration from snap through shock.

Four Piece High Tensile Cast Iron and/ or Steel Frame component materials chosen to reduce overall press vibration level.

Bed Deflection designed for specified deflection between tie rod centers with maximum press tonnage distributed over the center two-thirds of the R-L bed area.

Combination Air Operated Clutch and Brake includes dual clutch valves and provides quick starts and fast stopping times for high production progressive die applications.

Air Operated Flywheel Brake interlocked with stop circuit eliminates coasting resulting in quicker access to die area.

Saddle Bearings in the connection screw are precision machined for a full contact fit with the bottom of the connection to reduce snap through motion.

Eight Point Slide Guiding System provides a minimum clearance guide for the slide through its full height at all stroke and adjustment positions.

Motorized Shutheight Adjustment with Digital Readout provides quick die set-up and adjustments.

Slide Face Machined with general purpose T-slots F-B on (6.0 in.) centers starting on center.

Bolster Plate Machined with general purpose T-slots F-B on (6.0 in.) centers starting on center.

Counterbalance System in Uprights statically balances slide and upper die weight. It is not intended to provide a dynamic inertia balance.

E2-MonitorFlow® The patented Minster MonitorFlow® System supplies a continuous flow of pressurized and filtered oil to all lubrication surfaces ensuring reliable operation. It monitors flow and pressure to individual points as well as the oil level and pressure within the entire system.

From the manifold on the press crown oil is channeled to the bearings, gibs, gears and counterbalances. Individual flow switches monitor oil flow to the main and connection bearings from the sump line back to the reservoir. Monitoring flow and pressure in this manner enables fault detection from both broken and/or plugged lines. The press is stopped, and a diagnostic message is displayed on the control screen indicating the location of the fault should one occur. This aids the operator in pinpointing the problem area.
