Description

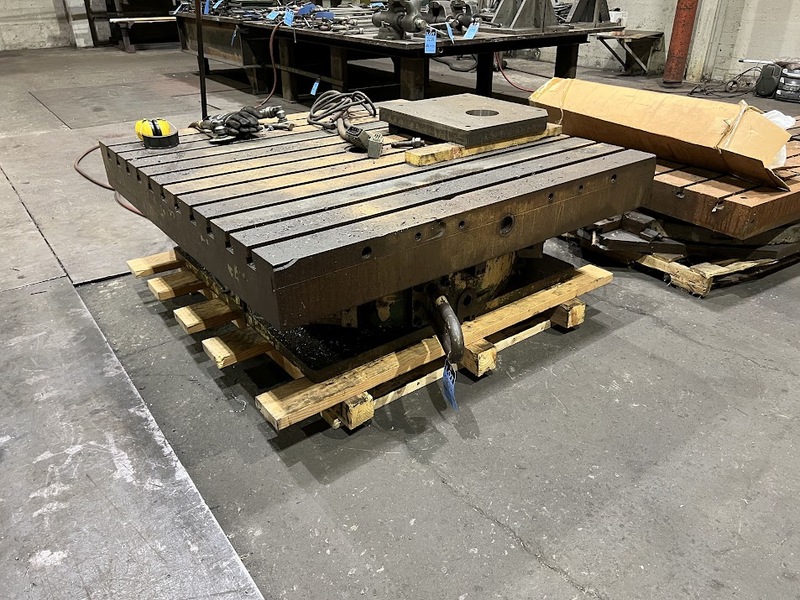

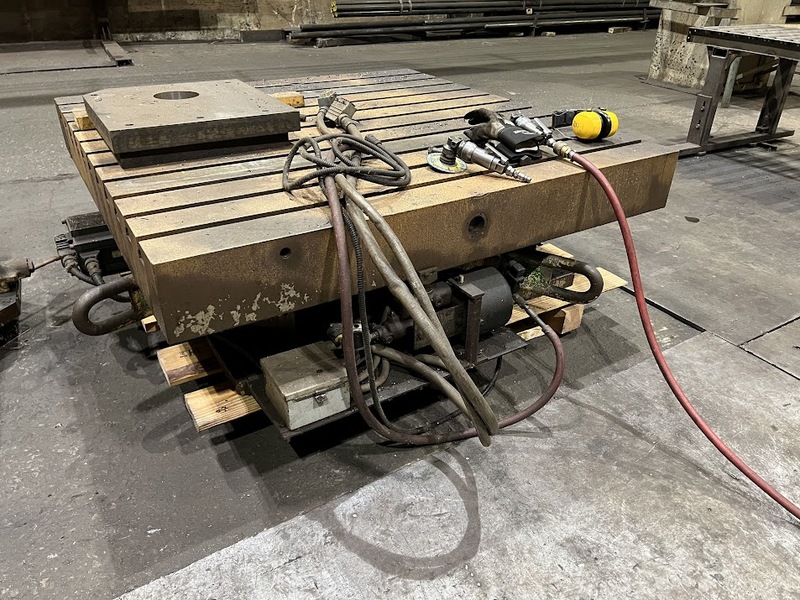

60" x 60" GIDDINGS & LEWIS T-SLOTTED CONTOURING POWER ROTARY TABLE Serial No 040-1111-68, Model 60 NC
EQUIPPED WITH: Contouring & Indexing Capabilities Updated Yasakawa SGMG-44A2AB Servo-Drive Motor Power Table Rotation (Clockwise Or Counterclockwise) Air/Hydraulic Braking
CATALOG SPECIFICATIONS: Table Working Surface, W x L 60" x 60" Table Weight Load Capacity, Approximately 30000 LBS Base Size, D x W 48" x 48" T-Slots Total, Number (11) Overall Height, Floor to Table-Top 20" Weight Approximately 9300 LBS
LUCAS AIR LIFT ROTARY TABLE, ACTUAL SIZE 35 7/8" X 47 3/4", 9 1/4" HIGH TOP TO BASE, ROTARY TABLE WITH SHOT PIN EVERY 90 DEGREE, 360 DEGREE MANUAL ROTATION, (6) 3/4" T -SLOTS, MANUAL CLAMP LOCK.
SERIAL. AL50210, AREA OF TABLE. 60" X 60, AREA OF BASE. 52" X 42, HEIGHT OF TABLE. 16", NUMBER OF T SLOTS. 8, LENGTH OF T SLOTS. 60", DEPTH OF T SLOT. 1-3/4", WIDTH OF T AT TOP SLOT. 1-1/8", WIDTH OF T SLOT AT BOTTOM. 2", CENTER DISTANCE BETWEEN T SLOTS. 8", NUMBER OF SHOT PIN POSITIONS. 4, AIR ACTUATED POWER CLAMPS. ...more
