For Sale by S & G Press & Machinery Sales
Description
Specifications | |||
|---|---|---|---|
| Coil Width | 60 inches | ||
| Coil Thickness | .250 inches | ||

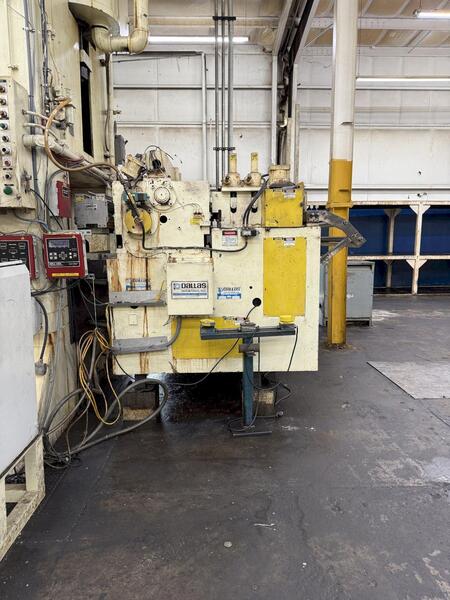

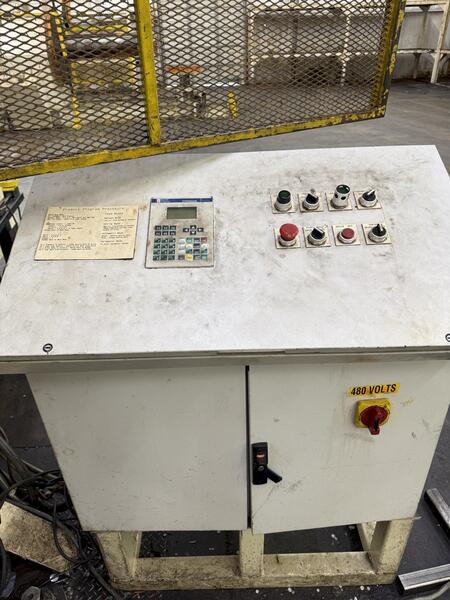

Standard Specifications Eight inch diameter feed rolls New Gearbox Motor, Pulley and Cables New Pendant Controls (Jog Forward/Reverse) New 7" Full Color Screen Matte chrome finish on upper and lower feed rolls Precision cluster gear driven upper feed Heavy duty adjustable stock width edge guides Pull Thru Straightener Model PTS-582 Five servo feed straightening rolls Screw jack upper servo feed straightening roll adjustments Servo feed pinch roll for stock threading (Motorized) Air operated upper pinch roll adjustment Cascade loop support rollers Cabinet base mounted with heavy duty pass line adjustment AC servo drive and control system Job memory micro adjust batch count etc Free standing sloped front control console Auto Mode Can be seen under power in the S & G Press and Machinery Warehouse. Dallas 60" Servo Feed-Straightener CombinationThis Dallas Model DRFS-860 & P.T.S.-582 is a robust, high-performance solution for heavy-gauge coil processing. Engineered for versatility, it handles a massive 60" maximum width with a capacity of .250" thickness at full width, increasing to .312" for narrower 24" stock. The system features 8-inch diameter matte chrome feed rolls driven by a precision cluster gear assembly, ensuring consistent material movement without slippage. The integrated P.T.S.-582 Pull-Thru Straightener utilizes five rolls with screw-jack adjustments to eliminate coil set, while the motorized pinch rolls and air-operated adjustments simplify the threading process. Controlled via a free-standing AC servo console, the unit supports job memory and batch counting for high-efficiency "Auto Mode" production. | |||
Inquire Further with S & G Press & Machinery Sales!
