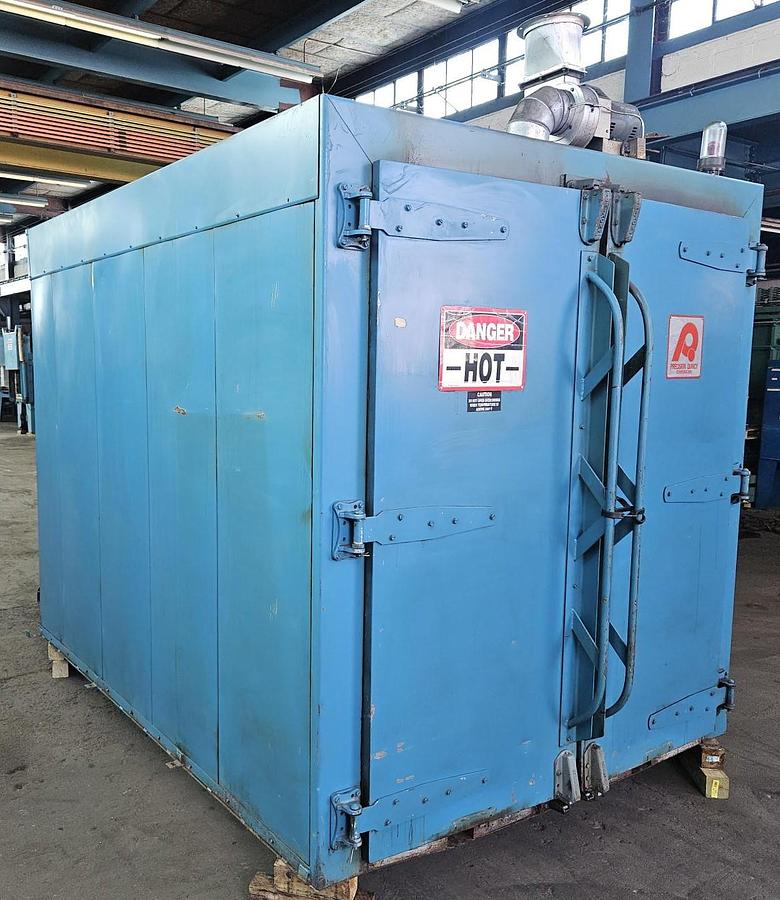

60" width x 72" H x 96" L Precision Quincy #92-850B, Gas Fired Walk-In Oven, 850°F, Solvent Rated, Class A, 1998

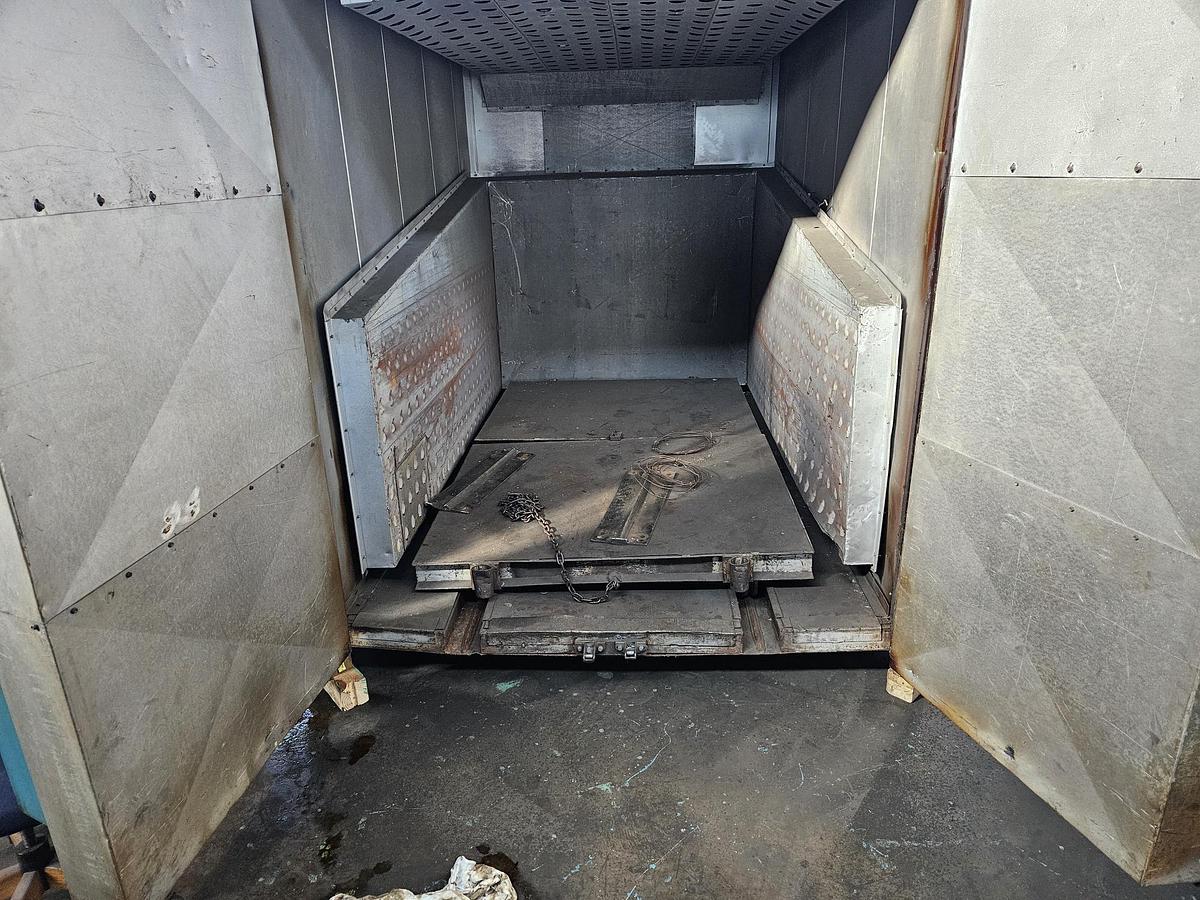

NFPA 86 Class A Oven with double doors on one end, each door has heavy gauge strap hinges and Brixon spring tension latches. Silicon rubber gaskets provide a good door seal. Aluminized steel interior with an insulated floor and floor tracks. Floor tracks are 4-1/2" wide on 38" centers. Punched louvered air duct panels on both side walls. The 7.5 HP belt driven high volume (6600 CFM) circulating fan mounts through the rear wall and includes a Eclipse 236 JIB-F package burner with flame safety and spark ignition. Heated air is circulated in a combination horizontal/vertical pattern across the work area for good uniform heating. A powered exhaust fan is located on top of the oven. This oven is rated for solvents and has a Class A designation from the manufacturer. Roll-In Cart is included with this oven. Oven electrics have been tested.



Controls are mounted and wired in a UL listed enclosure attached to the right-hand side of the oven. A Honeywell UDC 2300 digital temperature controller, two (2) Honeywell UDC 2000 digital high limits, digital timer and circular chart recorder. Control switches with indicating lights for exhaust, recirculating fan, etc. mounted to the face of the enclosure. Motor starters, fuses, purge timer and relays etc. are mounted inside the control cabinet.

Specifications

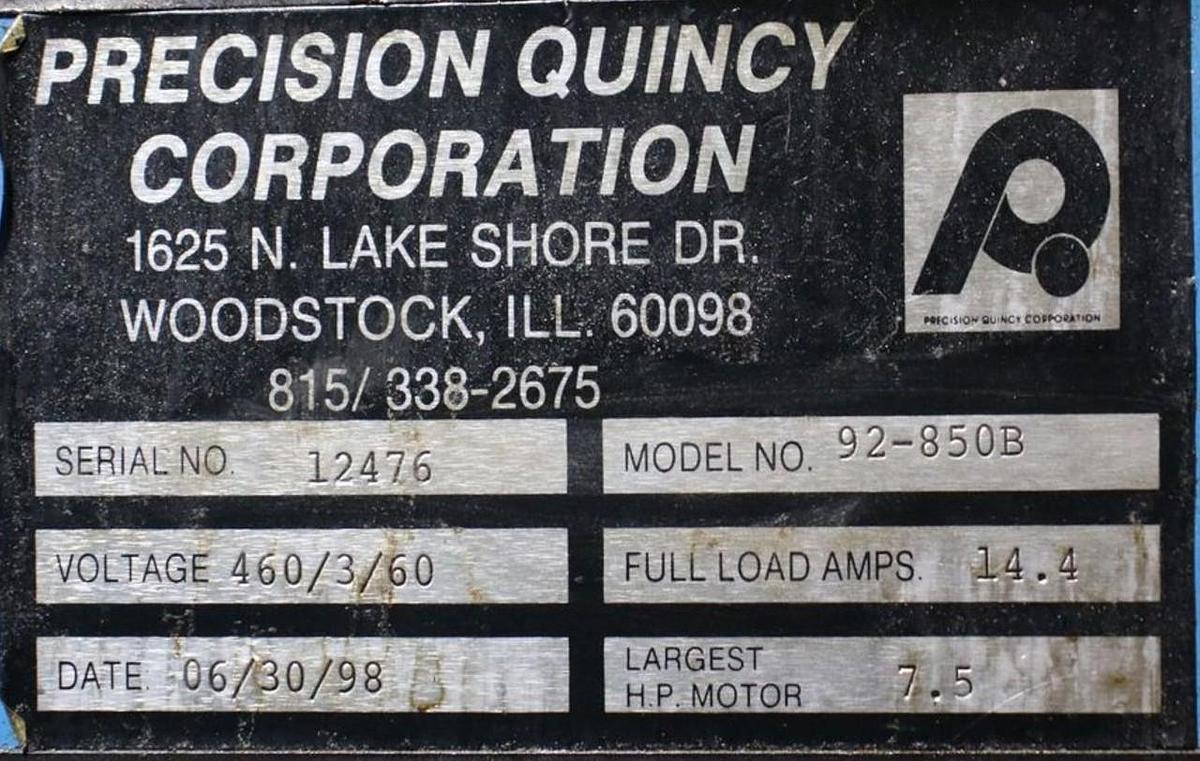

Manufacturer Precision Quincy
Model 92-850B
Year 1998
Condition Used
Serial Number 12476
Stock Number 7895
Work area 60"W x 72"H x 96"L
Heated Natural Gas - 800,000 BTU's @ 6" W.C.
Max temperature 850°F
Voltage 430/3/60/15 FLA
External dimensions 8'6" wide x 9'6" high x 14' long - 6000 pounds
Availability Immediate
