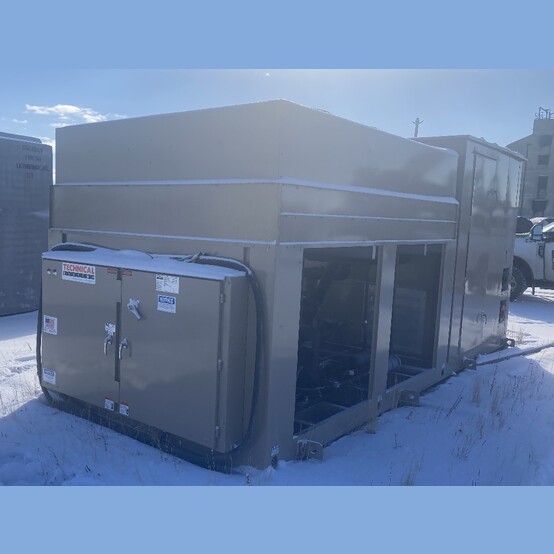

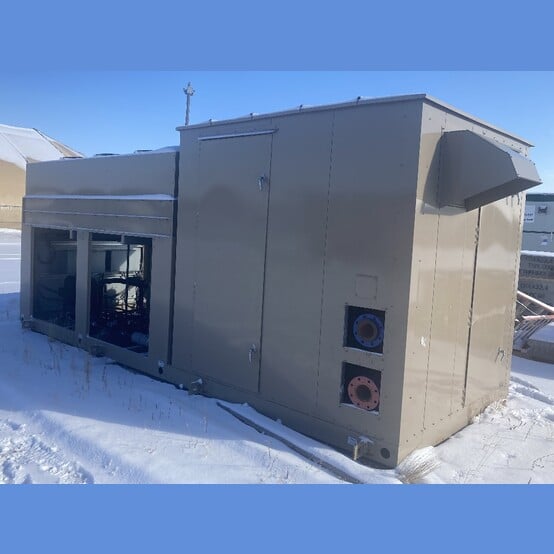

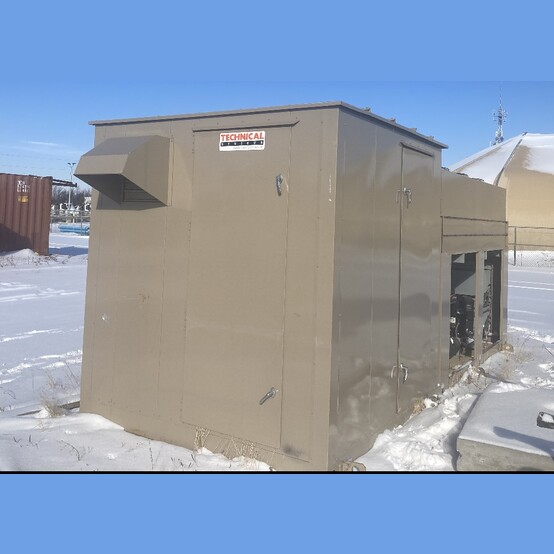

60 Ton, Technical Systems #30AOLM46-PTFC, Chiller, R-410a refrigerant, 164 GPM primary @ 62°F supply, 238 GPM secondary, 7.5 HP pump, 575 V.

Technical Systems 30AOLM46-PTFC Chiller

• Make: Technical Systems
• Model: 30AOLM46-PTFC
• Condition: Used, Reported in Excellent Condition with Very Little Use
• Design Conditions: Ambient 95°F DB
• Solution: 40% EG
• Refrigerant: R-410a

• Heat Exchanger Design:
  • Capacity: 60 Total Tons Heat Transfer at Conditions Below
  • Economizer: Full Capacity @ 28°F Ambient
  • Primary Chiller Side:
    • Solution: 40% EG
    • Entering Fluid Temp: 72°F
    • Supply Fluid Temp: 62°F
    • Flow Rate: 164 GPM
  • Secondary Process Side
    • Solution: Water
    • Entering Fluid Temp: 74°F
    • Supply Fluid Temp: 68°F
    • Flow Rate: 238 GPM

• Pump Performance:
  • Primary Side:
    • Internal Fluid Pressure Drop: 75 Feet (Internal includes Entire Package Chiller, Economizer, Heat Exchanger, Piping, Control Valves, Etc.)
    • Primary Pump Motor: 7.5HP @ 75ft TDH
  • Secondary Process Side:
    • Internal Fluid Pressure Drop: 30 Feet (Internal includes Secondary Side Pumping Trim and Heat Exchanger)
    • Max External Fluid Pressure Drop: 30 Feet (Estimated Process Loop Losses)
    • Pump Motor: 7.5HP @ 60ft TDH

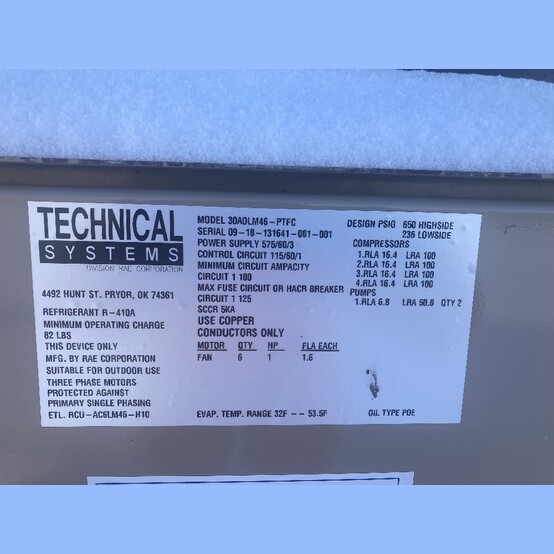

• Electrical:
  • Power Supply:
    • Voltage: 575 Volt
    • Frequency: 60Hz
    • Phase: 3-Phase
  • RLA Each: 93
  • MCA Each: 97
  • SCCR: 5,000 Amps
  • MOCP Each: 125

• Overall Dimensions:
  • Length: 220in
  • Width 87.5in
  • Height: 97in
  • Shipping Weight: 10,258 lbs.
  • Operating Weight: 10,731 lbs.

• View Spec Sheet Below

• Location: Western Canada
