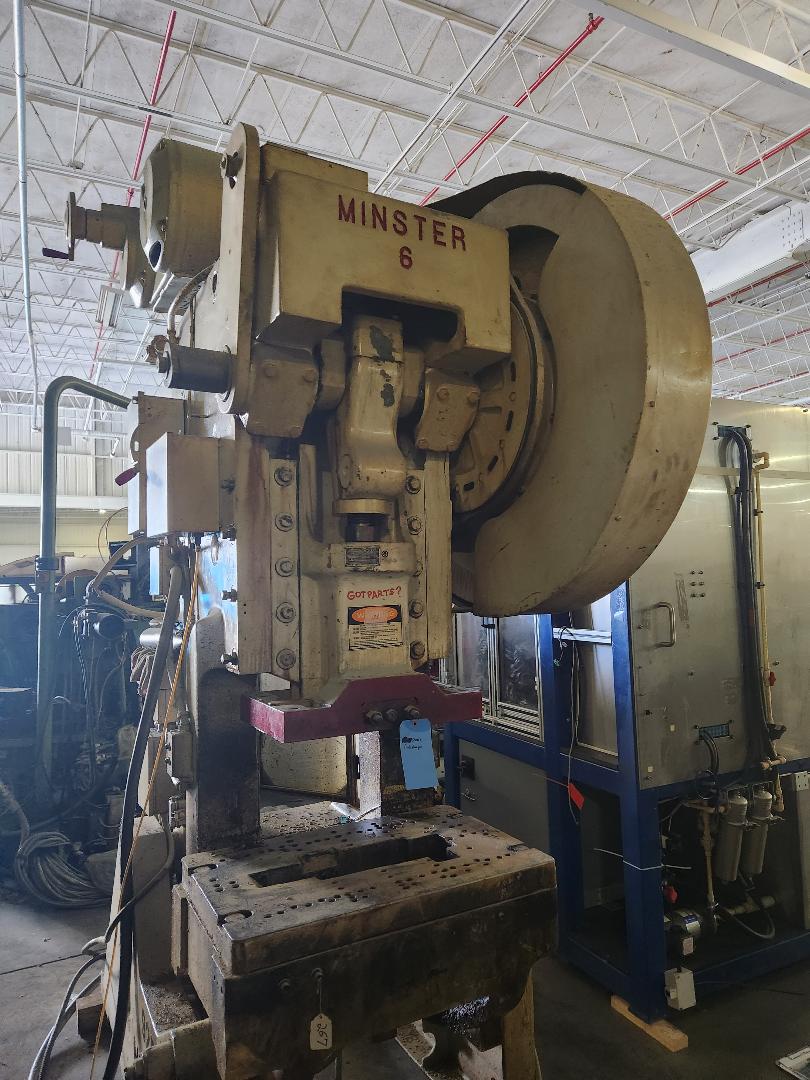

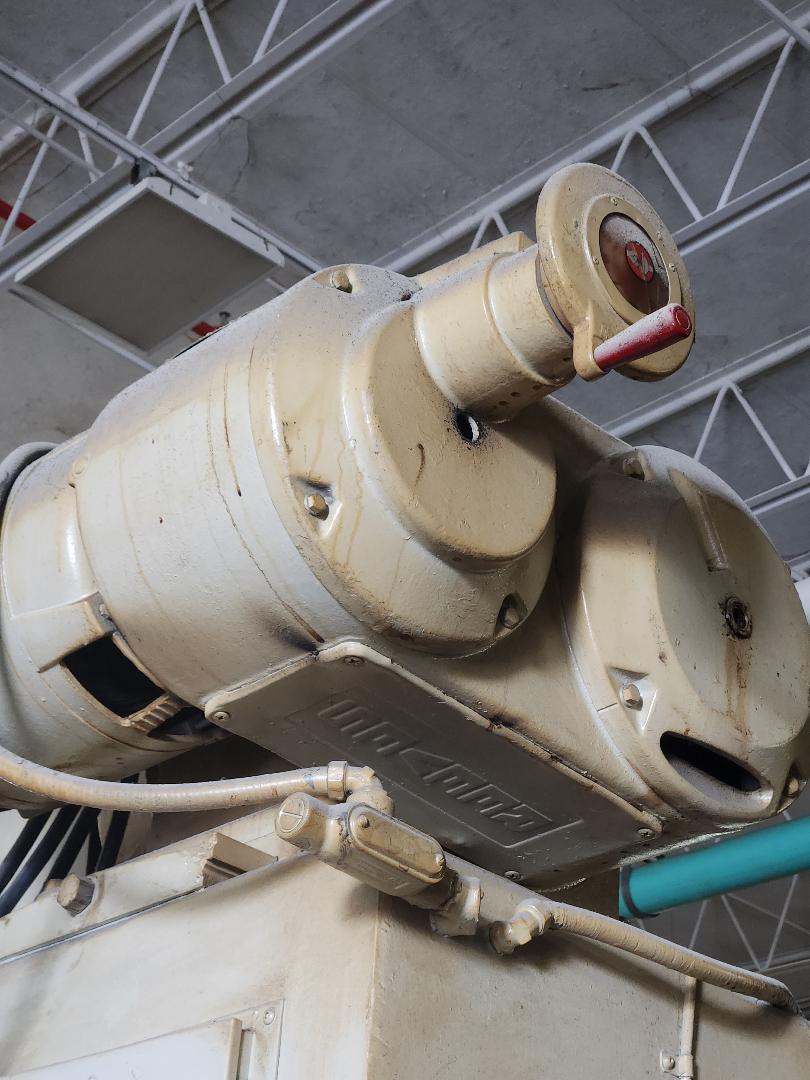

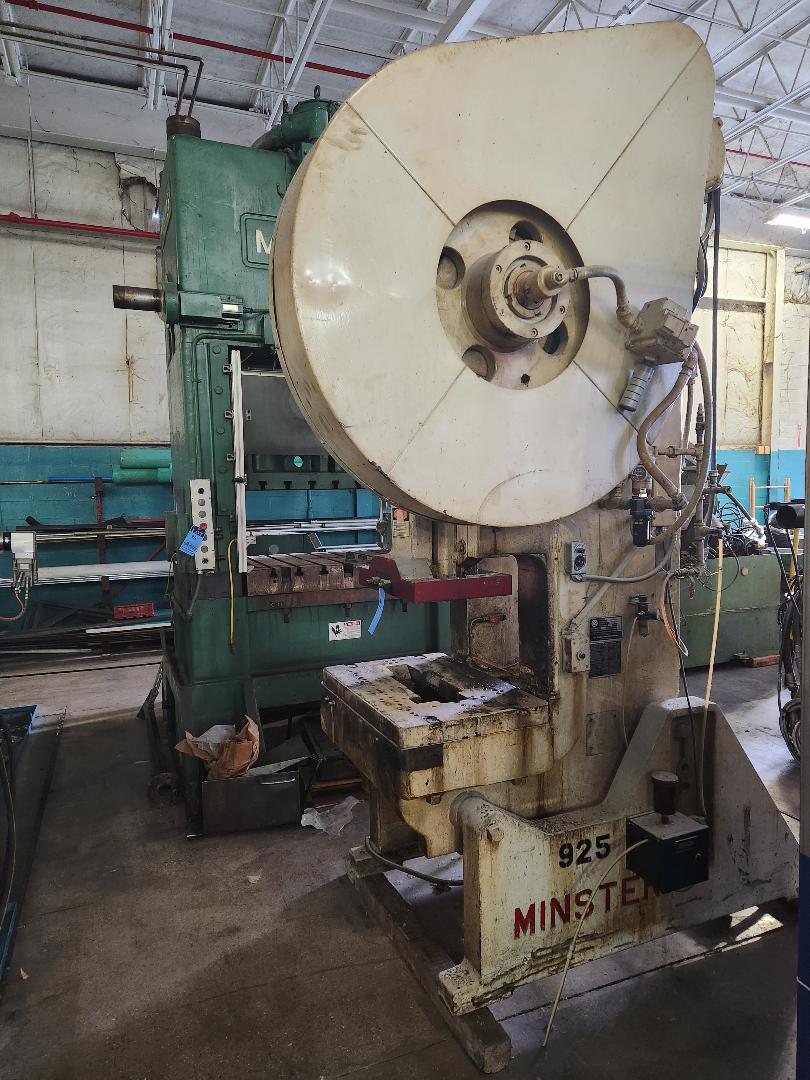

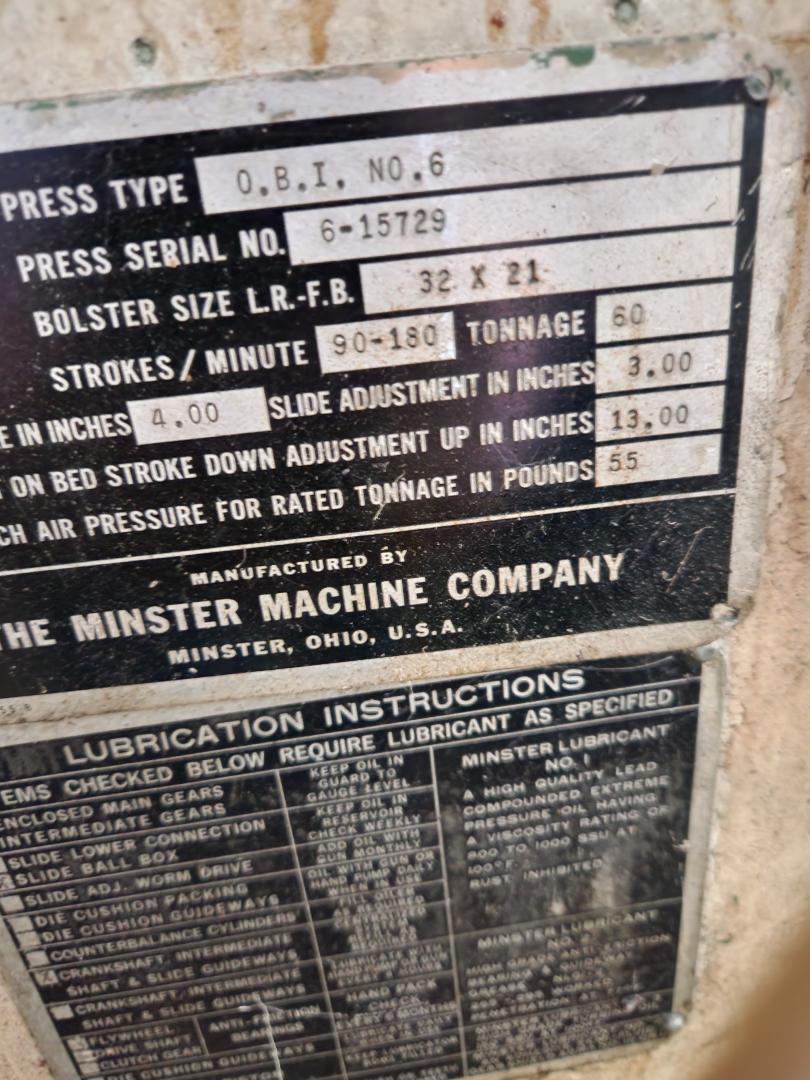

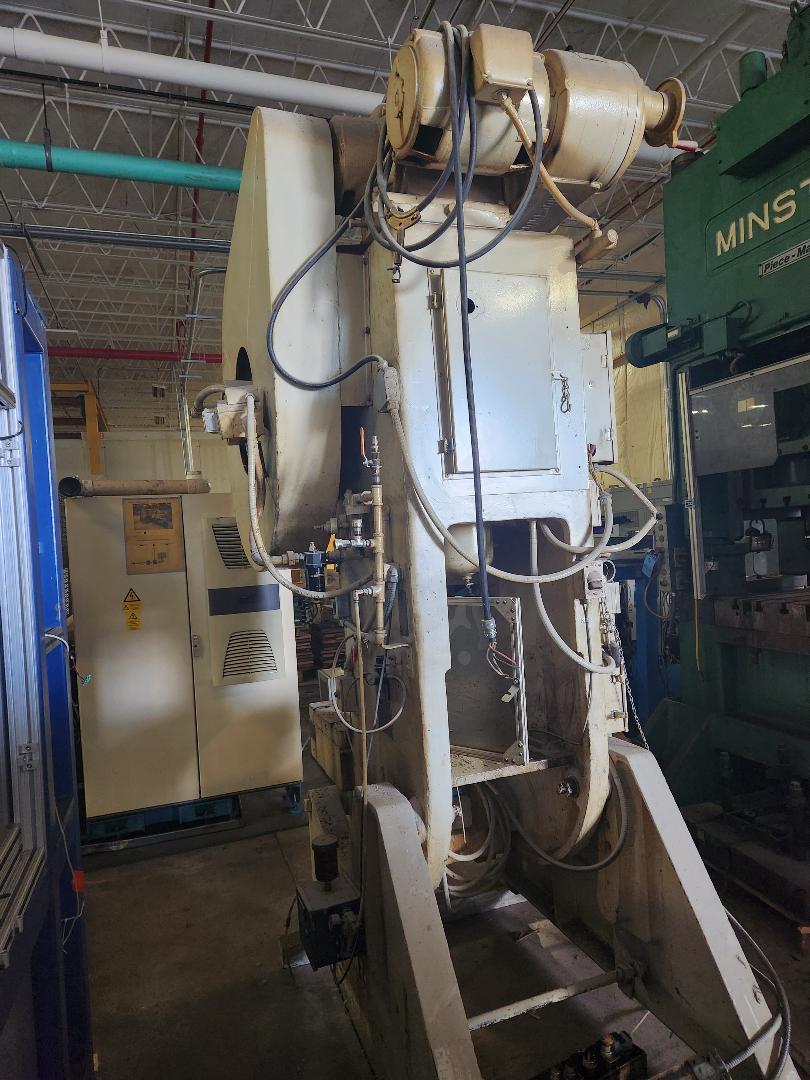

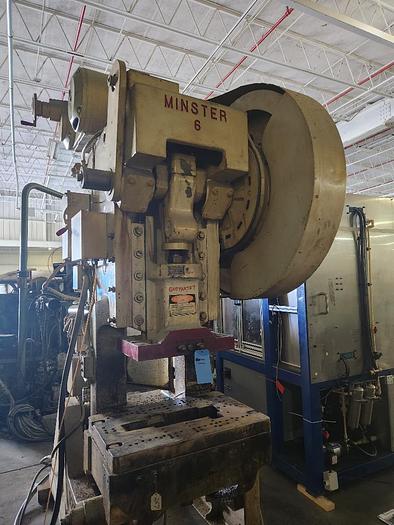

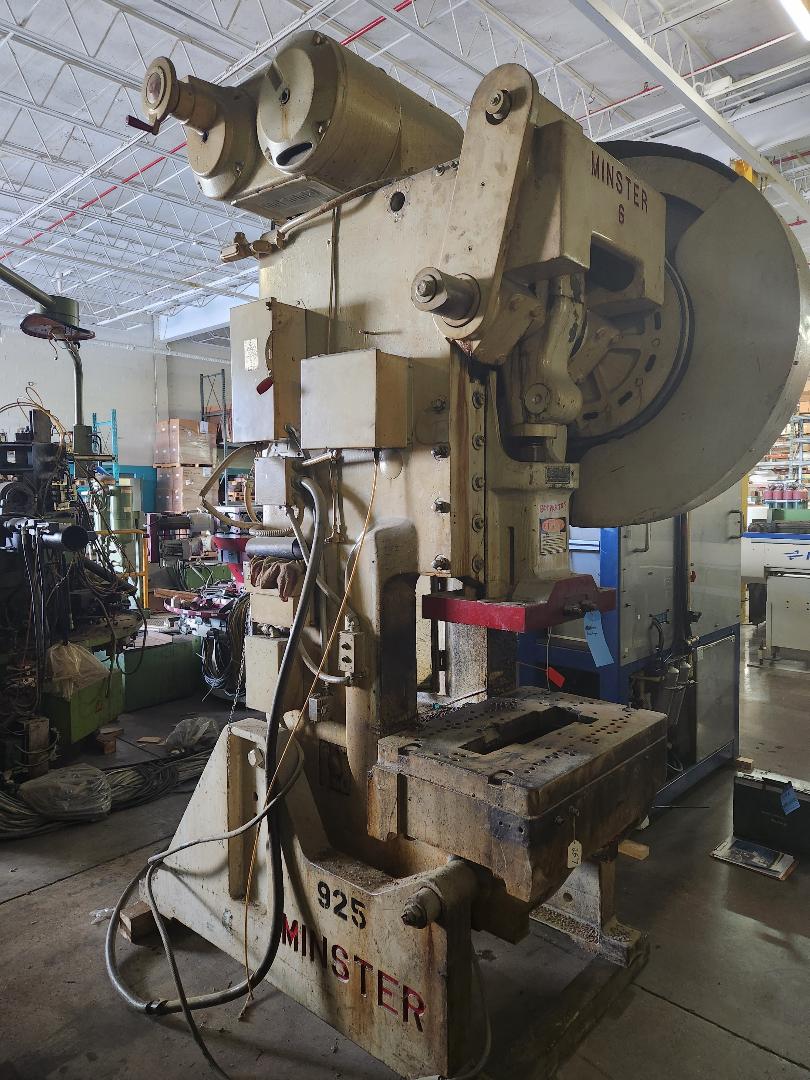

60 TON MINSTER O.B.I. PRESS Serial No 6-15729, MODEL 6 60 TON MINSTER O.B.I. PRESS Serial No 6-15729, MODEL 6 EQUIPPED WITH: Air Clutch & Brake Reeves Variable-Speed Drive Flywheel Design w/7.5 HP Motor CATALOG SPECIFICATIONS: Tonnage Capacity 60 TON Stroke Length 4" Shut Height to Bed, (SDAU) 13" Ram Adjustment 3" Ram Area, L-R x F-B 21" x 14" Bed Area, L-R x F-B 32" x 21" Bolster Area, L-R x F-B 32" x 21" Bolster Thickness 2.5" Bed Opening, L-R x F-B 18" x 14" Throat Depth 11" Strokes Per Minute, Variable 90 TO 180 SPM Drive Motor, Horsepower 7.5 HP Overall Height 114" F.O.B. OUR WAREHOUSE
SERIAL #. 7120, MODEL #. 6, CAPACITY. 60 TON, STROKE OF SLIDE. 7", SHUT HEIGHT, SDAU. ", SLIDE ADJUSTMENT. 3", AREA OF BED. 32" X 21", AREA OF SLIDE. 14" X 11-1/2", WIDTH OF OPENING IN BACK. 15", BOLSTER. 32" X 21" X 2-1/2", DEPTH OF THROAT. 11", HOLE IN BACK. 10-1/4", FOUR SPEED GEARBOX. YES, STROKES PER MINUTE. 10 ...more
ORDER 60, 5" STROKE, 3" RAM ADJUSTMENT, 15" SHUT HEIGHT, 90 SPM, 21" X 12" RAM, 32" X 21" BED, AIR CLUTCH, AIR BRAKE, PALM BUTTONS, 66" X 82" X 122" T APROX., 11500 LBS APROX..
CAPACITY60 TON STROKE4" MAX SHUT HEIGHT TO BED13" BED AREA32" X 21" (rl x FB) SPEED90 SPM SLIDE ADJUSTMENT3" MANUAL SLIDE AREA21" RL X 14" FB BOLSTER PLATE2.5" H X 32" RL X 21" FB (T-SLOTTED) DISTANCE BETWEEN UPRIGHTS / FLOOR TO BED15" / 32" CLUTCHMINSTER AIR CLUTCH / BRAKE COMBINATION ELECTRICS5 HP 1100 RPM ...more
