Description

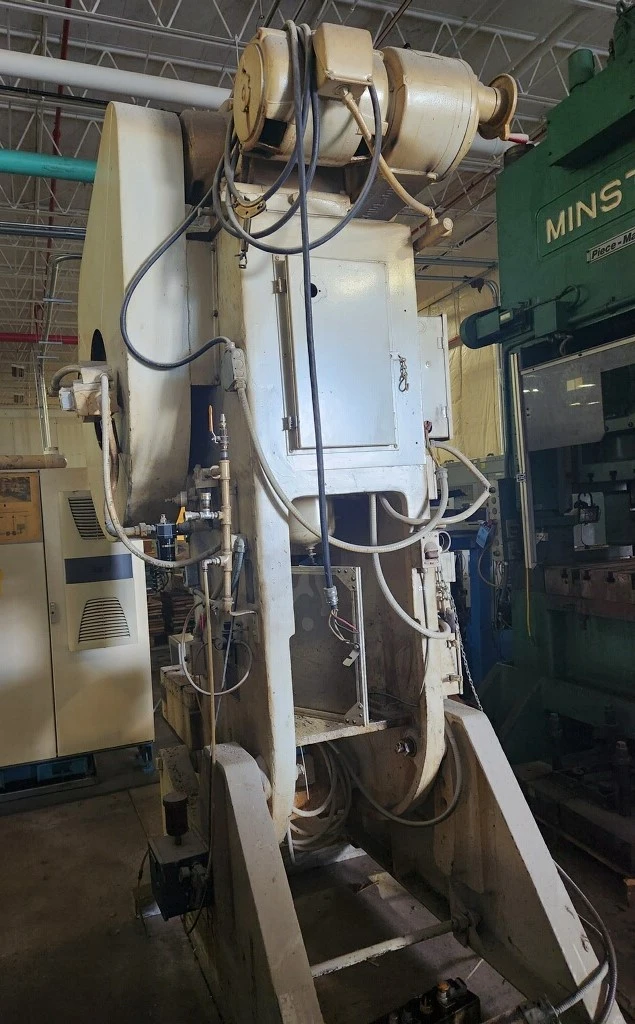

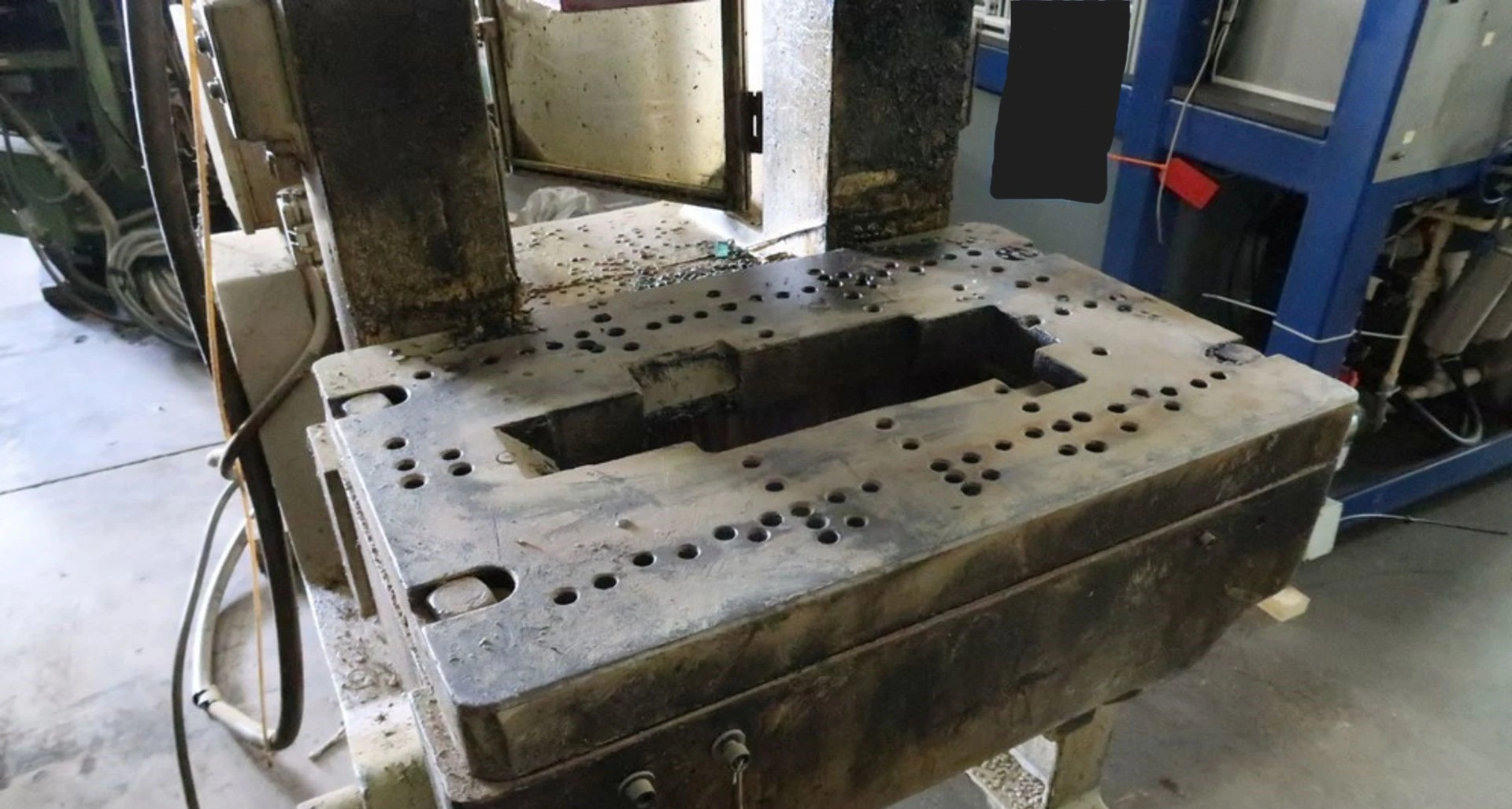

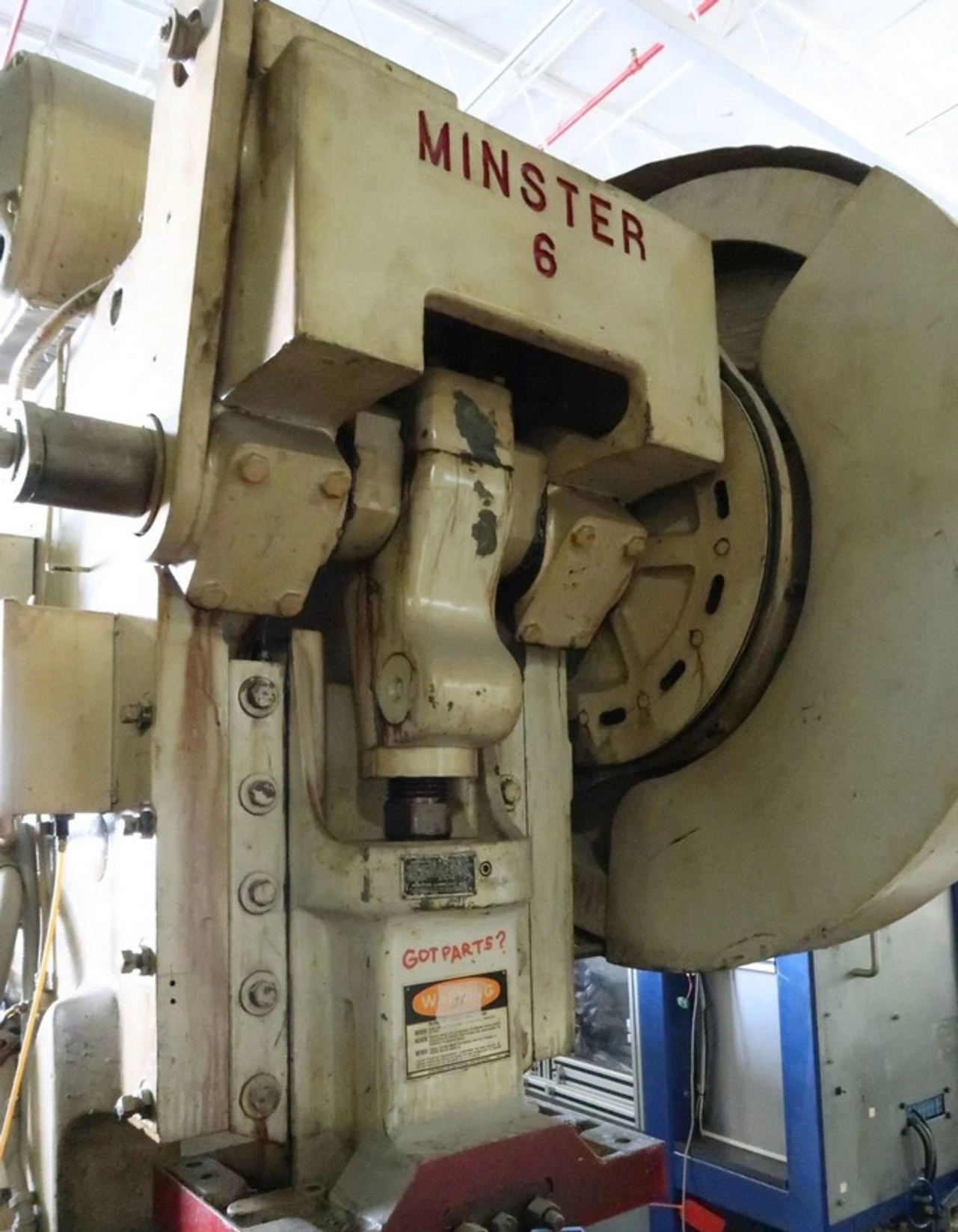

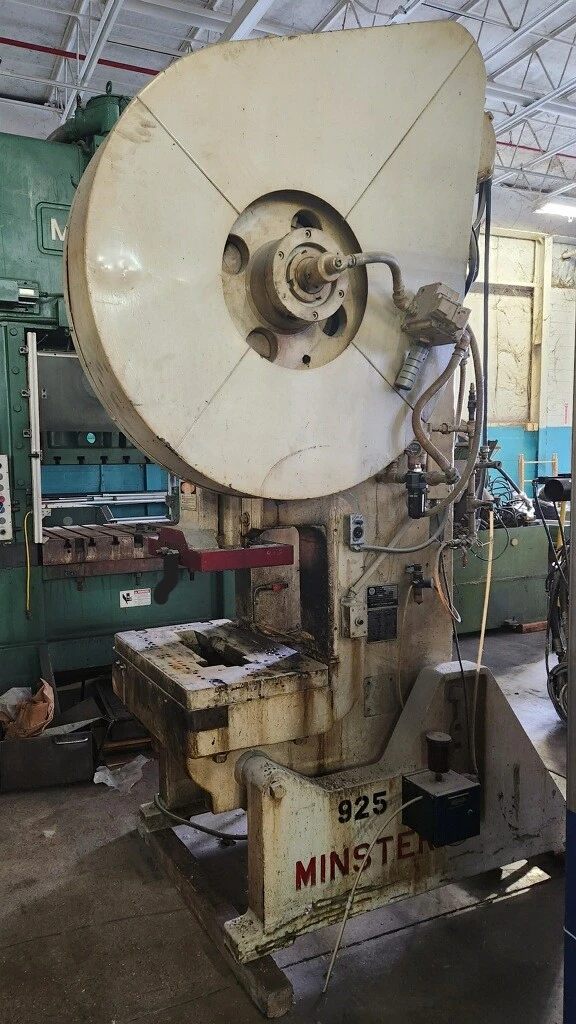

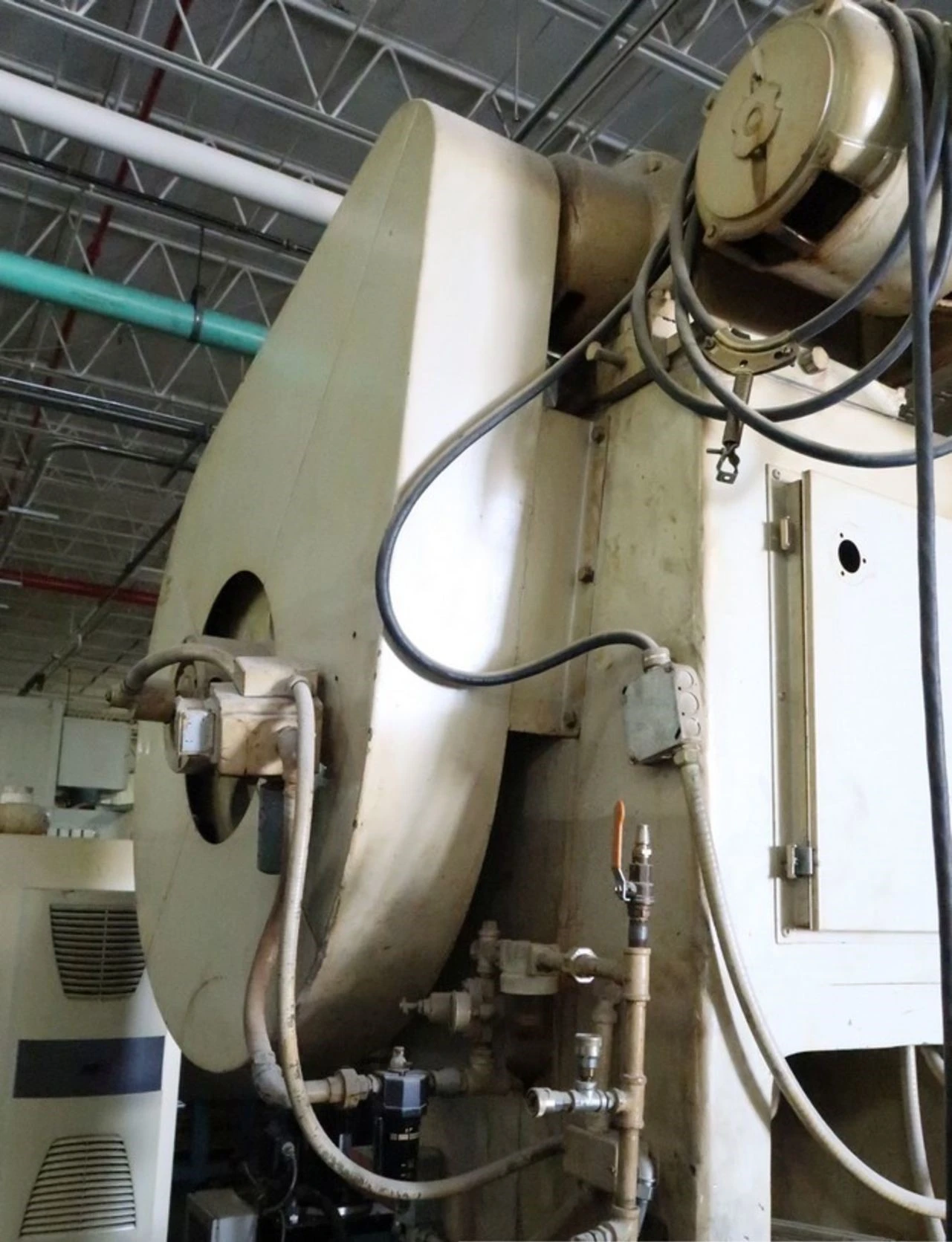

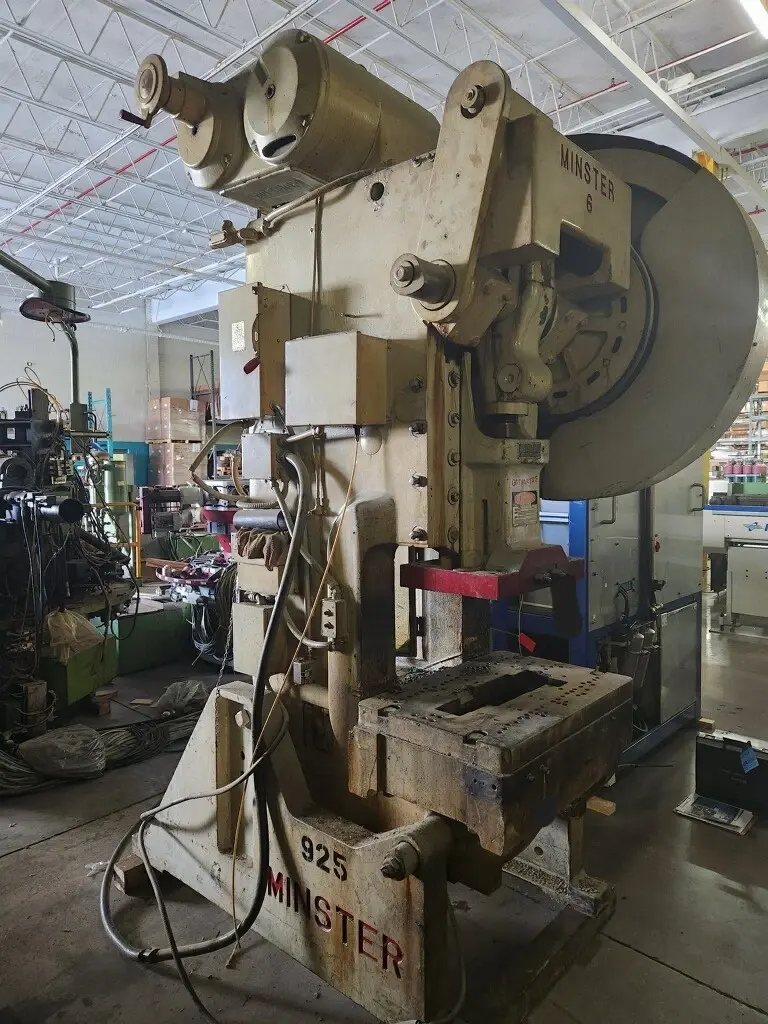

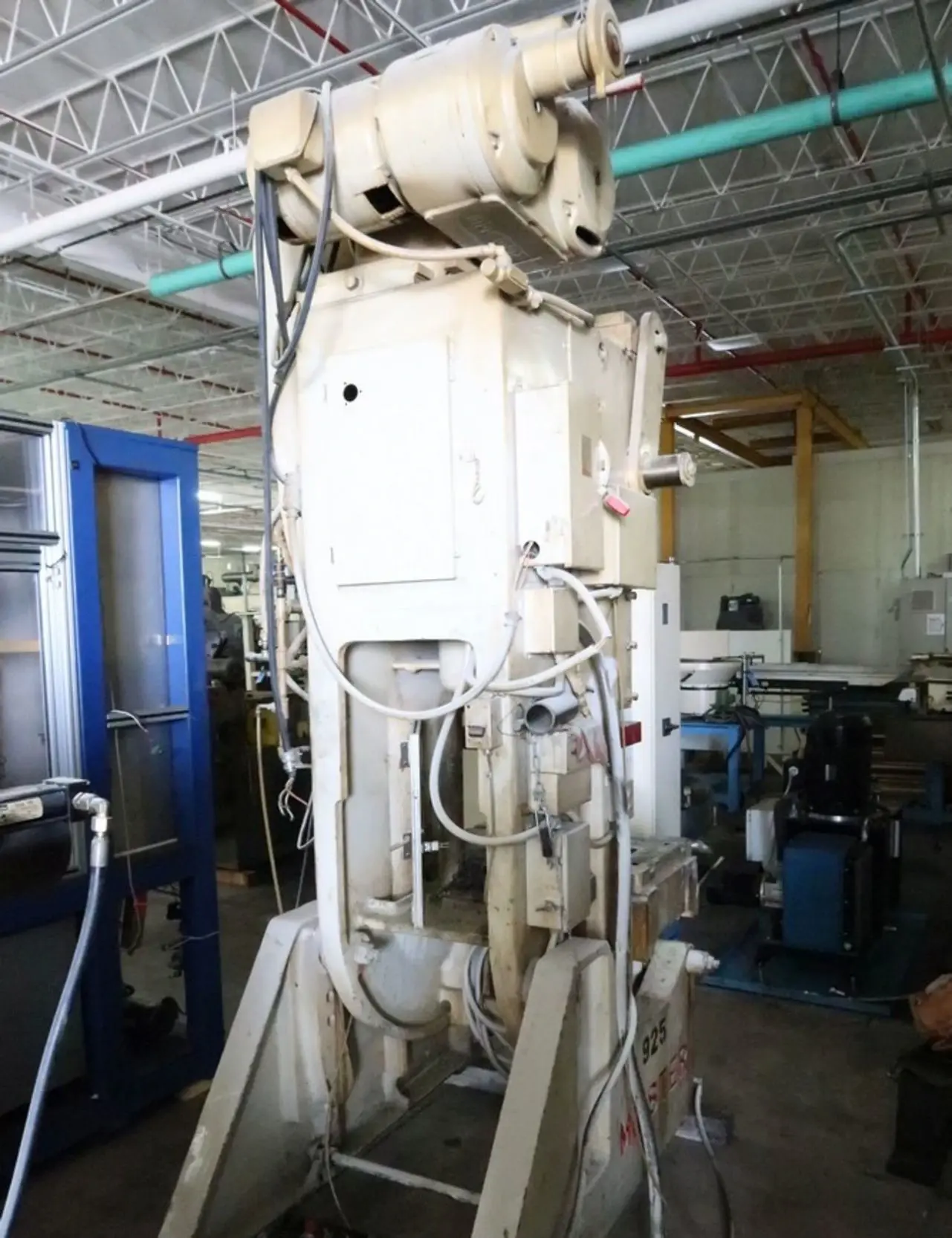

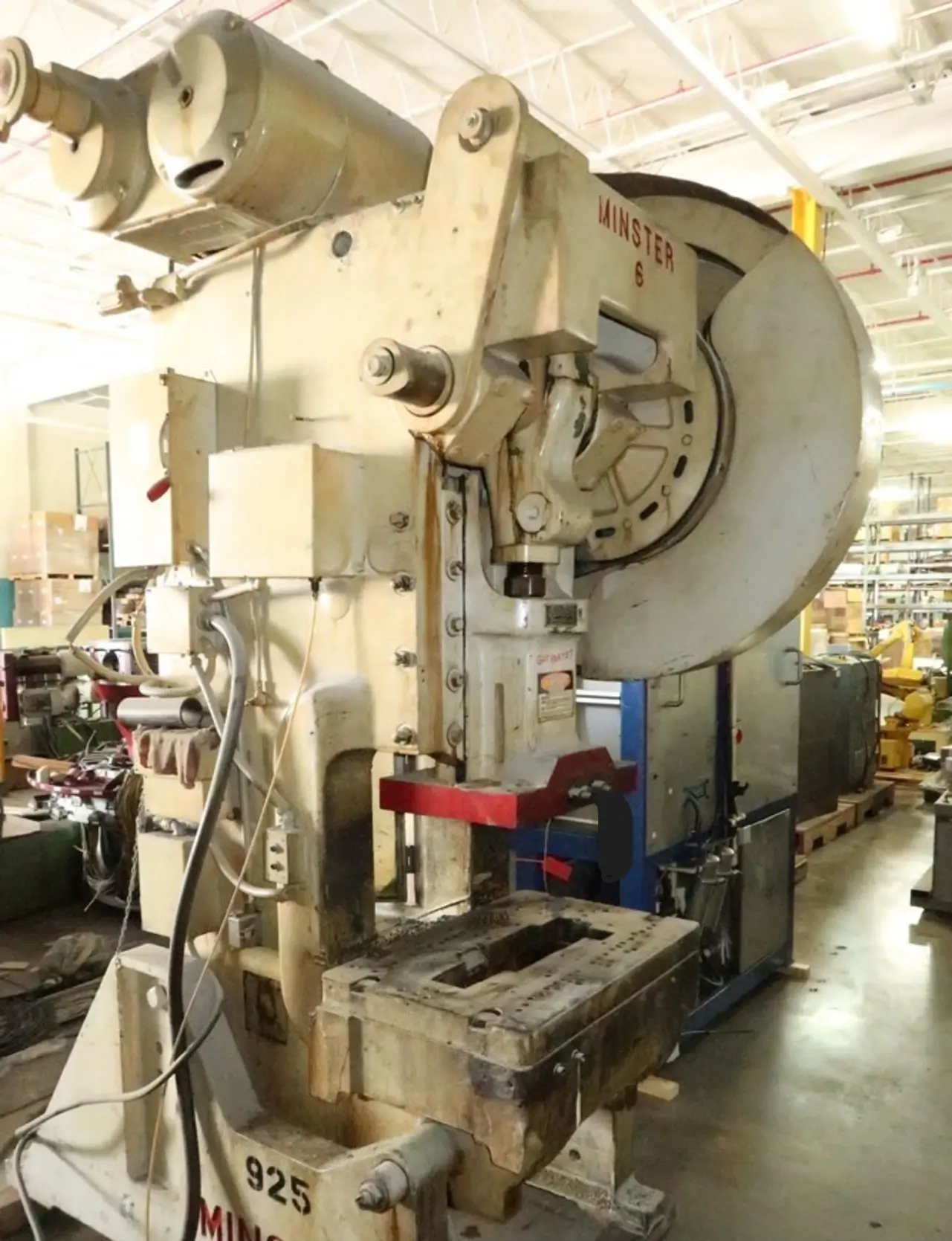

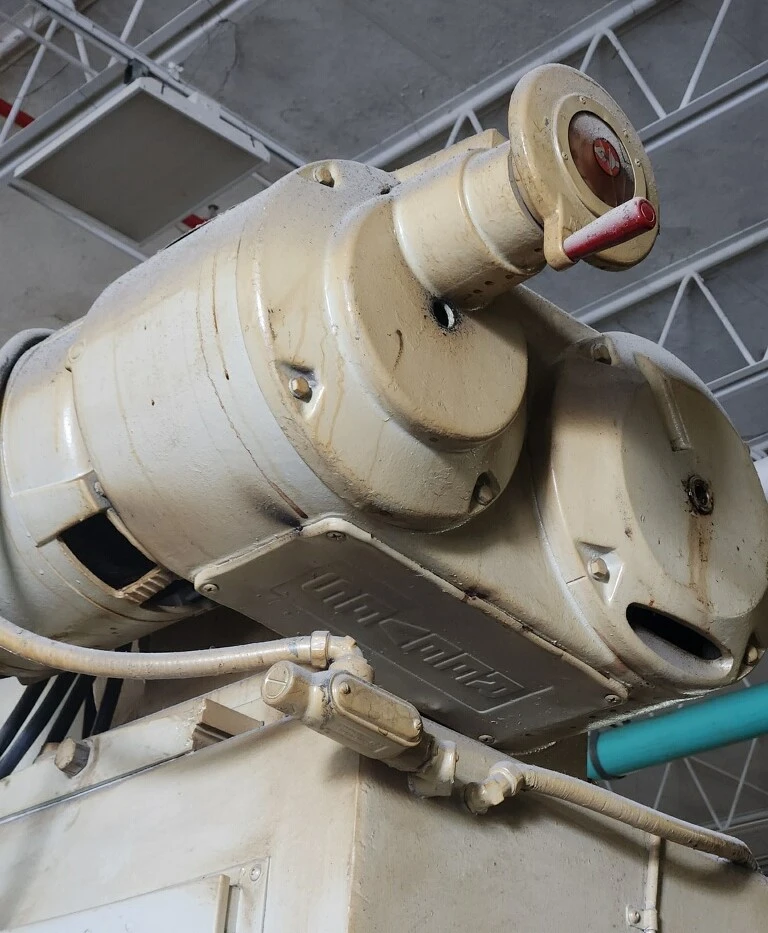

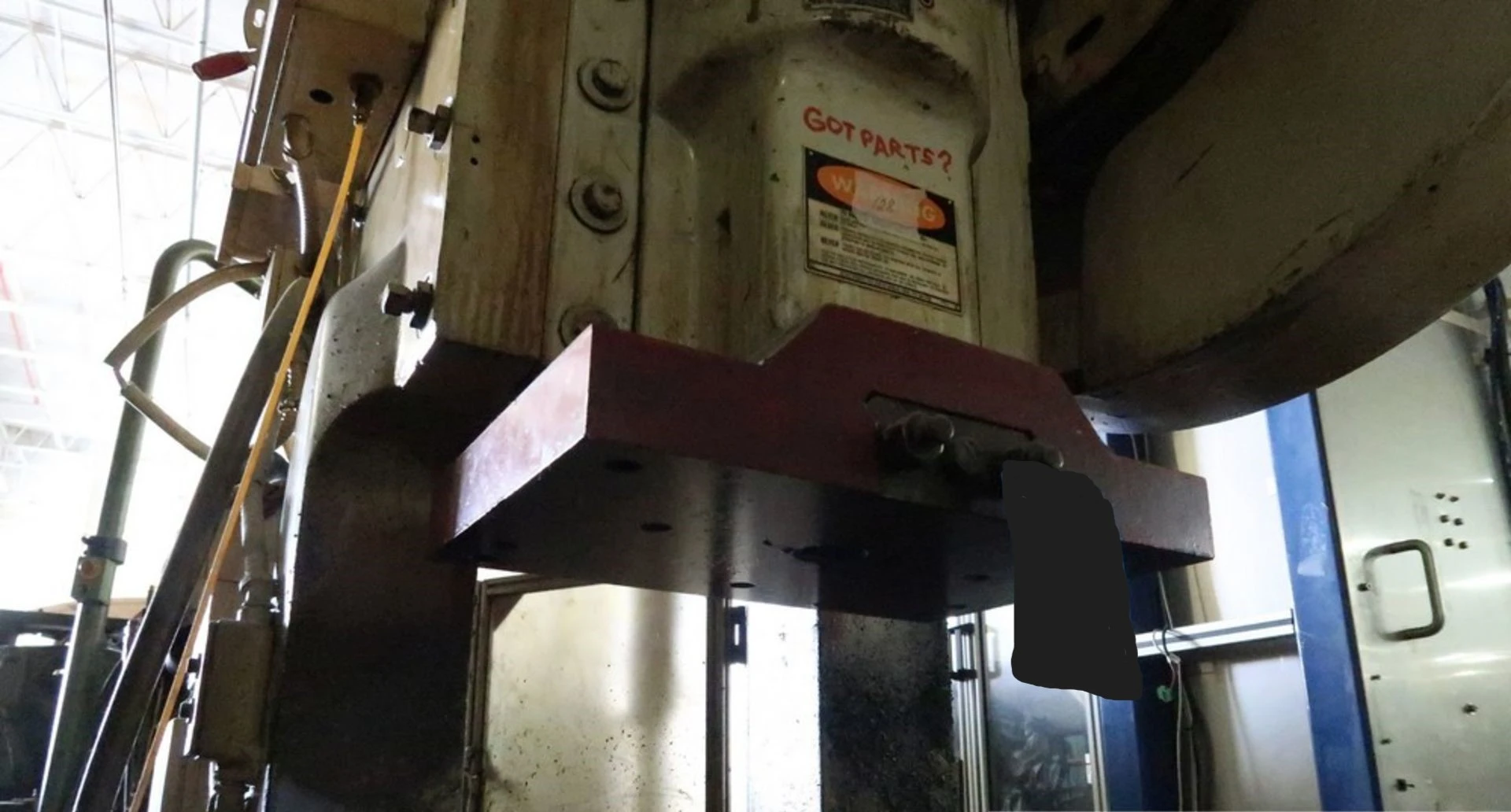

The Minster model 6 Open Back Inclinable (O.B.I.) press is a robust 60-ton capacity machine. Key features include an air clutch and brake system, and a Reeves variable-speed drive, powered by a 7.5 HP motor in a flywheel design. Technical specifications detail a 4-inch stroke length and a 13-inch shut height to the bed (SDAU) with a 3-inch ram adjustment. The press offers variable speeds ranging from 90 to 180 Strokes Per Minute (SPM). Dimensional capacities include a ram area of 21" L-R x 14" F-B, a bed area of 32" L-R x 21" F-B, and a bolster area matching the bed area with a 2.5" bolster thickness. The bed opening measures 18" L-R x 14" F-B, and the throat depth is 11". The overall height of the machine is 114".
PRELIMINARY NEW IN 1974MODEL #660 TON CAPACITY3" STROKE13.5" SHUT HEIGHT3" ADJUSTMENT32" X 21" BED AREA21" X 9.5" SLIDE AREA90-180 SPM:MINSTER AIR CLUTCH & BRAKEMOTOR & CONTROLSLUBE SYSTEMMINSTER PRESS CONTROL.
CAPACITY60 TONS STROKE3" MAX. SHUT HEIGHT TO BED12.5" sdau BED AREA32" x 21" (rl x fb) BOLSTER2.5" x 32" x 21" (h x rl x fb) SLIDE AREA21" x 12" (rl x fb) SLIDE ADJUSTMENT3" (manual) SPEED90 spm DISTANCE BETWEEN UPRIGHTS15" FLOOR TO BED HEIGHT32" clutchminster air clutch / brake combination PRESS CONTROLSlink 501 ...more
