Manufacturer: Johnson
Model: G2-60-56-22
Year: 1965
Ton: 60
Stroke: 4.0
Shut Height: 15.00
Stock # 51762
1 / 5
Click to zoom in
1 / 5
For Sale by Bass Machinery LLC
Surplus Record Dealer Since 2009
Location: Toledo, OH
Contact Sales
Phone Number: 419...> Show Phone Number 419-243-2277
Let the seller know you found their listing on Surplus Record!
Description
Our stock number: 51762

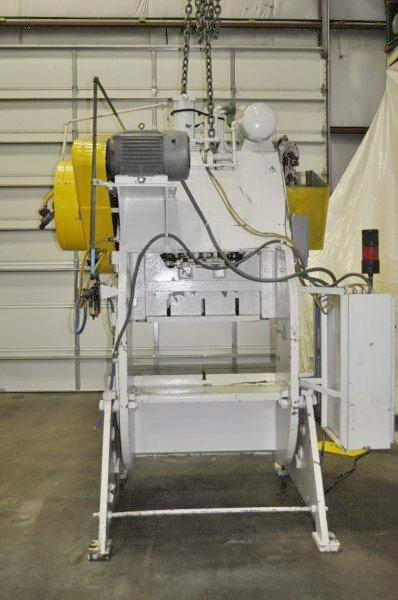

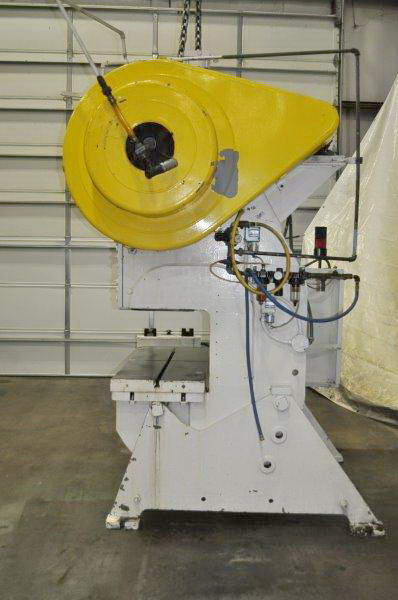

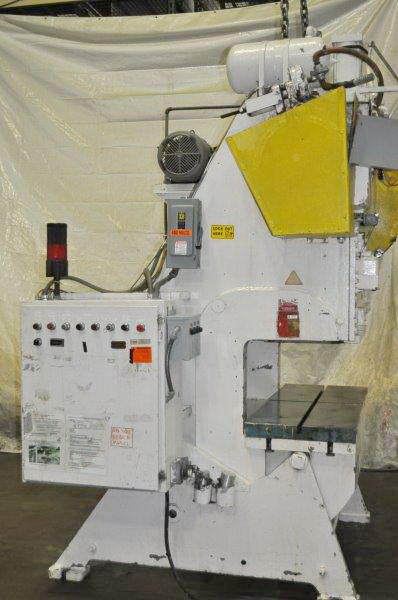

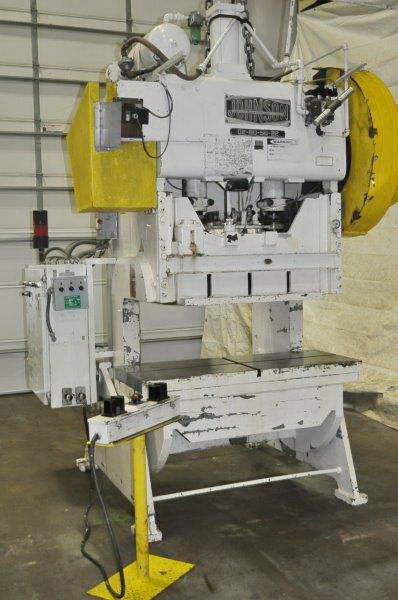

60 Ton JOHNSON OBI Press, 4 Str, 15 SH, 56 x 22 Bed, 100 SPM, 5 HP, Updated
MODEL NUMBER: G2-60-56-22
YEAR: 1965
SPECIFICATIONS:
Stroke: 4"
Shut Height: 15"
Ram Adjustment: 3-1/2" - Manual
Bed Area: 56" x 22", Bolster 56" x 22" x 2 3/4" T-Slotted
Ram Area: 40" x 22"
Strokes Per Minute: 100
EQUIPPED WITH:
Operator Control Pedestal w/ Dual Touch Buttons & E-Stop

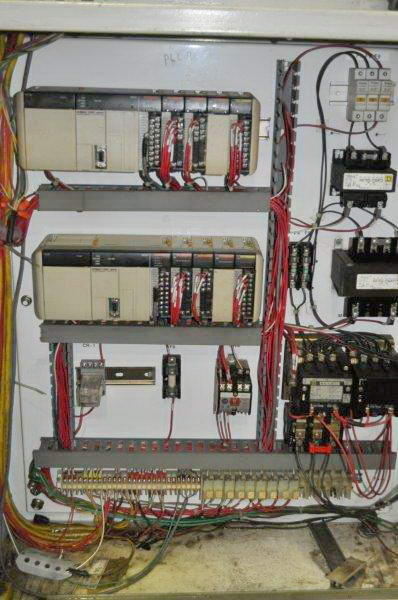

Dual Omron PLC Controllers
Auto Stop Parts Counter
Inch & Single
Forward/Reverse Switch
Two-Hand Safety Operator Controls on Pedestal Std.
Updated Machine Controls w/ Rotary Cam & Dual Herion
Air Clutch Valve w/ Dual Quick Exhaust Mufflers
Accu-Coder Electronic Rotary Cam Switch
Dual Air Counterbalance
(2) Electrically Interlocked Ram Blocks
Three Ram Knock-Out Slots
Air Surge Tank
Automatic Lube System w/ Gauge
Air System Filter, Lubricator and Regulator
Interlocked Air Pressure Switch
Kvar Energy Savings Power Factor Reduction Capacitors
MOTOR DATA: 5 HP, 480/3/60
OVERALL DIMENSIONS: 5' x 5' x 10'4"
WEIGHT: 14,000 Lbs.
60 Ton JOHNSON OBI Press, 4 Str, 15 SH, 56 x 22 Bed, 100 SPM, 5 HP, Updated
MODEL NUMBER: G2-60-56-22
YEAR: 1965
SPECIFICATIONS:
Stroke: 4"
Shut Height: 15"
Ram Adjustment: 3-1/2" - Manual
Bed Area: 56" x 22", Bolster 56" x 22" x 2 3/4" T-Slotted
Ram Area: 40" x 22"
Strokes Per Minute: 100
EQUIPPED WITH:
Operator Control Pedestal w/ Dual Touch Buttons & E-Stop
Dual Omron PLC Controllers
Auto Stop Parts Counter
Inch & Single
Forward/Reverse Switch
Two-Hand Safety Operator Controls on Pedestal Std.
Updated Machine Controls w/ Rotary Cam & Dual Herion
Air Clutch Valve w/ Dual Quick Exhaust Mufflers
Accu-Coder Electronic Rotary Cam Switch
Dual Air Counterbalance
(2) Electrically Interlocked Ram Blocks
Three Ram Knock-Out Slots
Air Surge Tank
Automatic Lube System w/ Gauge
Air System Filter, Lubricator and Regulator
Interlocked Air Pressure Switch
Kvar Energy Savings Power Factor Reduction Capacitors
MOTOR DATA: 5 HP, 480/3/60
OVERALL DIMENSIONS: 5' x 5' x 10'4"
WEIGHT: 14,000 Lbs.
