Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Press Tonnage | 60 tons |
| Max. Bending Length | 82.7 inches |
| Distance Between Frames | 86.6 inches |
| Max. Open Height | 19.7 inches |
| Stroke Length (Y-Axis.) | 11 inches |
| Y- Axis Working Speed | 23.6 IPM |
| Y- Axis Max. Speed | 236 IPM |
| Y- Axis Repeating Accuracy | +/- 0.0000787 |
| X- Axis Movement | 23.6" |
| X- Axis Speed | 19.69 IPS |
| X- Axis Repeating Accuracy | +/- 0.00098" |
| R- Axis Movement | 7.9 inches |
| R- Axis Speed | 141 IPM |
| Main Servo Motors | 17.7 HP |
| Machine Dimensions (Width x Depth x Height) | 119 x 78 x 93 |
| Machine Weight | 8818 pounds |
Equipped With
Equipped With
Features:

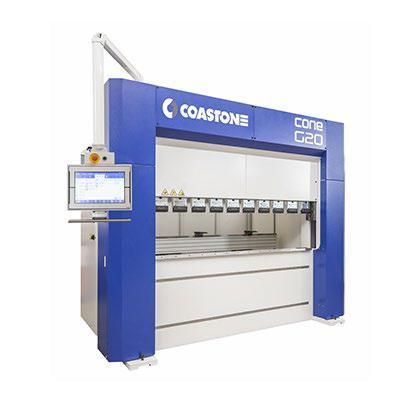

CoastOne represents the new generation of press brakes. The CoastOne G-20 is a servo driven press brake equipped with high class linear guides. The machine is designed for an extremely accurate and precise bending process for all of your demanding solutions. The cornerstones of the CoastOne development have been the ergonomic design, user friendly programming, as well as convenient working conditions for the operator. Also, Since the G-20 is a servo driven press brake, there are no oil changes needed and no waste oil exists. Many customers find a 2/3 energy savings by using our electric press brake, as opposed to a traditional hydraulic brake.
Equipped With:
CoastOne represents the new generation of press brakes. The CoastOne G-20 is a servo driven press brake equipped with high class linear guides. The machine is designed for an extremely accurate and precise bending process for all of your demanding solutions. The cornerstones of the CoastOne development have been the ergonomic design, user friendly programming, as well as convenient working conditions for the operator. Also, Since the G-20 is a servo driven press brake, there are no oil changes needed and no waste oil exists. Many customers find a 2/3 energy savings by using our electric press brake, as opposed to a traditional hydraulic brake.
Equipped With:
- Fully Integrated Lazer Safe System Included
- CNC-controlled Y1-, Y2-, Y3-, X- and R-axis
- TC15-2D (15” Display w/ Graphics, Virtually Unlimited Storage, USB)
- 2 pcs back gauge fingers
- Automatic crowning
- American/European-Style Tool Holder (Please Request at Order)
Optional Features:
- Z1, Z2 Axis (Independent Finger Programmability): $8,225.00
- Delta X-Axis (1 Finger Adjusts +/- 2 in. towards die): $5,225.00
- Front-Side Working Light: $1,205.00
- Force Increase 20%: $2,505.00
Delivery:
26-28 Weeks
26-28 Weeks
Get Your Price from Smith Machinery Co!
