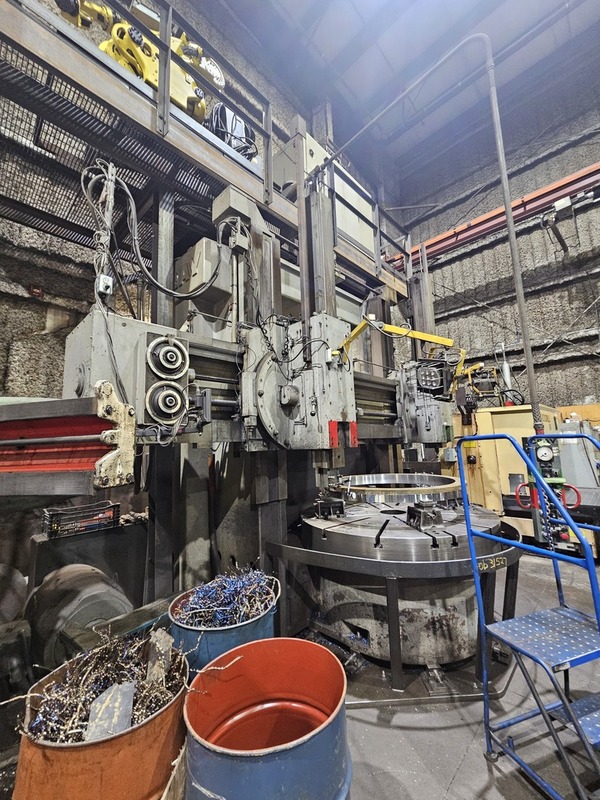

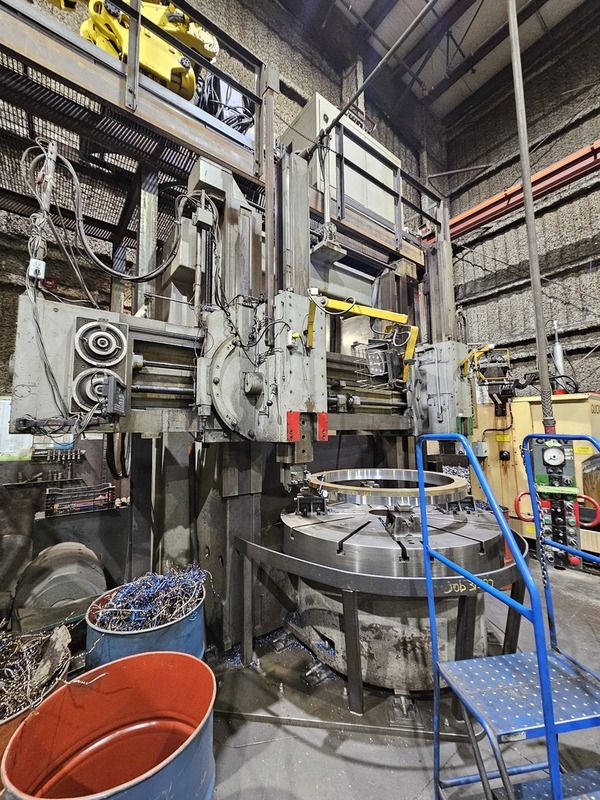

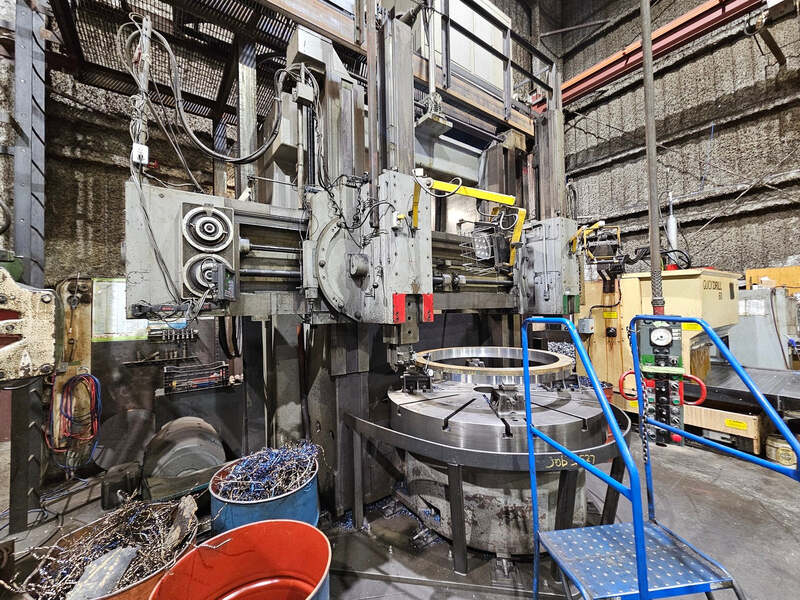

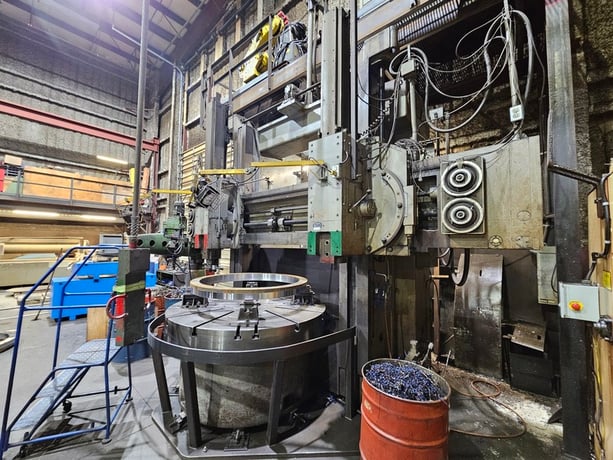

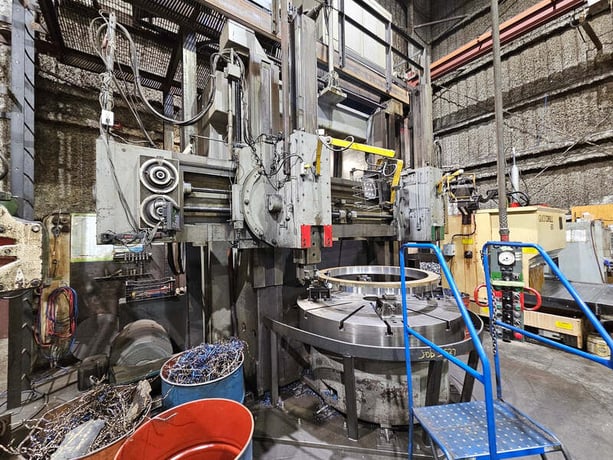

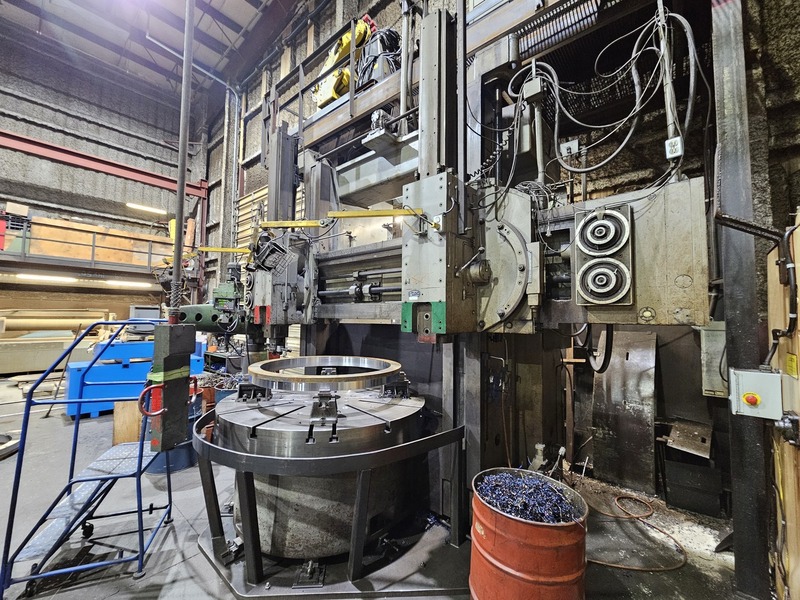

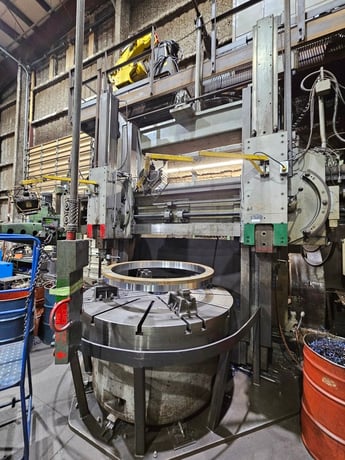

60" G.A. Gray #60-Series, Vertical Boring Mill, 72" max. swing, 272 RPM

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 151793
Model: 60 Series
Year: 1962
Condition: Used
General Specifications:
Table Size: 60" dia.
Dimensions: 162.00 (H) x 154.00 (W) x 156.00 (L) inches
Additional Description:

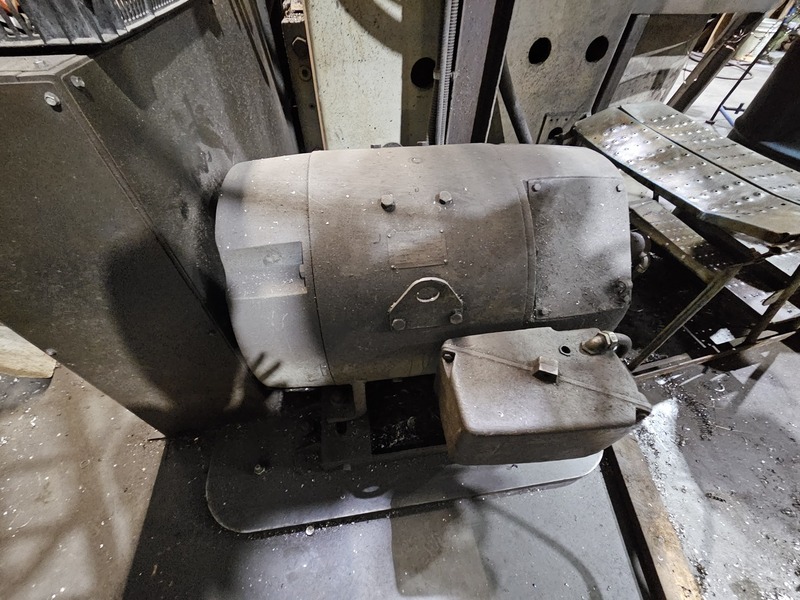

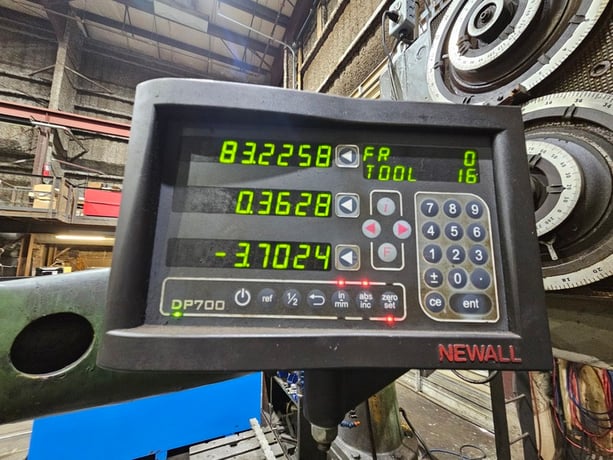

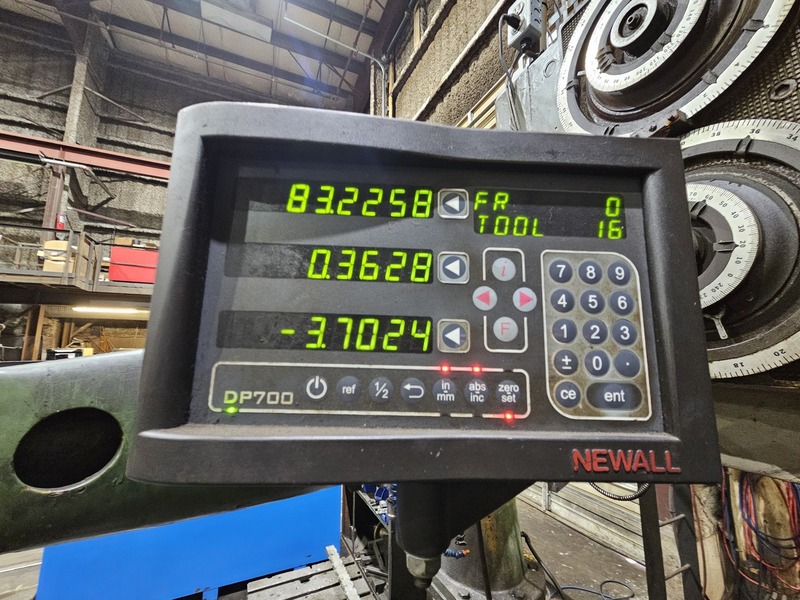

Drive motor was updated and a new digital drive was installed.

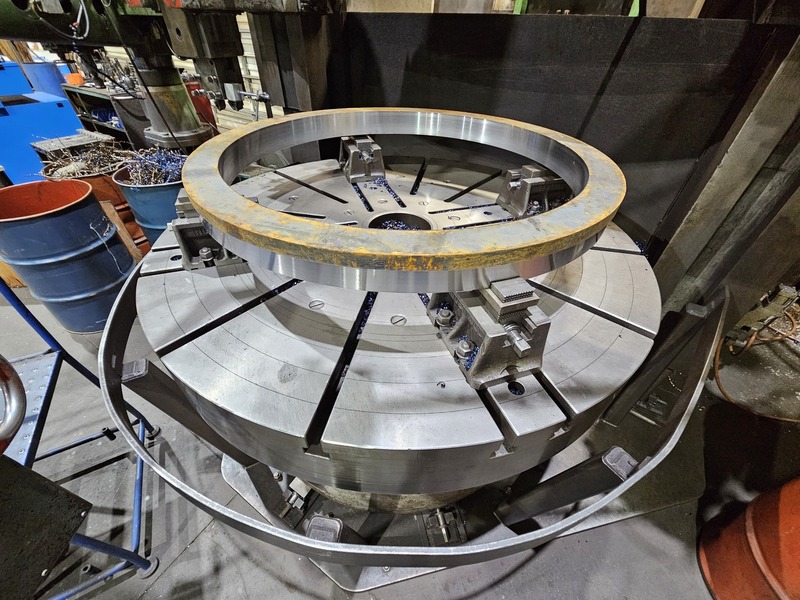

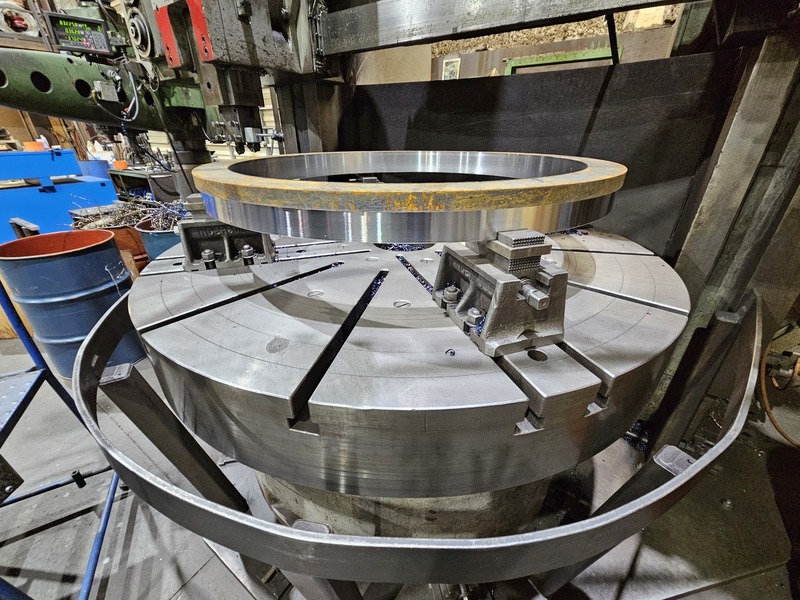

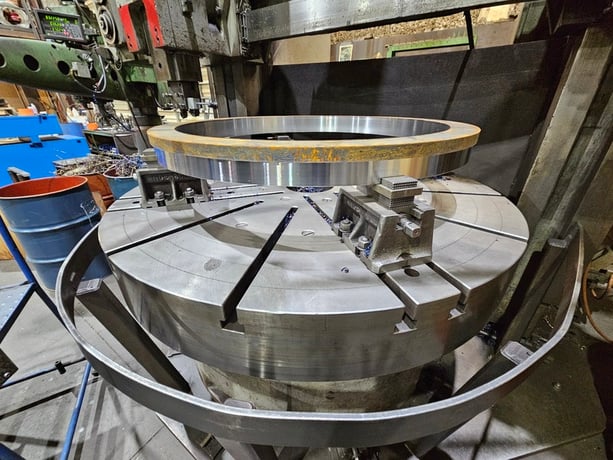

Table diameter: 60"
Height under saddle: 60"
Height under ram face: 68"
Height under turret face: 72"
Vertical travel (below saddle) of ram heads (Std.): 48"
Vertical travel (below saddle) of turret head (Std.): 30"
Vertical travel of side head above table: 56"
Horizontal travel of ram heads: 42"
Horizontal travel of turret head: 45"
Horizontal travel of side head ram: 32"
Travel past center - ram heads: 1/2"
Travel past center - turret heads: 1/2"
Travel of rail: 50"
Swivel of ram either side of vertical: 45
Size of bore in ram heads: 3"
Size of bore in turret heads: 3"
Maximum swing, with or without side head: 72"
Feeds per rev. of table (infinitely variable): .0025" - .250"
Table speed range rpm (infinitely variable): 1.3 - 272
Table top to floor: 36-1/4"
Overall height machine top to floor: 12'2"

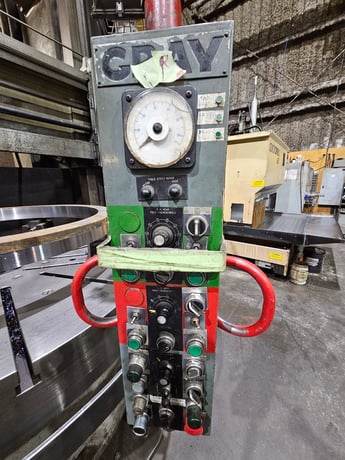

Overall height pendant top to floor: 16'
Overall height top of ram to floor: 16'
