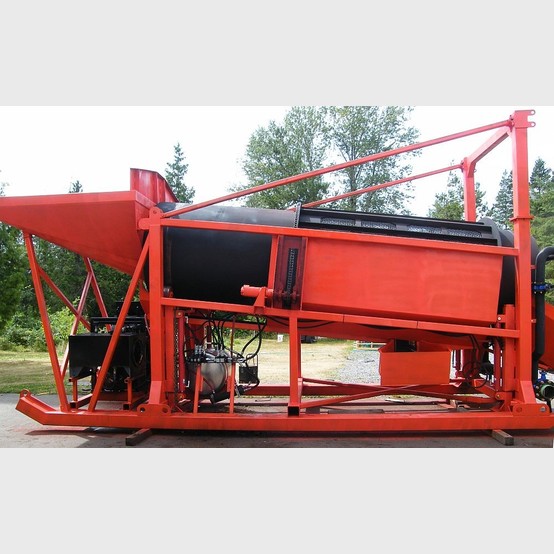

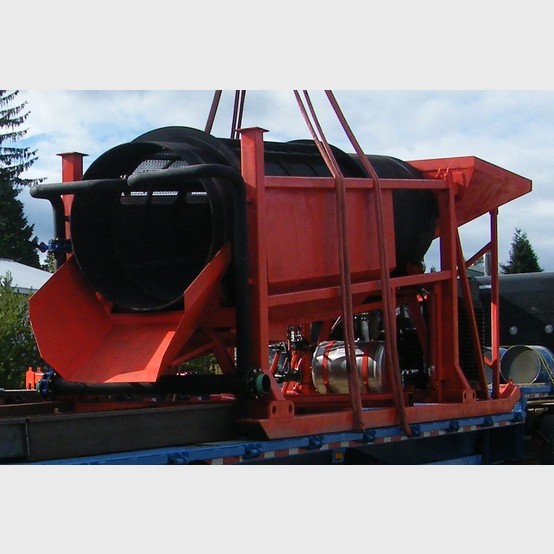

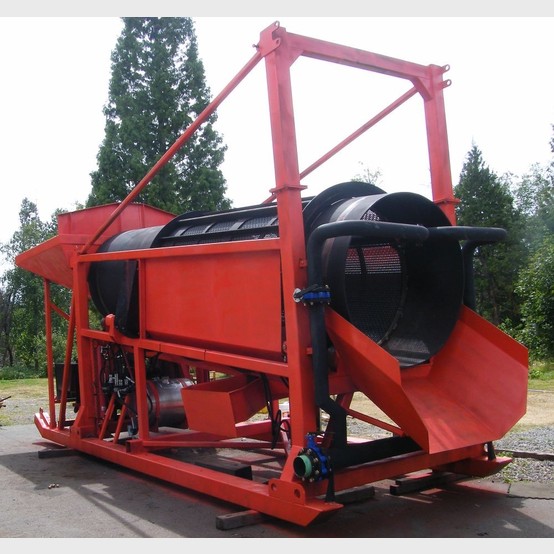

60" dia. x 20' long scrubber trommel wash plant, Savona Equipment #ST120

The Savona ST120 Scrubber Trommel is a semi-custom high-volume commercial wash plant primarily used for alluvial placer gold mining along with general remediation, aggregate, and ore washing applications.

Built mine-duty for effective scrubbing, washing, and screening of alluvial placer ores to liberate free gold for further recovery in a sluice box, Hy G Concentrator, or with other gold recovery methods.

The ST120 is Made in Canada and shipped globally.

If you require course to ultra fine gold recovery, we recommend pairing the ST120 with Hy G P40 Centrifugal Concentrators also sold by Savona Equipment.

ST120 General Specifications:

• Throughput: 120 YPH Capacity (Approx. 180 TPH)
• Size: 5 ft. x 20 ft. (1.5m x 6.1m)
• Approx. Water Consumption: 1,000 GPM
• Feed Hopper With Heavy-Duty Perimeter Water Feed Nozzles
  • Corner Stake Pockets for Overhead Grizzly (Grizzly an Additional Option)

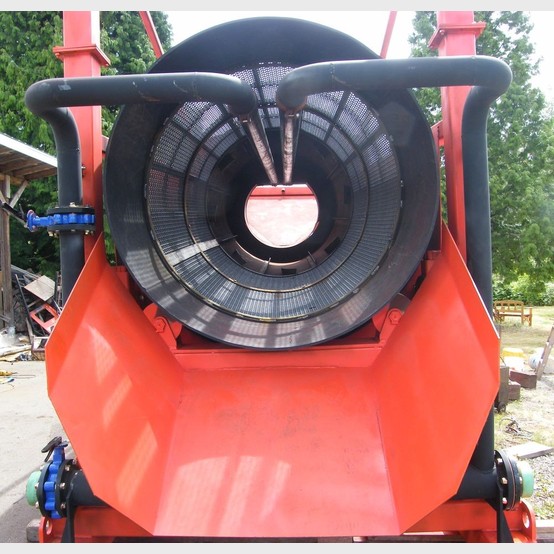

• Scrubber Section with Internal Lifters
• Supplied Standard with Wire Mesh Screen (Urethane Optional)
• Length of Screen and Scrubbing Sections Can Be Customized
• Screen Opening Can Be Customized
• Fines Collection Trough with Discharge to Sluice
• All Heavy-Duty Square Tube Frame

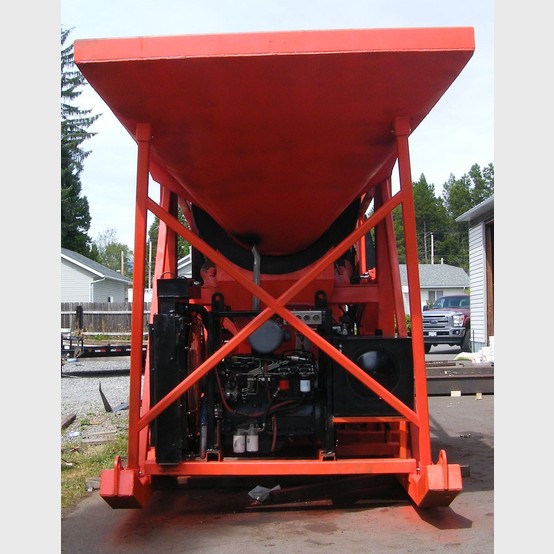

• Drive: Electric Drive
  • Diesel or Gas Drive Optional

• Custom Sluice Box Options Available at Extra Cost and Designed Per Customer Request

• Estimated Shipping Dimensions:
• Length: 26ft Long (7.92m)
• Width: 8ft Wide (2.44m)
• Height: 10ft 7in High (3.23m)
• Weight: 22,000 lbs. (Approx.)

Please contact us for more information
