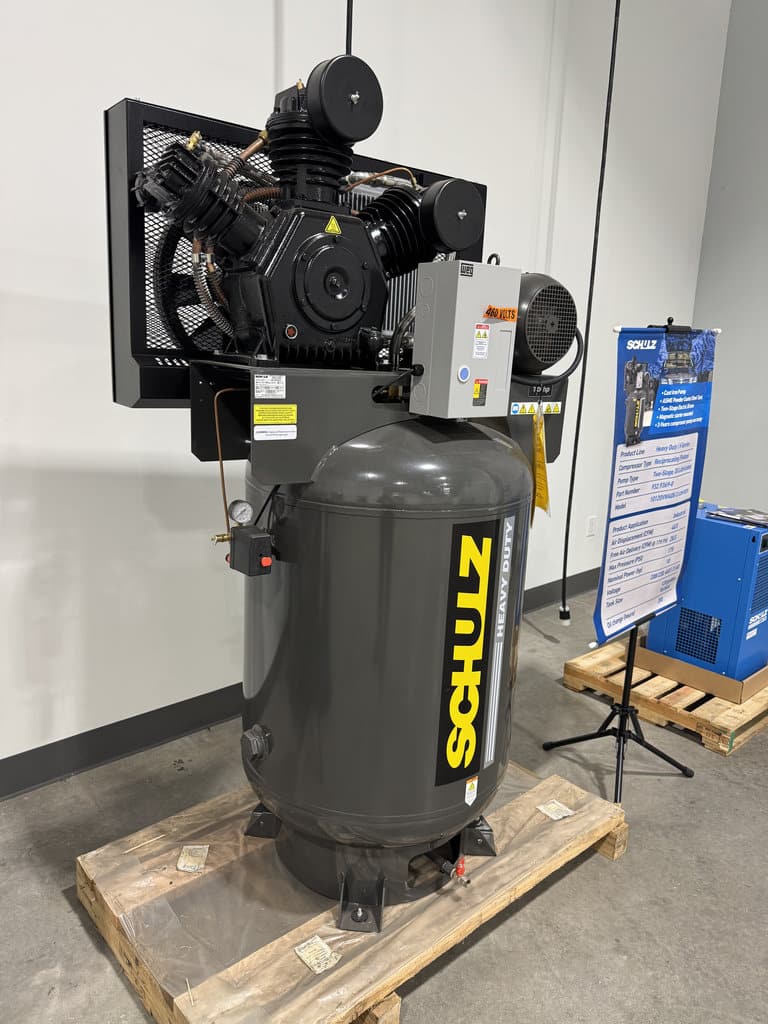

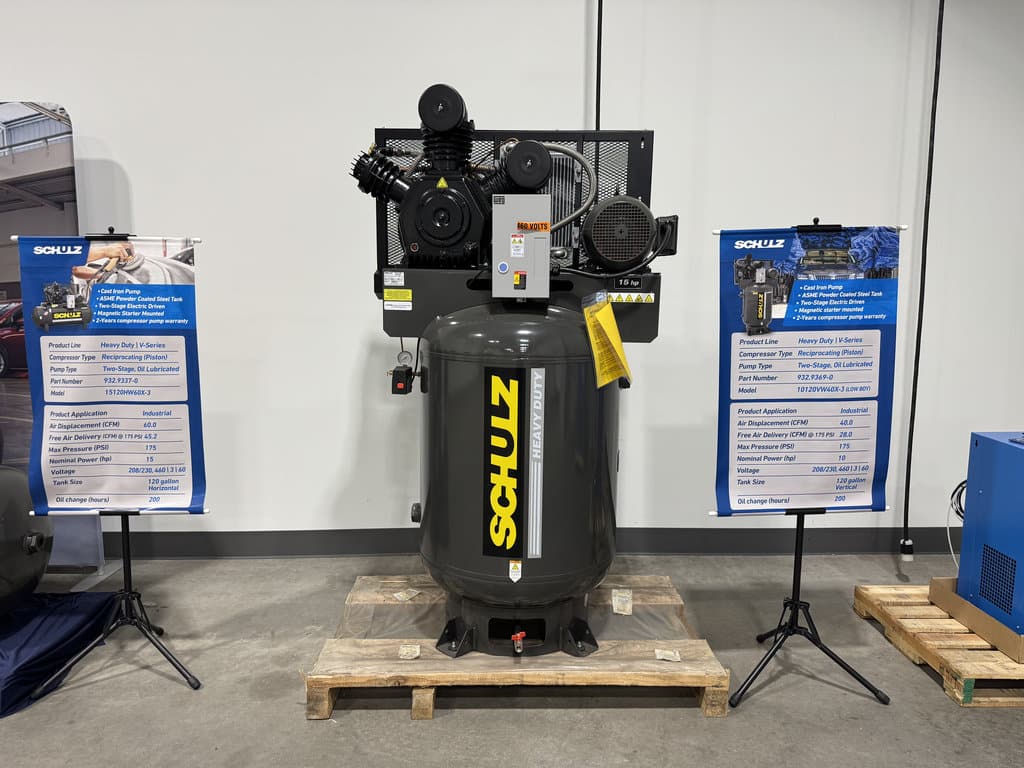

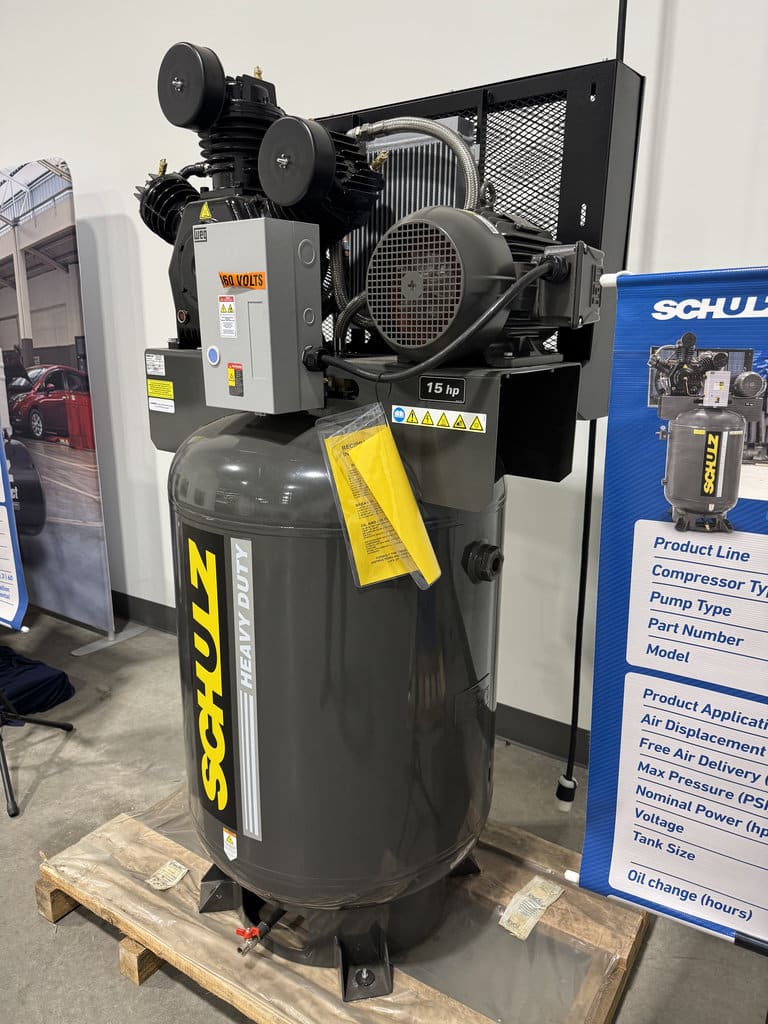

60 cfm, 175 psi, Schulz #15120HW60X-3, piston air compressor, 15 HP, 208-230/460 V., new

$7,450 USD

Request Formal Quote

General Info
Stock #: 932.9368-0
Brand: Schulz
Model: 15120VW60X-3
Approx. Shipping Weight: 1100 lbs. / 499 Kg
Approx. Shipping Dimensions: 49" x 30" x 79" / 1.24m x 0.76m x 2.01m
Specifications

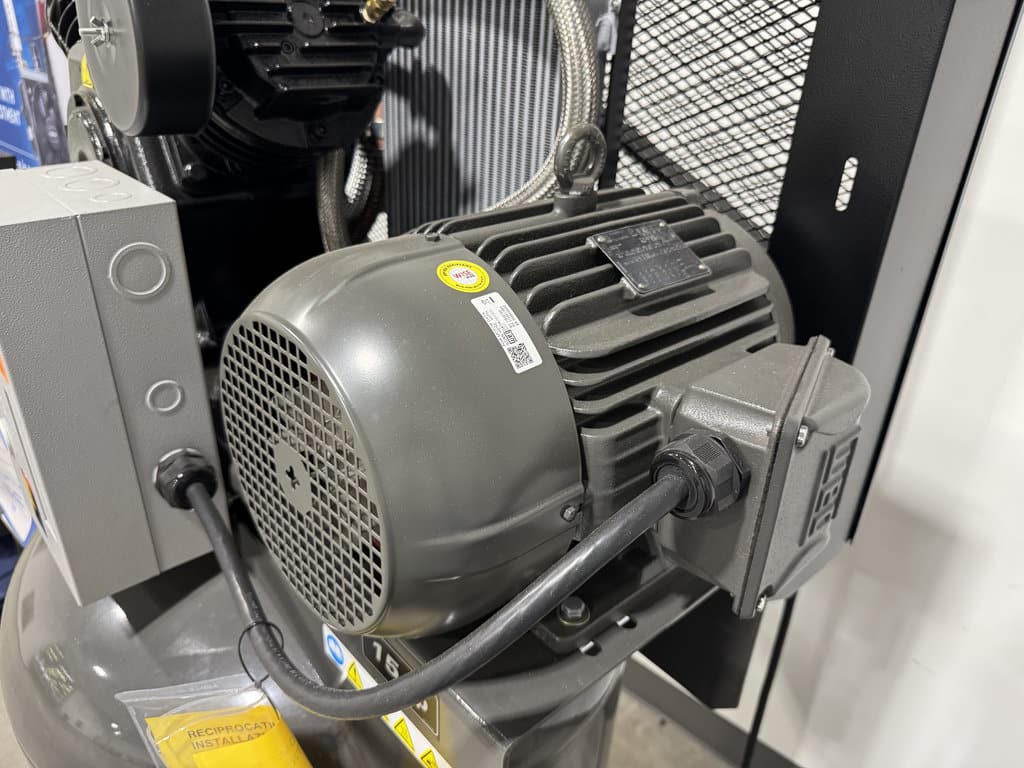

Motor Horsepower: 15 HP / 11.19 KW
Voltage: 208-230/460 V / Three Phase
Max Operating Pressure: 175 PSI / 12.07 bar
Free Air Delivery @ 175 PSI: 45.2 CFM / 1280 L/min
Theoretical Displacement: 60 CFM / 1699 L/min
Number of Stages: 2
Number of Pistons: 2-V
Tank Capacity: 120 Gallons / 454 L
Tank Type: Vertical
Lubrication: Oil-Lubricated

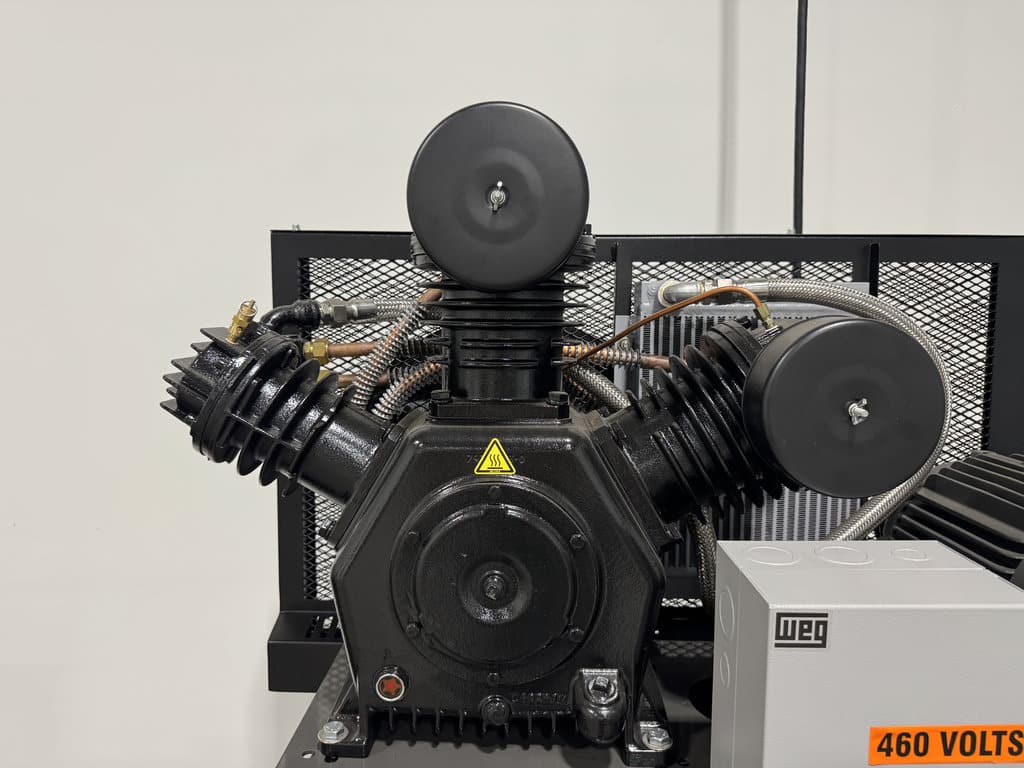

Pump Material: Cast Iron
Equipped With

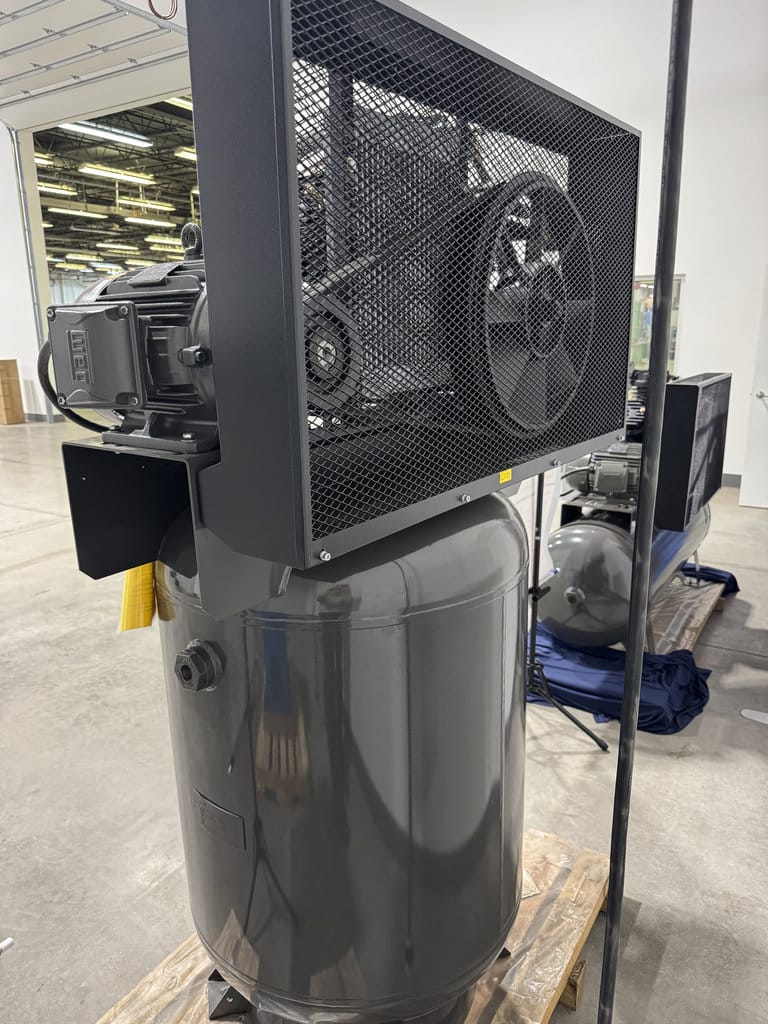

Standard Accessories: Cast iron construction, Low RPM two piston V design, High-quality cast iron blocks, V-cylinder design for superior cooling and increased efficiency, Mounted and prewired magnetic starters for safe operation, TEFC high efficiency motors, Auto start/stop pressure switch operation, Powder coated ASME certified receivers, Enclosed metal belt guard, Easy access to adjust belt tension, Balanced drive pulleys, Oversized check valves, ASME safety relief valves, Pressure gauge, Manual condensate drain, Swedish stainless steel reed valves, Deeper cylinder fins for heat dissipation, Oil sight glass
Additional Info
This is a new unit on our showroom floor. The sale includes the standard Schulz 2-year compressor pump warranty. We have heavily discounted this machine to move it off the showroom floor and make room for different inventory.
