Description
General Info Stock #: 181250025 Location: Philadelphia, PA Brand: Advent Design Corporation Model: 6294-1 Year: 2013 Approx. Shipping Dimensions: 11' L x 7' W x 9' H Loading Fee: Rigging Required Specifications Key Features: Dual unwinds with Adhesive & Substrate Air Shafts Key Features: Edge Guide Sensors for both adhesive and substrate for precise alignment Key Features: Integrated HMI & Gage Display for real-time process monitoring Key Features: Cut guides for both adhesive and substrate Specifications:: Can laminate material up to 60" wide Specifications:: Overall dimensions are 11' L x 7' W x 9' H Electrical Volts:: 208/120 Phase:: 3 Amps:: 30 Hertz:: 60 Applications:: Multi-layer lamination of elastomers, foams, and films, PSA application with accurate edge alignment Equipped With Raw material and finished product work pieces: Substrates are supplied in rolls wound on 3-inch ID cardboard cores. Rolls are from 24 inches to 54 inches wide with up to 22-inch maximum OD. Thickness ranges from 0.005-inch film up to 0.50-inch foam, and the maximum roll weight is 200 pounds. Adhesive is supplied in rolls wound on 3-inch ID cardboard cores. Rolls are from 24 inches to 54 inches wide with up to 14-inch maximum OD. Thickness is 0.005 inch to 0.020 inch, and the maximum roll weight is 300 pounds. Additional Info Inspection Upon Request
General Info
Stock #: 181250025
Location: Philadelphia, PA
Brand: Advent Design Corporation
Model: 6294-1
Year: 2013
Approx. Shipping Dimensions: 11′ L x 7′ W x 9′ H
Loading Fee: Rigging Required
Specifications
Key Features: Dual unwinds with Adhesive & Substrate Air Shafts
Key Features: Edge Guide Sensors for both adhesive and substrate for precise alignment
Key Features: Integrated HMI & Gage Display for real-time process monitoring
Key Features: Cut guides for both adhesive and substrate
Specifications:: Can laminate material up to 60″ wide
Specifications:: Overall dimensions are 11′ L x 7′ W x 9′ H
Electrical Volts:: 208/120
Phase:: 3
Amps:: 30
Hertz:: 60
Applications:: Multi-layer lamination of elastomers, foams, and films, PSA application with accurate edge alignment

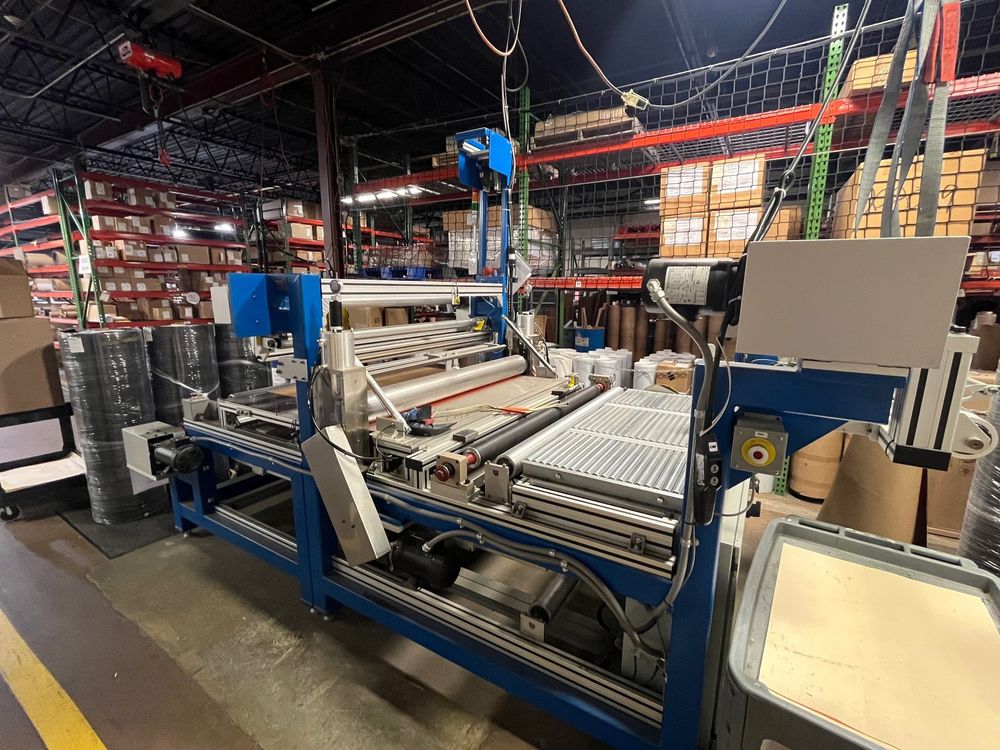

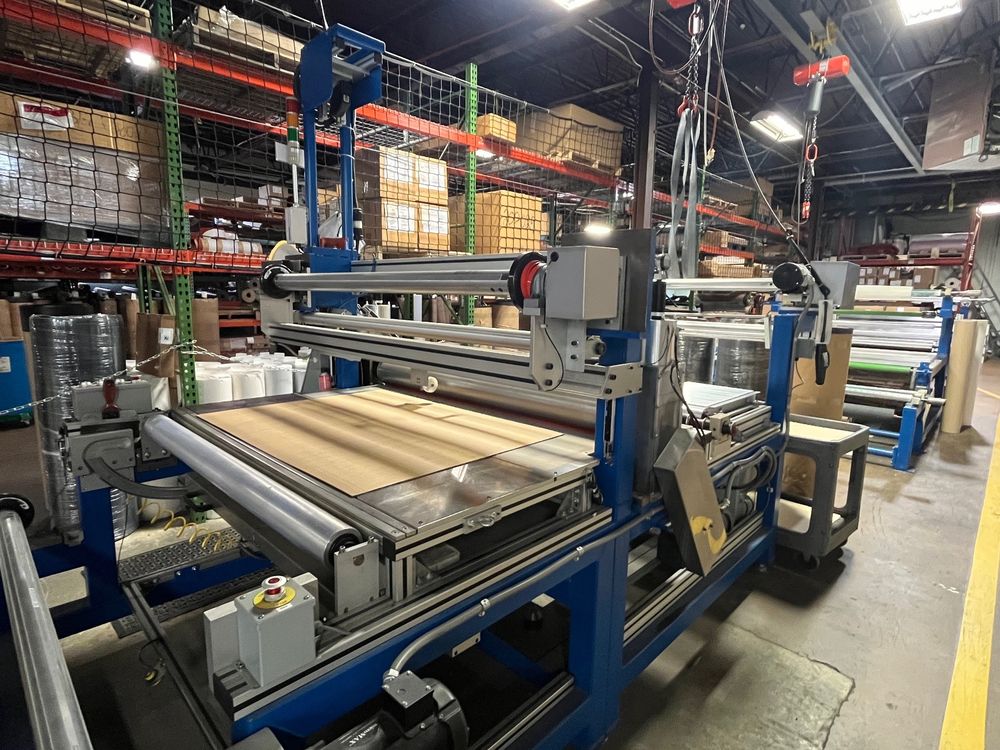

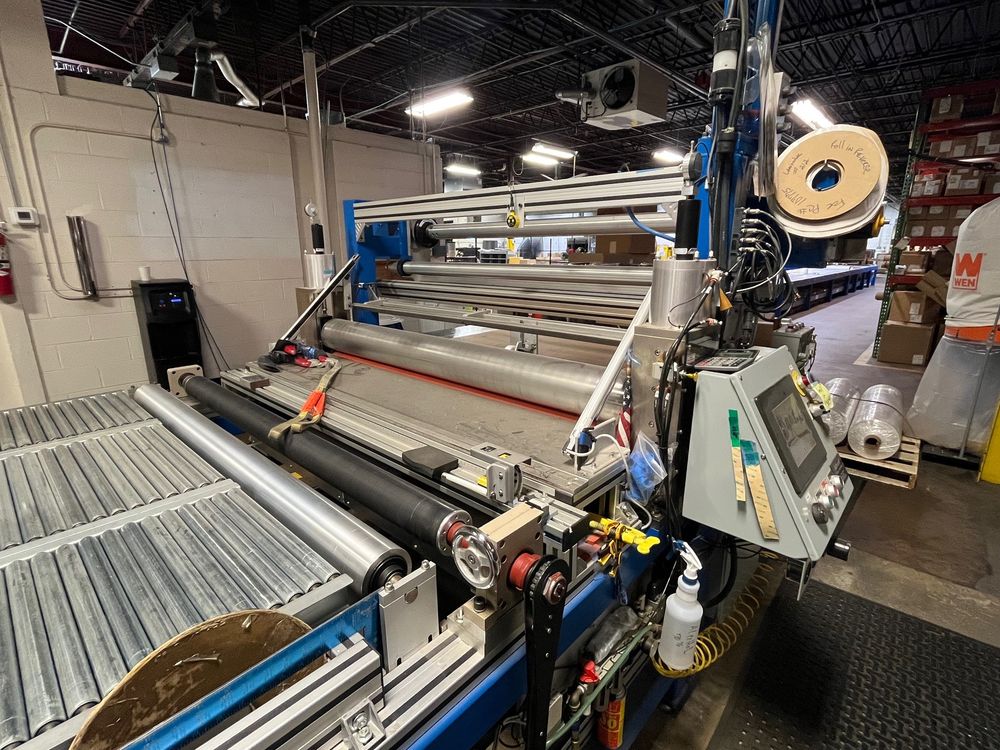

60" Wide Pressure Sensitive Adhesive Laminator, This system was designed for laminating a variety of pressure sensitive adhesives carried on release paper onto substrates of plastic film, rubber, and foam. Adhesive material and substrates are unwound from supply rolls, guided into a set of adjustable laminating rolls ...more
