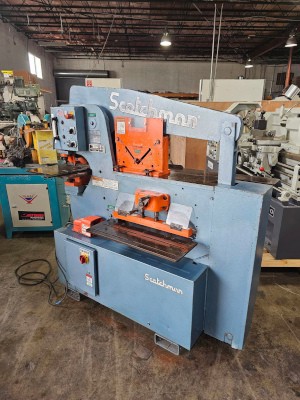

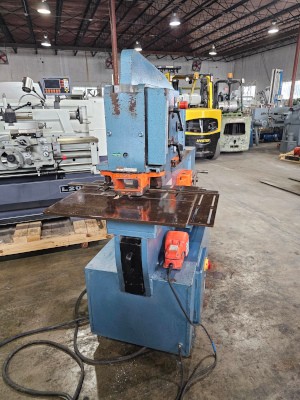

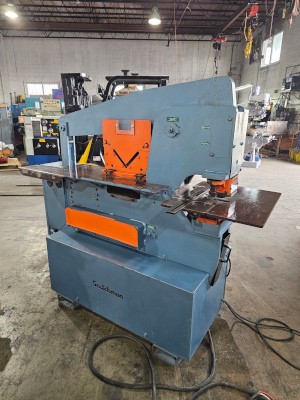

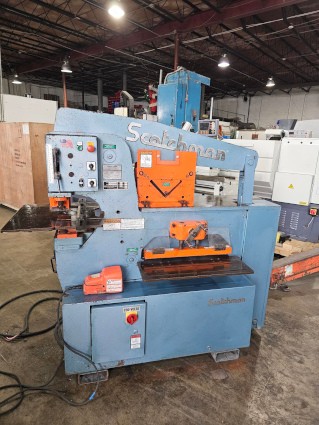

Manufacturer: Scotchman
Model: 6509
Year: 2016
90° Angle Shear Capacity" L: 6.00
90° Angle Shear Capacity" W: 6.00
Shear Capacity: .375
Ton: 65
Stock # 7212
1 / 6
Click to zoom in
1 / 6
For Sale by AM Metalmaq Inc
Surplus Record Dealer Since 1993
Location: Hialeah, FL
Contact Sales Dept.
Phone Number: 305...> Show Phone Number 305-883-9200
Let the seller know you found their listing on Surplus Record!
Description

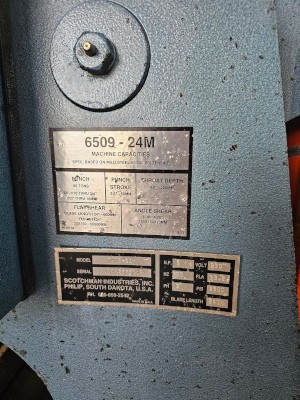

Model number 6509-24M
Year of manuanufacture 2016 (installed 2020)
SPECIIFICATIONS:
Tonnage 65
Throat 9"
Capacity 1-1/16" thru 3/4"
Maximum cutting length 24"
Cutting capacity--maximum width 3/16" x 24"
--max. thickness 1" x 6"
Maximum angle @ 90 degree 5" x 5" x 1/2"
6" x 6" x 3/8"
Motor power 5 HP
Electrics--standard 208-230/460/3/60
Base dimensions 22-1/2" x 60"
Overall height 66"
Net weight 2,500 lbs.
EQUIPPED WITH:
Electric remote foot pedal, 24" bar shear, Assorted punch and die sets

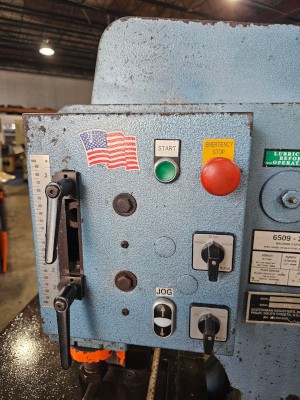

Adjustable electric stroke control with scale
Punch gauging table with fence and scale
This machine was purchased new and put in service in 2020.
Year of manuanufacture 2016 (installed 2020)
SPECIIFICATIONS:
Tonnage 65
Throat 9"
Capacity 1-1/16" thru 3/4"
Maximum cutting length 24"
Cutting capacity--maximum width 3/16" x 24"
--max. thickness 1" x 6"
Maximum angle @ 90 degree 5" x 5" x 1/2"
6" x 6" x 3/8"
Motor power 5 HP
Electrics--standard 208-230/460/3/60
Base dimensions 22-1/2" x 60"
Overall height 66"
Net weight 2,500 lbs.
EQUIPPED WITH:
Electric remote foot pedal, 24" bar shear, Assorted punch and die sets
Adjustable electric stroke control with scale
Punch gauging table with fence and scale
This machine was purchased new and put in service in 2020.
