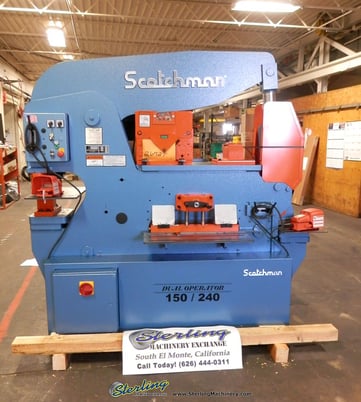

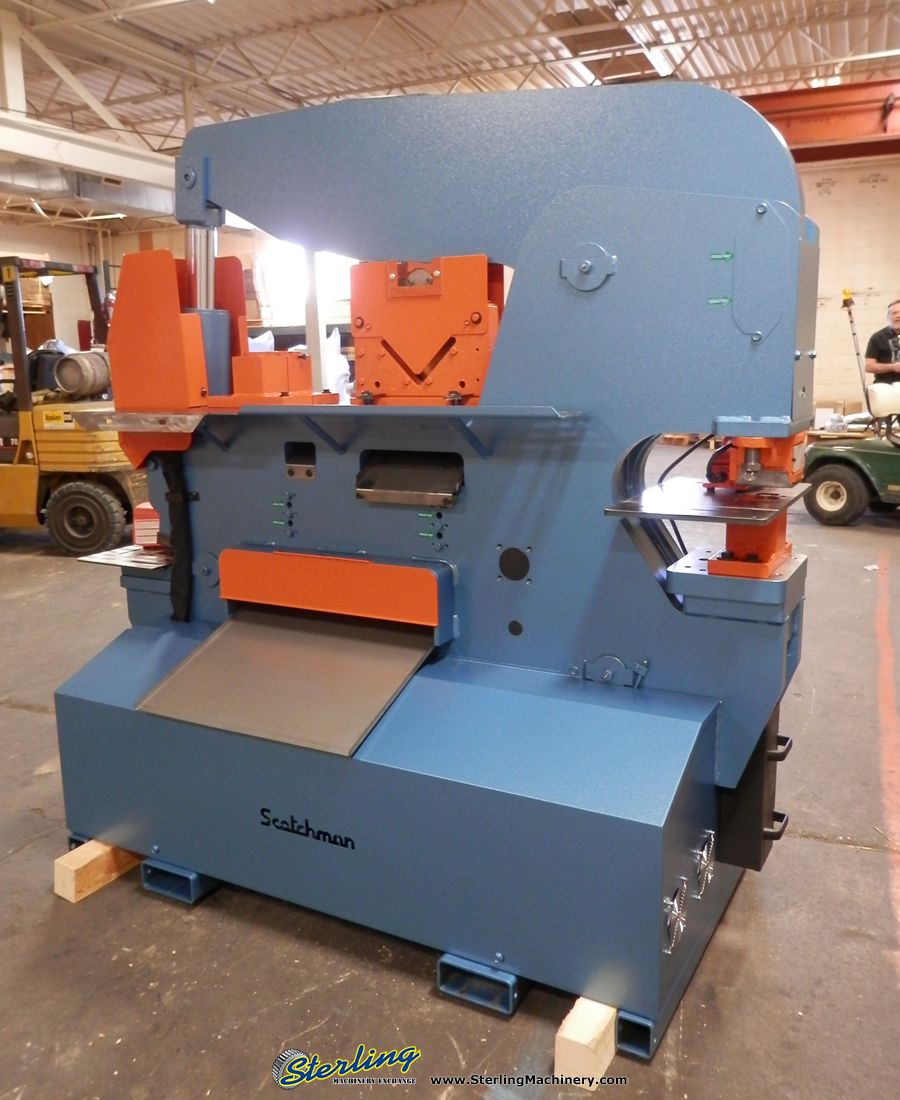

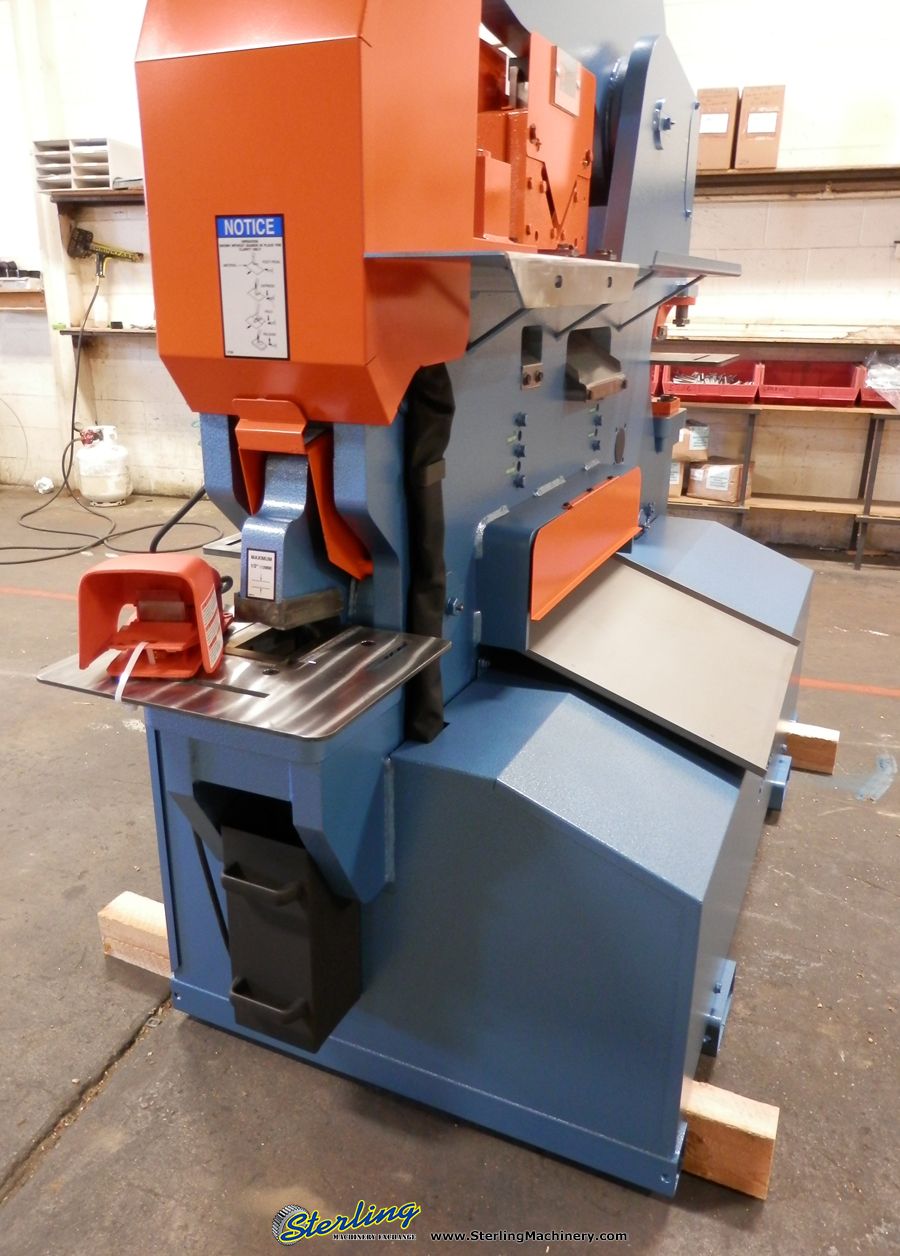

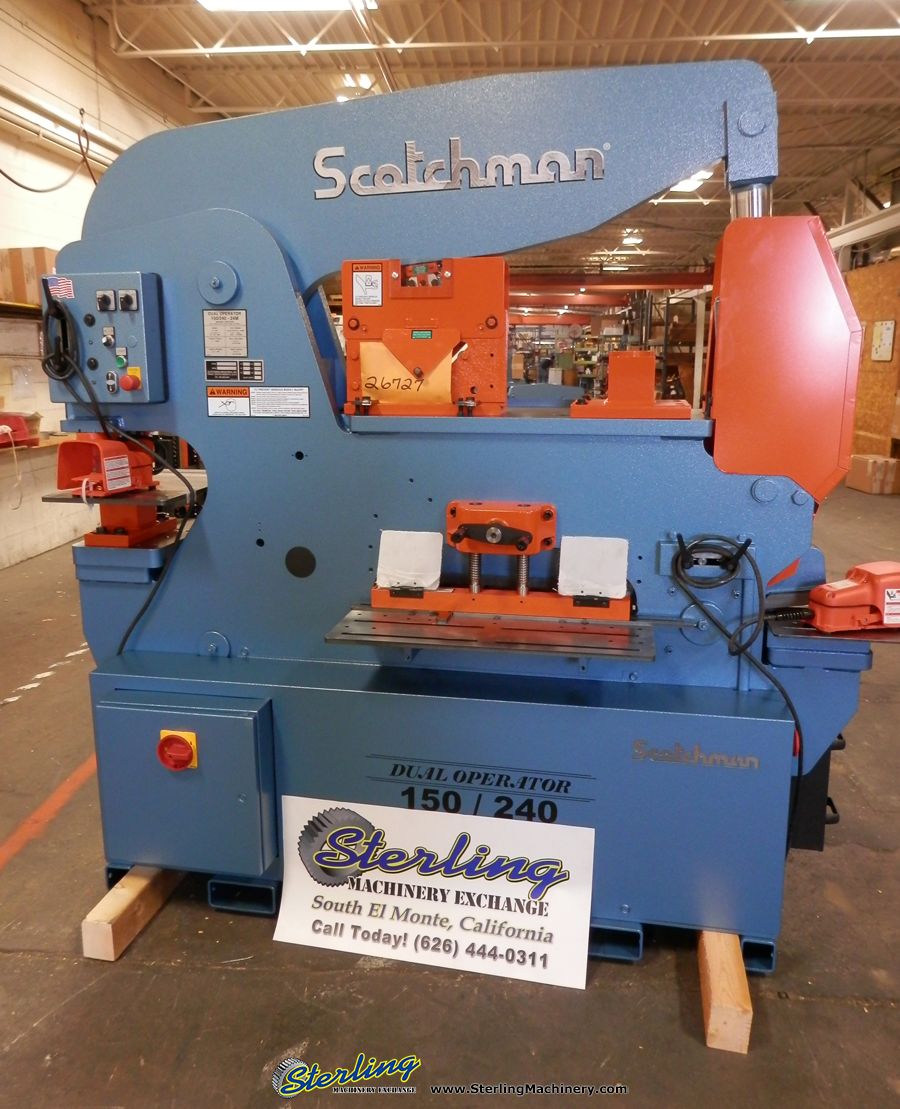

6" x 6" x 1/2" Scotchman #DO-150/240-24M, dual operation hydraulic ironworker, 150 ton, 12" throat, new, #SMDO15024024M

Manufacturer Scotchman
Angle Capacity" L 6.00" L
Angle Capacity" W 6.00" W
Capacity .500"
Ton 150
Stock # SMDO15024024M
Price $49,690

For Sale by Sterling Machinery Exchange

Platinum Level Dealer
Surplus Record Dealer Since 1970

Description

DETAILED SPECIFICATION
Punching Capacity150 Ton
I1 - 1/2" In 1 - 1/4"
Special Tooling4" Max. Dia.
Throat Depth12"
Flat Bar Shear24"
(Sabre Blade - Std.)1" x 14"

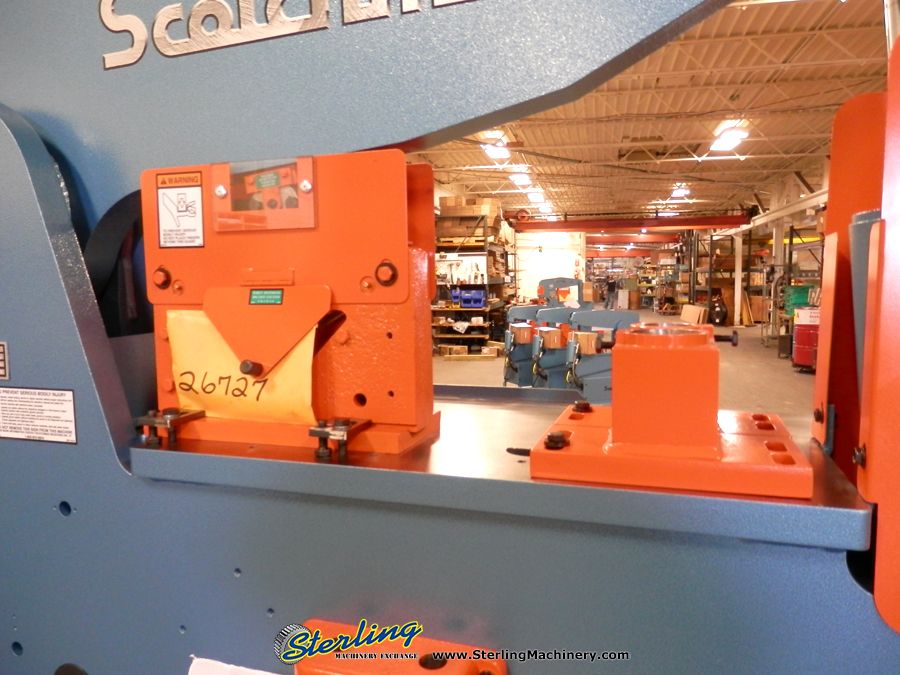

Angle Shear 90 Degrees6" x 6" x 1/2"
Angle Shear 45 Degrees (With Bar Shear)3" x 3" x 3/8"
Brake 12"75 Ton
Brake 24"55 Ton
Open End BrakeMax. 1/4" x 6"
Pipe Notcher3/4", 1"
Schedule 401 - 1/4"
90 Degrees V-Notcher6" x 6" x 5/16"
Rectangle Notcher3" x 5 - 3/4" x 1/2"
V - Notch3" x 3" x 1/2"
Notching In Leg Of Channel6" To 10"
Channel Shear2" To 6" Adj.
Rod Shear
Round Rod (Max.)1/4" To 1 - 1/4", 9 Cavity
Square Rod (Max.)1/4" To 1", Cavity
Square Tube Shear1/2" To 2", 12 Gauge
Picket Tool1/2", 3/4" & 1"
Offset Die HolderMax. 40 Ton
Strokes Per Minute In Light Material20 SPM
Strokes Per Minute In Heavy Material11 SPM
Hydraulics3,500/3,000 PSI
Motor Standard10 HP 3 PH
Motor Optional10 HP 1PH
TypeHydraulic
Dimensions (L x W x H)78" x 34" x 75"
Weight6404 lbs
Warranty3 Years on Parts

EQUIPPED WITH
Dual Operator Allows For Two Opertors To Work At The Same Time At Full Capacity

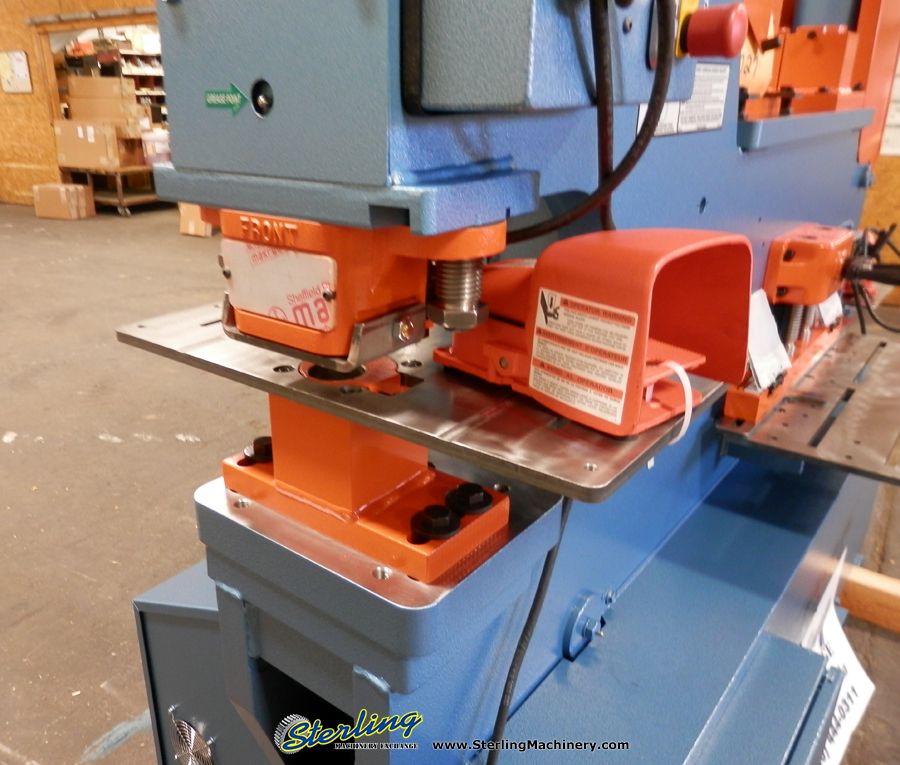

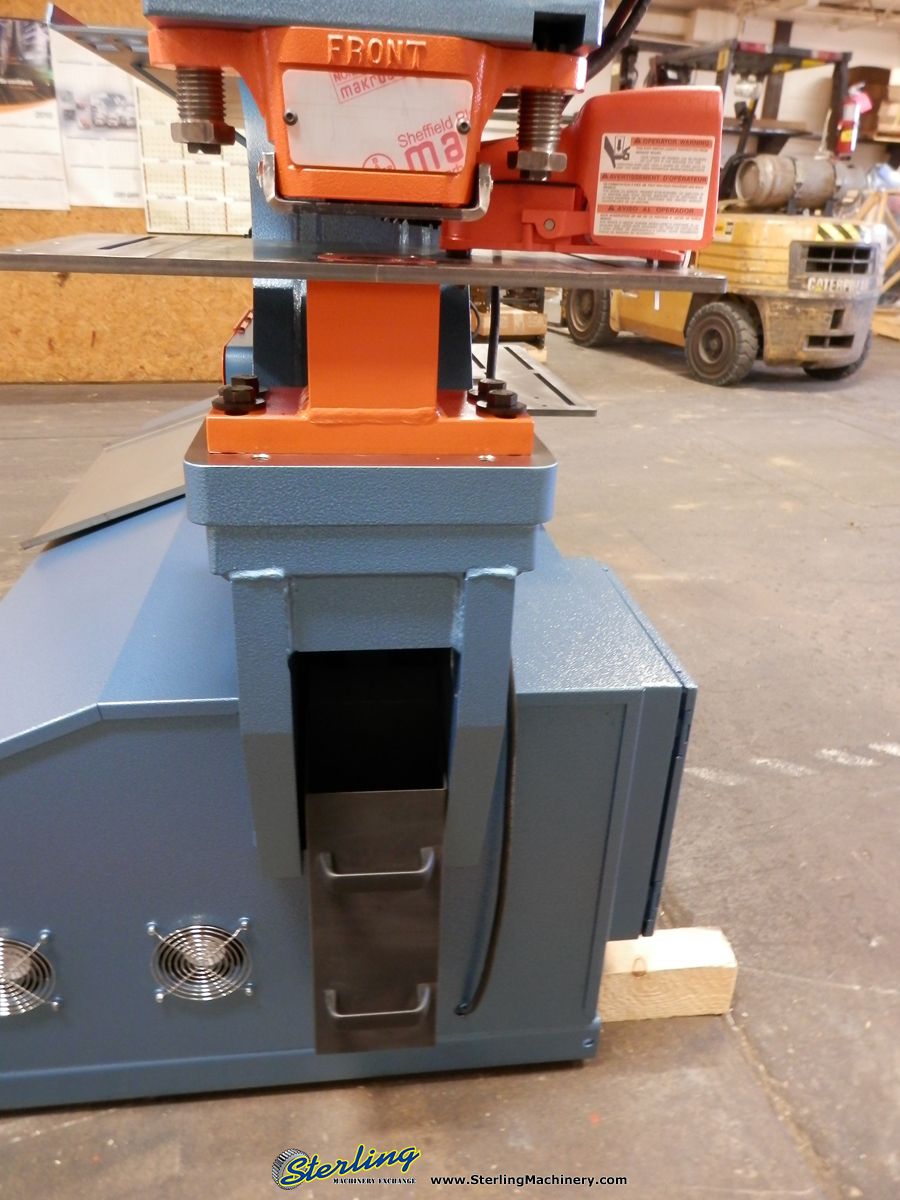

150 - Ton punch Station (1 - 7/8" In 1")
Keyed Punch Ram For Safty
Punching Gauging Table With Fence And Scale
Die Holders - 2", 2 - 1/2", 3"
Punch Nut With Wrench & Stripper
Adjustable Swing-Away Stripper
Punch Jog Control

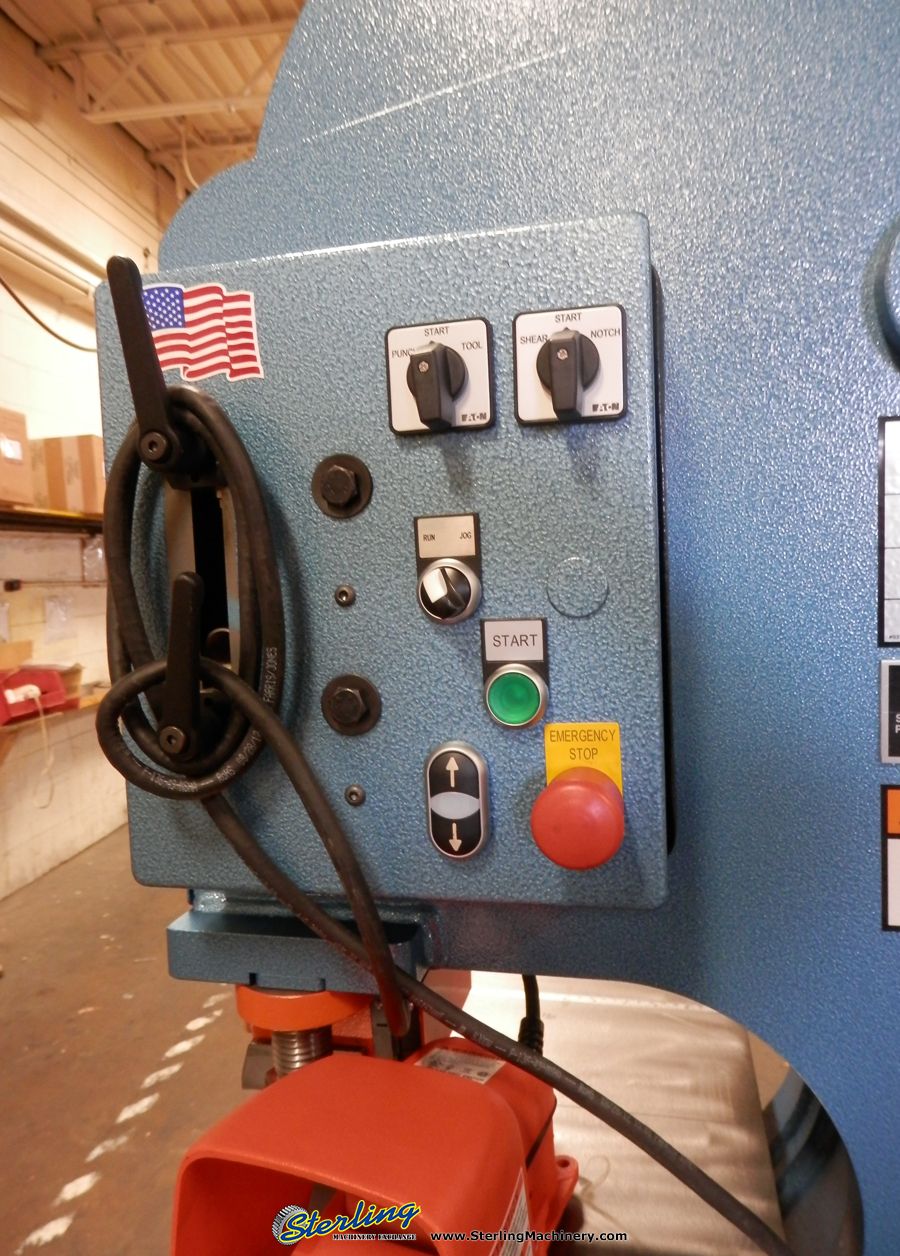

2 Adjustable Electric Stroke Controls with Scale
2 Electric Remote Foot Pedals
Two 2-Stage Hydraulic Pumps
2 Valves
Notcher Table with Guides
Shear Table With Miter Fence
Tool Table Work Area
Slug Receptacles

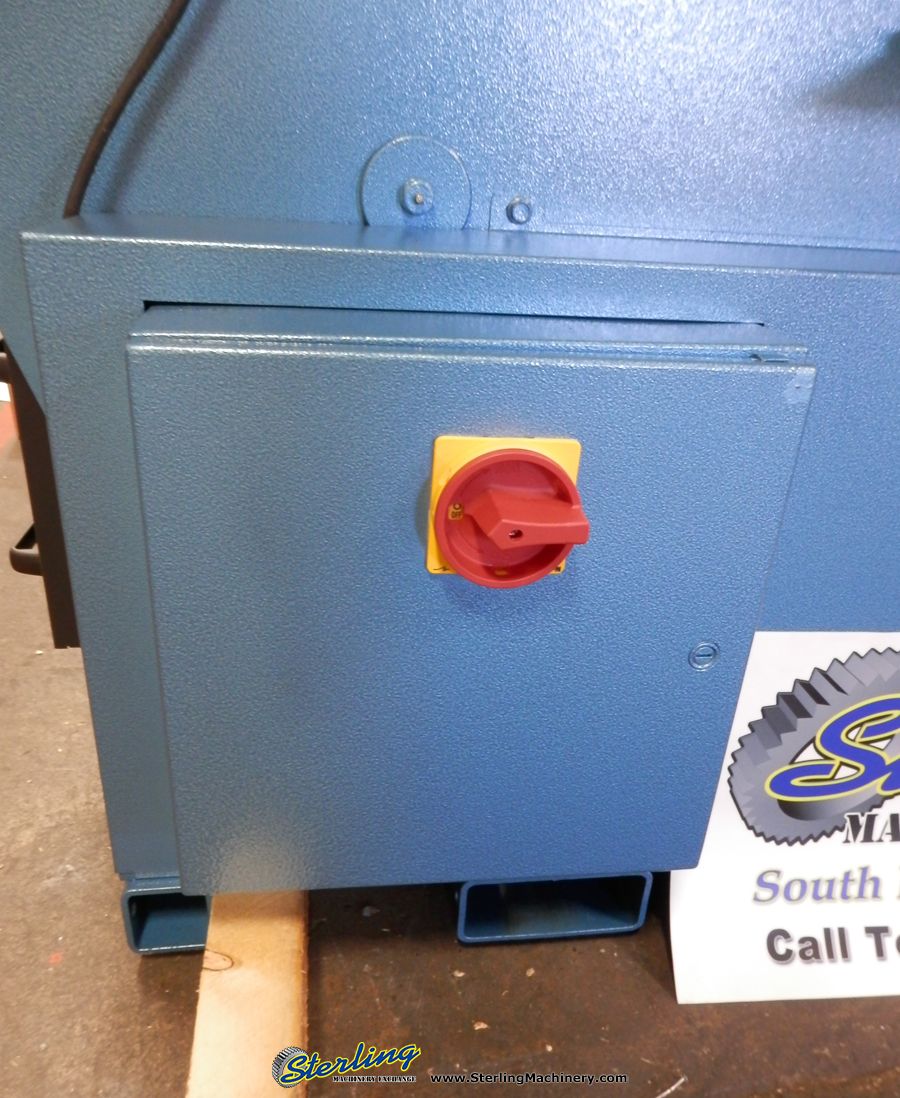

Electrical Box Supplied with Emergency Palm Button & Lock-Out Tag-Out Accommodations
All Guards Necessary
Forklift Accommodations
MADE IN USA

Additional information:

Optional Scotchman Ironworker Accessories:
Call For Pricing.

CLICK HERE FOR A #20 PUNCH AND DIE PRICE LIST

CLICK HERE FOR A COMPLETE SCOTCHMAN IRONWORKER BROCHURE


Reasons to buy a Scotchman


  1. Scotchman is Made in U.S.A. -- and we can prove it!
  2. Scotchman offers the Best-in-the-Business 3 YEAR-WARRANTY!
  3. Scotchman has a SAFE punch & die change out.
  4. Scotchman punch is guided through a true vertical guide block.
  5. The punch can be safely left in a Scotchman ironworker while using the Angle Shear.
  6. The punch can be safely left in a Scotchman ironworker while using the Flat Bar Shear.
  7. The brake can be used without removing the punch on a Scotchman ironworker.
  8. A Scotchman Pipe Notcher can be used on the tool table without removing the punch.
  9. The Scotchman punch is Keyed to prevent shaped punches from spinning making it a SAFER machine.
  10. Scotchman ironworkers have a larger capacity angle shear.
  11. Calls made to Scotchman are answered by a person, not a machine.

Scotchman prides itself in manufacturing QUALITY, DEPENDABLE, AMERICAN Ironworkers.

Made in the U.S.A.
