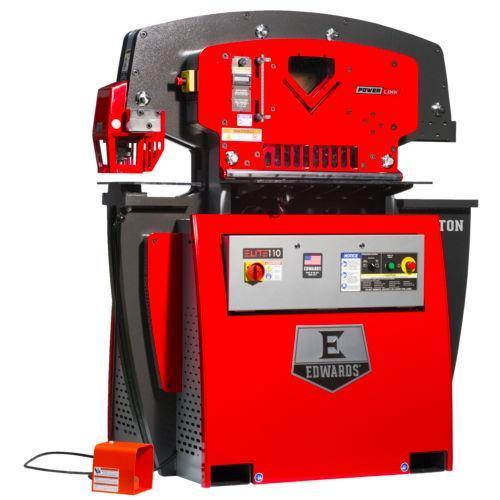

6" x 6" x 1/2" Edwards #110-TON, 110 ton, 8 HP, 1765 RPM, NEW

SPECIFICATIONS:
PUNCHING:
RATED CAPACITY ------------------ 110 TONS
MAX. CAPACITY ------------------- 1-3/8 in DIA. IN 1 in A36
STROKE -------------------------- 1-13/16 in
THROAT DEPTH -------------------- 11-3/4 in
OPEN HEIGHT --------------------- 8-5/8 in
SHUT HEIGHT --------------------- 6-13/16 in
WORK HEIGHT --------------------- 41 in
FLAT BAR SHEAR:
MAX. CAPACITY ------------------- 3/4 in X 14 in, 1 in X 12 in
MAX. ROUND ---------------------- 1-1/4 in
MAX. SQUARE --------------------- 1-1/4 in
WORK HEIGHT --------------------- 41-1/2 in
ANGLE SHEAR:
MAX. CAPACITY ------------------- 6 in X 6 in X 1/2 in
WORK HEIGHT --------------------- 50-7/8 in
OPTIONAL COPER NOTCHER:
MAX. CAPACITY ------------------- 2-1/2 in X 6 in X 1/2 in
WORK HEIGHT --------------------- 44-3/16 in
OPEN STATION:
THROAT DEPTH -------------------- 15-1/2 in
OPEN HEIGHT --------------------- 8-5/8 in
SHUT HEIGHT --------------------- 6-13/16 in
STROKE -------------------------- 1-13/16 in
WORK HEIGHT --------------------- 39-3/16 in
GENERAL SPECIFICATIONS:
STANDARD MOTOR ------------------ 7.5HP 3PH 208V OR 230V, 1765 RPM 22 A
OPTIONAL MOTORS------------------ 7.5HP 3PH 460V, 1765 RPM 11 A
------------------ 7.5HP 3PH 575V, 1770 RPM 8 A
------------------ 7.5HP 1PH 208V OR 230V, 1765 RPM 36 A
HYDRAULIC PUMP ------------------ 10-1/2 GPM - 2 STAGE
VALVE PRESSURE ------------------ 3000 PSI
RESERVOIR ----------------------- 17 GALLONS
CYLINDER ------------------------ 2-1/2 in RAM
DIMENSIONS:
HEIGHT -------------------------- 66-1/16 in
WIDTH --------------------------- 57-1/4 in
DEPTH --------------------------- 42-3/8 in
SHIPPING WEIGHT ----------------- 5380 LBS
FEATURES:
* Universal Open Tooling Station
* ANSI B11.5-1988R(02) Compliant
* ETL/UL Approved Controls
* ELITE Integrated Features:
* Hydraulic Hold-Down
* E-Stop / Lockout-Tagout
* Electric Stroke Control
* Hydraulic Accessory Pack
* Central Lubrication System
* Swing-Away Stripper Assembly
* Roller Encoder Measuring System
* Quick Change Punch Assembly
* Premium Gauging Tables
* LED Lighting
The Edwards ELITE 110 Ironworker sets the standard of design excellence and superior performance with integrated value-added features in this robust new series of Ironworkers.
Standard features of the ELITE 110 include a Punch Assembly, Flat Bar Shear, Angle Shear and a universal open tooling station for optional Tooling Accessories. Integrated hydraulic accessory ports enable your ELITE 110 to act as a power source for our expanding line of innovative Hydraulic Accessory Tools.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
OPTIONAL FEATURES:
1 PHASE, 230V --------------------------$300.00
3 PHASE, 460V --------------------------$120.00
3 PHASE, 575V --------------------------$604.00
HYDRAULIC ACCESSOR PACK NEW MACH. ONLY -$ Standard
ACCESSORY LIGHT ------------------------$Standard
AUTO CUT -------------------------------$802.50
ANGLE NOTCHER 3" X 3" X 1/4" -----------$1,162.02
BRAKE W/4-WAY DIE 12 in ------------------$1,300.05
COPER NOTCHER ASSEMBLY -----------------$1,407.05
MULTI SHEAR (ANGLE, BAR, ROD SHEAR) ----$979.05
PIPE NOTCHER HOUSING: (SCHEDULE 40 - 1/2" - 2") --------------$371.29
QUICK CHANGE PUNCH COUPLING ------------$Standard
ROD SHEAR & HOUSING: (1/4", 3/8", 1/2", 5/8", 3/4", 1") -----$1,358.90
PUNCH & DIE STARTER KIT-----------------$371.70
DELIVERY:
SUBJECT TO STOCK
