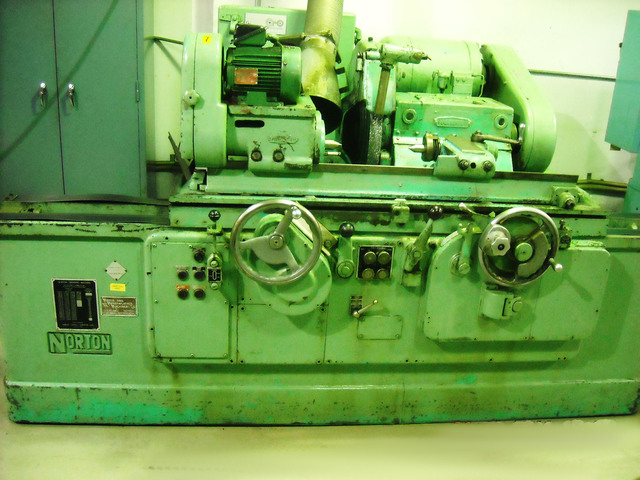

6" x 30" Norton #CTU, plain cylindrical grinder, 24" x 2" x 12" grinding wheel, 2-240 IPM, 7.5 HP, 1800 RPM, 1952

6 x 30 NORTON CTU PLAIN CYLINDRICAL GRINDER
S/N 23817 Year:1952
STANDARD CATALOG SPECIFICATIONS
PRIVATE Maximum diameter work ground with 24 wheel, 6grinding wheelstc'\l 1 Maximum diameter work ground with 24\ wheel, 6\grinding wheels -
Standard...................................... 24 x 2 x 12
Maximum diameters and widths.................. 24 x 3 x 12
Coolant tank capacity......................... 32 gallons
Coolant pump capacity.........................21 gallons
Hydraulic oil reservoir capacity.............. 32 gallons
Lubricating oil reservoir capacity............ 3 gallons
Swivel table adjustment (in. perft. on dia.)
Machine length................................ 30
Machine taper.................................3
MOTORS
Wheel drive..... 7 1/2 HP, 1800 RPM, constant speed AC
Work drive...... 1 HP, 1200 RPM, constant speed AC
or 1/2 HP, 690/2760 RPM, adjustable speed DC
Hydraulic and lubricating pump drive..... 3/4 HP, 1200 RPM
Constant speed AC
AC Motor speeds are for 60Cycle, for 50 Cycle AC Speeds
will be 1500 and 1000 RPM
TABLE SPEEDS
Range of speeds (in. per min.)................ 2 ‑ 240
Number of speeds.............................. Infinite
EQUIPPED WITH
Head stock.
Tail stock.
Hand hydraulic table travel.
Hydraulics.
Electrics.
Pick feed.
Coolant in base.
Net weight....................................8,000 lbs.
Specifications are deemed accurate, however, subject to verification or prior sale.
