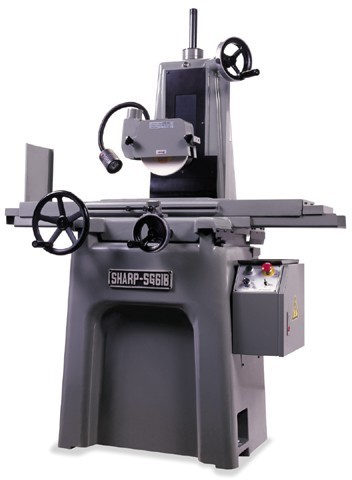

6" x 18" Sharp #SG-618, precision manual surface grinder, 1.5 HP

6” X 18” Capacity *Brand New* Manual Surface Grinder with 1.5 HP Motor, One “V” way and one flat way for longitudinal travel, Hand-scraped ways with Turcite B coating, Saddle Locking System for accurate slot grinding achieved, Double-nut backlash eliminator, Hardened and Ground Cross slide and column screws, Wire rope driven table, Main spindle run-out within 0.0001”, Automatic lubrication system and Optional Accessories to customize to your needs.

GENERAL SPECIFICATIONS
Capacity

• Maximum Grinding Length 18.5”
• Maximum Grinding Width 6.3”
• Maximum Distance- Table to Spindle Center 16”

Table

• Working Surface (W x L) 6” x 18.3”
• Maximum Longitudinal Travel 18.9”
• Maximum Cross Travel 7”
• Hand Feed per revolution 4.2”

Cross Movement of Saddle

• Hand Feed per Revolution 0.2”
• Graduation of Hand Wheel 0.001”

Vertical Movement of Wheel Head

• Hand feed per Revolution 0.05”
• Graduation of Hand Wheel 0.0001”

Spindle and Wheel

• Spindle Motor 1 ½ HP
• Spindle Speed 3,600 rpm
• Grinding Wheel Outside Diameter 8”
• Grinding Wheel Bore 1.25”
• Grinding Wheel Width 0.63”

General

• Floor Space (WxHxL) 83” x 40” x 48”
• Net Weight 1,510 lbs

• Total Power Consumption @ 220V 1.5KVA/6 amps

OPTIONAL ACCESSORIES:

• 6x18 Kanetsu Permanent Magnetic Chuck - KMT-1545 $ 1,325.00

• 6x18 Kanetsu Permanent Chuck (Fine Pole) - KRTW-1545 $ 2,270.00

• 6x18 Kanetsu Electro-Magnetic Chuck w/Control - KET-1545 $ 2,545.00

• 6X18 Kanetsu Chuck w/Control (Fine Pole) - KETW-1545A $ 2,840.00

• 6x18 Walker Electro-Magnetic Chuck (Fine Pole) w/ SMART-1B Control LBP-618 $ 4,025.00

• Parallel Dresser - SG-05 $ 920.00

• Balance Stand - BS-SG/SP $ 310.00

• Extra Wheel Adapter (Flange) - SG-08 $ 250.00

• Coolant System (12 Gal.) w/Splash Guard - CS-A $ 1,020.00

• Splash Guard - SG-004 $ 805.00

• Dust Collector – DC $1,340.00

• Coolant System w/Magnetic Separator & Paper Filter (25 GAL), 220V/440V

$ 3,090.00

DIGITAL READOUT SYSTEMS:

• Fagor 20i D.R.O. (installed*) - FG-SG618 $ 2,780.00
• Fagor 40i D.R.O. Hi Resolution (installed*) - FG-40i-SG618 $ 3,550.00
• Acu-Rite 200S D.R.O. - AR-SG618 $ 3,515.00
• Newall DP700 D.R.O. - NW-SG618 $ 3,245.00

• FACTORY INSTALLATION OF DRO’s $ 575.00

INCLUDES THE FOLLOWING STANDARD EQUIPMENT: Grinding Wheel (8” x 0.63” x 1.25”), Auto Lube System, Wheel Adapter/Flange, Wheel Balancing Arbor, Work Light, Diamond Dresser, Tool Kit includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screwdriver, oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint

***All Price, Location and Specifications Subject to Change without Notice***
