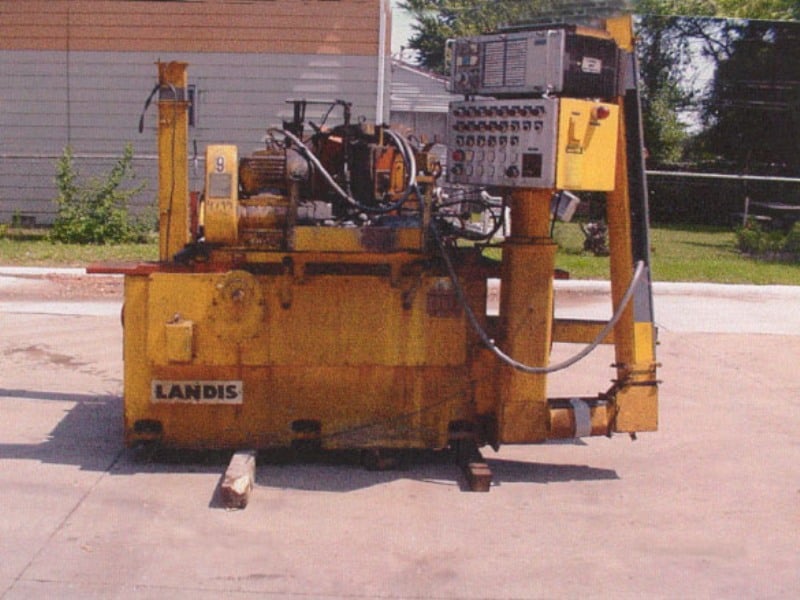

6" x 18" Landis #2R, angle head cylindrical grinder, 30 deg., 24" x 4" x 12" grinding wheel, 10 HP, 1000/1271 RPM, 1978

6" x 18" Landis, Model 2R, Angle Head Cylindrical, Dead Center Work Head, Manual Tail Stock, Behind Wheel Tru-Form Dresser, As Is
6 x 18 LANDIS MODEL 2R ANGLE HEAD GRINDER
30 DEGREES
S/N 870-45 Year: 1978
STANDARD CATALOG SPECIFICATIONS
Nominal work swings................................... 6
Maximum work swing over table......................... 6 31/32
Nominal distances between centers.....................18
Maximum work swing diameter standard machine will grind w/full size standard wheel on straight wheel head machine w/hydraulic in feed stroke as noted................................. 6- 2H.I.
Minimum diameter wheel to grind zero dia. work on centers on straight wheel head machine..........................15
Maximum work swing and diameter standard machine will grind with full size standard wheel on angle wheel head machine with hydraulic in feed stroke as noted
Maximum diameter wheel to grind zero diameter work
on centers on angle wheel head machines............... 15
Coolant pump capacity, gallons........................ 28
Hydraulic tank capacity, gallons...................... 19
WORKCARRIAGE
Traverse speed per turn of hand wheel
Slow..................................................0.100
Fast..................................................1.000
WHEEL HEAD WHEEL FEED
Grinding wheel size-standard..................... 4x 24x 12
Grinding wheel spindle speeds,RPM................. 1000/1271
Grinding wheel minimum dia. of worn wheel.......... 15
Hydraulic rapid in feed: Standard maximum........... 2
Standard minimum........... 1/2
Hydraulic rapid in feed - Angle
Wheel head machine: Maximum........................2
Minimum........................1/2
ELECTRIC MOTORS
Wheel drive motor -H.P......................10 HP - 1775RPM
Work drive motor -H.P.......................1/2 HP - 900RPM
Wheel spindle lubrication motor H.P.......... 2
ELECTRIC MOTORS
Hand table rack and gear.
Dead center work head.
Manual tail stock.
Hyd. plunge stepping motor feed.
Behind the wheel dresser(Tru-Form).
Taper adjustment on table.
Arnoldflag gage.
Mar possediameter gage.
Landis Microtronic feed control.
Vari-speed work head.
Auto lube.
No electrics.
G.C.H. can remanufacture and upgrade machines from our stock or one of yours. G.C.H. stocks many replacement parts.
Specifications are deemed accurate, however, subject to verification or prior sale.
