Manufacturer: Jones & Shipman
Model: 540LH
Year: 1994
Width/Cross: 6.0
Length/Longit.: 18.0
Stock # 163720
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

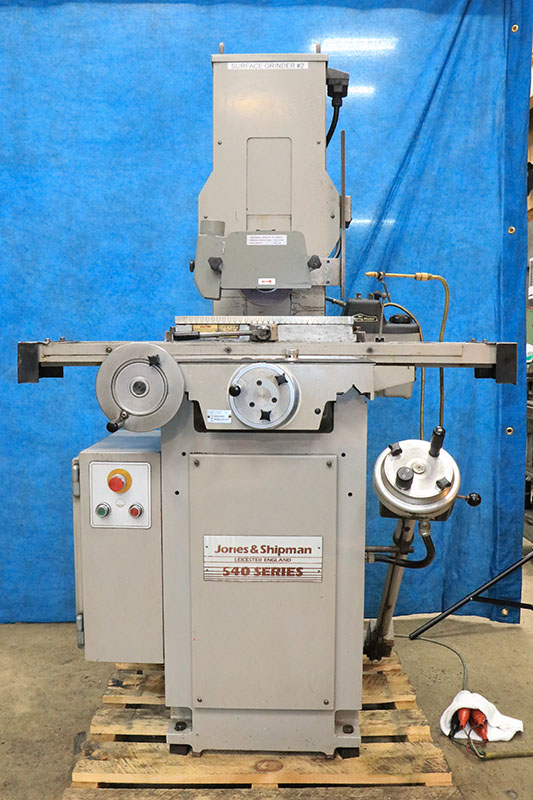

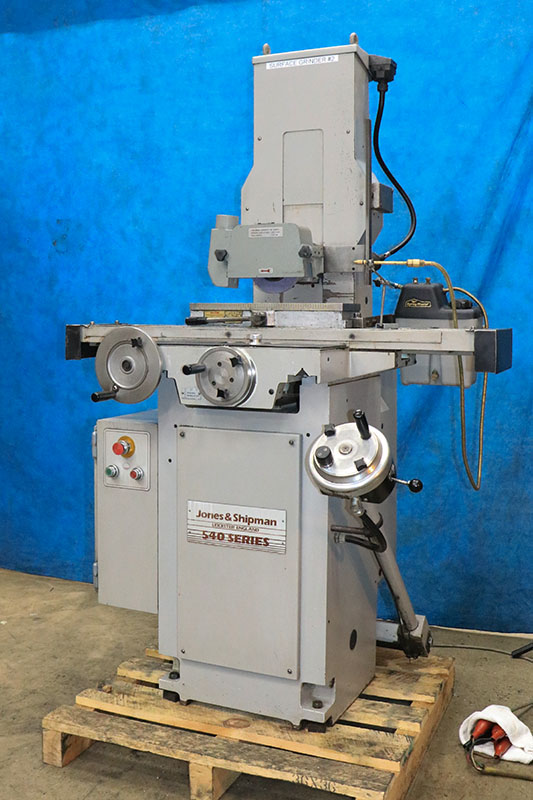

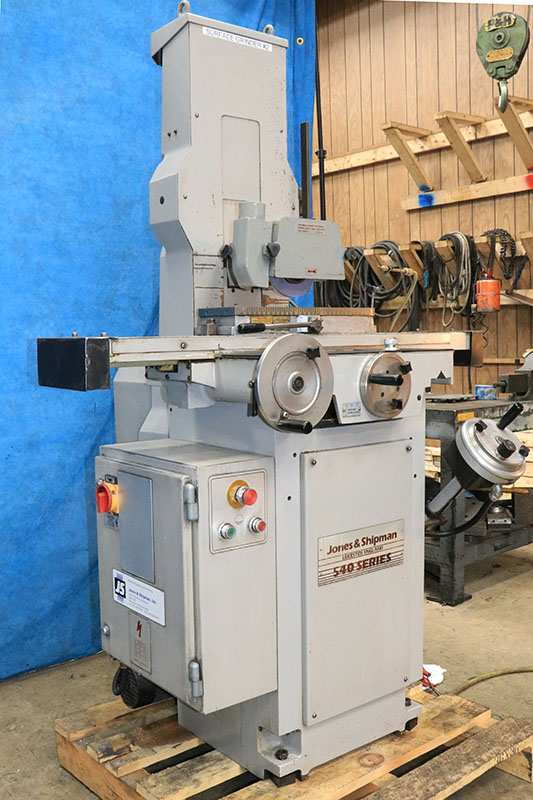

6" X 18" JONES… SHIPMAN…"HIGH COLUMN"
"PRECISION" (MADE IN ENGLAND)
HAND FEED SURFACE GRINDER
WITH ROLLER BEARING TABLE
MODEL: 540H… S/N: M18759… NEW: 1994
WIDTH& LENGTH GROUND................. 6" X 18"
MAX. DISTANCE FROM CENTER OF
SPINDLE TO TABLE TOP ................. 19-″/4"
MAX. DISTANCE FROM CENTER OF
SPINDLE TO… THE TOP OF THE CHUCK ..... 17"
LONGITUDINAL TABLE TRAVEL ............. 19"
ONE REV. OF THE HANDWHEEL… ............ 4.9"
CROSS TRAVEL .......................... 6-″/4"
MOVEMENT PER REV. OF HANDWHEEL ........ 0.20"
CROSS HANDWHEEL GRAD. ................. 0.002"
FINE CROSS FEED KNOB GRADUATED IN ..... 0.00005"
VERTICAL HANDWHEEL GRAD. .............. 0.0001"
VERTICAL FEED ADJ. IN INCREMENTS OF ... 0.00005"
STANDARD GRINDING WHEEL ............... 7" x 1/2"W x 1- 1/4"B
SPINDLE MOTOR ......................... 2 H.P
APPROX. MACHINE WEIGHT ................ 1,500 LBS
APPROX. DIMENSIONS .................... 4' X″' X 65"H
EQUIPPED WITH:
HIGH COLUMN OPTION
HAND FEEDS, ROLLER BEARING TABLE
POWER ELEVATION… LOWERING OF THE GRINDING SPINDLE
HANDWHEELS ARE GRADUATED IN…"INCH"
TABLE SLIDE TRAVERSES ON BALL… ROLLER BEARINGS,…
RUNNING ON PRECISION GROUND BAR GUIDES
(OUR COMMENT ON THIS:… "VERY SMOOTH, REALLY NICE")
AUTOMATIC LUBRICATION TO TABLE… SADDLE WAYS
FINE FEED KNOB FOR CROSS FEED…
FINE FEED KNOB FOR VERTICAL FEED
2 H.P. J… S SUPER-PRECISION SPINDLE, BELT DRIVE

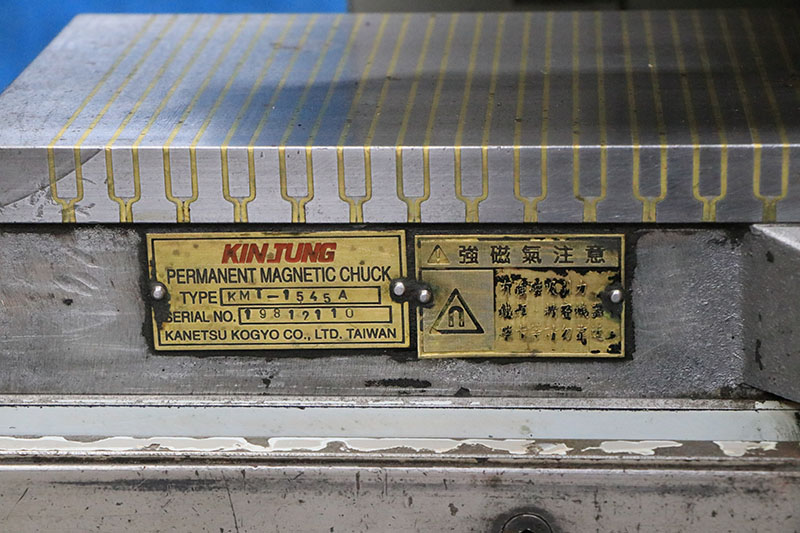

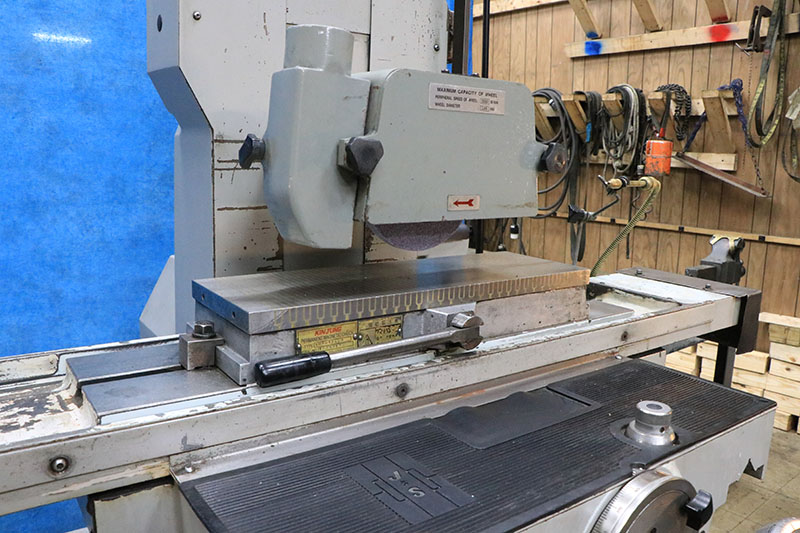

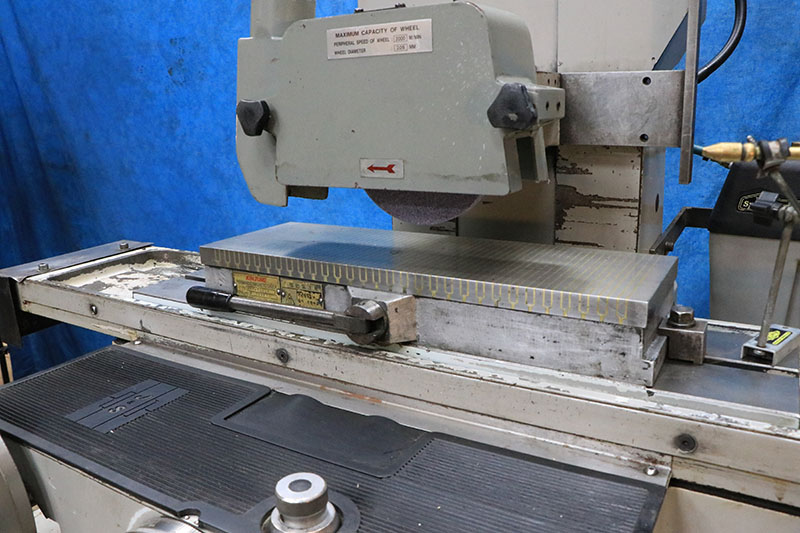

6" x 18"…"KINJUNG-KANETSU" PERMANENT MAGNETIC CHUCK
"SPRAY MASTER" SPRAY MIST COOLANT APPLICATOR
WHEEL COVER WITH INLET FOR DUST REMOVAL
MACHINE IS PRESENTLY WIRED FOR″/60/208-220-230 VOLTS
LINK TO VIDEO: https://youtu.be/i7WvrTa8kD0?si=ZA3B0fpuK7_rnoir
** INSPECT UNDER POWER IN OUR HARRISON, N.J. FACILITY **
** EXCEPTIONAL CONDITION… APPEARANCE - ORIGINAL PAINT **
