Manufacturer: Chevalier
Model: FSG-618M
Year: 1999
Width/Cross: 6.0
Length/Longit.: 18.0
Stock # 179311
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

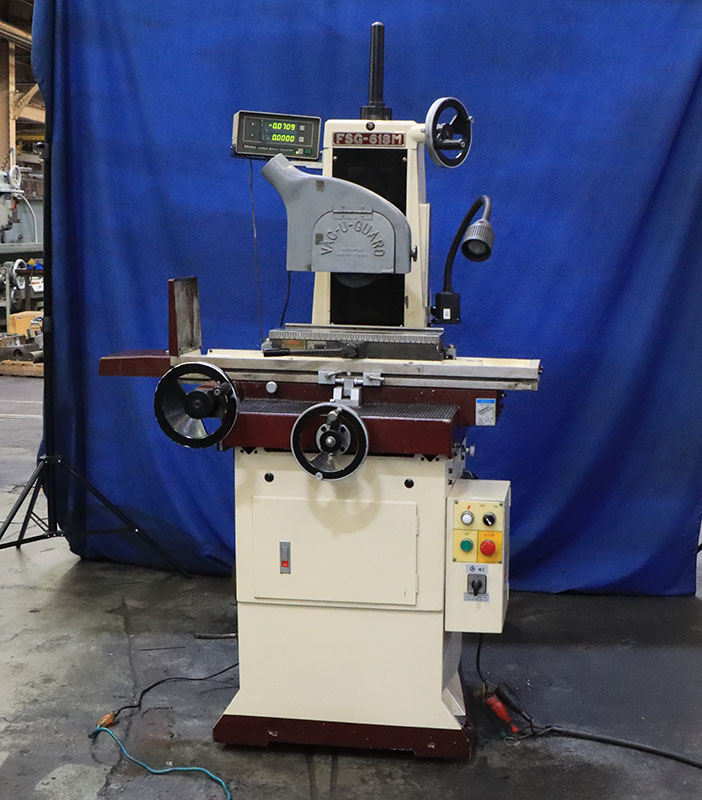

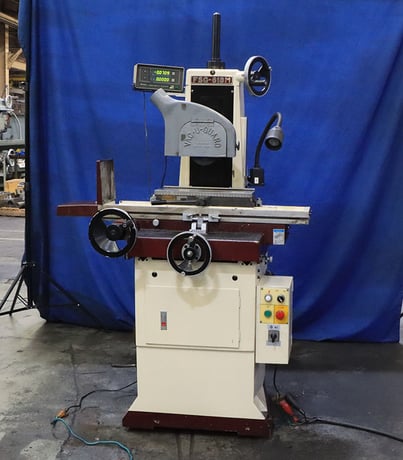

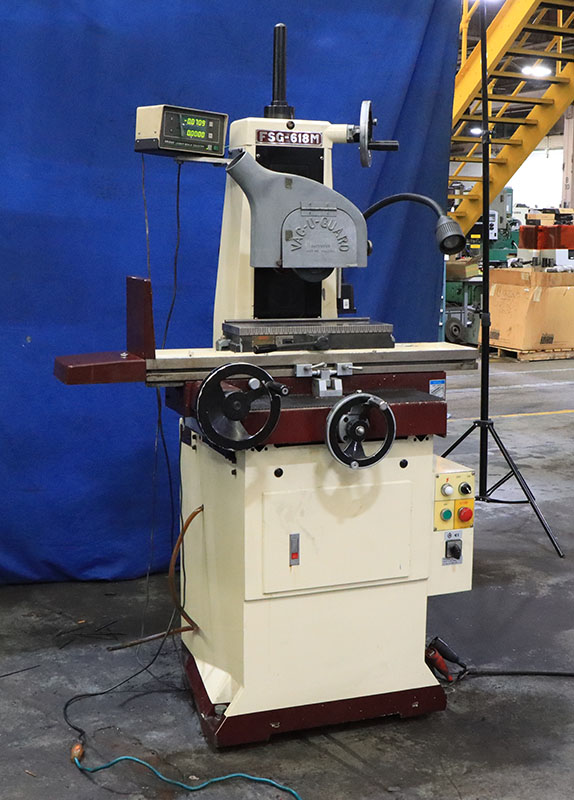

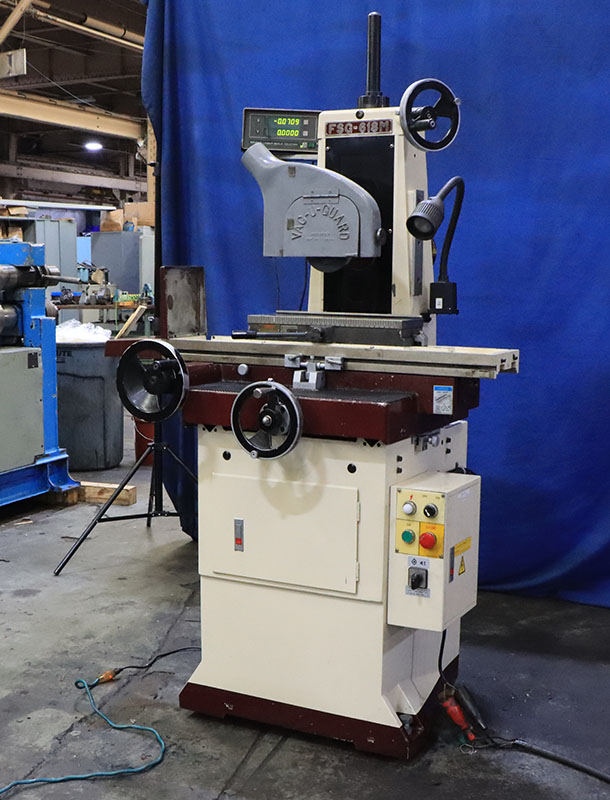

6" x 18" Chevailer Hand Feed Surface Grinder
with MITUTOYO 2-Axis Digital Readout
Model: FSG-618M… S/N: A3886017… New:1999
Maximum grinding length: ....... 18"
Maximum grinding width : ....... 6"
Maximum table travel,
longitudinal: ................ 19"
cross: ....................... 7"
Maximum distance from table,
working surface to spindle
center: ....................... 18"
Handwheel graduations,
cross:........................ 0.0005"
downfeed:..................... 0.0001"
Spindle speed:..................″300 RPM

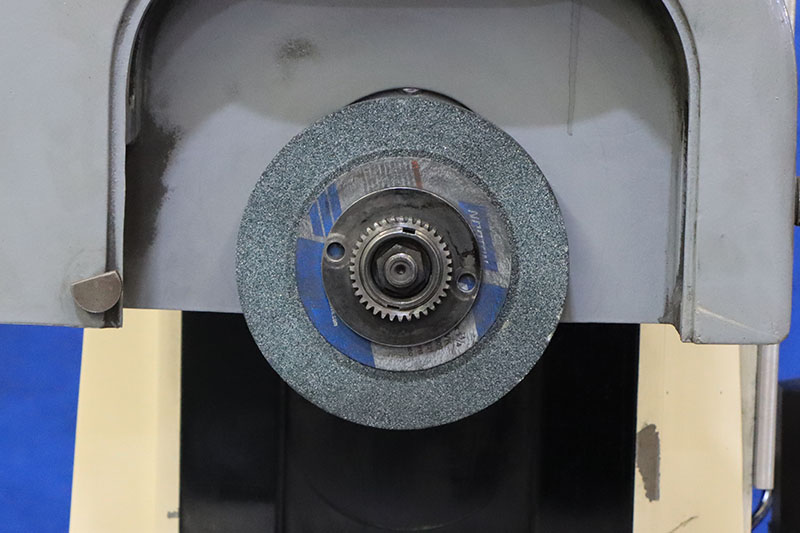

Wheel size:.......... 8"dia. x 1/2" width x 1-1/4" bore
Approximate weight: ........... 1,500 lbs
Approximate Dimensions:… 55" L-R, x 42" F-B x 68" H
Equipped with:
All meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V Guideways laminated with Turcite-B for saddle travel
6" x 17-3/4" Kanetsu permanent magnetic chuck

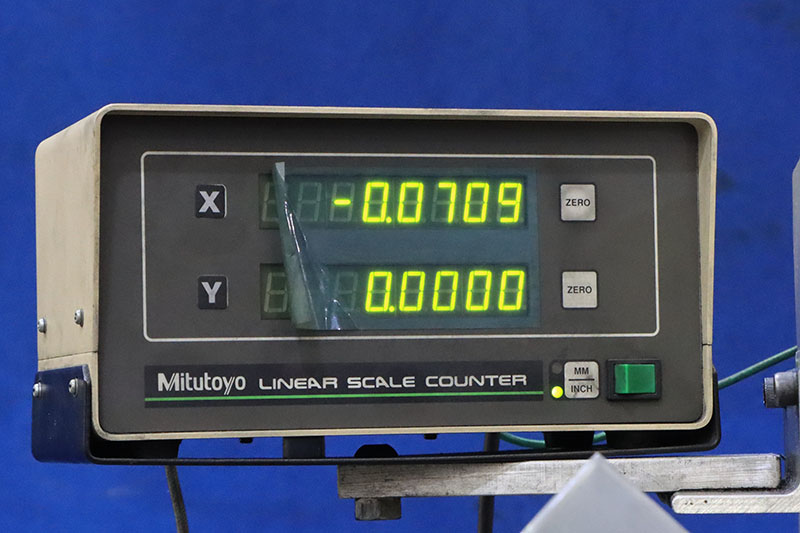

Mitutoyo 2-Axis Digital Readout

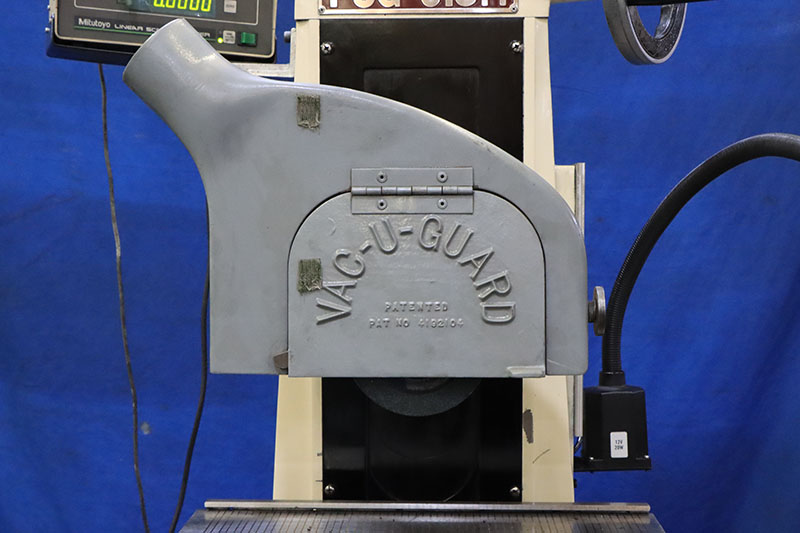

"Vortex" Wheel Guard, for Dry Grinding
Work light
Automatic lubrication of leadscrews and ways
1-1/2 HP″/60/230-460 volt spindle motor and electrical controls
Machine is wired for 230 volt operation
Link to video: https://youtu.be/JXY78NWct3I?si=rmagFqel2ca5gjP0
** Inspect Under Power in our Harrison, NJ Warehouse **
** Excellent Condition… Appearance **
Get Your Price from Machinery Values Inc!
