Description

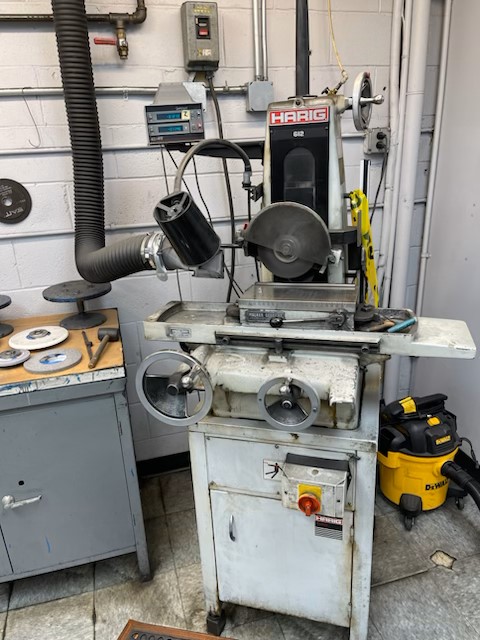

6" X 12" HARIG (MADE IN USA)…"PRECISION"
HAND FEED SURFACE GRINDER
WITH…"ACU-RITE"…"QWIKCOUNT"2-AXIS DRO DISPLAY

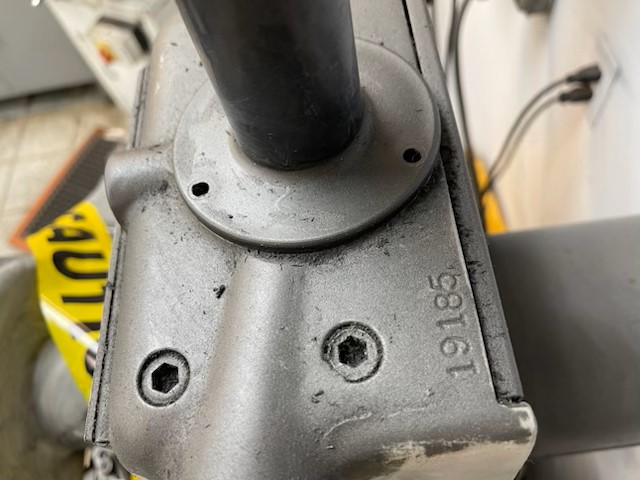

MODEL: 612… S/N: 19185… NEW: 1993
WIDTH AND LENGTH GROUND .................. 6" X 12"
LONGITUDINAL TRAVEL ...................... 12-3/4"
CROSS FEED TRAVEL ........................ 6-3/4"
VERTICAL WORKING HEIGHT UNDER 7" WHEEL ... 12"
MAXIMUM GRINDING WHEEL DIAMETER .......... 8"
ELEVATING HANDWHEEL GRAD. ................ 0.0005"
CROSS FEED HANDWHEEL GRAD. ............... 0.001"
FINE FEED HANDWHEEL FOR CROSS, GRAD. ..... 0.0001"
SPINDLE SPEED ............................″,450 RPM
FLOOR AREA CABINET ....................... 21" X 25"
FLOOR AREA OPERATING SPACE ............... 48" X 45"
APPROXIMATE MACHINE WEIGHT ............... 900 LBS
EQUIPPED WITH:
HARIG…"HIGH-PRECISION" DIRECT DRIVE
"CARTRIDGE TYPE" SPINDLE WITH…"LEESON"
1.5 H.P. SPINDLE MOTOR, MADE BY…"LEESON"
3/60/208-230-460 VOLTS
V AND FLAT WAY CONSTRUCTION
CABLE DRIVE FOR TABLE
HARIG…"FLO-CLEAN" AUTOMATIC LUBRICATION SYSTEM
6" X 12"…"WALKER CERAMAX" FINE-DIVISION
PERMANENT MAGNETIC MAGNETIC CHUCK
HARIG…"TOOL STEEL HARDENED WAYS" OPTION
ACU-RITE…"QWIKCOUNT" 2-AXIS DRO DISPLAY
WORK LIGHT
MACHINE IS PRESENTLY WIRED FOR″/60/230 VOLTS
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
**…"EXCELLENT" CONDITION… APPEARANCE (ORIGINAL PAINT) **
