For Sale by Southern Fabricating Mchy Sales
Description

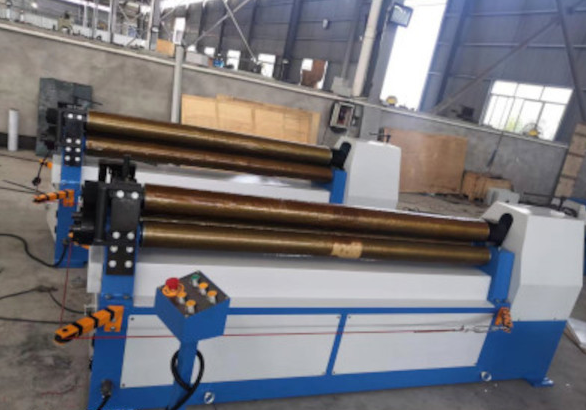

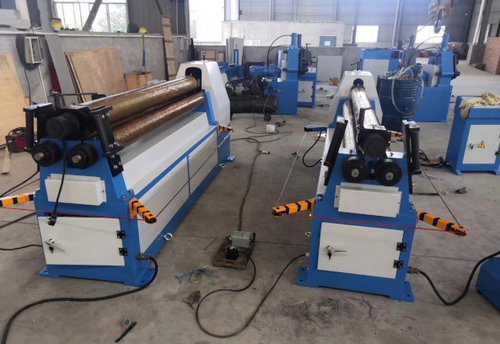

6’ X ¼” Initial Pinch Plate Roll with Remote Electrical Stand with Forward & Reverse, E - Stop, Top Mounted Handle to Lift Upper Roll for Easy Workpiece Removal, Safety Line Around Machine, Powered Bottom Roll, All Three Rolls Made of High Grade Alloy Steel and Top Roll Position Controlled by Independent Motor.
GENERAL SPECIFICATIONS
Overall Rolling Length: 79”
Rolling Capacity Mild Steel: ¼”
Rolling Capacity Stainless Steel: 10 Gauge
Angle Bending Roll Shaft Diameter: 40 mm
Motor: 5.33 HP
Electrics: 230/460 3 / 60
Diameter of Top Roll: 7-¼”
Diameter of Bottom Rolls: 6-¾”
Dimensions: 120” X 29” X 52”
Approx. Weight: 3,806 Lbs
INCLUDES: Remote Electrical Stand with Forward & Reverse, E - Stop, Top Mounted Handle to Lift Upper Roll for Easy Workpiece Removal, Safety Line Around Machine, Powered Bottom Roll, All Three Rolls Made of High Grade Alloy Steel and Top Roll Position Controlled by Independent Motor.
***All Price, Location and Specifications Subject to Change without Notice***
