For Sale by Arlington Machinery
Surplus Record Dealer Since 1998
Location: Lake Zurich, IL
Contact Chris / Garrett
Phone Number: 847...> Show Phone Number 847-957-9731
Let the seller know you found their listing on Surplus Record!
Description
Description

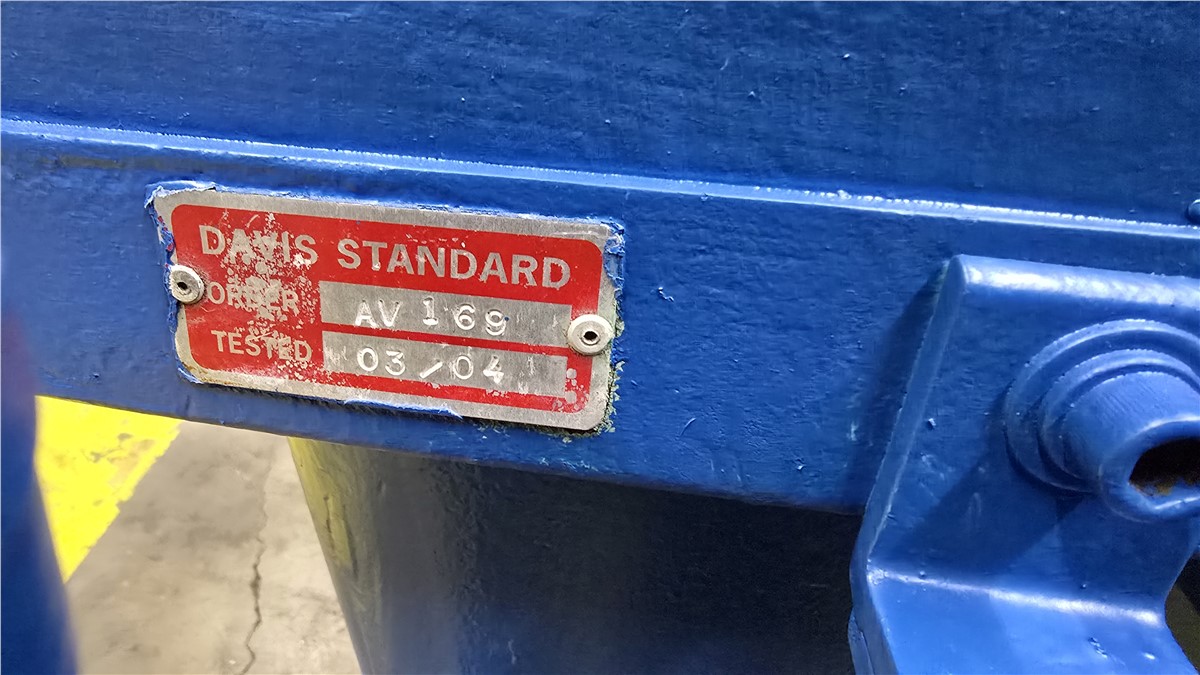

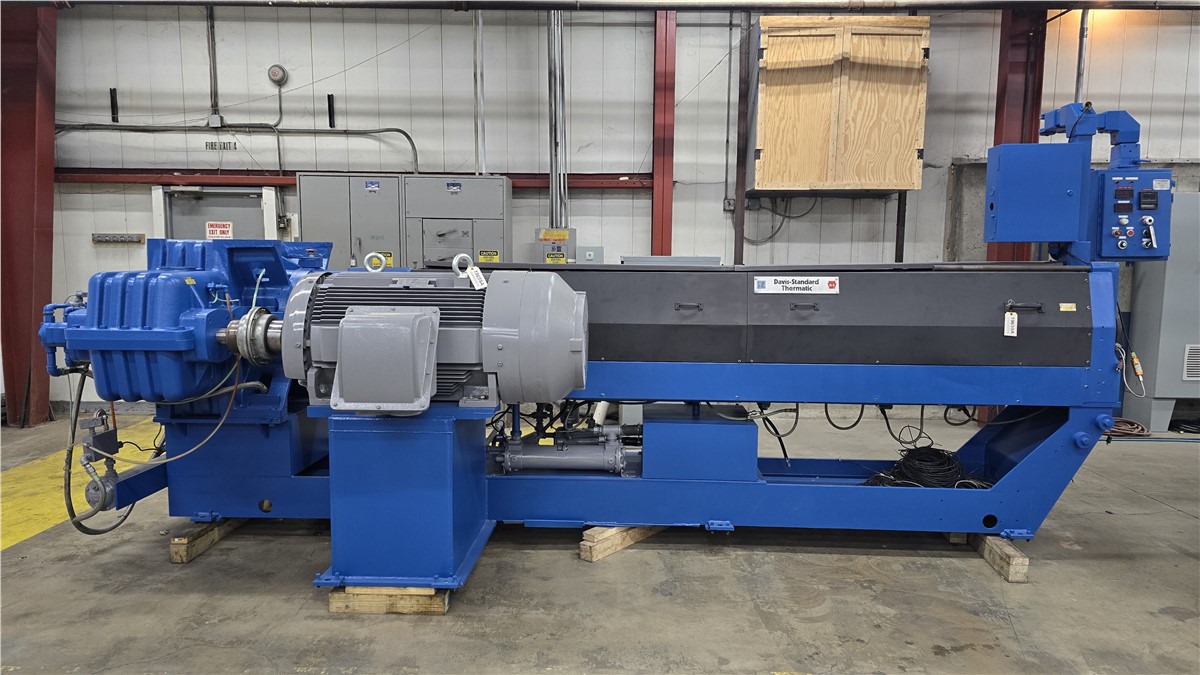

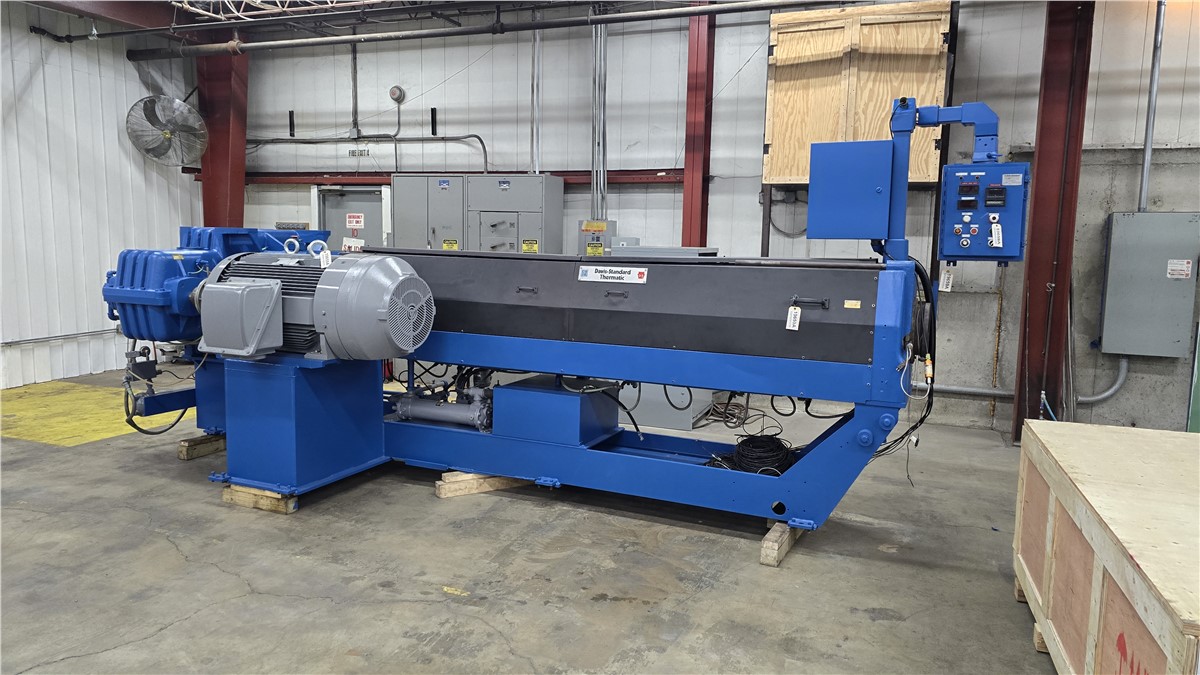

- Reconditioned 6" Davis Standard Single Screw Extruder, Model Thermatic 60IN60, 24:1 L/D, 400hp, New in 2004
- Water Cooled Barrel, Water Reservoir with Recirculation Pump and Heat Exchanger

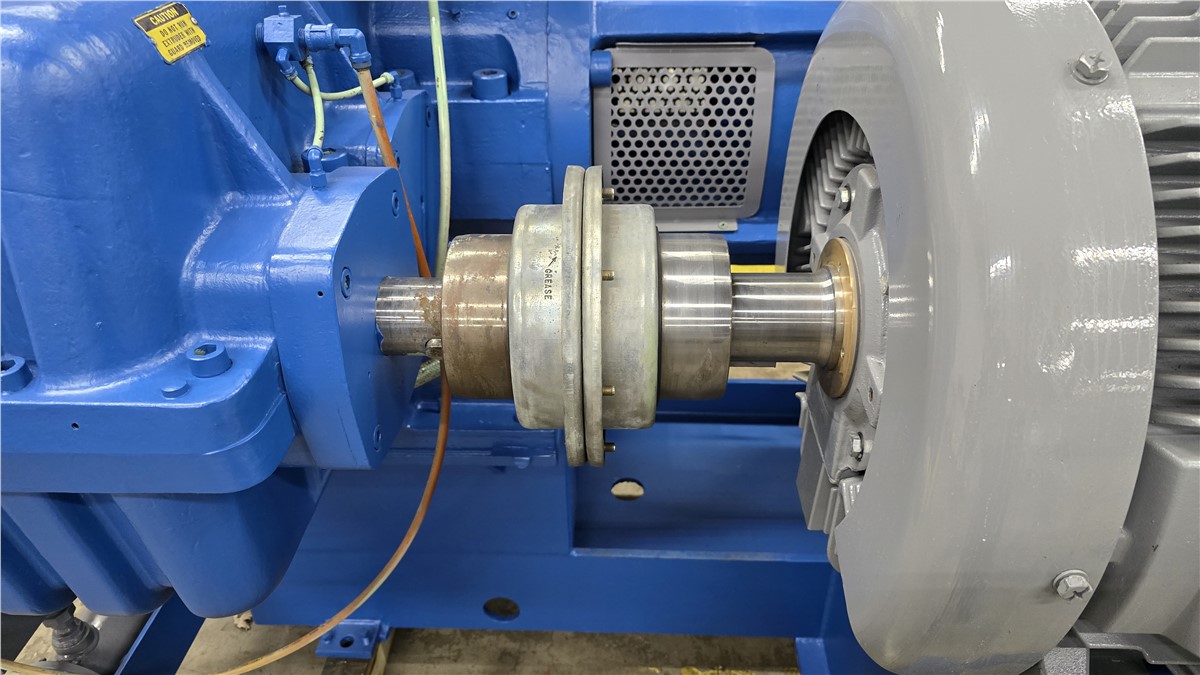

- 17.21 Gearbox Ratio, 424 hp Capacity with 1.5 Service Factor

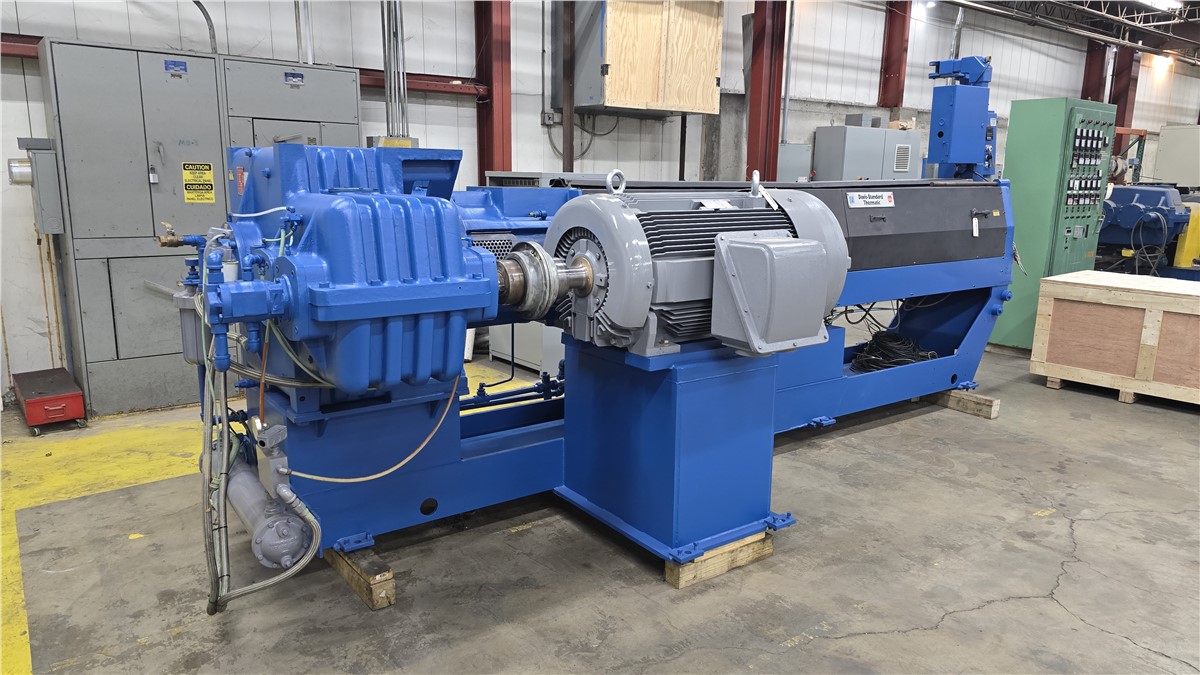

- NEW 400hp Teco AC Motor, EPS4004, 1800RPM, 449TX Frame
- New TECO AC Drive Model EQ7-4450-C
- 3 Year Manufactures Warrantee on Motor/Drive

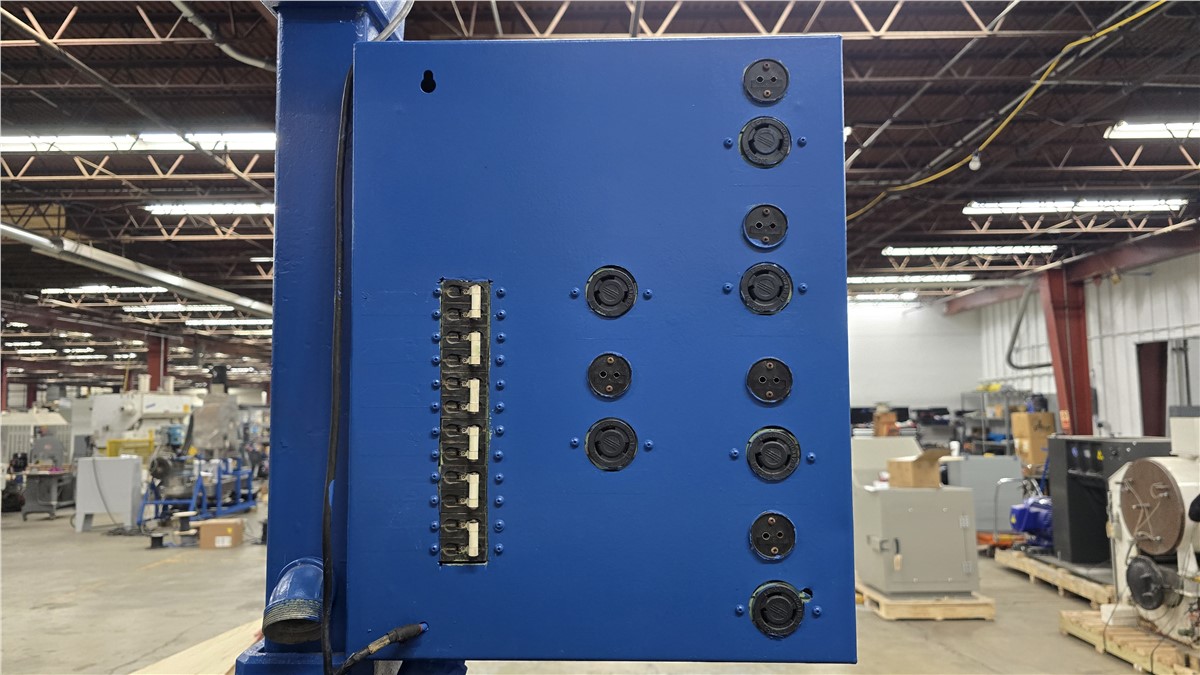

- 5 Barrel Zones/6 Die Zones with New Novus Temp Controllers & Amp Gauges

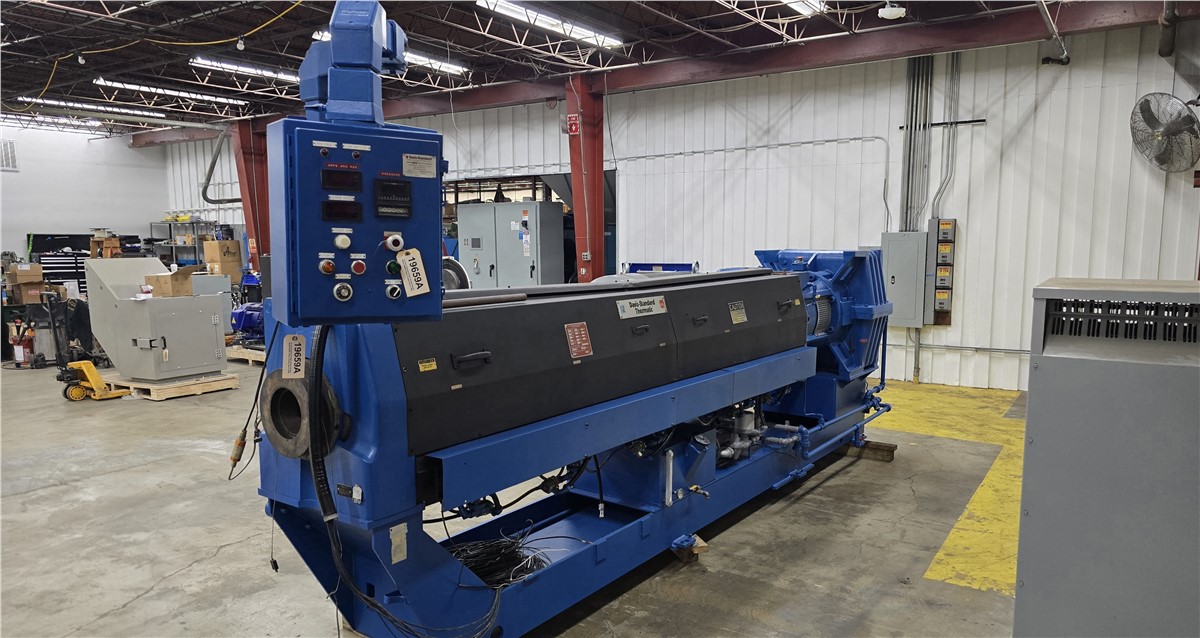

- Swing Arm controller with Speed Pod, Pressure & Screw Speed Gauges
- 42" Centerline

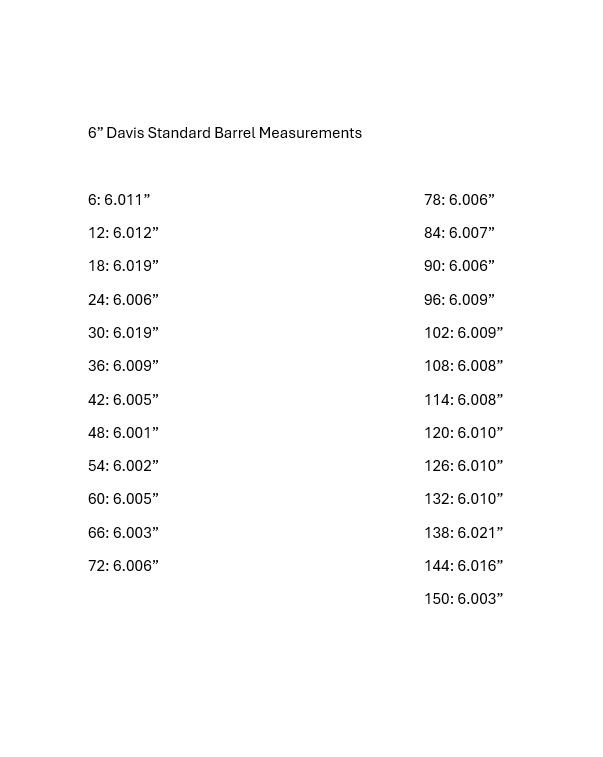

- Screw and Barrel in Serviceable Tolerances

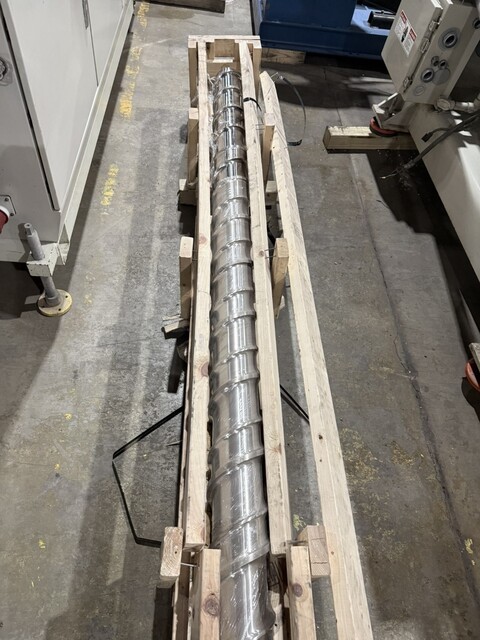

- Thermatic Clamp & Barrier Flight Screw
- Heater Bands Electrically Ok

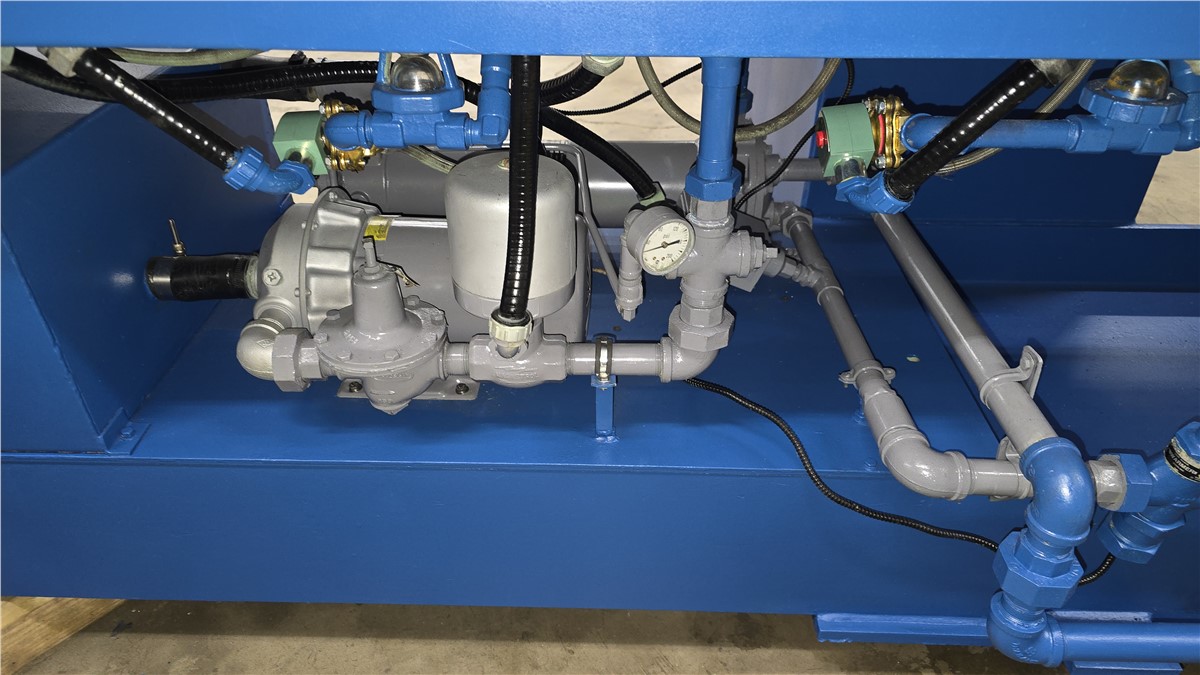

- Barrel Plumbing/Heat Exchangers Checked for Flow - 5 Brand New Redhat Solenoid Valves
- 6 Weeks Leadtime From Order
- Approx. Extruder Dimensions: 216" L x 80" W x 90" H
Get Your Price from Arlington Machinery!
