6.626" x 0.276" DMC, Tube Mill Line, 196.85 FPM, tooling, 2019

Specifications:
Manufacturer: DMC
Tube Outer Diameter Max: 168.3 mm (6.626”)
Tube Outer Diameter Min: 50.8 mm (2.000”)
Wall Thickness Max: 7.0 mm (0.276”)
Wall Thickness Min: 1.4 mm (0.055”)
Tube Cut Length Max: 12,000 mm (472.44”)
Tube Cut Length Min: 6,000 mm (236.22”)
Line Speed Max: 60 m/min (196.85 FPM)
Line Speed Min: 20 m/min (65.62 FPM)
Complete Line With:
Coil Lifting Car

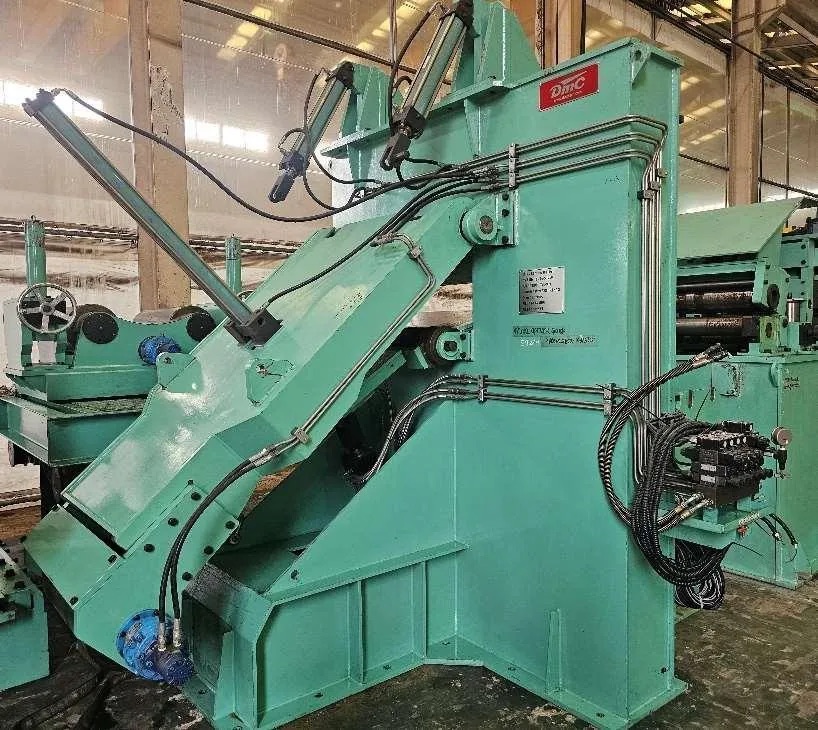

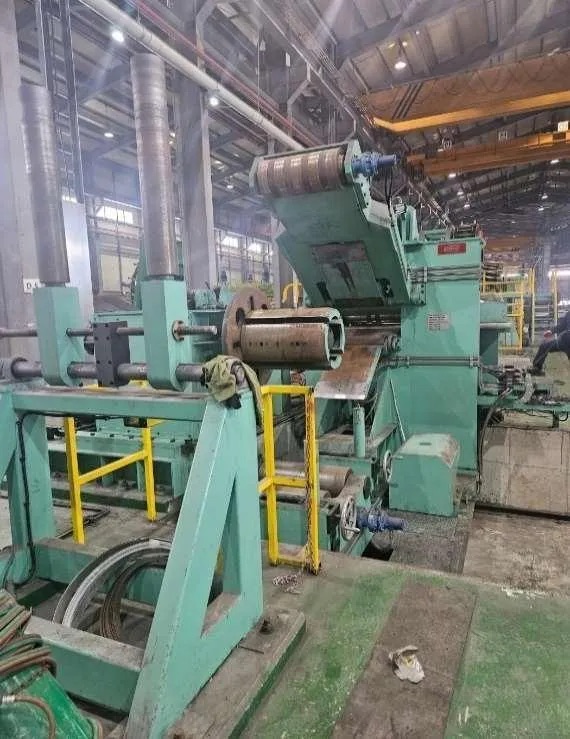

12,000 Kg (26,455 Lbs) Mandrel Uncoiler
Peeler / Pinch Rolls
5 Roll Leveler
Auto Shear And End Welder

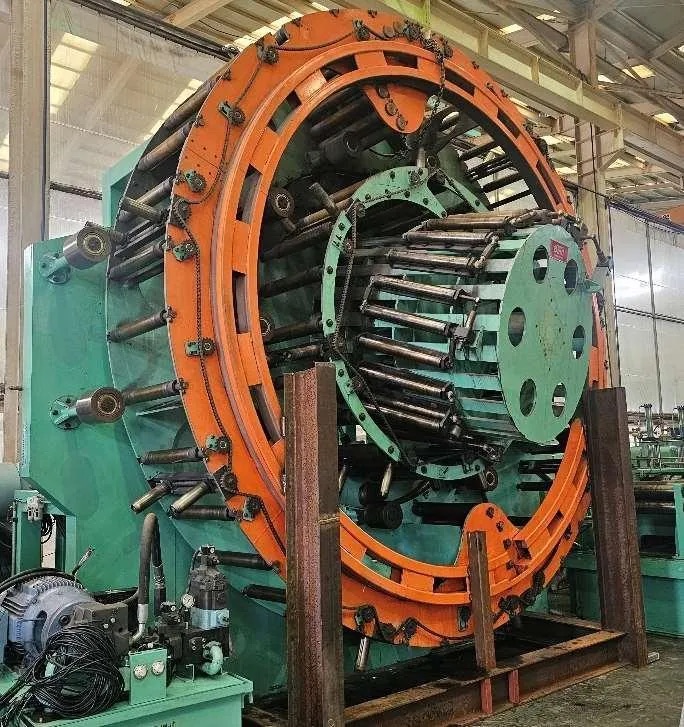

Vertical Rotary Accumulator

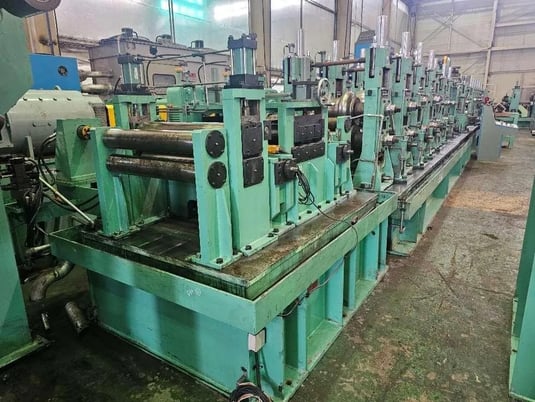

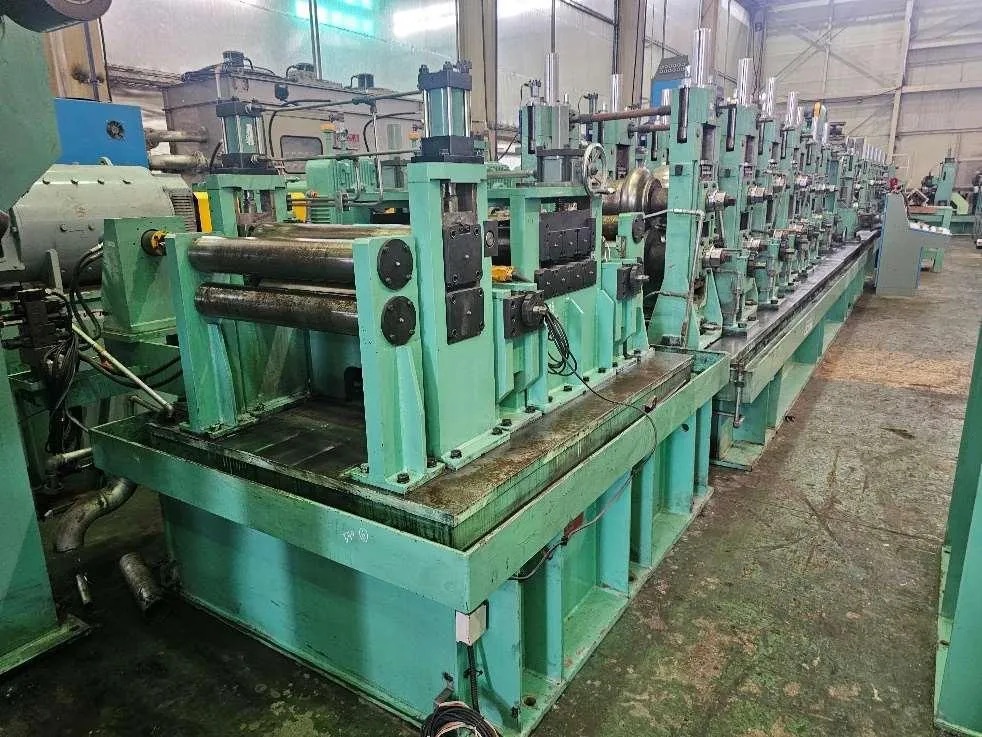

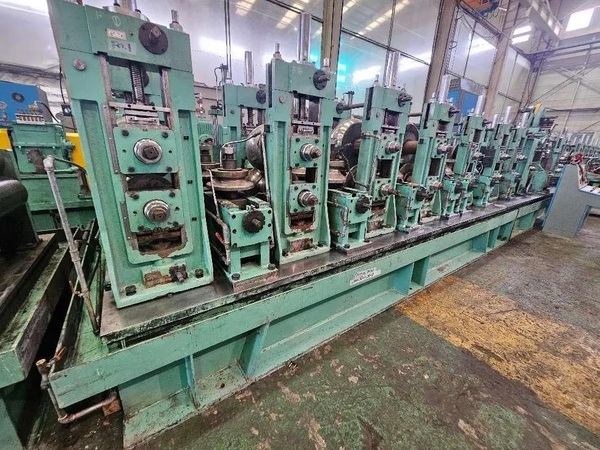

Forming Mill:
120 mm (4.724”) Diameter Shafts
Entry Pinch Rolls
7 Roll Leveler
4 Breakdown Stands
3 Side Idler Rolls
2 Side Idler Roll Cluster
3 Finn Pass Stands
2 Side Idler Rolls
110 Kw (147.5 HP) Forming Motor
75 Kw (100.6 HP) Finn Pass Motor
Welding Part Section:
500 Kw (670 HP) High Frequency Welder
Seam Guide Roll
4 Roll Squeeze Roll Stand
OD Bead Scarfing With 2 Cutting Tools
Ironing Pass
Scrap Winder
Cooling Section:
Cooling Bath
Emulsion Cooling System

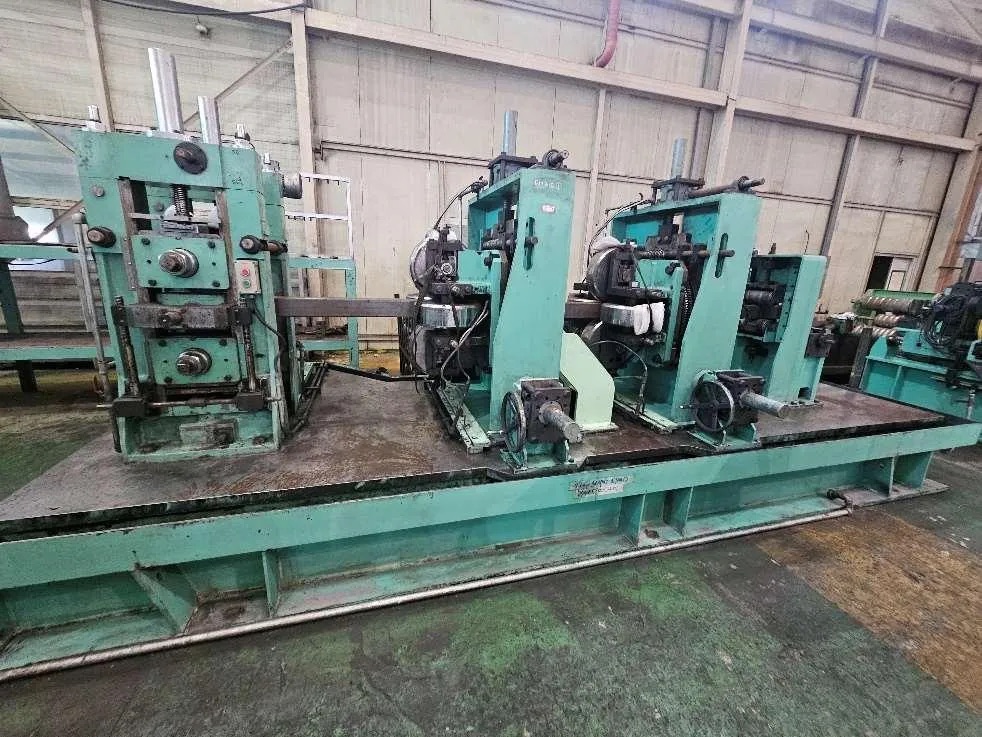

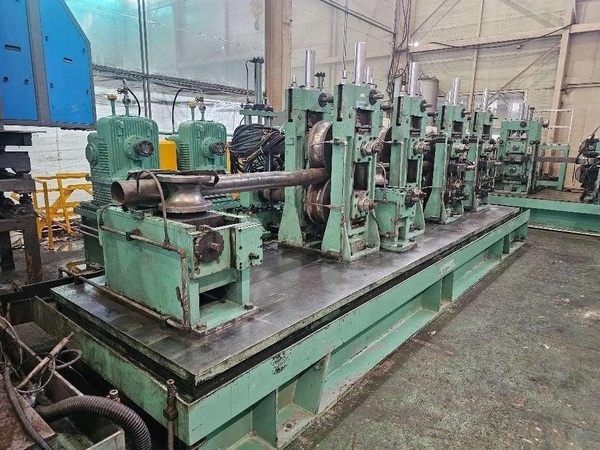

Sizing Mill:
120 mm (4.724”) Diameter Shafts
Twisting Roll Stand
5 Sizing Roll Stands
Measuring Roll Stand
2 Turks Heads
Pull Out Stand
130 Kw (174.3 HP) Drive
Flying Cold Saw Cut Off:
42 Kw (56.3 HP) AC Servo Accelerator Drive
30 Kw (40.2 HP) Saw Motor
4500 mm (177.16”) Saw Travel
Rack & Pinion

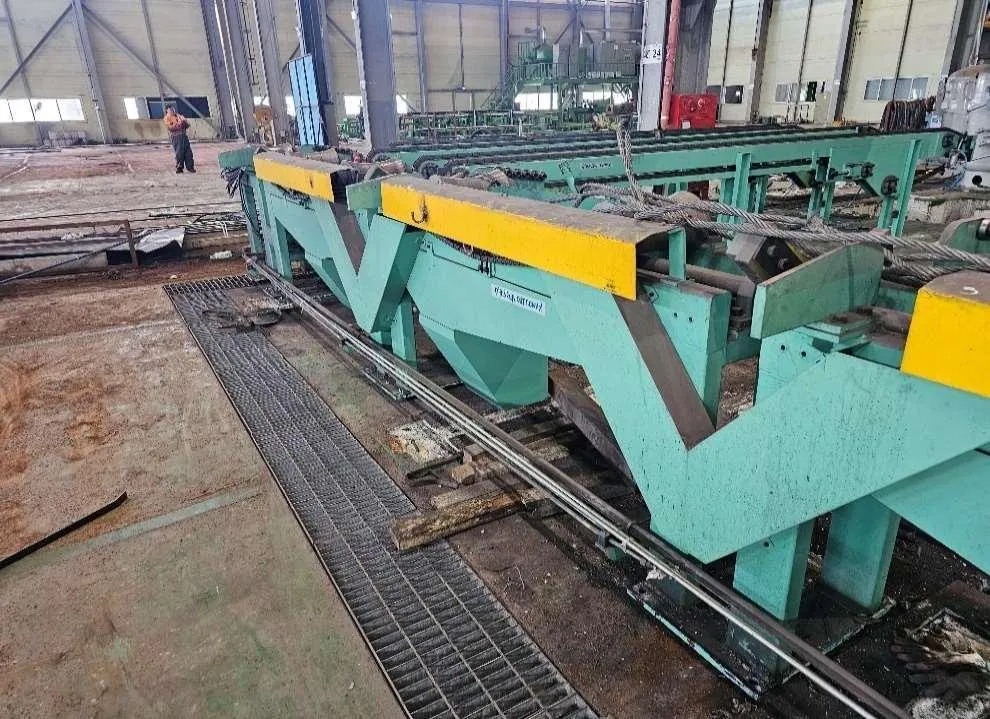

Run Out And Packaging:
Run Out Table
Auto Packing System (Square Tube Only)
Chain Conveyor To Pusher
Lifting Pocket
Exit Chain Conveyor
Strapping Station

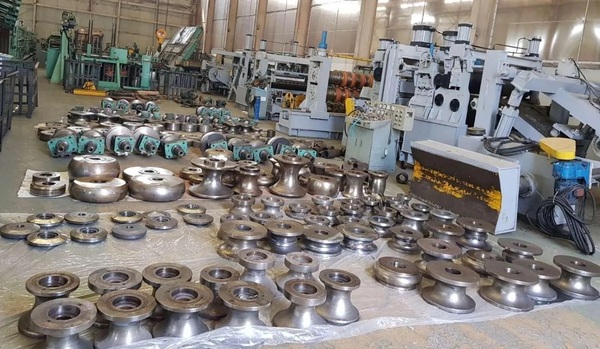

Roll Tooling Included:
Rounds: 101.6 mm (4”), 95.54 mm (3.761”), 114.3 mm (4.500”), 127.38 mm (5”), 139.8 mm (5.504”), 159.23 mm (6.268”), 162.2 mm (6.386”), 191.08 mm (7.523”), 190.7 mm (7.508”)
Squares And Rectangles:
100 mm x 50 mm (3.937” x 1.969”)
100 mm x 100 mm (3.937” x 3.937”)
125 mm x 75 mm (4.921” x 2.953”)
125 mm x 125 mm (4.921” x 4.921”)
150 mm x 100 mm (5.906” x 3.937”)
