Description
Overview
Description
VERY LOW HOURS
Specifications
Equipped With
Type:
Benders
Manufacturer:
HINESModel:
800 NC
Year:
2012
Stock #:
120668
Status:
For Sale
Country:
United States
Description
VERY LOW HOURS
Specifications
| Capacity | 6.625" | 168.27 mm |
Maximum tube diameter: 8" (200mm) OD x .250WT
Maximum pipe diameter: 6" Sch 80 (6.625"OD x .432"WT)
Maximum Square Pipe: 6" x 6" x .250"WT
Maximum Rectangle Pipe (Easy Way): 4" x 8" x .380"WT
Maximum Rectangle Pipe (Hard Way): 4" x 8" x .250"WT
Maximum Centerline radius: 22"
Maximum bend angle: 190°
Maximum tube length over mandrel: 13'
Bending rotation: right hand (clockwise)
Equipped With

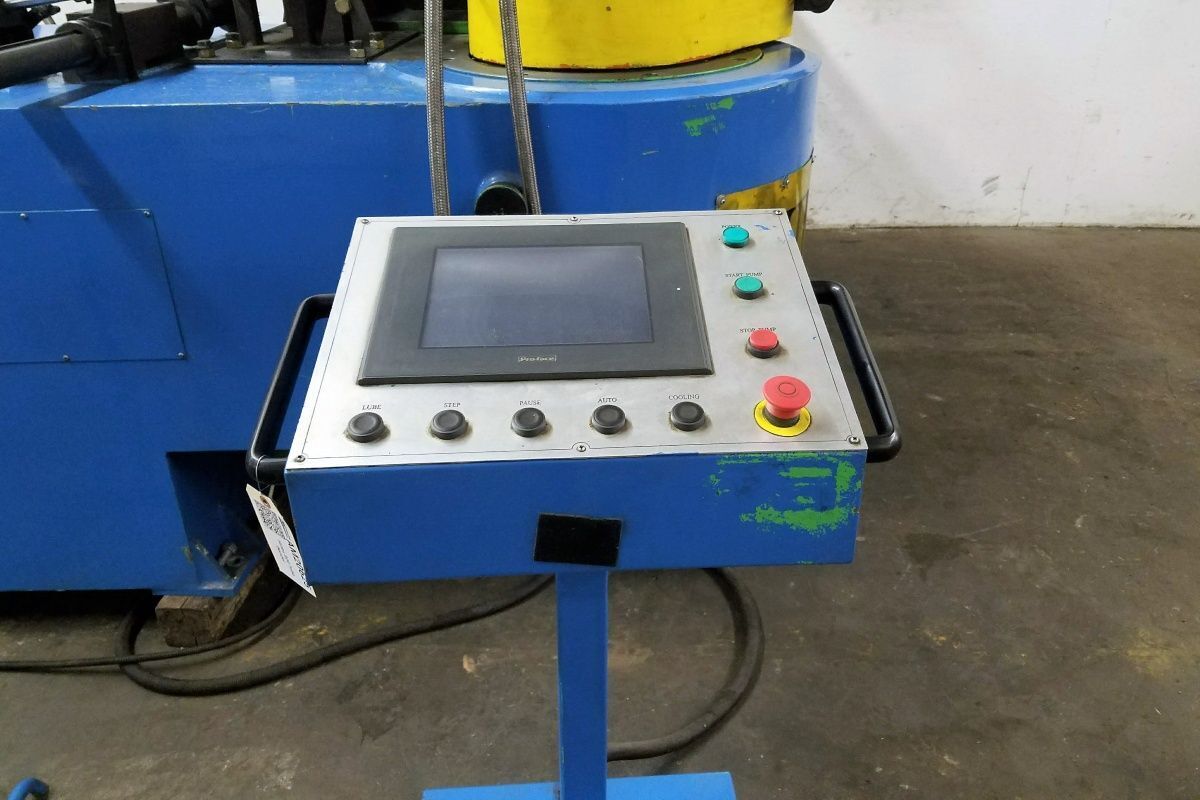

ProFace programmable operator touch screen control
PLC Control for storing parts
Encoder for Degree of bend accuracy

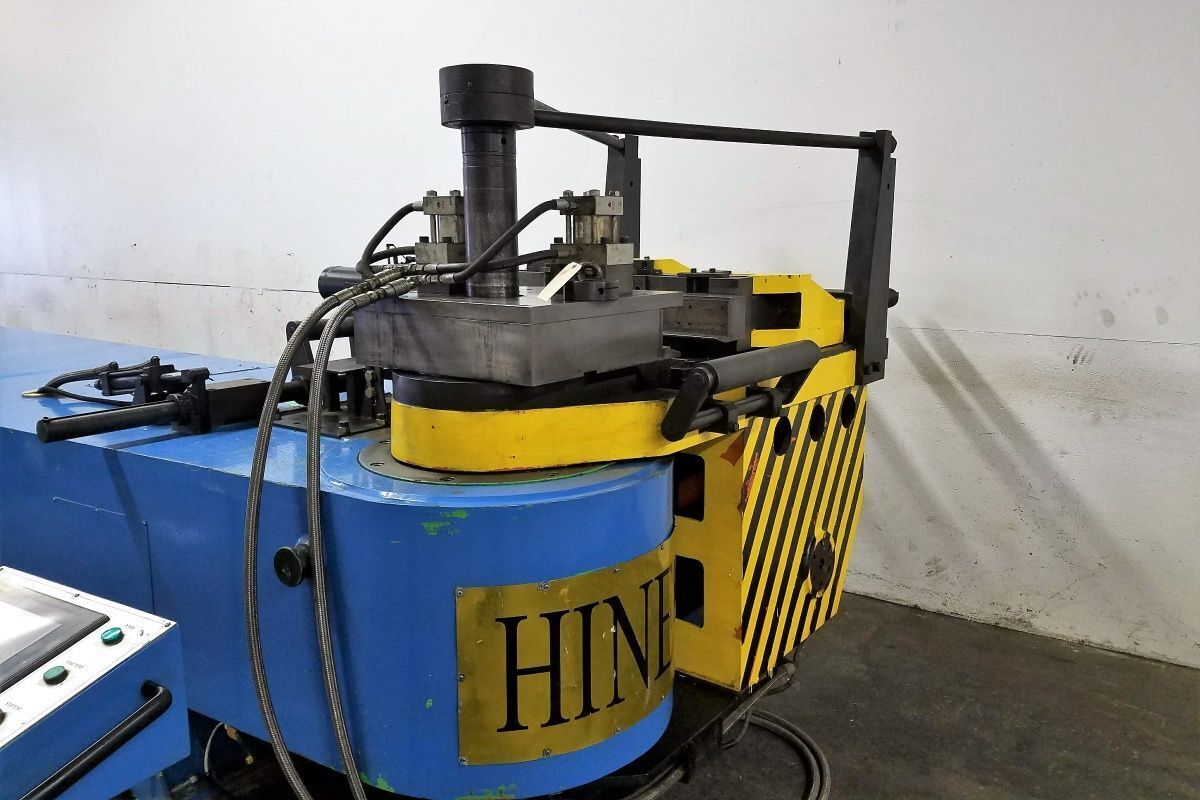

Overhead tie-bars to prevent die-deflection and eliminate wrinkles
Pressure die assist
Hydraulic mandrel extractor
Split-die actuator for non-round parts
Adjustable tube/mandrel support
480 Volt, 60 Hz, 3 Phase Electrics
