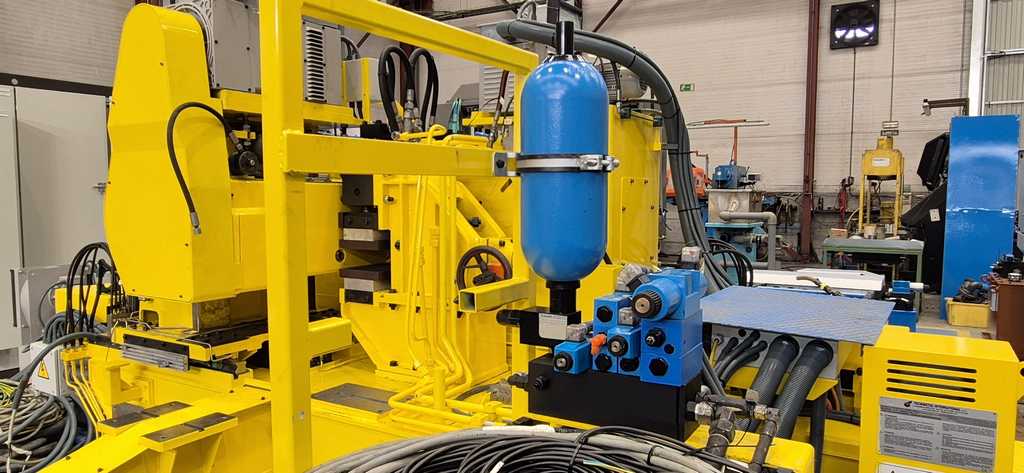

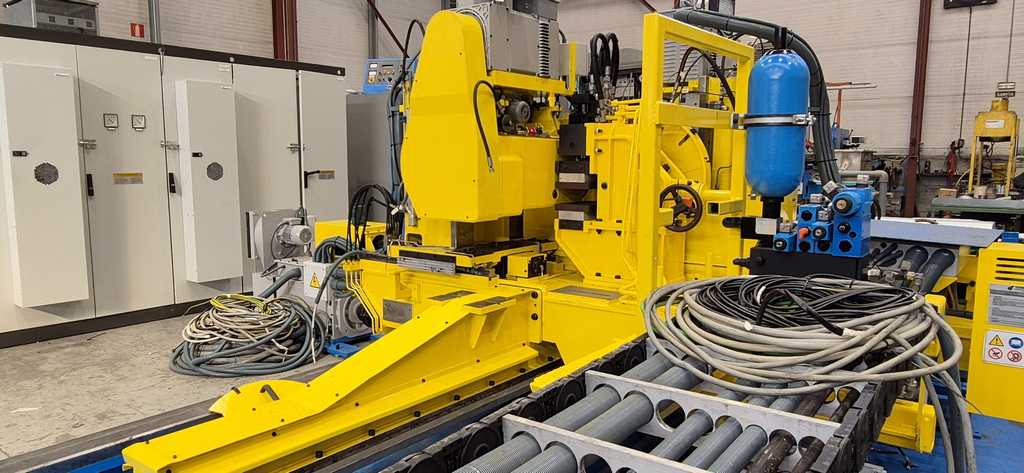

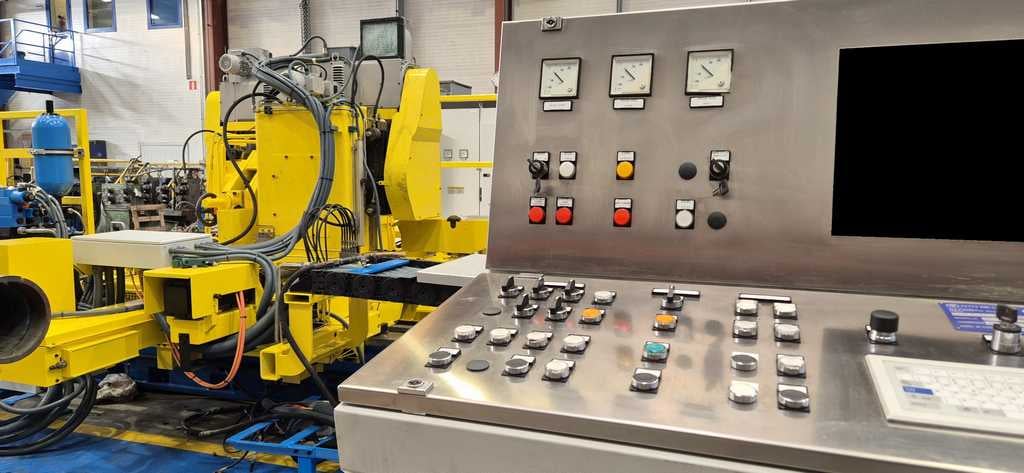

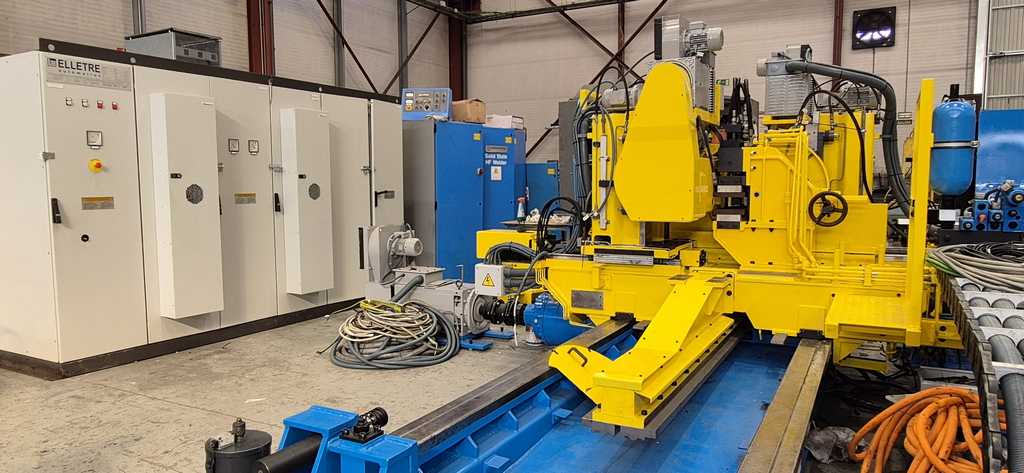

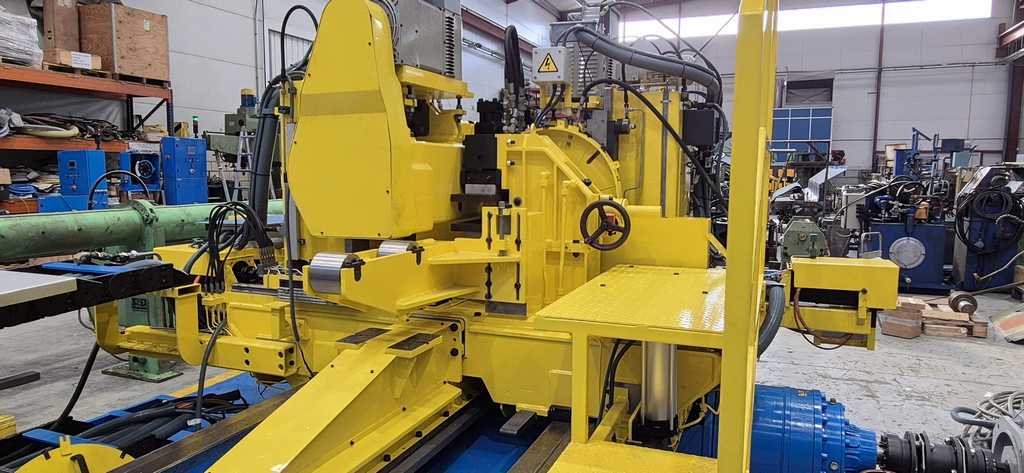

6.61" diameter Tube Cutoff Machine, OTO, Double Blade Slow Milling, 19 KW, 40 V., .3" Thick Capacity

OTO Tube Cutoff Machine

MATERIAL SPECIFICATIONS:
Material: Hot and Cold Rolled Steel, Galvanized
Ultimate Tensile Strength (HSS Blades): 550 N/mm2
Ultimate Tensile Strength (TCT-TCTS Blades: 750 N/mm2
Minimum Material Thickness: 1,5 mm
Maximum Material Thickness: 10 mm

PRODUCTIVITY AND SPEED:
Tube Length: 4000 - 12000 mm
Tube Diameter: 48 - 168,3 mm
Square Tube Range: 50 x 50 - 130 x 130 mm
Rectangular Tube Range: 60 x 40 - 180 x 80 mm
Maximum Line Speed: 90 m/1'
Cutting Length Tolerance: +/- 1.5 mm

FORMING:
Forming Style: Center Line / Bottom Line
Tube Pass Height (Bottom Line): 1050 mm

BLADE:
Type of Saw: Double Blade Slow Milling Hob
Type of Blade: TCTS, HSS, TCT
HSS: High Speed Steel Blade
TCTS: Special Blade of Oto Mills (screwed on inserts)
Maximum Blade Diameter: 550 mm
Maximum Peripheral Speed: 480 m/1'
Maximum Blade Thickness: 4 mm (8 mm for TCTS)

MOTORS AND TRANSMISSIONS:
Blade Motor: 19 + 19 KW
Head Traverse Motor: Brushless 4.2 + 4.2 KW
Carriage Motor: 78.5 KW
Carriage Stroke: 4000 mm
Voltage: 400V - 50 HZ
Carriage Transmission: Rack and Pinion
Protection Rating of Head Motors: IP54
