Description

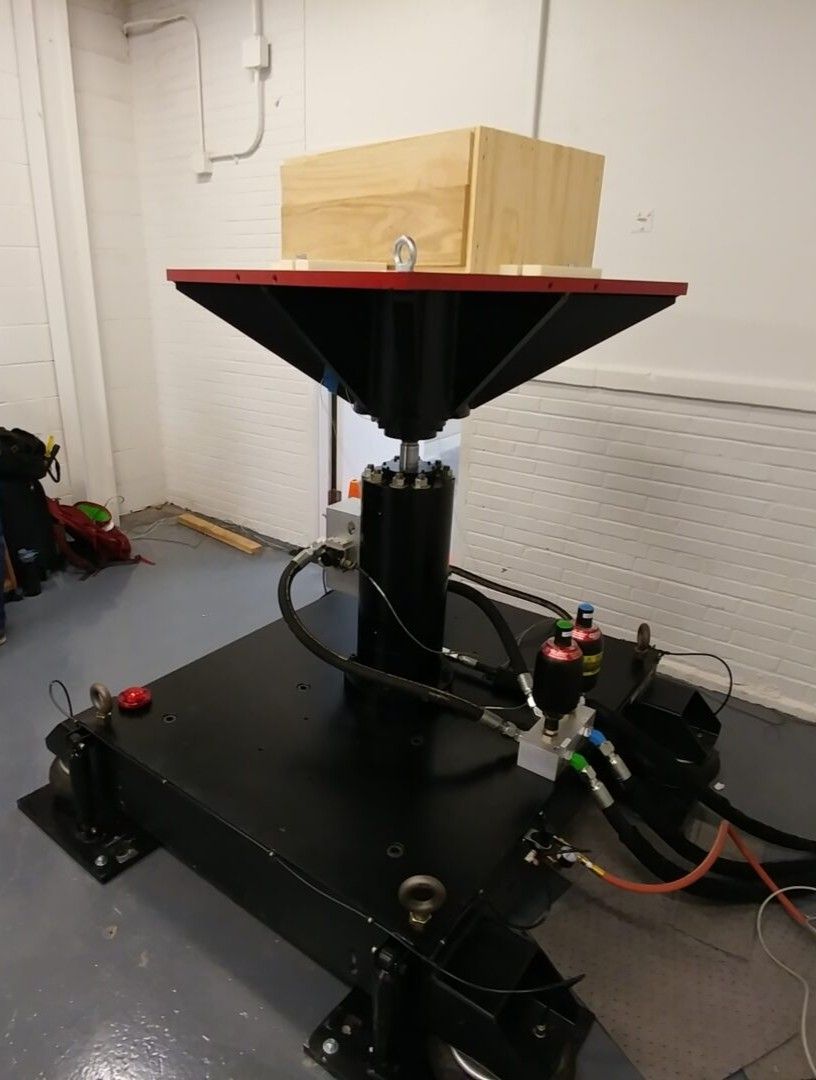

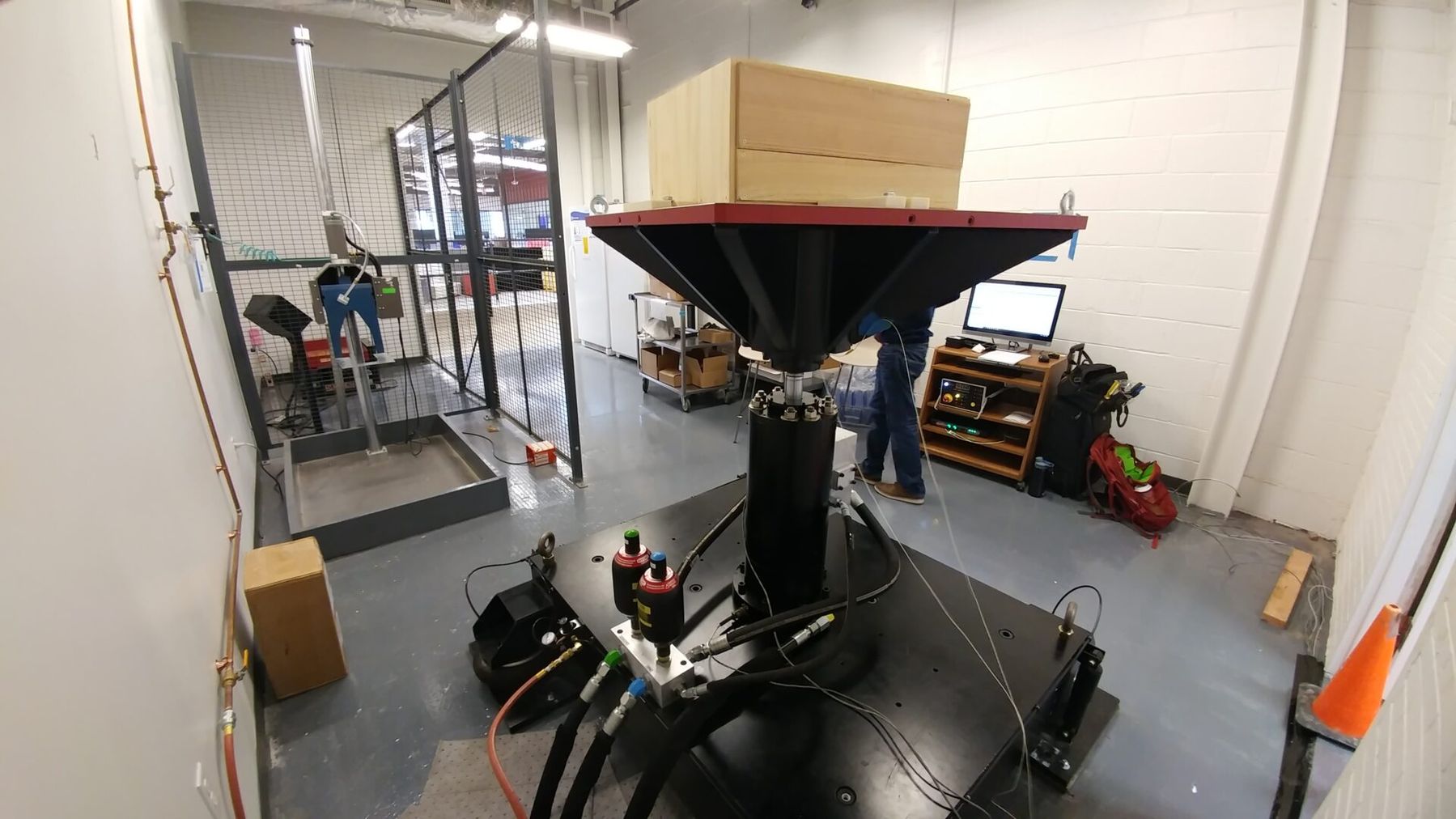

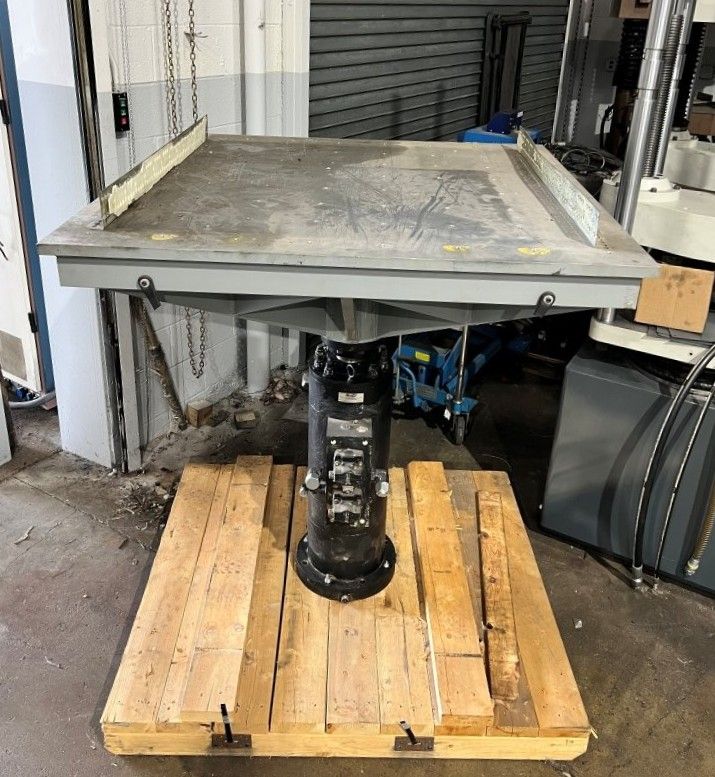

6.6KIP LAB Model 891 Servo Hydraulic Vibration System
Reconditioned LAB Servo Hydraulic Vibration System for ISTA and ASTM Random Vibration Package Testing
ISTA 3A, ISTA 3E, ISTA 6A, 6-Amazon, ASTM D4169
Model Number/Serial Number: 891/41109
Stall Force Capacity: 6,600 lbf
Payload Capacity: 2,000 lbs
Frequency Range: .5 to 500 Hz
Area: 2.25 in^2
Stroke Area (Dynamic): 6"
Working Pressure: 3,000 psi
Servo Valves: Dual MOOG Valves
EQUIPPED WITH:
- New Econ Servo & Vibration Controller for Sine, Random and Shock Vibration Control with Software.
- Computer System with Keyboard & Dell Mouse.
- 24" Flat Screen Color Monitor or Better & Manual
- Microsoft Windows 11 Pro 64 Bit, Workstation.
- 10 GPM Model 3,000 PSI Water Cooled Hydraulic Power Supply
- New Signal Cables & Hydraulic Hoses
- Seismic Base with Air-mount Isolators & Shocks
- 48” x 48” Aluminum Table with Tapped Grid Area
(Larger Table Available Priced Upon Request)
- New PCB Model 352C33, Accelerometer & Signal Cable
- Setup, Calibration and Training at Frank Bacon Machinery
Click to View Video
FOB Warren, MI
Reconditioned & Retrofitted with New Controls
1 Year Parts and Labor Warranty
*Representative Images
| #12682-02
DOWNLOAD SPEC SHEET
