Manufacturer: Troyke

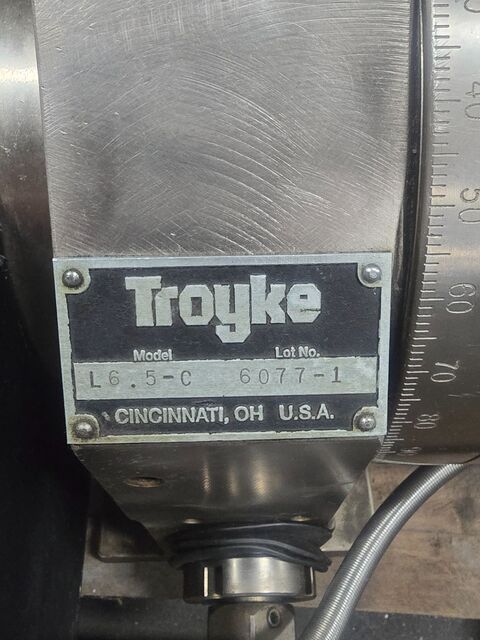

Model: L6.5-C
Diameter: 6.50
Tbl Size/Surface: 6.50
Stock # 2067
Price: $4,200 USD
1 / 10
Click to zoom in
1 / 10
For Sale by Machinery Central
Surplus Record Dealer Since 2020
Location: Louisville, KY
Contact Denis Frankenberger
Phone Number: 502...> Show Phone Number 502-219-7311
Let the seller know you found their listing on Surplus Record!
$4,200 USD
Description
Description:

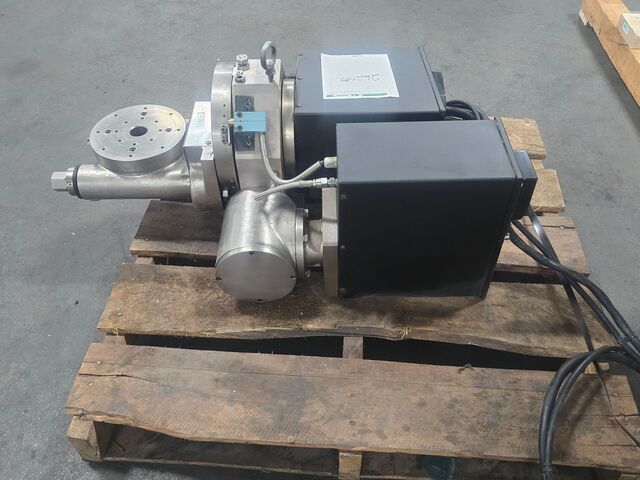

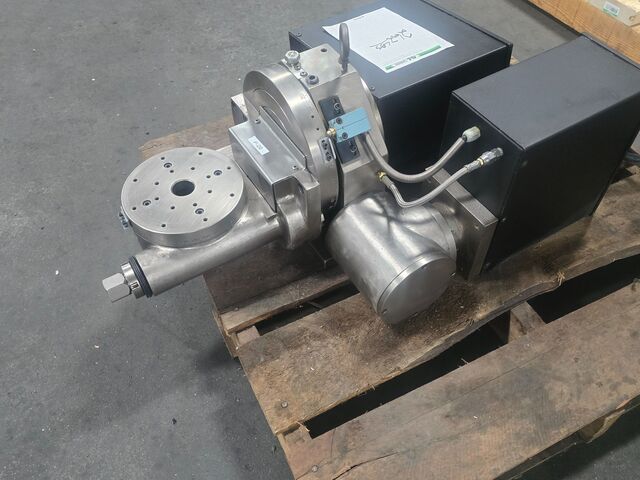

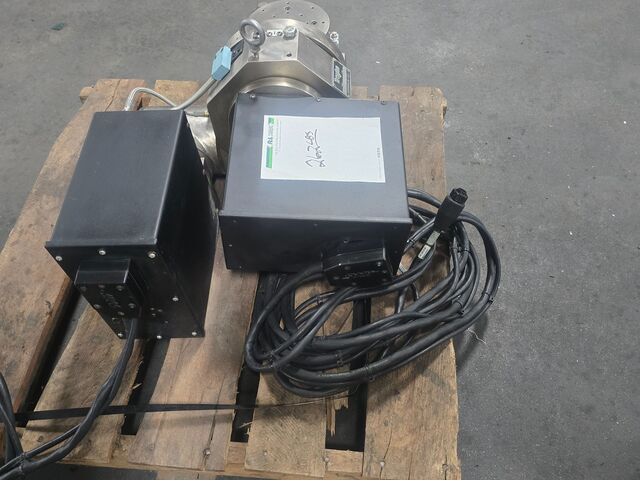

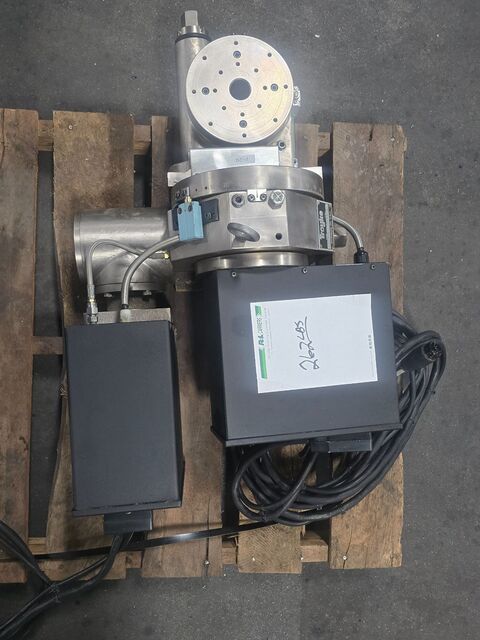

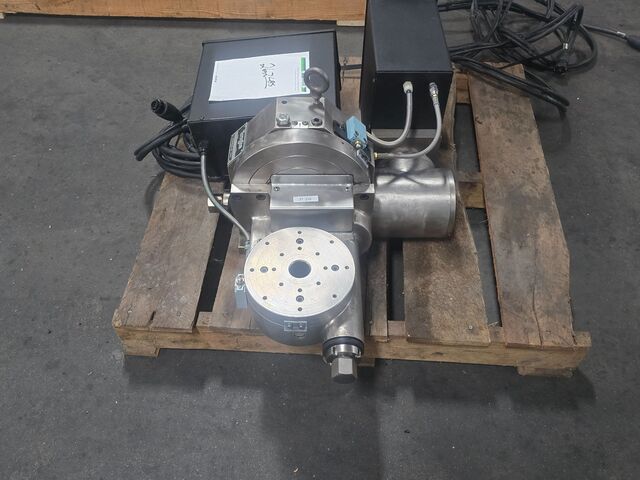

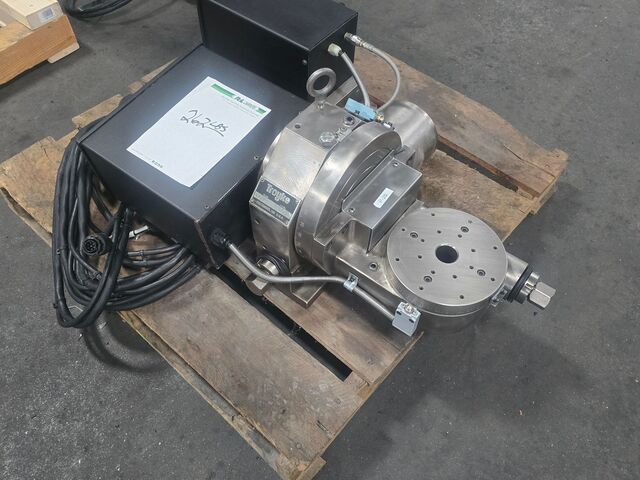

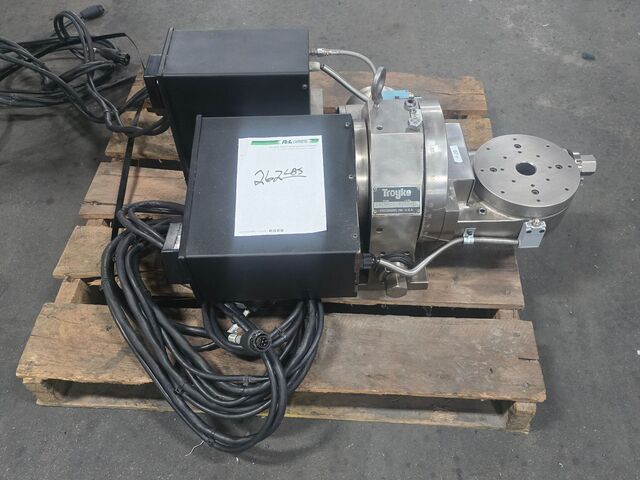

Troyke L6.5-C Rotary Axis Centered on Tilt AxisTroyke L Series indexing rotary and 5th axis tilting rotary tables range in size from 8" to 10" diameters. The L Series Rotary Tables are available as a manual or tilting CNC rotary table to be used on complex 5-axis machining applications. These heavy-duty tilting rotary tables are interfaced to the machine control as a rotary indexer or full 4th and 5th axis, and offer a variety of tooling and work holding options.
Spec Sheet:
Specifications- Rotary Axis:
Turntable Diameter: 6.5
Standard Thru Hole Diameter: 1.181
Maximum Load Capacity: 100lbs
Standard Total Gear Ratio: 80:1
Max. Speed Range (STD Ratio): 0-10 RPM
Continuous Torque LBS-FT: 94
Programmable Resolution: .001 DEG.
STD. Total Angular Accuracy: +/- 60 SEC.
STD. Repeatability: +/- 20 SEC.
Unit Weight LBS: 400
Ship Weight LBS: 475
Specifications- Tilt Axis:
Standard Total Gear Ratio: 240:1
Max. Speed Range (STD Ratio): 0-2 RPM
Brake Method: Pneumatic
Brake Torque @ 100 PSI LBS-FT: 125
STD. Total Angular Accuracy: +/- 60 SEC.
STD Repeatability: +/- 30 SEC.

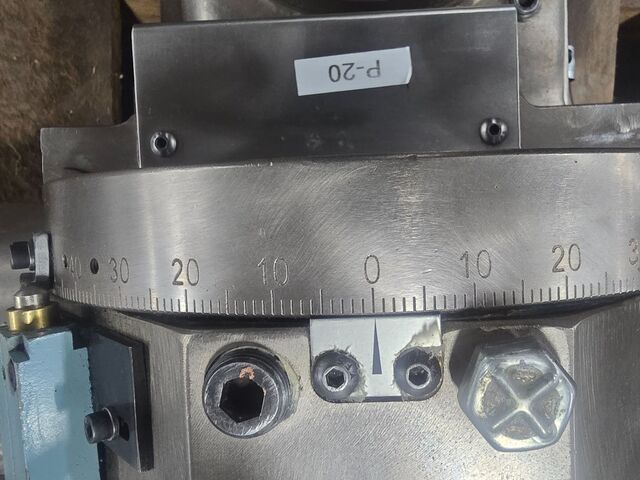

Maximum Tilt Axis Travel: +100/-20 DEG.
Troyke L6.5-C Rotary Axis Centered on Tilt AxisTroyke L Series indexing rotary and 5th axis tilting rotary tables range in size from 8" to 10" diameters. The L Series Rotary Tables are available as a manual or tilting CNC rotary table to be used on complex 5-axis machining applications. These heavy-duty tilting rotary tables are interfaced to the machine control as a rotary indexer or full 4th and 5th axis, and offer a variety of tooling and work holding options.
Spec Sheet:
Specifications- Rotary Axis:
Turntable Diameter: 6.5
Standard Thru Hole Diameter: 1.181
Maximum Load Capacity: 100lbs
Standard Total Gear Ratio: 80:1
Max. Speed Range (STD Ratio): 0-10 RPM
Continuous Torque LBS-FT: 94
Programmable Resolution: .001 DEG.
STD. Total Angular Accuracy: +/- 60 SEC.
STD. Repeatability: +/- 20 SEC.
Unit Weight LBS: 400
Ship Weight LBS: 475
Specifications- Tilt Axis:
Standard Total Gear Ratio: 240:1
Max. Speed Range (STD Ratio): 0-2 RPM
Brake Method: Pneumatic
Brake Torque @ 100 PSI LBS-FT: 125
STD. Total Angular Accuracy: +/- 60 SEC.
STD Repeatability: +/- 30 SEC.
Maximum Tilt Axis Travel: +100/-20 DEG.
Inquire Further with Machinery Central!
